    B17642 Floor Mounted Stainless Steel Toilet with Back-Entry Flush Inlet

    The B17642 Floor Mounted Stainless Steel Toilet with Back-Entry Flush Inlet is a vandal-resistant, hygienic, and heavy-duty toilet pan for high-traffic environments. Features a 102mm OD outlet for 110mm PVC soil pipe connections, integral flushing rim, and compatibility with a range of flushing systems. Toilet seats and flush options available upon request.

    From: R2,985.00 Excl. VAT

    Add to quote

    Lead Time:

    ± 10-15 working days

    This product is manufactured to order. If you have any questions about the lead time for a specific configuration or quantity, please don't hesitate to contact our team. We're happy to help!

    SKU: B17642 Categories: , ,

    Country of Origin: Manufactured in Johannesburg, South Africa

    The B17642 Floor Mounted Stainless Steel Toilet with Back-Entry Flush Inlet is a high-strength, hygienic, and vandal-resistant toilet pan designed for demanding public-use environments. Constructed from 1.2mm thick Grade 304 stainless steel, this robust unit is ideal for schools, correctional facilities, nightclubs, public ablutions, and other high-traffic settings.

    Its seamless, one-piece construction features smooth radius edges for enhanced user comfort and hygiene. The brushed satin finish delivers a tamper-resistant, easy-to-clean surface. Suitable for both retrofit and new installations, it includes seat-mounting holes for standard toilet seats.

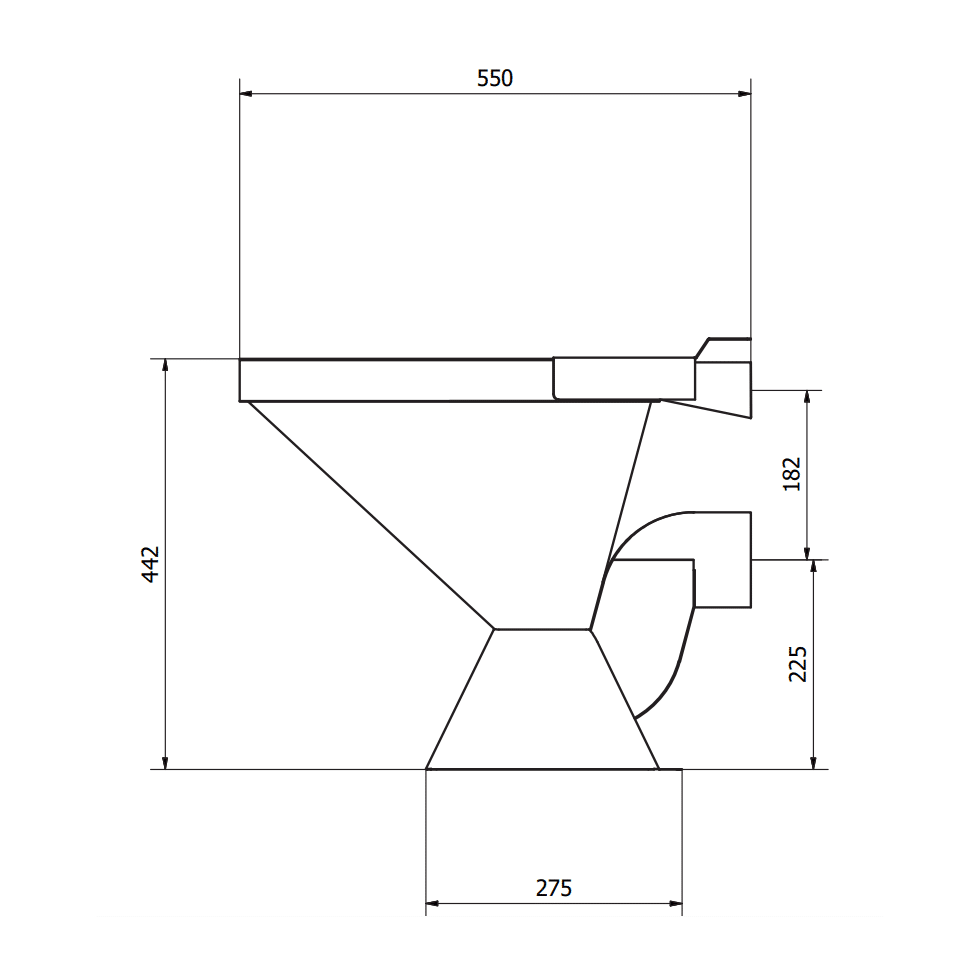

    The pedestal is securely floor-mounted via pre-drilled 6mm holes in the base flanges. It is available in P-Trap (horizontal outlet) and S-Trap (vertical outlet) variants, each with a 102mm outside diameter outlet suitable for direct connection to 110mm PVC soil pipes.

    An integral flushing rim ensures efficient waste removal, while the back-entry flush pipe inlet (compatible with rubber sealing bungs) supports various flushing systems, including surface-mounted, low-level, and high-level cisterns (in plastic or stainless steel), or flush valves.

    Toilet seats and flushing systems are available upon request and must be specified.

    Specifications

    • Material: Grade 304 Stainless Steel

    • Gauge: 1.2mm

    • Mounting: Floor-mounted via 6mm pre-drilled flange holes

    • Trap Type: P-Trap (horizontal outlet) or S-Trap (vertical outlet) – to be specified

    • Waste Outlet: 102mm OD (suitable for connection to 110mm PVC soil pipe)

    • Flushing: Integral flushing rim with rear/back-entry flush pipe inlet

    • Flushing Compatibility: Surface-mounted, low-level, high-level cisterns (plastic or stainless steel), or flush valve systems

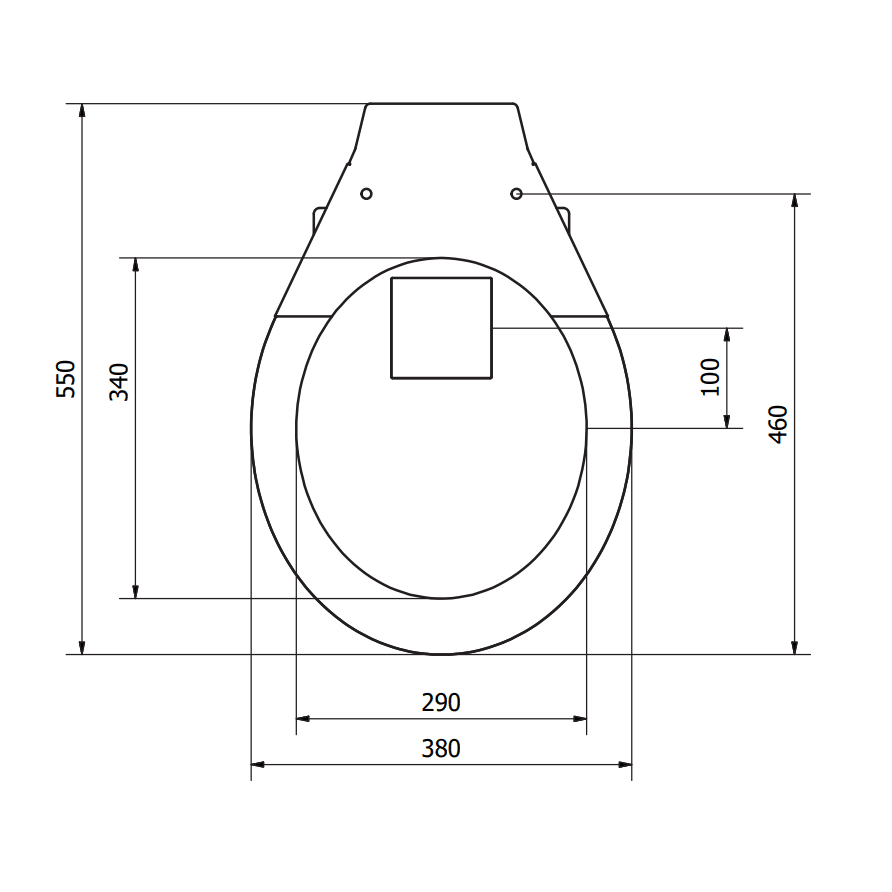

    • Toilet Seat Mounting: Standard seat holes provided

    • Finish: Brushed satin

    • Extras: Toilet seats and flushing systems available on request

    Short Form Specification

    WC Pan shall be B17642 Floor Mounted Stainless Steel Toilet with Back-Entry Flush Inlet, manufactured from 1.2mm thick Grade 304 Stainless Steel, with integral flushing rim and rear-entry flush pipe inlet. Unit shall be floor-mounted via 6mm pre-drilled base flange holes. Trap type (P-Trap or S-Trap) shall be specified. Waste outlet shall be 102mm outside diameter, suitable for direct connection to 110mm PVC soil pipes. Toilet seat and flushing system shall be specified. Suitable for vandal-prone and high-traffic installations.

    Locally Manufactured

    Proudly manufactured in South Africa

    Quick Production

    Typical lead times of 10 - 15 working days

    Product Customisations

    Custom product specifications available
