R4,962.00 Excl. VAT
B17655(PB) Shrouded Floor Mounted Stainless Steel Toilet P-Trap Back Entry
Heavy-duty floor and wall-mounted shrouded stainless steel toilet pan with back entry flush inlet and integral P-trap outlet. Made from 1.2mm thick Grade 304 stainless steel, suitable for correctional and high-use public facilities.
Lead Time:
± 10-15 working days
Country of Origin:Â Manufactured in Johannesburg, South Africa

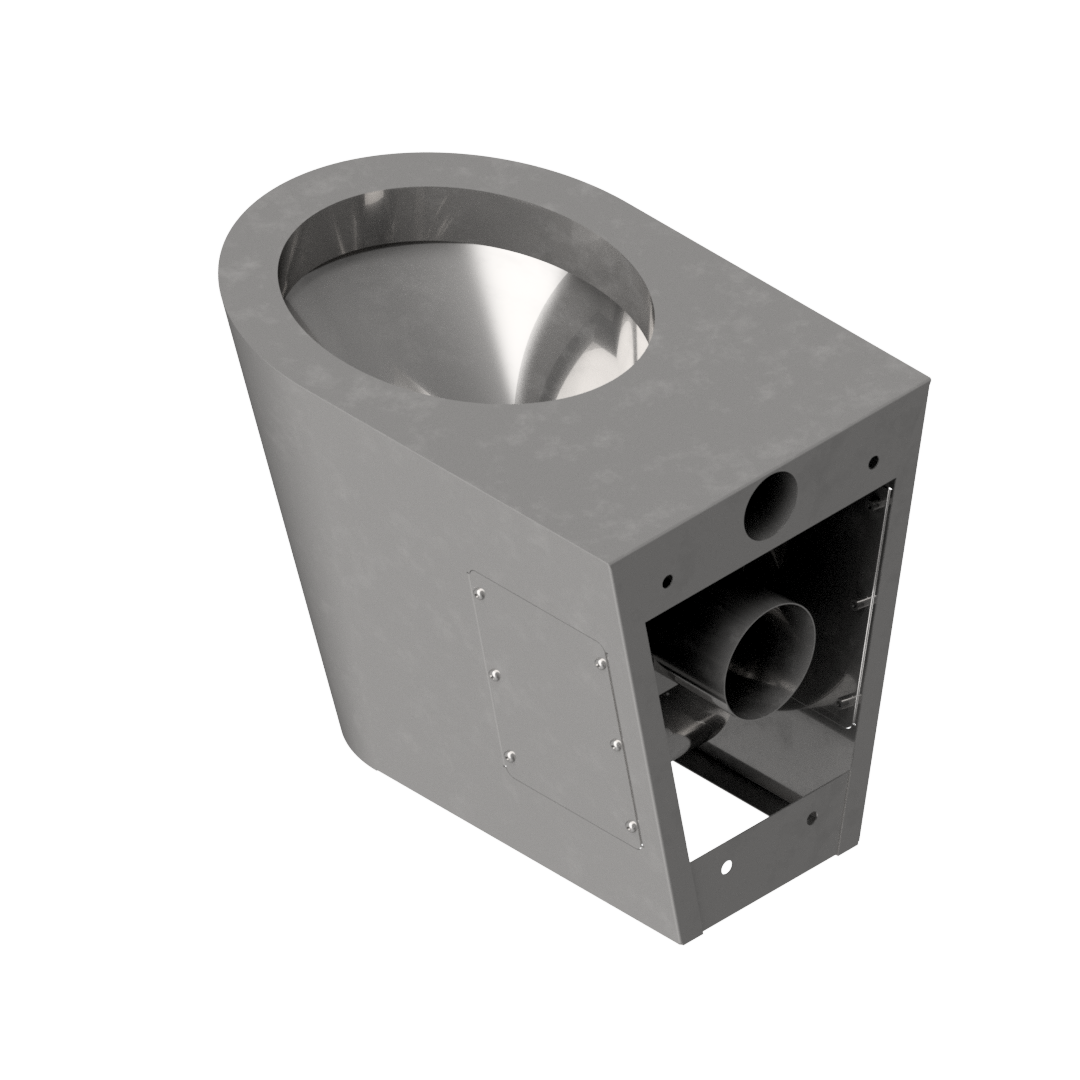

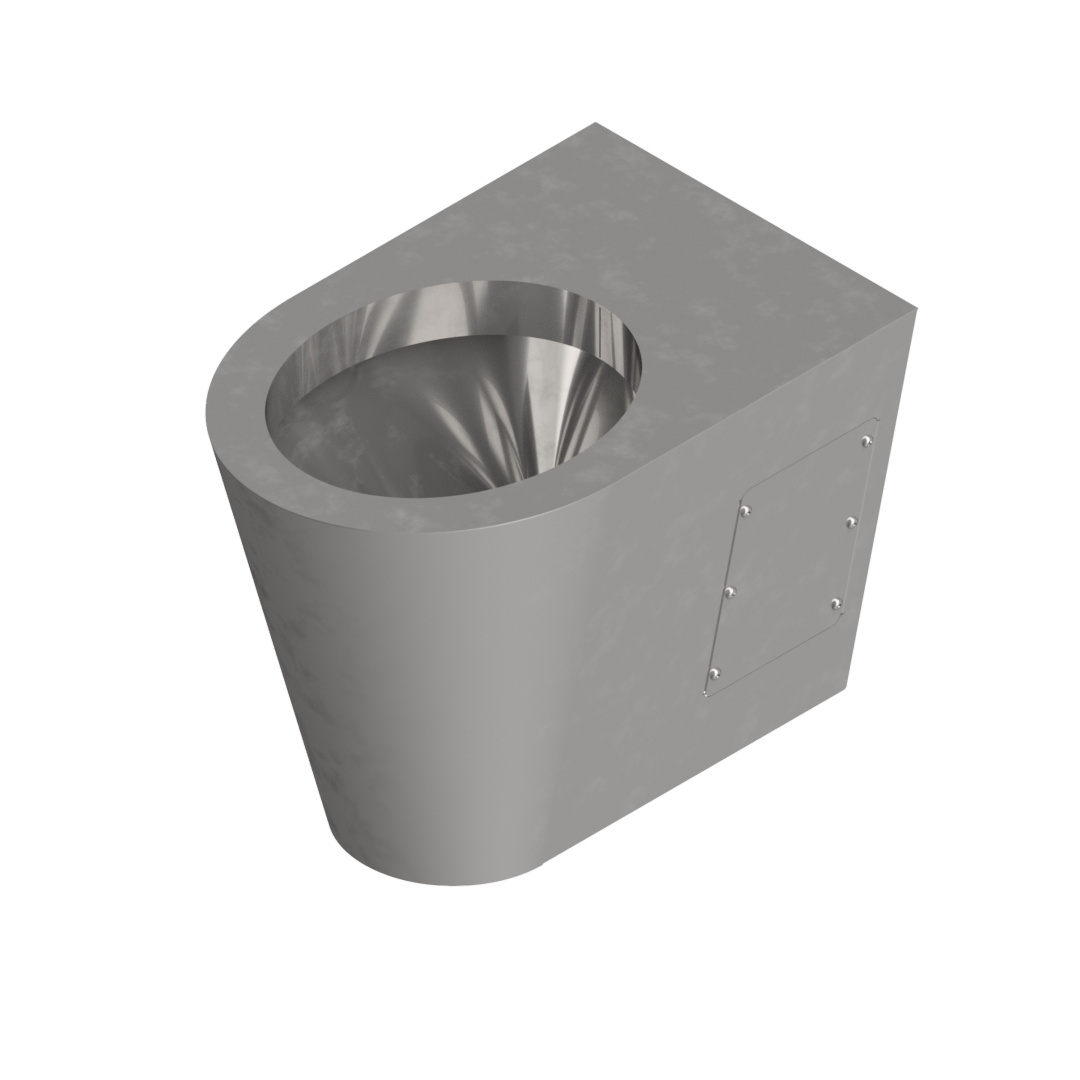

The B17655(PB) Shrouded Stainless Steel Toilet Pan is a heavy-duty, floor and wall-mounted sanitary fixture designed for high-security and high-traffic environments such as correctional facilities and public amenities. Constructed from 1.2mm thick Grade 304 (18/10) satin stainless steel, it features a fully shrouded, easy-to-clean design with pressed contours and rounded safety edges to minimize tampering and injury risk.
It incorporates a concealed flushing rim and an integrated P-trap with a 102mm outlet suitable for standard 110mm sewer connections. The back entry inlet is designed to suit concealed cistern or flush valve systems. The pan is secured with internal mounting flanges—rear and floor-mounted—with 12mm diameter holes for M10 security bolts. Removable access panels on both sides are fastened using button head security screws with hex inserts, providing ease of maintenance without compromising security.
An optional feature includes pre-drilled mounting holes for a standard toilet seat (must be specified at order). Designed and manufactured in South Africa, the B17655(PB) delivers durability, hygiene, and reduced maintenance costs in challenging environments.
Specifications
Material: Grade 304 (18/10) satin stainless steel
Thickness: 1.2mm heavy gauge
Design: Fully shrouded with pressed internal bowl
Flush System: Concealed rim flush with back entry inlet
Trap: Integral P-trap, 102mm outlet (fits 110mm PVC/cast iron systems)
Mounting: Floor and wall-mounted with internal Ø12mm fixing holes (M10 bolts)
Access Panels: Dual side panels secured with button head hex insert security screws
Safety: Rounded edges for user safety in secure environments
Seat Mounting: Optional standard toilet seat holes (must be specified)
Finish: Satin polished surface for hygiene and easy cleaning
Applications: Ideal for correctional facilities, holding cells, and vandal-prone areas
Short Form Specification
Floor and wall-mounted, shrouded WC pan in 1.2mm Grade 304 (18/10) stainless steel with concealed flush rim and integrated P-trap (102mm outlet for 110mm systems). Satin finish. Rear and floor internal flanges with Ø12mm holes for M10 fixing. Includes side access panels with hex security screws. Back entry flush inlet. Optional seat mounting holes available. Designed and manufactured in South Africa.
Locally Manufactured
Proudly manufactured in South Africa
Quick Production
Typical lead times of 10 - 15 working days
Product Customisations
Custom product specifications available
