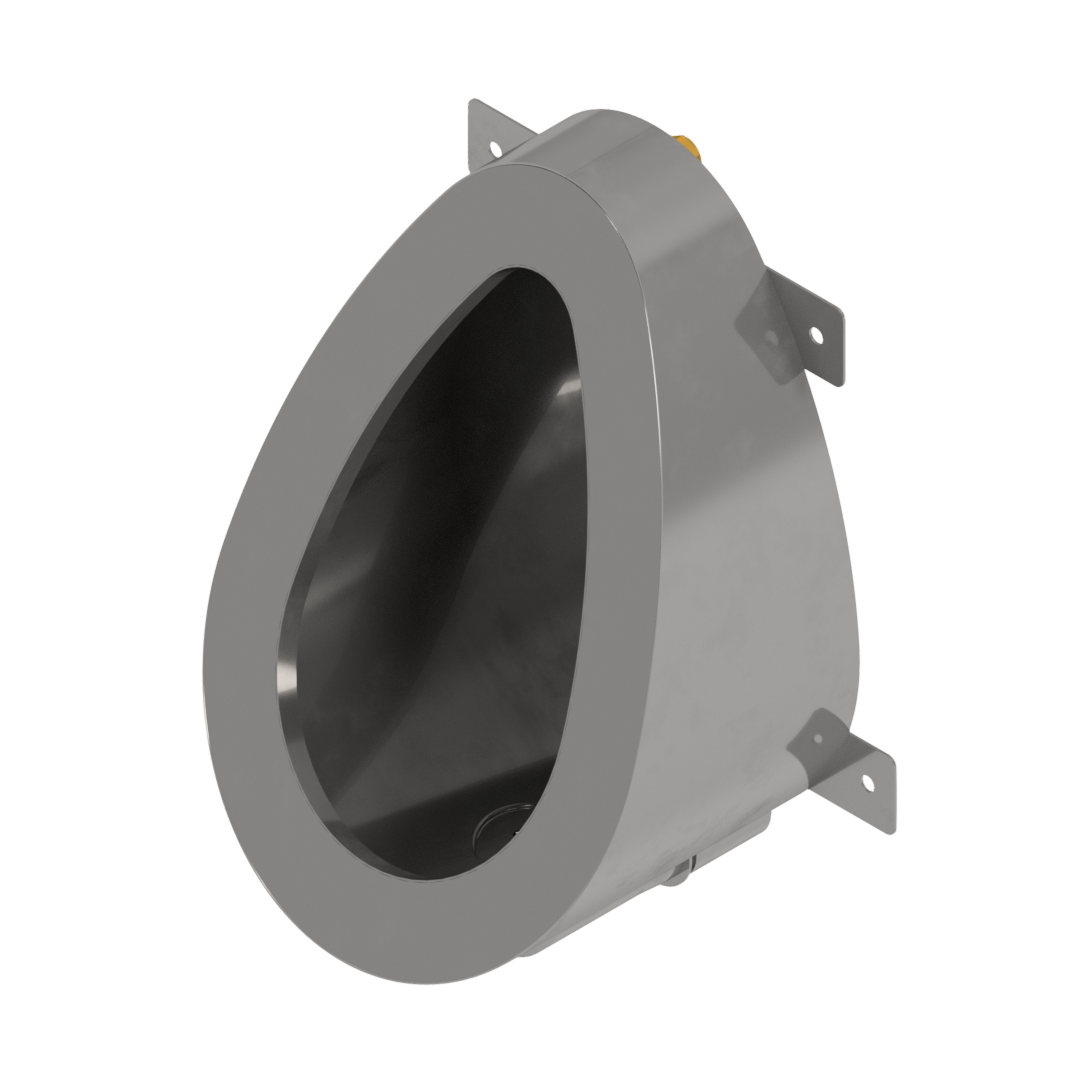

B17745(BS) Security Bowl Urinal Back Entry

The B17745(BS) Security Bowl Urinal Back Entry is a high-security, vandal-resistant stainless steel fixture designed for environments requiring maximum durability, hygiene, and tamper resistance. It is ideally suited for correctional facilities, police holding cells, public restrooms, educational institutions, transport hubs, and other areas exposed to high traffic or deliberate misuse.

Constructed from Grade 304 stainless steel, the urinal features a joint-free, one-piece construction that eliminates crevices and seams where bacteria and residue could accumulate. Its radiused internal corners enable effortless cleaning and maintain strict hygiene standards. The reinforced front rim adds significant structural strength and resistance to impact, making it ideal for institutional and security applications.

The unit is supplied with a back-entry brass flush coupling suitable for connection to a concealed flush pipe or flush valve. An integrated flush spreader ensures full and efficient coverage of the bowl for water economy and effective rinsing. The welded-in perforated stainless steel waste outlet is non-removable, preventing tampering or concealment of objects, whilst maintaining effective drainage.

For concealed plumbing, the unit incorporates a 40mm integral stainless steel waste outlet extended to the rear, allowing connection to a PVC trap and sewerage system within the wall cavity. (PVC trap and plumbing fittings supplied separately.)

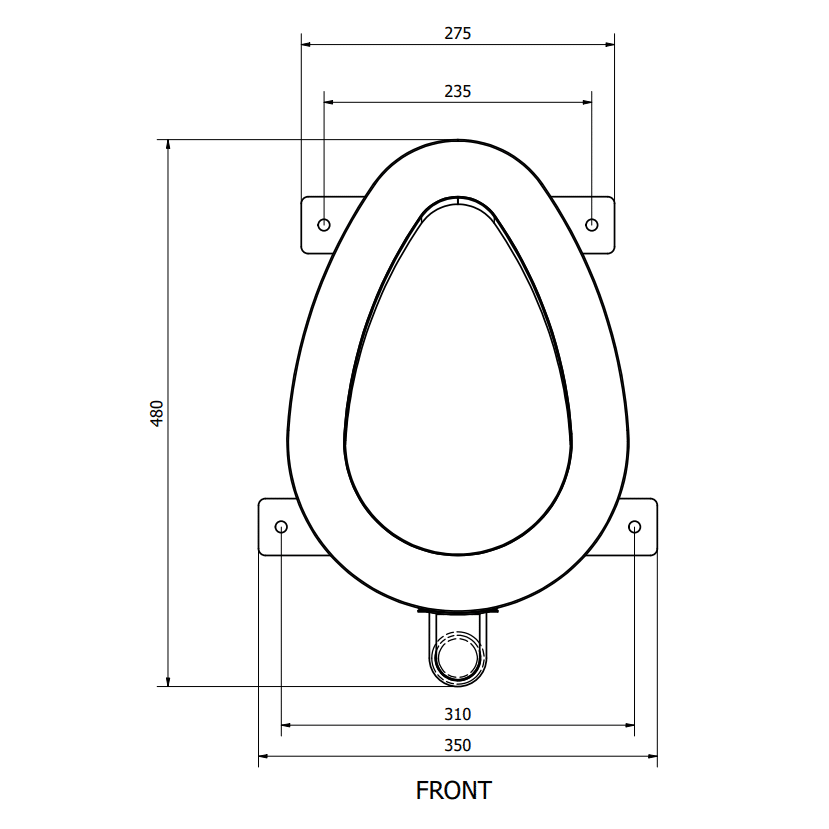

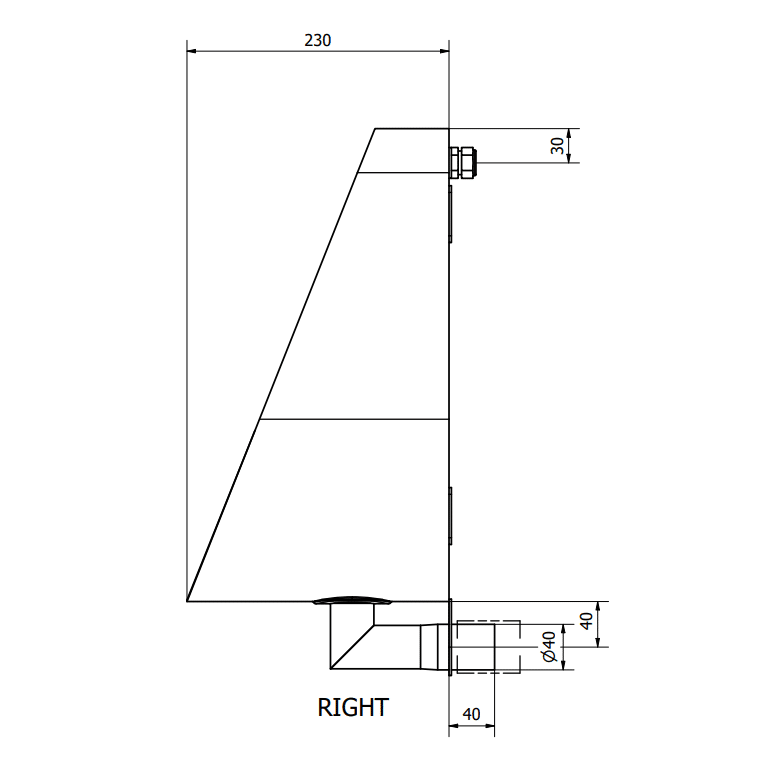

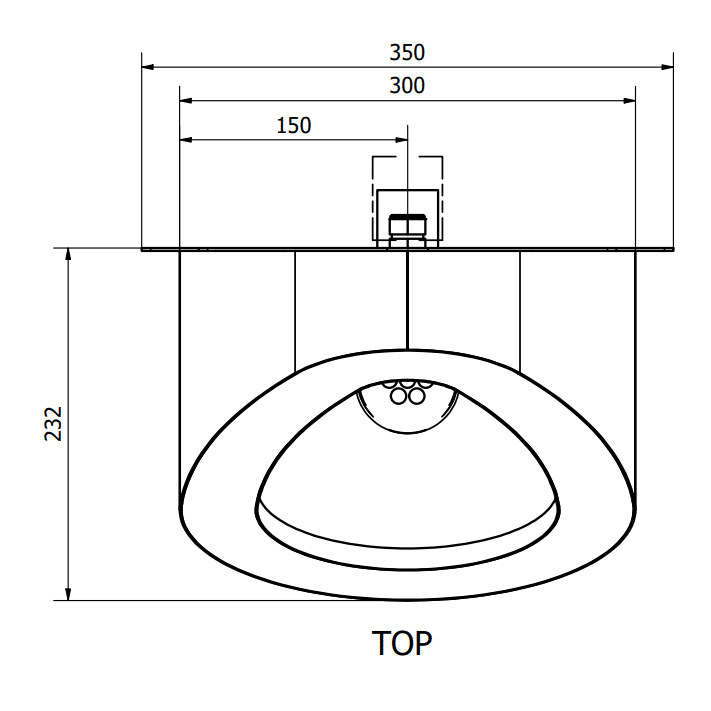

Installation is via integral mounting lugs with pre-punched Ø10mm bolt holes, designed to be plastered over after fixing to prevent access to bolts and maintain a clean, tamper-proof installation. The urinal measures 350mm (L, including lugs) x 300mm (W, excluding lugs) x 232mm (front-to-back) x 480mm (H).

With its fully welded, heavy-duty construction and concealed fittings, the B17745(BS) delivers long-term reliability, excellent hygiene, and superior resistance to vandalism in demanding security and public sector environments.
