From: R2,799.00 Excl. VAT
Home / Medical & Healthcare Equipment / Hospital Sanitaryware / Hospital Sinks / Hospital Hand Wash Basins / B22328(G1) Medical Basin Stainless Steel with Extended Splashback
B22328(G1) Medical Basin Stainless Steel with Extended Splashback

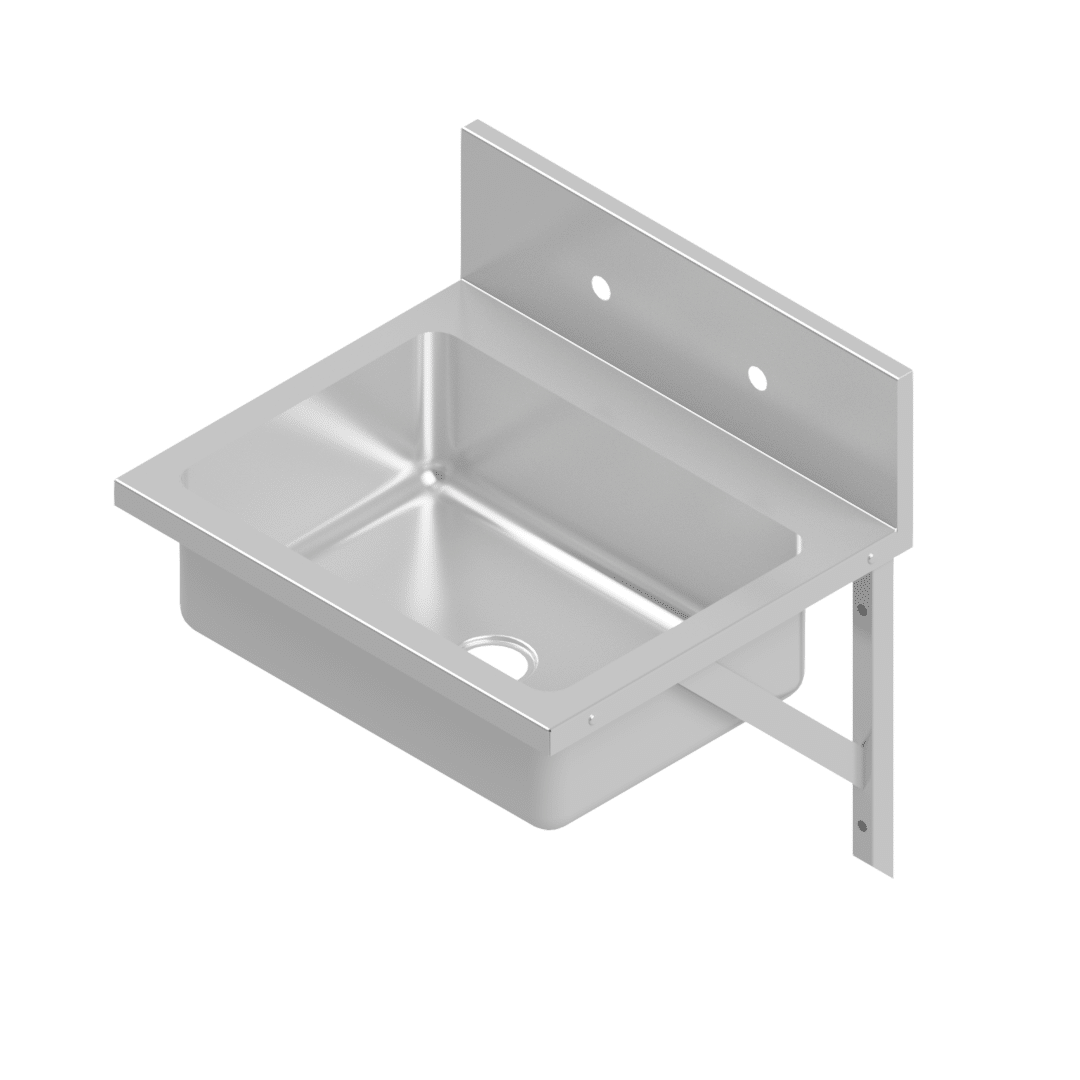

The Basterfield B22328(G1) Medical Basin is a premium 1.2mm thick Grade 304 stainless steel single bowl basin measuring 500mm (L) x 420mm (W) x 500mm (H). Features include a 150mm extended splashback, pre-punched tapholes for elbow-operated mixers (180mm centres), 40mm waste outlet, and radiused corners for superior hygiene. Wall-mounted via gallows brackets with optional floor support legs, it’s ideal for hospitals, clinics, laboratories, and healthcare facilities requiring stringent infection control.
Lead Time:
± 10-15 working days
SKU:
B22328
Categories: Hospital Hand Wash Basins, Medical Basins
Country of Origin:Â Manufactured in Johannesburg, South Africa
The Basterfield B22328(G1) Medical Basin represents the pinnacle of hygiene-focused design for healthcare environments. Manufactured from premium Grade 304 stainless steel with 1.2mm thickness, this single bowl medical basin delivers exceptional durability and corrosion resistance whilst maintaining the stringent cleanliness standards required in medical facilities. The smooth, non-porous surface with radiused corners eliminates bacterial harbourage points, ensuring superior infection control. The integrated extended splashback provides comprehensive water containment, protecting surrounding walls and maintaining a hygienic workspace essential for medical procedures and handwashing protocols.
Precisely engineered with overall dimensions of 500mm (L) x 420mm (W) x 500mm (H), this medical basin features a generously proportioned bowl measuring 440mm (L) x 310mm (W) x 150mm (D), providing ample space for thorough hand washing and medical procedures. The 150mm high extended splashback offers superior protection against water splashes, whilst the 26mm turndown on all edges ensures smooth, safe surfaces. Pre-punched tapholes are configured with 180mm hole pitch centres and 22mm diameter openings, specifically designed to accommodate elbow-operated medical mixers for hands-free operation. The basin incorporates a 40mm waste outlet for efficient drainage, ensuring rapid water evacuation to maintain hygiene standards.
Installation versatility is achieved through robust 25mm square tubular gallows brackets featuring 10mm diameter pre-punched mounting holes for secure wall fixing. Optional front support legs with adjustable feet enable precise floor levelling, accommodating uneven surfaces whilst maintaining stability. This medical basin is ideally suited for hospitals, clinics, dental surgeries, veterinary practices, laboratories, and pharmaceutical facilities where hygiene is paramount. The design complies with healthcare facility requirements and infection control protocols, making it an essential fixture for any medical or laboratory environment demanding the highest standards of cleanliness and functionality.
Specifications
- Material: Grade 304 stainless steel construction, 1.2mm thickness

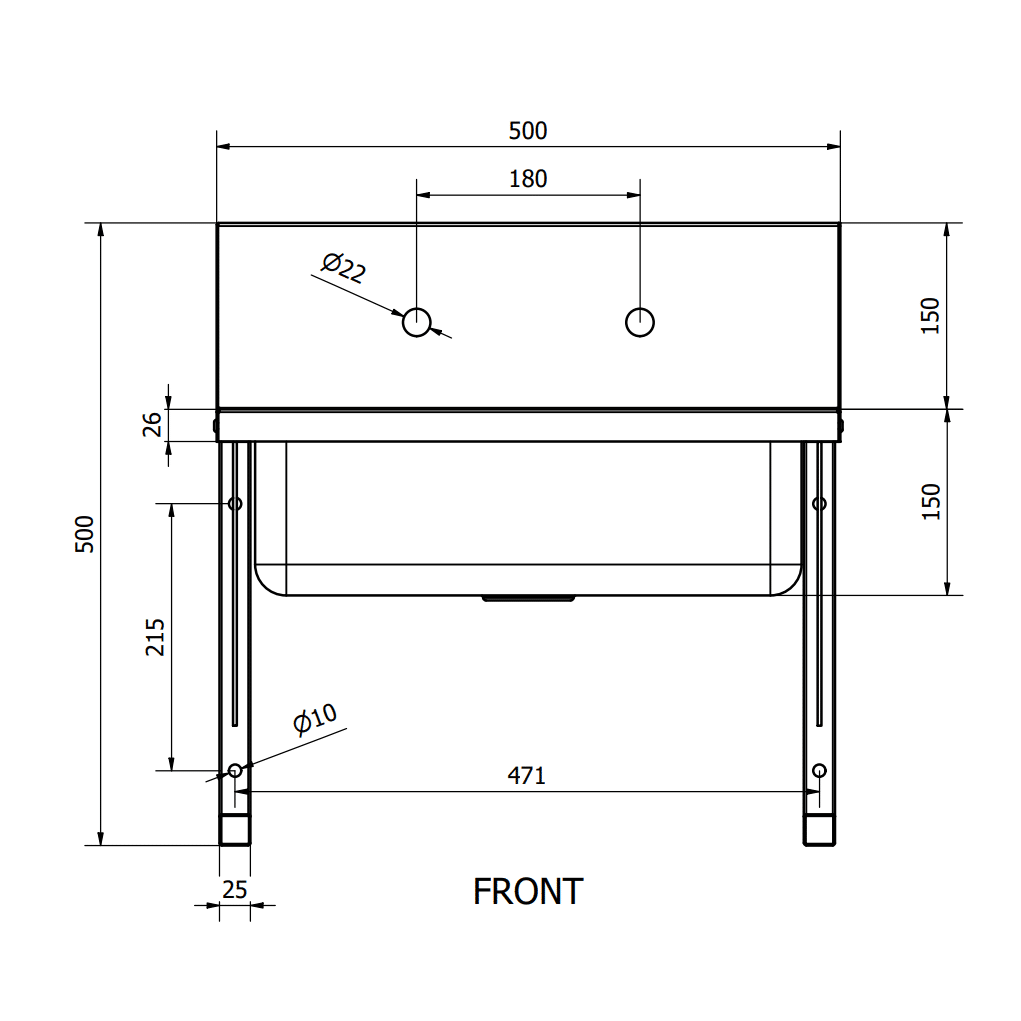

- Overall Dimensions: 500mm (L) x 420mm (W) x 500mm (H)

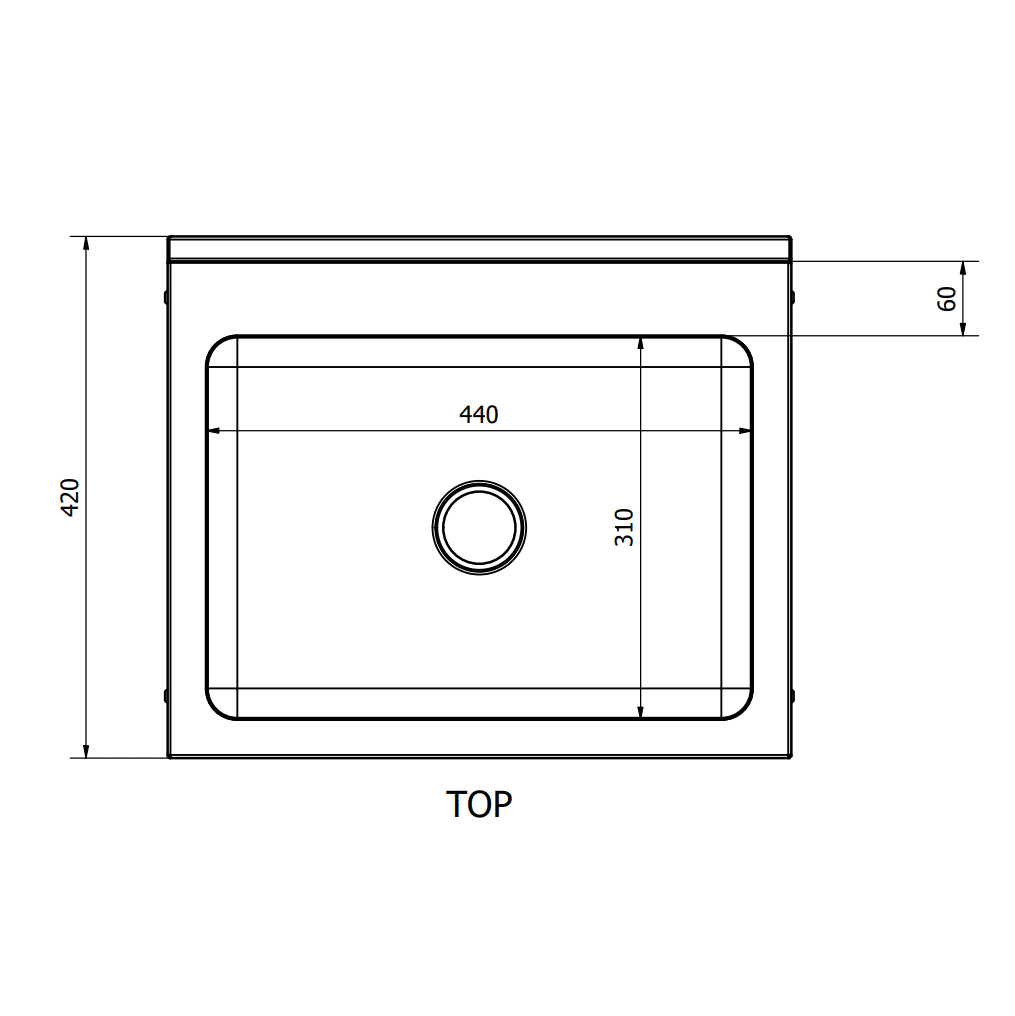

- Bowl Dimensions: 440mm (L) x 310mm (W) x 150mm (D)
- Splashback Height: 150mm extended splashback
- Edge Detail: 26mm turndown all round
- Taphole Configuration: Pre-punched holes, 180mm pitch centres, 22mm diameter
- Waste Outlet: 40mm standard waste outlet

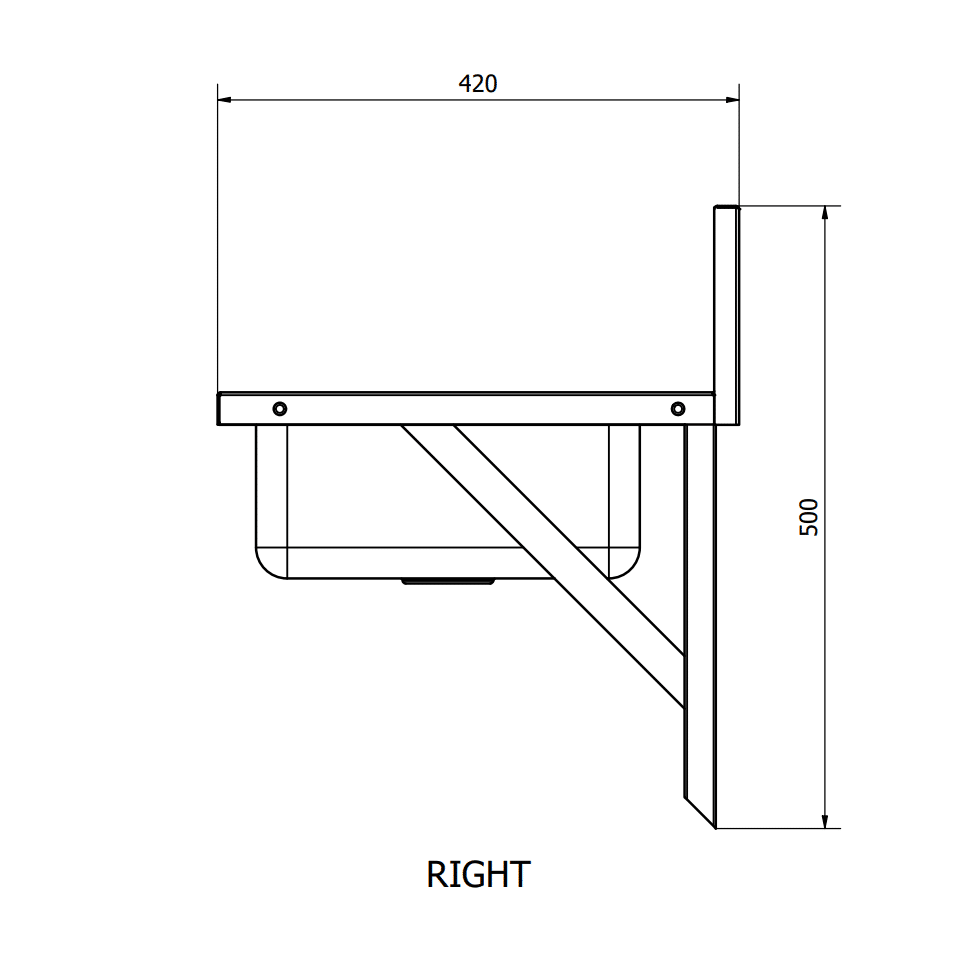

- Mounting System: 25mm square tubular gallows brackets with 10mm diameter mounting holes

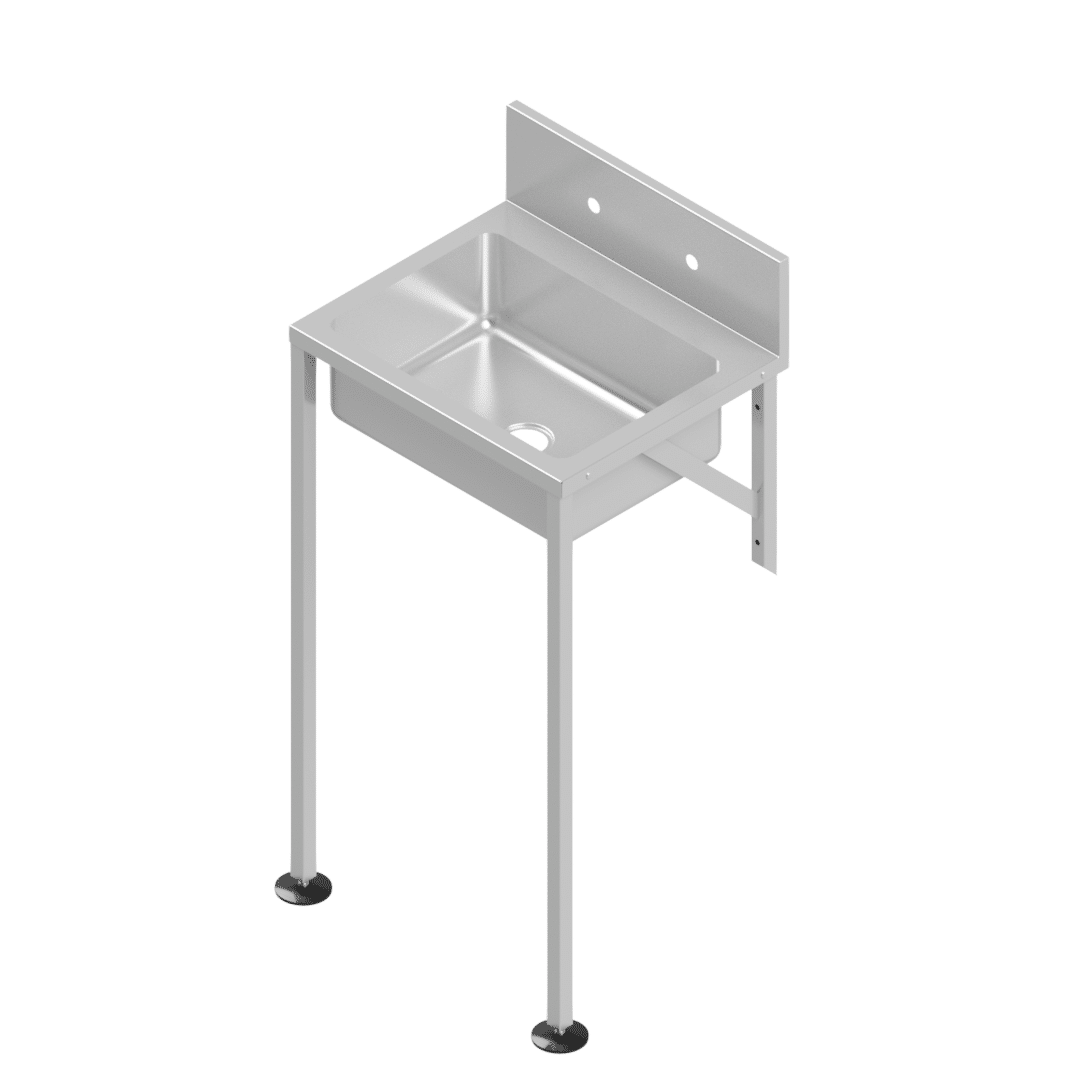

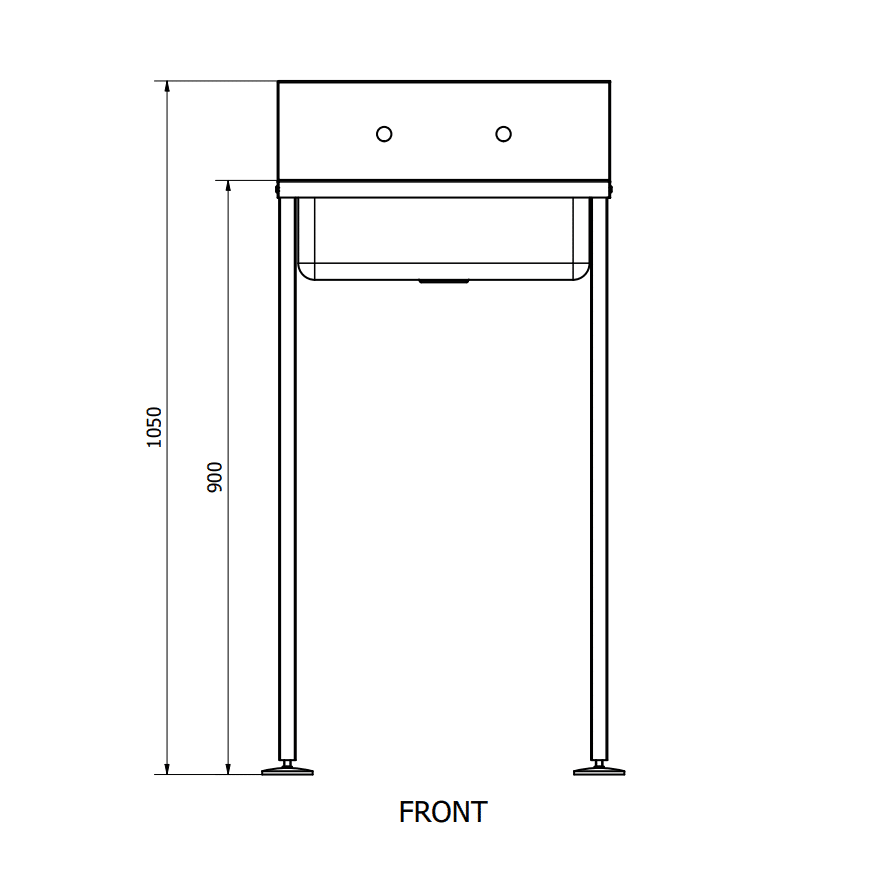

- Optional Accessories: Front support legs with adjustable feet for floor levelling
- Corner Design: Radiused corners for enhanced hygiene
- Applications: Hospitals, clinics, dental surgeries, laboratories, pharmaceutical facilities
- Compliance: Suitable for medical and healthcare environments
- Finish: Brushed stainless steel
Short Form Specification
Shall be Basterfield B22328(G1) Medical Basin Stainless Steel with Extended Splashback. Single bowl basin constructed from 1.2mm thick Grade 304 stainless steel with overall dimensions 500mm (L) x 420mm (W) x 500mm (H). Bowl dimensions 440mm (L) x 310mm (W) x 150mm (D) with 150mm high extended splashback and 26mm turndown on all edges. Pre-punched tapholes configured for elbow-operated medical mixers with 180mm hole pitch centres and 22mm diameter openings. Incorporates 40mm waste outlet and radiused corners throughout. Wall-mounted via 25mm square tubular gallows brackets with 10mm diameter mounting holes, with optional front support legs featuring adjustable feet. Suitable for healthcare facilities requiring superior hygiene standards and infection control compliance.
Locally Manufactured
Proudly manufactured in South Africa
Quick Production
Typical lead times of 10 - 15 working days
Product Customisations
Custom product specifications available
