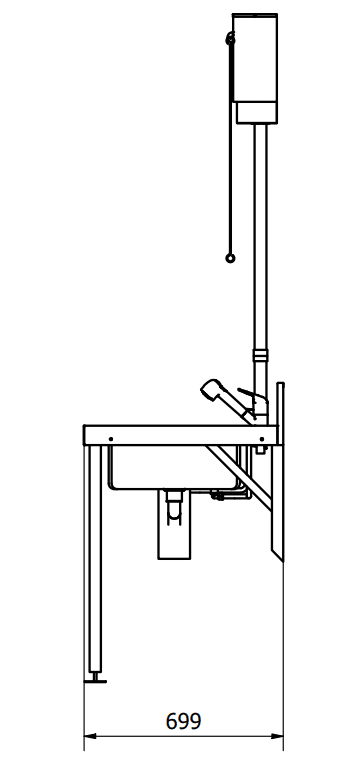

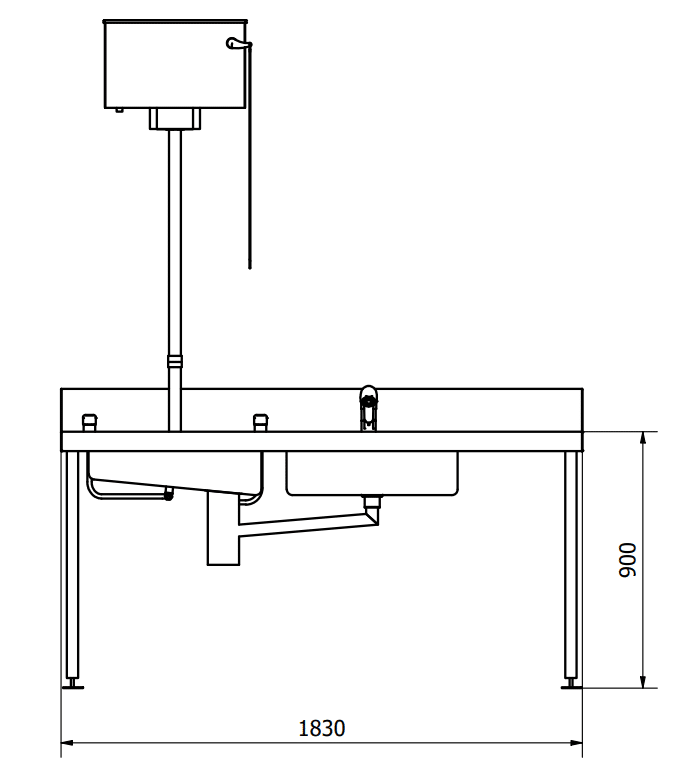

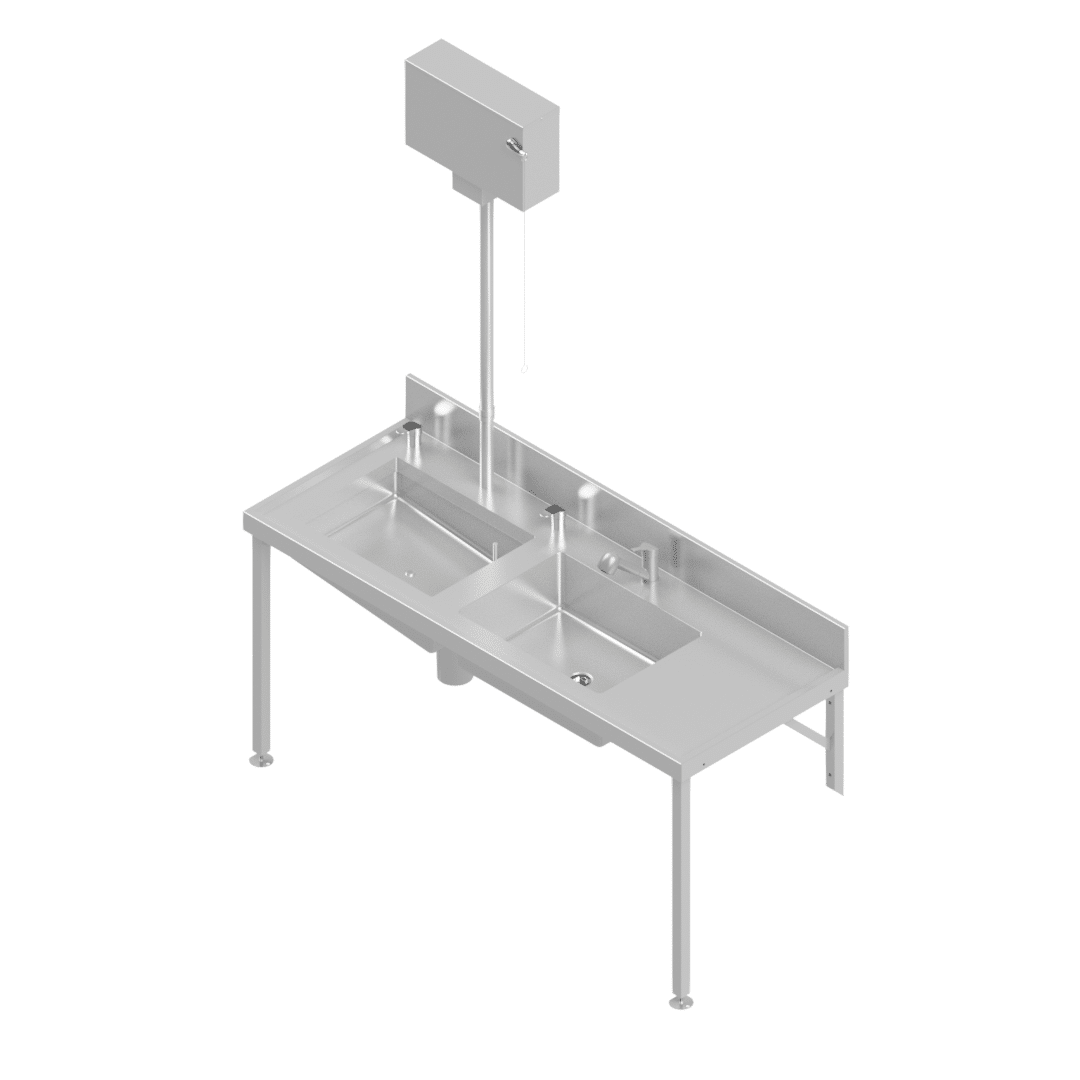

B22330(L-1830-HLC_2) Combination Bedpan & Wash-Up Sink with High Level Cistern

The B22330(L-1830-HLC_2) Combination Bedpan & Wash-Up Sink is a high-performance wall-mounted unit designed for hospitals and institutional facilities requiring reliable sanitation infrastructure. Fabricated from Grade 304 stainless steel with a hygienic satin polish finish, the unit is corrosion-resistant and easy to clean — ideal for environments with strict infection control protocols.

This model includes a left-hand sluice sink fitted with an integral flushing rim, flushed via a high-level cistern. This configuration is especially suited to areas with inconsistent or low municipal water pressure. The sluice bowl is fitted with a 110mm diameter waste outlet, making it suitable for direct connection to standard sewer systems for efficient disposal of liquid and solid waste.

An adjacent wash-up sink with a 40mm waste outlet is integrated into the same unit. The outlet includes an internal pipe system that drains into the shared 110mm sluice outlet, streamlining plumbing and reducing installation complexity. A sloped drip ledge prevents water from splashing beyond the work area, and a rear splashback maintains a clean operating environment.

For added functionality, the unit includes pre-installed spray nozzles with quarter-turn elbow-action valves, enabling convenient rinsing of bedpans and bottles as part of a complete decontamination station. The system is secured to the wall using heavy-duty stainless steel mounting brackets, and optional front support legs with adjustable foot pieces can be supplied for extra stability.

Available in a standard 1830mm length, the unit can also be produced in alternate lengths to meet specific site requirements.
