R16,120.00 Excl. VAT
B22380(L-1130-T3) Wall Mounted Bedpan Sluice Sink with Flush Valve
High-grade stainless steel sluice sink with left-hand sluice bowl, right-hand drainer, integral flush rim, marine edge, rear splashback, hands-free spray set, and 104B flush valve. Designed for hygiene-critical healthcare environments.
Lead Time:
± 10-15 working days
Country of Origin:Â Manufactured in Johannesburg, South Africa

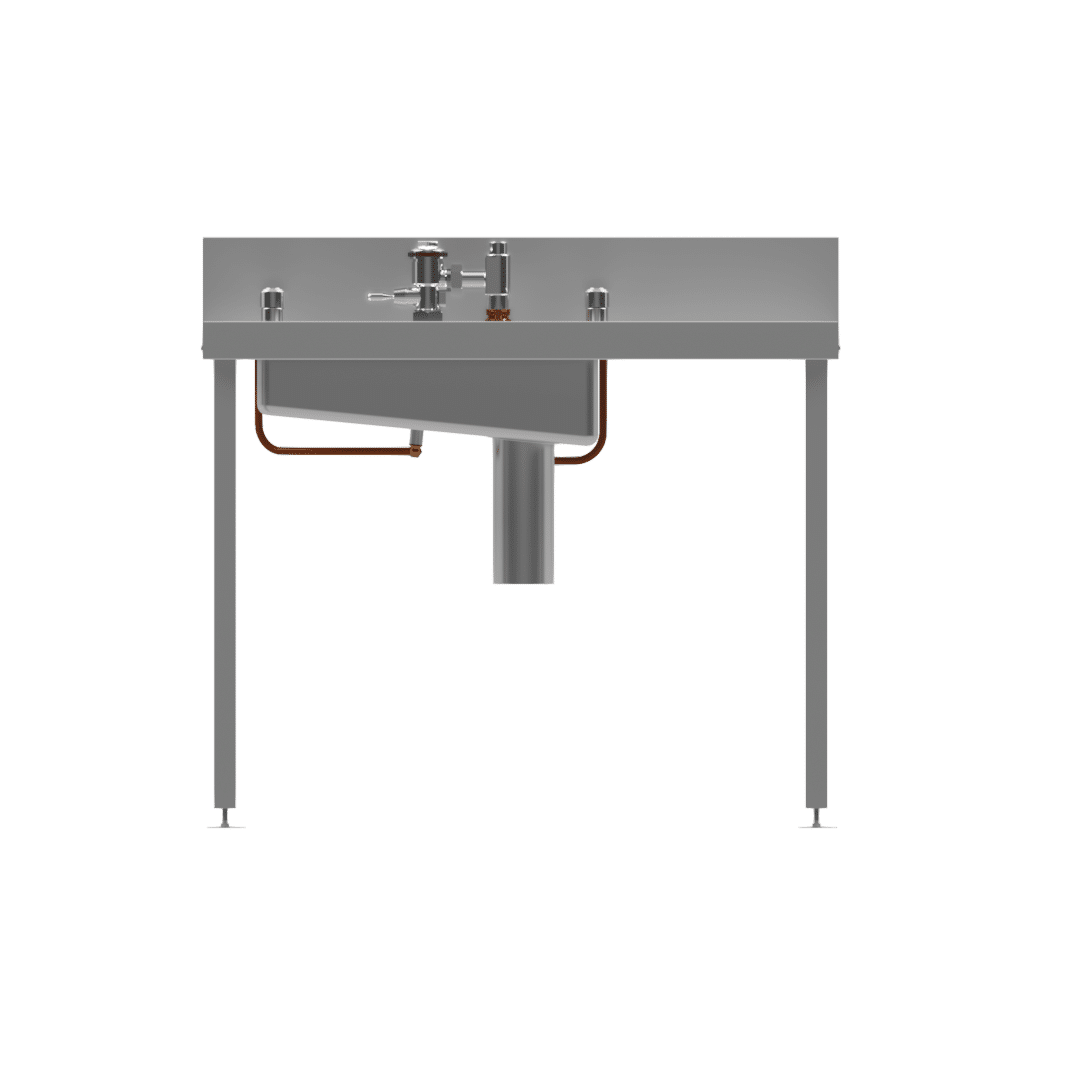

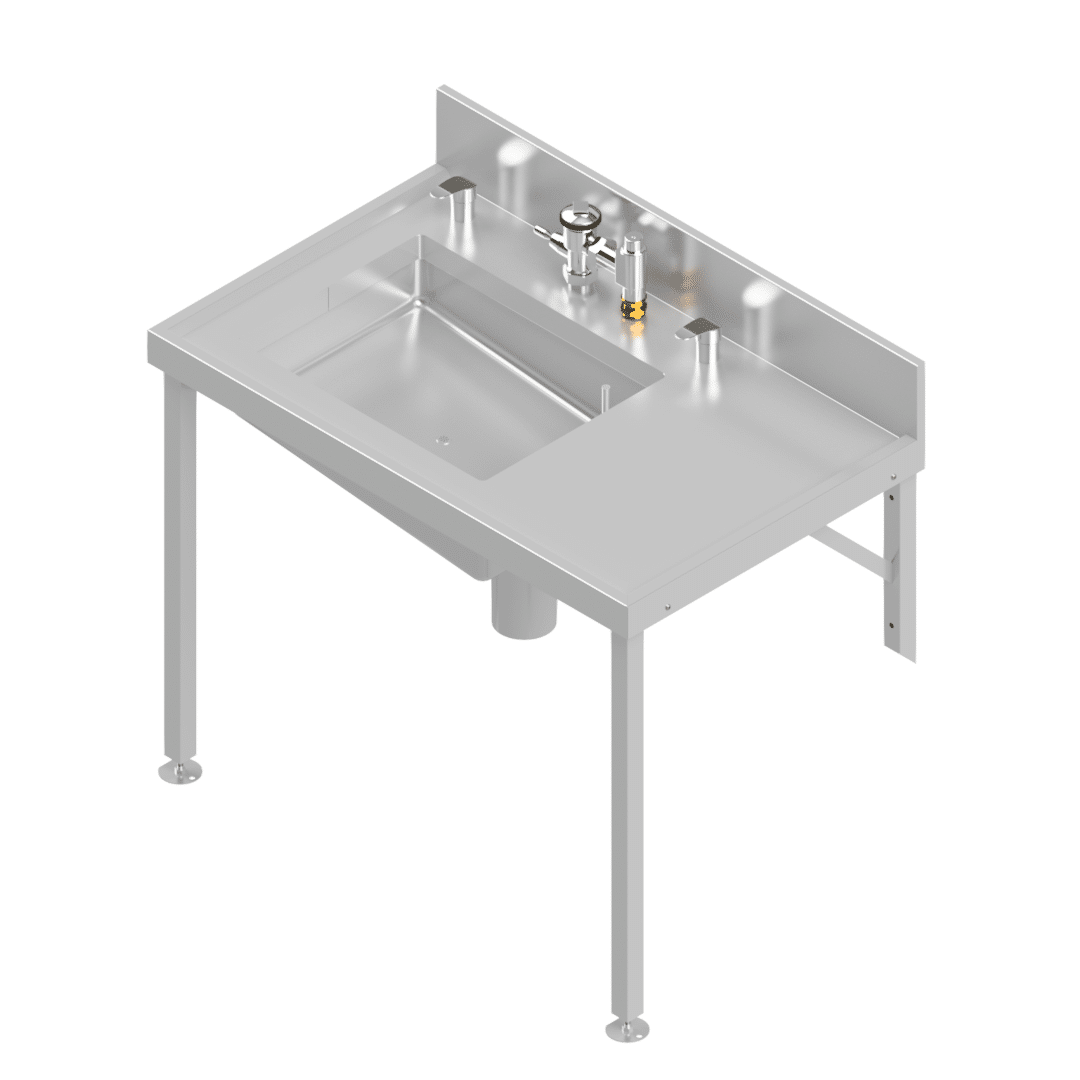

The B22380(L-1130-T3) Wall Mounted Bedpan Sluice Sink with Flush Valve provides a robust, hygienic, and ergonomic solution for cleaning bedpans and disposing of human waste in clinical and institutional environments. Constructed from durable Grade 304 stainless steel with a satin polish finish, the unit is engineered to meet the demanding hygiene standards of hospitals, clinics, and healthcare facilities.

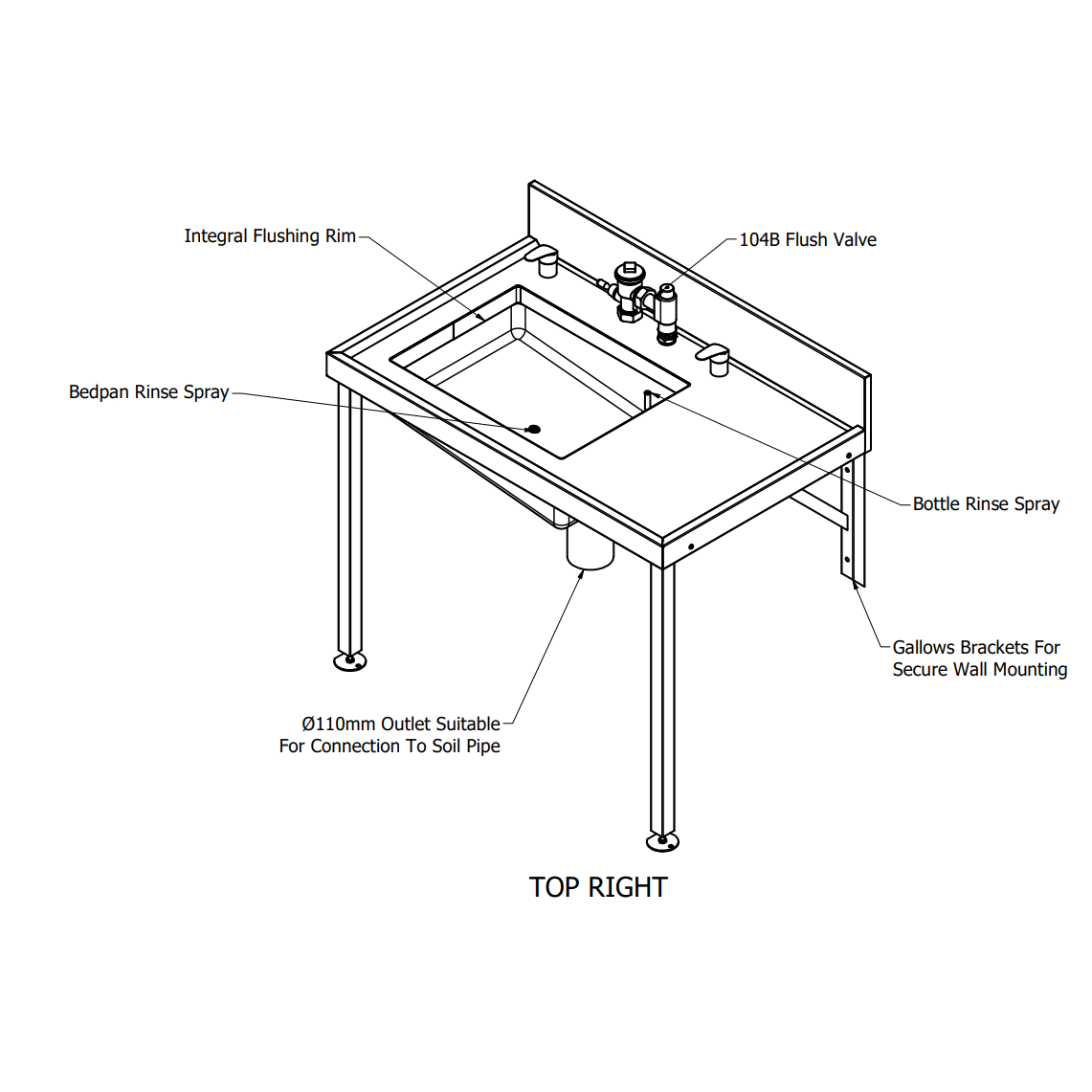

The sluice sink features a left-hand aligned sluice bowl with an integral flushing rim, paired with a right-hand drainer. The flushing system is operated via a 104B Flush Valve, suitable for mains pressure water systems. The sink includes an integral spray set for both bedpans and bottles, operated by lever-controlled (wrist-action) valves to ensure hands-free operation and infection control.
The 1130mm wide unit features a marine edge to contain liquids and prevent spillover, and a sloped drip ledge to prevent contamination of surrounding surfaces. An integral rear splashback (total height 1050mm) offers further protection. The unit includes a Ø110mm waste outlet compatible with standard sewerage/soil pipes (P-trap/gulley not included) and adjustable stainless steel front support legs with levelling feet, in addition to heavy-duty wall brackets for stable wall mounting.
Specifications
Model: B22380(L-1130-T3) Wall Mounted Bedpan Sluice Sink with Flush Valve
Material: Grade 304 Stainless Steel, satin polish finish

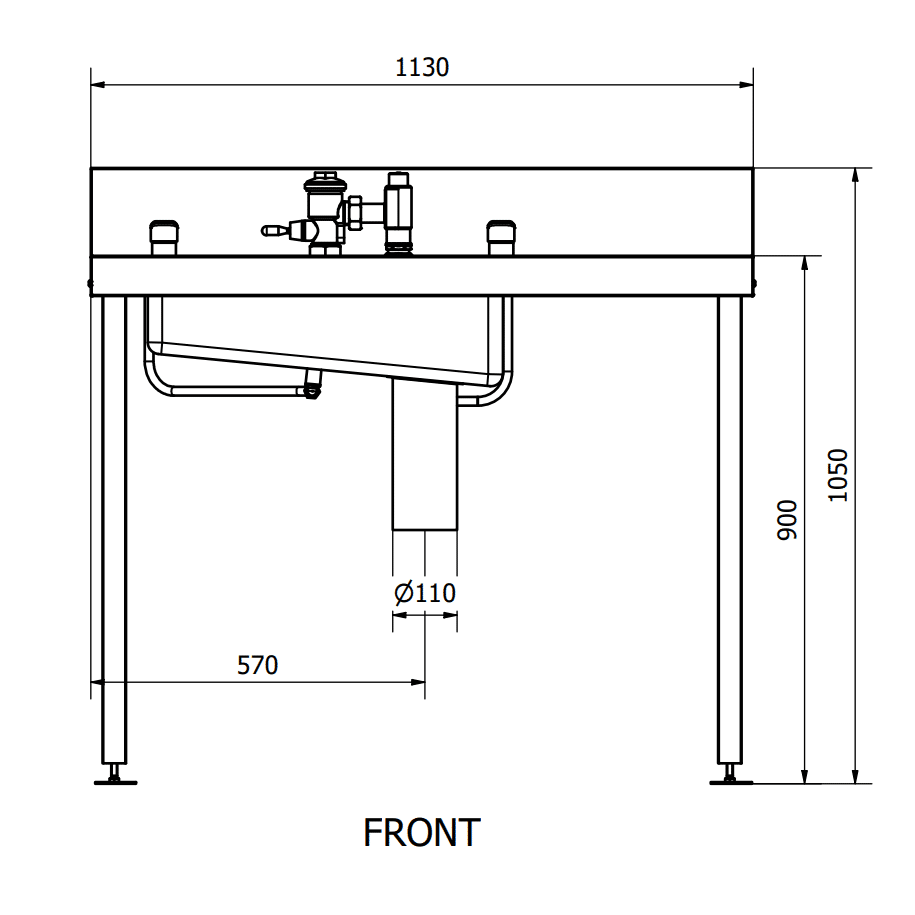

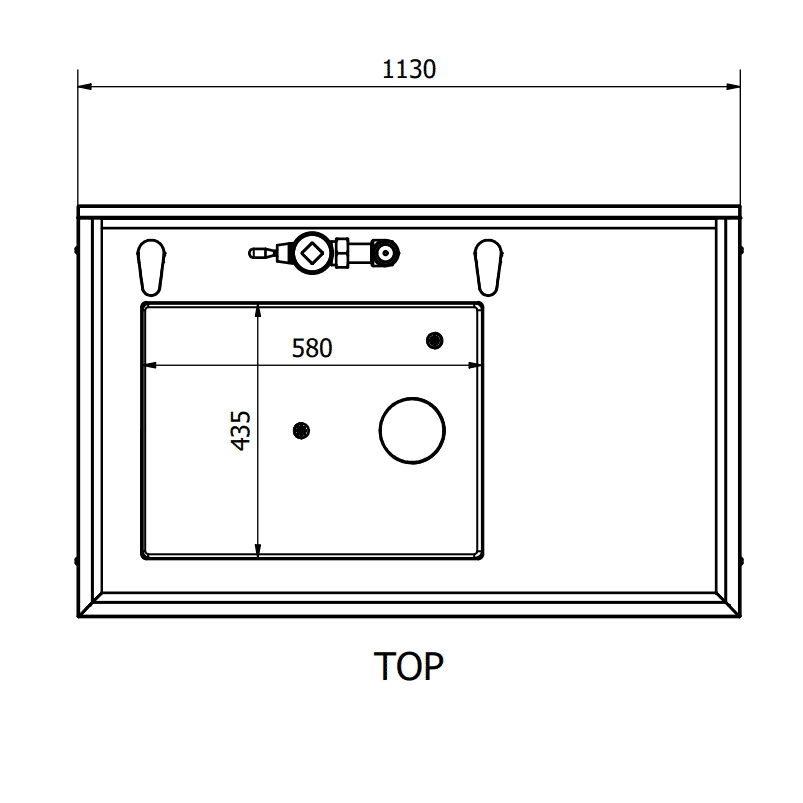

Dimensions: 1130mm (L) x 700mm (W) x 900mm (H) (1050mm incl. splashback)
Configuration: Left-hand sluice bowl, right-hand drainer
Flushing System: Integral flushing rim with 104B Flush Valve (mains pressure)
Spray Set: Integrated bedpan and bottle spray, lever-controlled wrist-operated valves
Rear Splashback: Integral (150mm high); optional extended version available
Outlet: Ø110mm outlet, compatible with standard soil/sewer pipe (P-trap excluded)
Mounting: Wall-mounted with stainless steel heavy-duty brackets
Support Legs: Stainless steel front legs with adjustable levelling feet
Cleaning Features: Radiused internal corners, sloped drip ledge
Use Case: Hospitals, clinics, assisted living, and institutional healthcare environments
Short Form Specification
Shall be the B22380(L-1130-T3) Wall Mounted Bedpan Sluice Sink with Flush Valve, measuring 1130mm x 700mm x 900mm (1050mm including splashback), manufactured from Grade 304 satin finish stainless steel. The unit features a left-hand sluice bowl with integral flushing rim and a right-hand drainer, with a marine edge to prevent spillage and an integral 150mm rear splashback for added hygiene. It is fitted with a 110mm diameter waste outlet suitable for connection to standard sewerage systems. The unit includes an integrated bedpan and bottle spray, operated by wrist-action lever controls, and comes complete with a 104B mains-pressure flush valve. The sink is wall mounted using heavy-duty stainless steel brackets, with front support legs available for additional stability.
Locally Manufactured
Proudly manufactured in South Africa
Quick Production
Typical lead times of 10 - 15 working days
Product Customisations
Custom product specifications available
