H72725 Ventilation Dissection Docking Station Floor Mounted with Backdraft and Downdraft Ventilation
Floor-mounted 316 stainless steel dissection docking station with integrated backdraft and downdraft ventilation, recessed work surface, optional macerator, and ergonomic operator access. Compatible with Basterfield body tray trolleys.
Lead Time:
± 10-15 working days
Country of Origin:Â Manufactured in Johannesburg, South Africa
The Basterfield H72725 Ventilation Dissection Docking Station Floor Mounted with Backdraft and Downdraft Ventilation is a floor-mounted stainless steel dissection unit engineered for high hygiene applications including forensic, pathology, and mortuary environments. Designed for compatibility with Basterfield docking trolleys, the station integrates downdraft and backdraft ventilation through a 250 mm Ø duct spigot to ensure airborne particulate control. Its construction includes an enclosed case with open rear for wall installation, full 316-grade stainless steel working/contact surfaces, and a recessed sloped work area for optimal drainage.
The station features a right- or left-hand bowl with a 40 mm waste outlet (standard), or optional 90 mm outlet with macerator. A push-button sparge rinse system supports surface cleaning. Maintenance access is provided via a front service door. The ergonomic design includes a recessed shroud to improve operator posture. Optional features include 220V macerator with isolator, thermostatic mixing valve, flexible rinse gun, and electrical outlet.
Specifications

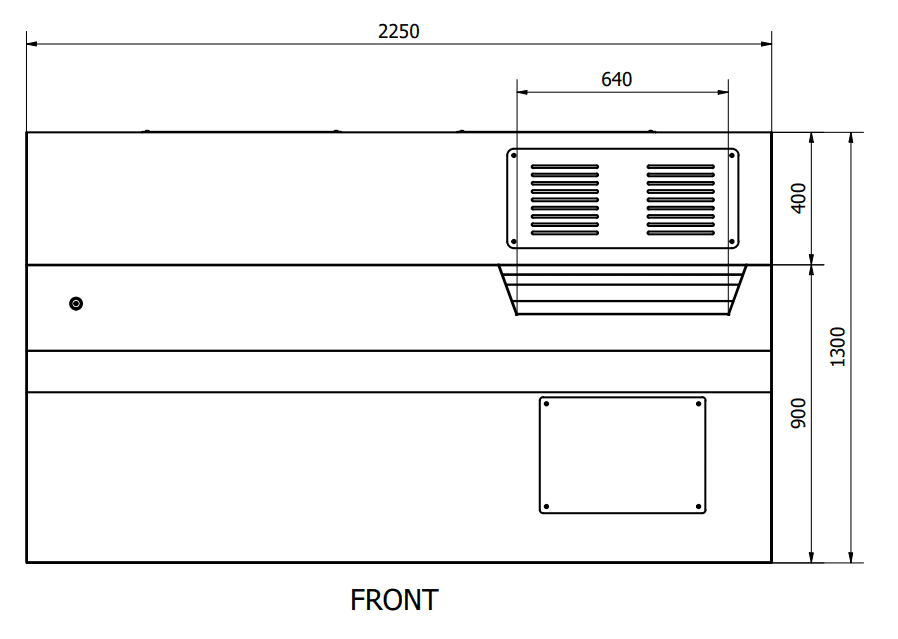

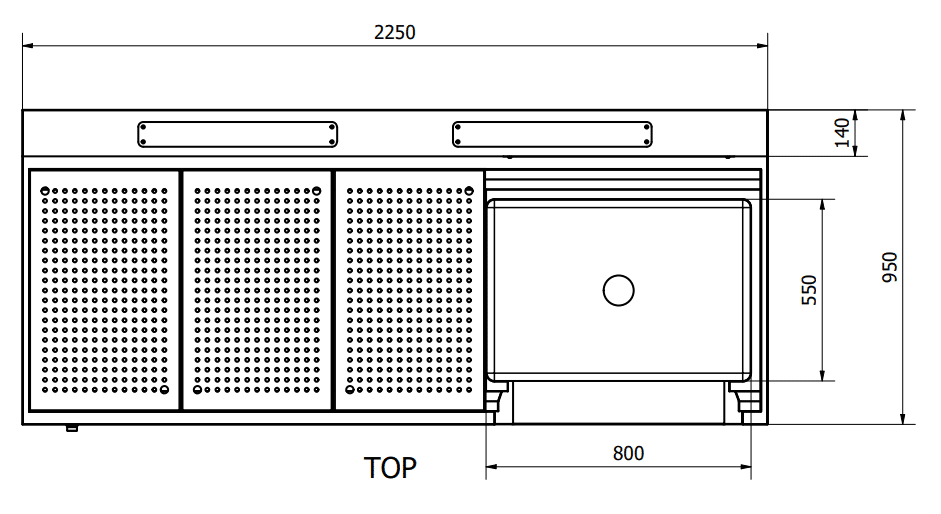

Dimensions: 2250 mm (L) x 950 mm (W) x 1300 mm (H); working height 900 mm
Floor-mounted enclosed case (rear open for wall installation)
Constructed from 316 stainless steel for corrosion resistance
Recessed sloped work surface with efficient drainage
Right or left hand bowl – 800 x 550 x 200 mm
Standard 40 mm waste outlet; optional 90 mm with macerator
250 mm Ø spigot for downdraft/backdraft ventilation
Push-button sparge system for surface rinse
Ergonomic recessed foot space for operator comfort
Removable 3-piece perforated trays (12 mm Ø holes)
Optional tray configurations (1-, 2-, or 3-piece sets)
Front access door for maintenance of plumbing and ventilation
Optional flexible rinse gun with spray trigger
Optional 220V macerator with isolator
Optional thermostatic mixing valve and electrical outlet

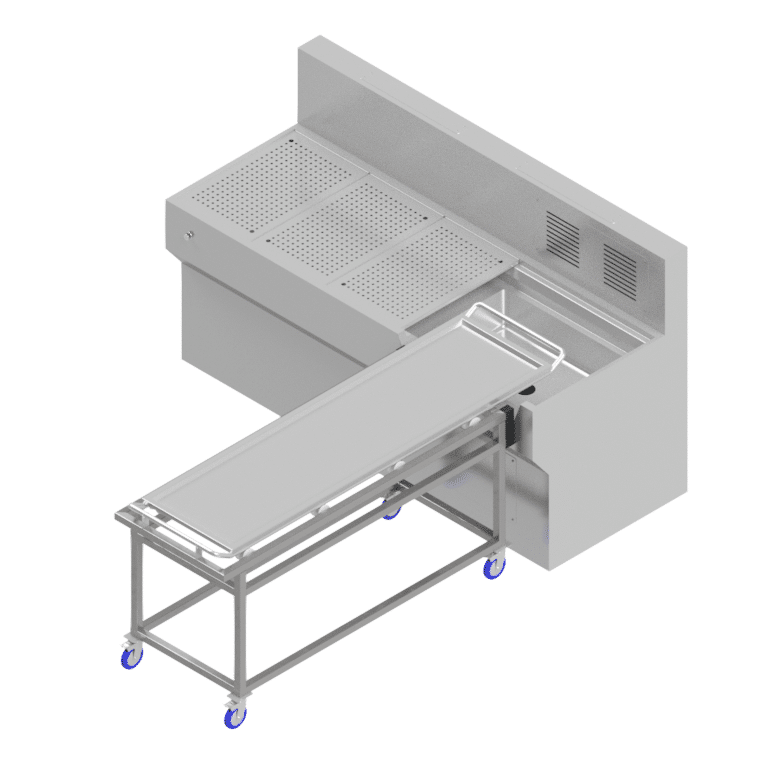

Compatible with Basterfield docking trolley and tray system
Short Form Specification
Shall be Basterfield H72725 Ventilation Dissection Docking Station Floor Mounted with Backdraft and Downdraft Ventilation, manufactured from Grade 316 Stainless Steel, dimensions 2250mm (L) x 950mm (W) x 1300mm (H) with 900mm (H) working height. Unit shall feature integrated downdraft/backdraft ventilation with Ø250 mm spigot, recessed sloped work area, optional macerator, and operator foot recess. Bowl shall be 800mm (L) x 550mm (W) x 200mm (D) with Ø40 mm waste (Ø90 mm optional). Unit shall include push-button rinse system, removable perforated trays, and optional electrical outlet and rinse gun.
