Facilities & Material Handling

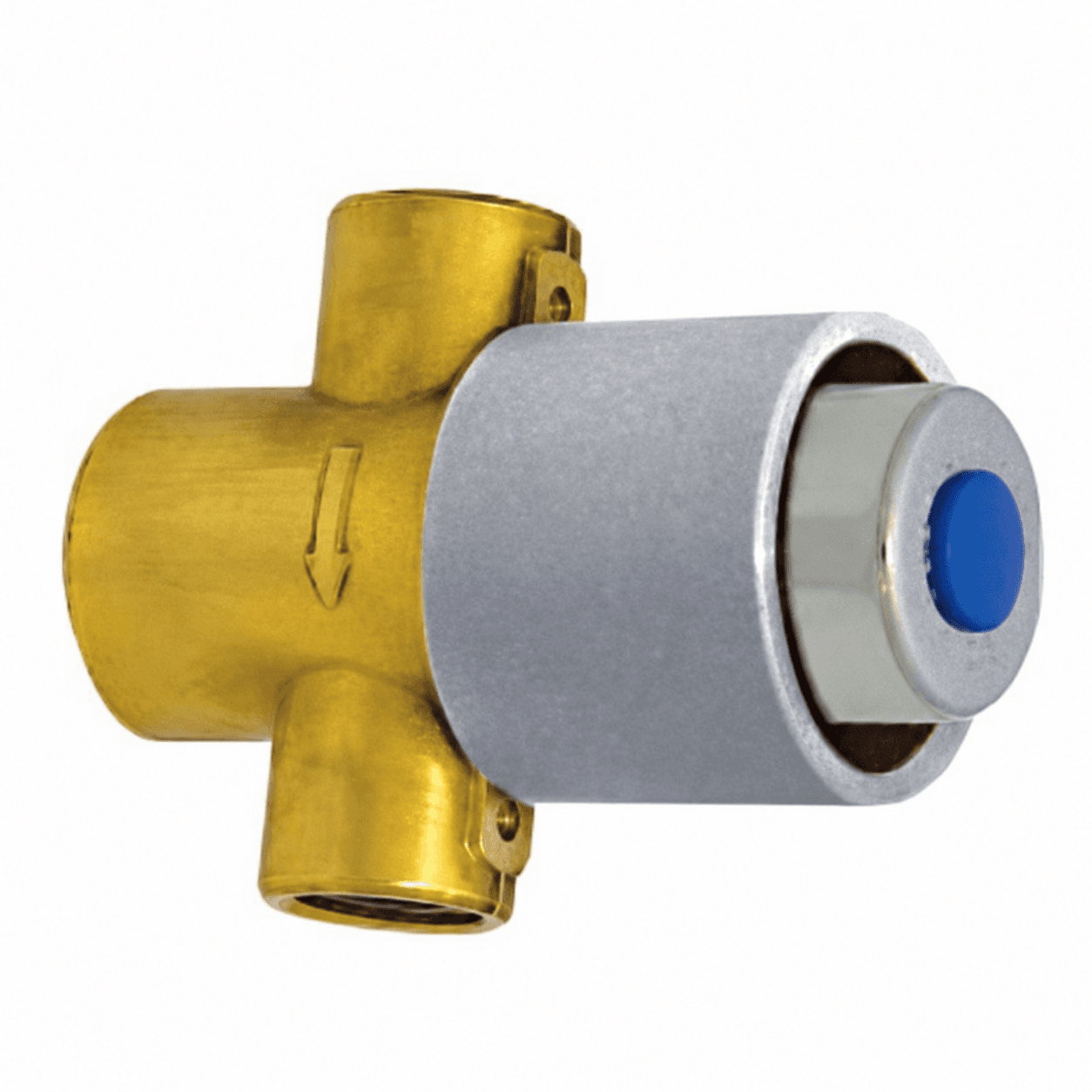

Walcro 144S 15mm built-in shower metering valve with sleeve and no-hold feature. Operating pressure 30–600kPa, for public showers and secure ablutions.

UR15TP 15 mm offset flush pipe for the recommended exposed flushing arrangement on the Basterfield B17744(T) top-entry bowl urinal. Use one 04VFP-UR15TP pipe with one 04VF_WAL-103LUR Walcro lever-operated flushing valve per bowl. The offset form provides the connecting pipework for this arrangement; check alignment against the installed bowl and valve positions. The pipe is a separately priced accessory and should be included whenever that valve is selected for the B17744(T) installation.

Walcro 103LC concealed back-entry toilet flushing valve with 20 mm BSP inlet, VR push button and sleeve. Includes the WC pan adaptor, push rod, concealed flush pipes and 90-degree bend.

Walcro 103LUR exposed, lever-operated urinal flushing valve for a single bowl, with a 20 mm connection, chrome finish, flow control, strainer and no-hold feature. The stated operating pressure range is 30–600 kPa. Recommended as an optional flushing valve for the Basterfield B17744(T) top-entry bowl urinal, used with one 04VFP-UR15TP 15 mm offset flush pipe per valve. Specify both components together for this installation; the valve, pipe and stainless steel bowl are each priced separately.

Walcro 104HB exposed toilet flushing valve with a 25 mm inlet, extended lever for mobility-impaired users and a back-entry flush-pipe arrangement. The lever can be positioned for left-hand or right-hand operation.

Walcro 104HT exposed toilet flushing valve with a 25 mm inlet, extended lever for mobility-impaired users and a top-entry flush-pipe arrangement. The lever can be positioned for left-hand or right-hand operation.

Exposed, lever-operated toilet flushing valve for top-entry WC pans, with a 25 mm BSP female inlet and chrome finish. An optional alternative to a separate flushing cistern.

Walcro 107CHP built-in boxed toilet flushing valve with a 20 mm inlet, XP push button, stainless steel cover plate and concealed flush pipes. Operating-pressure range: 100 kPa to 600 kPa.

Flat scoops manufactured from 1.2 mm Grade 304 stainless steel as standard, with Grade 316 available as an alternative. Five nominal capacities from 250 g to 5 kg, based on the density of water. Standard lead time: 5–10 working days. Prices exclude VAT.

Grade 304 stainless steel round scoop for portioning and transferring ingredients, with a handle for controlled scooping and pouring.

Grade 304 stainless steel laboratory container with a swing handle and drop-in lid for storing, carrying and pouring materials.

ST Series stainless steel product container with drum handles and a reinforced base rim. Specify the required capacity and optional drop-on lid.

Grade 304 stainless steel laboratory product container with reinforcing rim. Specify the capacity, handle arrangement and lid needed for material handling.

Stainless steel product tray with two carrying handles, 600 × 340 mm plan size and a choice of depths in Grade 304 or 316.

Grade 304 stainless steel circular container dolly with a welded frame and swivel castors for moving compatible drums, bins and product containers.

Grade 304 stainless steel dolly for 600 × 400 mm Euro stacking bins, with six castors and a tilting-wheel arrangement.

Grade 304 stainless steel conical hopper with mirror-polished surfaces and a tri-clamp ferrule for transferring product in food processing systems.

Grade 304 stainless steel hopper with cylindrical upper section, conical base and tri-clamp ferrule for food processing and packaging systems.

Grade 304 stainless steel process trough on castors, made from 2 mm material for transferring and handling product between food processing work areas.

Grade 304 stainless steel stool with a backrest, 380 mm diameter seat and 800 mm seat height for industrial workstations.

Grade 304 stainless steel stool with a backrest, 300 mm diameter seat and four tubular legs for laboratory and production workspaces.

Fully welded Grade 304 stainless steel triple-skid pallet with a stated 1000 kg capacity for material handling and storage.

Fully welded Grade 304 stainless steel triple-skid pallet with a stated 1500 kg capacity for material handling and storage.

Fully welded aluminium triple-skid pallet with a stated 1000 kg capacity for material handling and storage.
