A26131(3B-112-200) 200 L Stainless Steel Drum With Three Baffles
1 / 3 product images

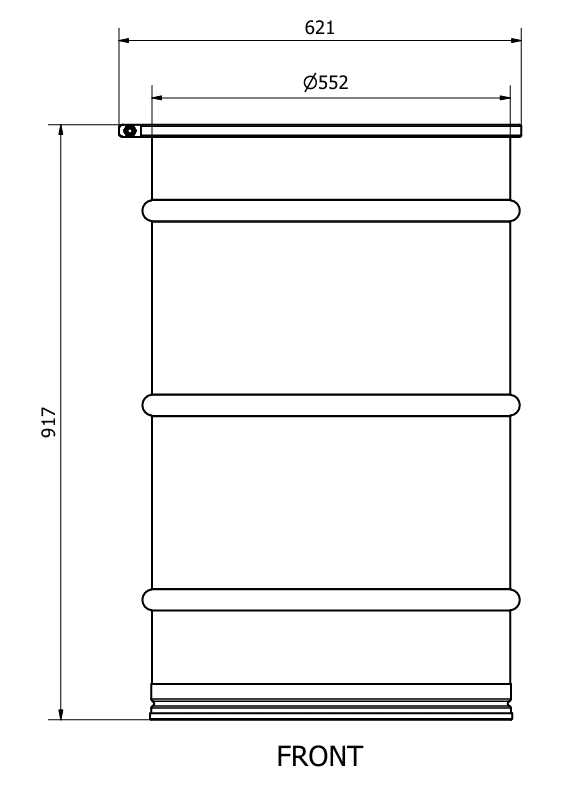

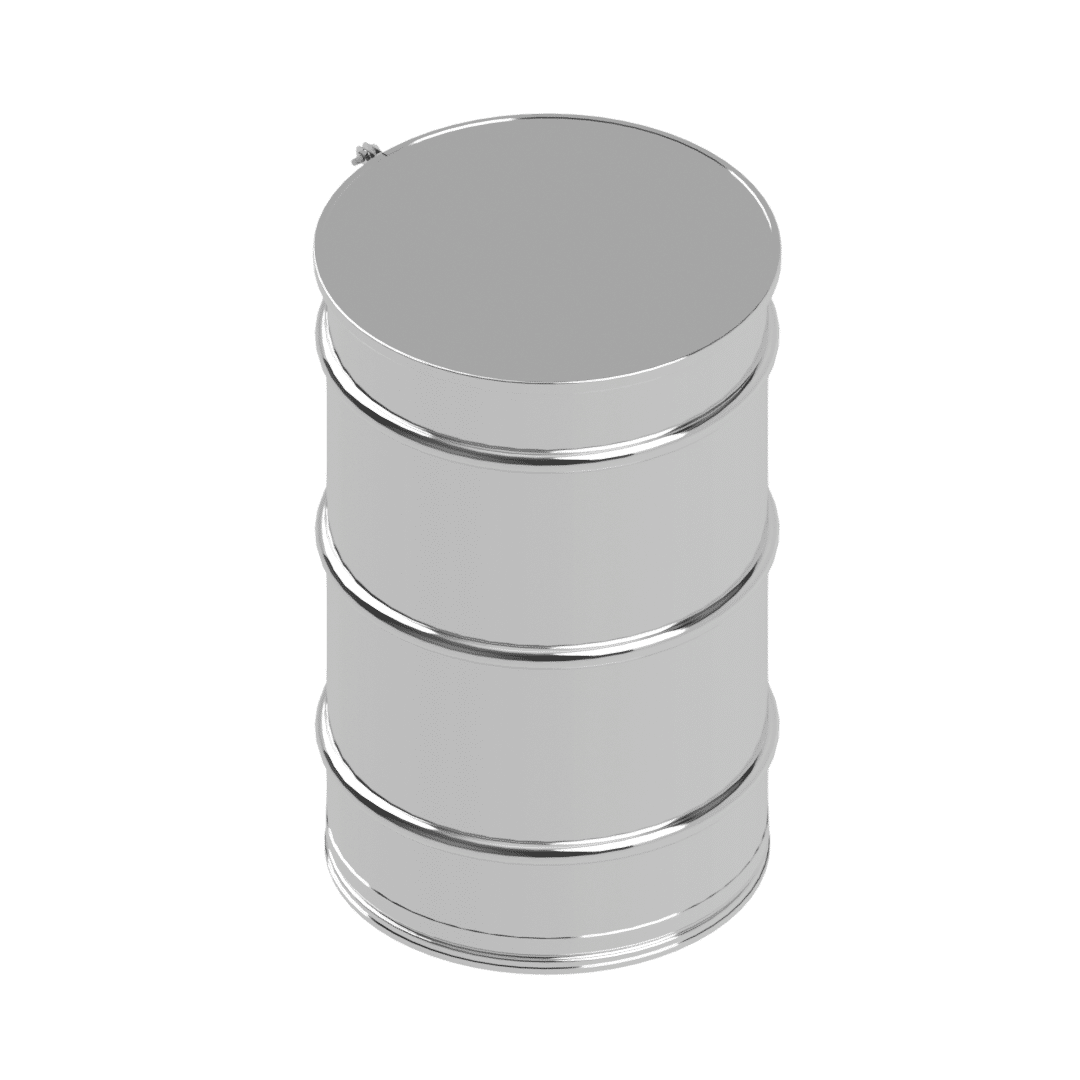

200 L drum with a 1.2 mm Grade 304 stainless steel body, three internal 2 mm Grade 304 baffles, reinforcing swages, a reinforced base rim and a removable band-clamp lid.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Product overview
The Basterfield A26131(3B-112-200) is a 200 L drum manufactured from 1.2 mm Grade 304 stainless steel for storing and handling liquids, ingredients and process materials.
Reinforcing swages strengthen the drum body, and a reinforcing rim supports the base. The removable lid is secured by a band clamp with a tightening bolt.

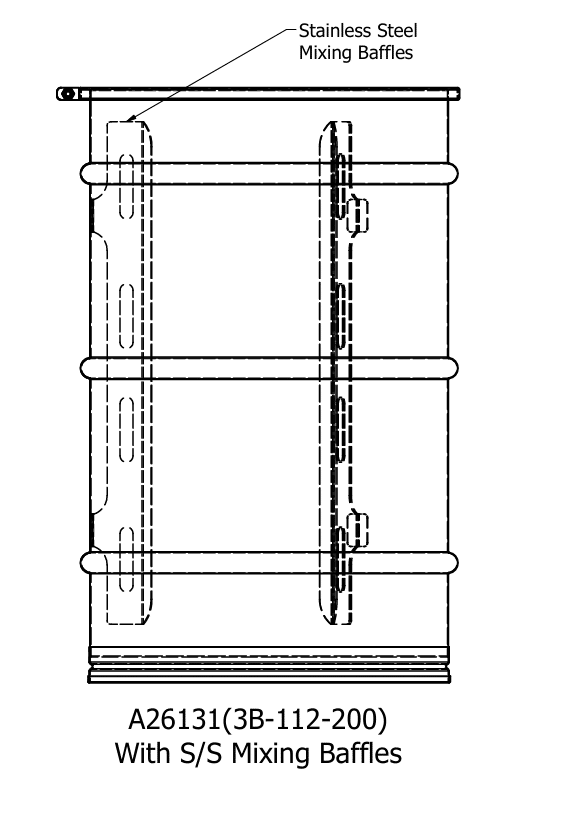

This model incorporates three internal Grade 304 stainless steel baffles, each 2 mm thick, for mixing applications. For the standard drum configuration, see A26131(112-200).
Features & benefits
200 L Capacity
200 L drum for storage and handling of liquids, ingredients and process materials.
Grade 304 Stainless Steel
Drum body manufactured from 1.2 mm Grade 304 stainless steel.
Reinforced Construction
Reinforcing swages in the body and a reinforced rim at the base.
Band-Clamp Lid
Removable lid secured by a band clamp with a tightening bolt.
Three Internal Baffles
Three internal baffles manufactured from 2 mm Grade 304 stainless steel for mixing applications.
Product data
Specifications & models
Specifications
- Capacity
- Fixed
- 200
| Specification | Value | Configuration |
|---|---|---|
| Capacity |
| Fixed |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for A26131(3B-112-200).
PDFProduct warranty
12-month warranty and claims information for A26131(3B-112-200).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
