A46450 Label Printer Tray
Image indicative of the range. Configurations may differ.
1 / 5 product images

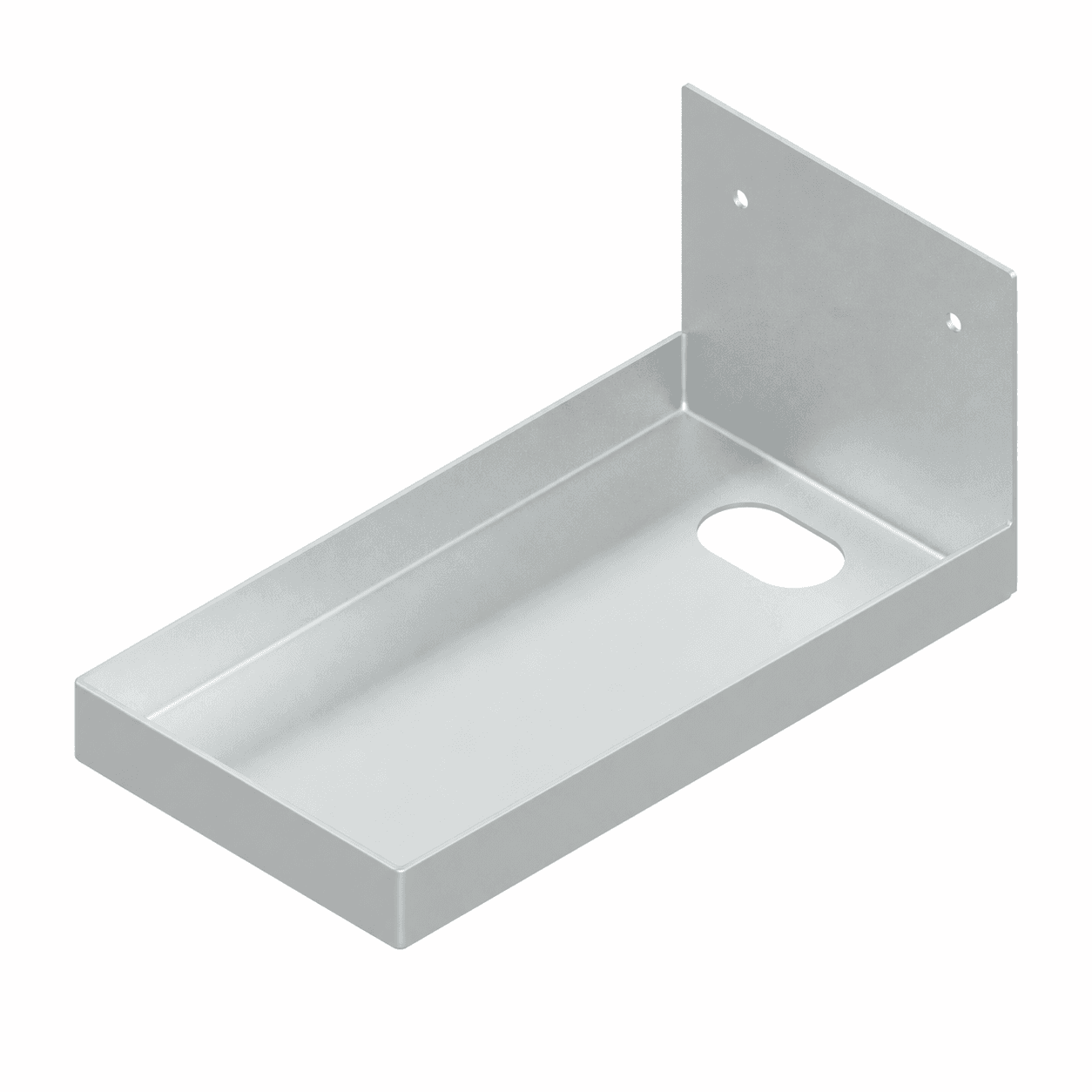

Fully-welded Grade 304 stainless steel label printer tray with rear mounting holes and an obround cable cutout. Available in 2mm and 1.5mm thickness.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
R445.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
1 of 1 option selected
Material Thickness: 2 mm
A46450(120-0260x0140x0120) is ready to quote.
Material Thickness
Selected model
A46450(120-0260x0140x0120)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
Label Printer Tray Stainless Steel Grade 304 2mm Thickness 260mm (L) x 140mm (W) x 120mm (H) with Fully-Welded Construction, 30mm Deep Tray, 2 x Ø6mm Rear Mounting Holes and 50mm x 30mm Cable Cutout
Loading model details…
Shortlist this product, add project notes and compare your options.
Product overview
A fully-welded Grade 304 stainless steel tray for supporting a label printer at pharmaceutical and cannabis production labelling stations. Choose 2mm or 1.5mm material thickness; both options share overall dimensions of 260mm (L) x 140mm (W) x 120mm (H) and a 30mm deep tray.

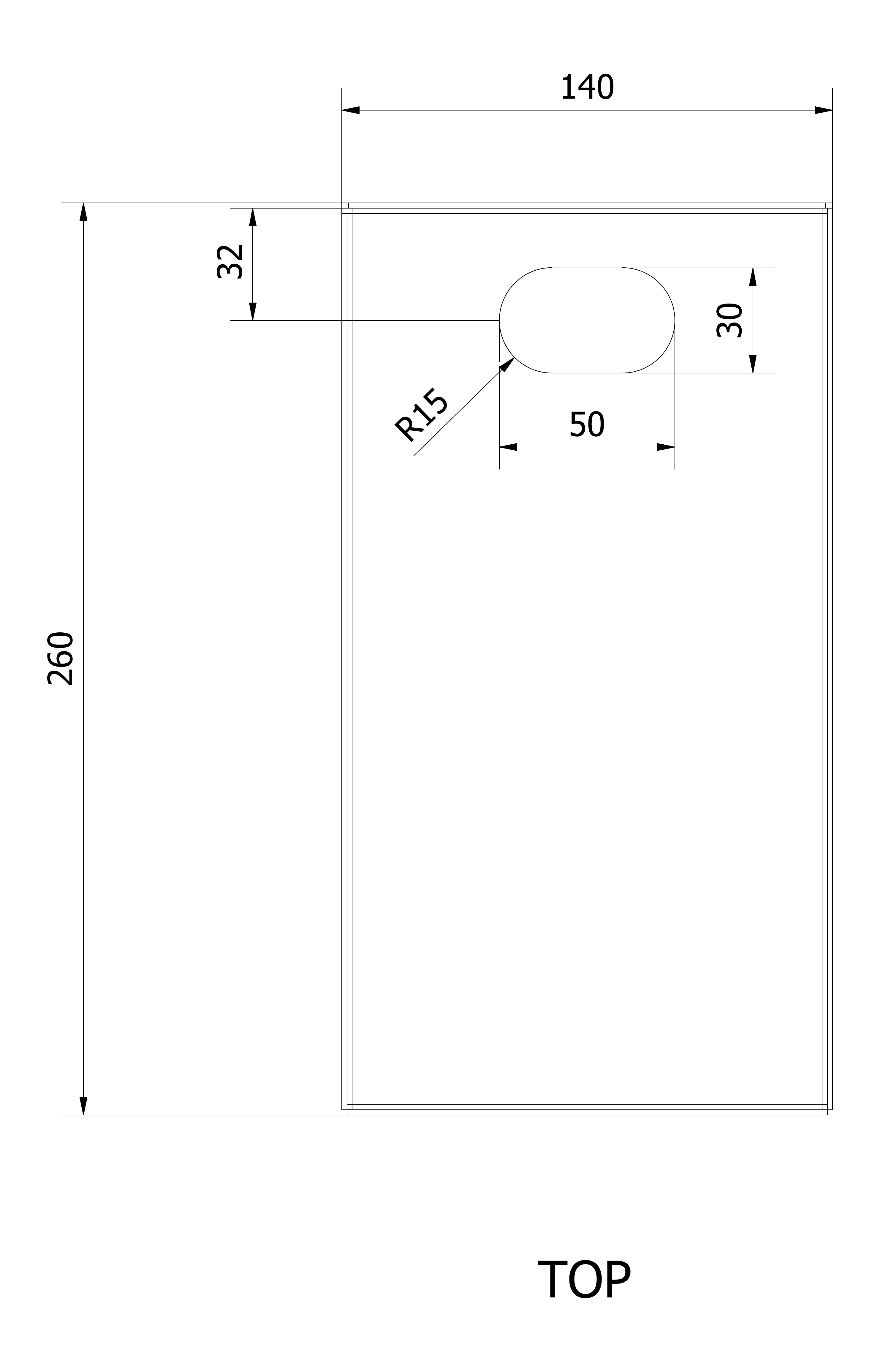

The rear mounting plate has two Ø6mm holes on 90mm centres, with hole centres 25mm from the side edges and 90mm above the base. The upper rear-plate corners have an R2 radius. A 50mm x 30mm obround cutout with R15 ends provides cable routing through the base, with its centreline 32mm from the inside face of the rear plate.

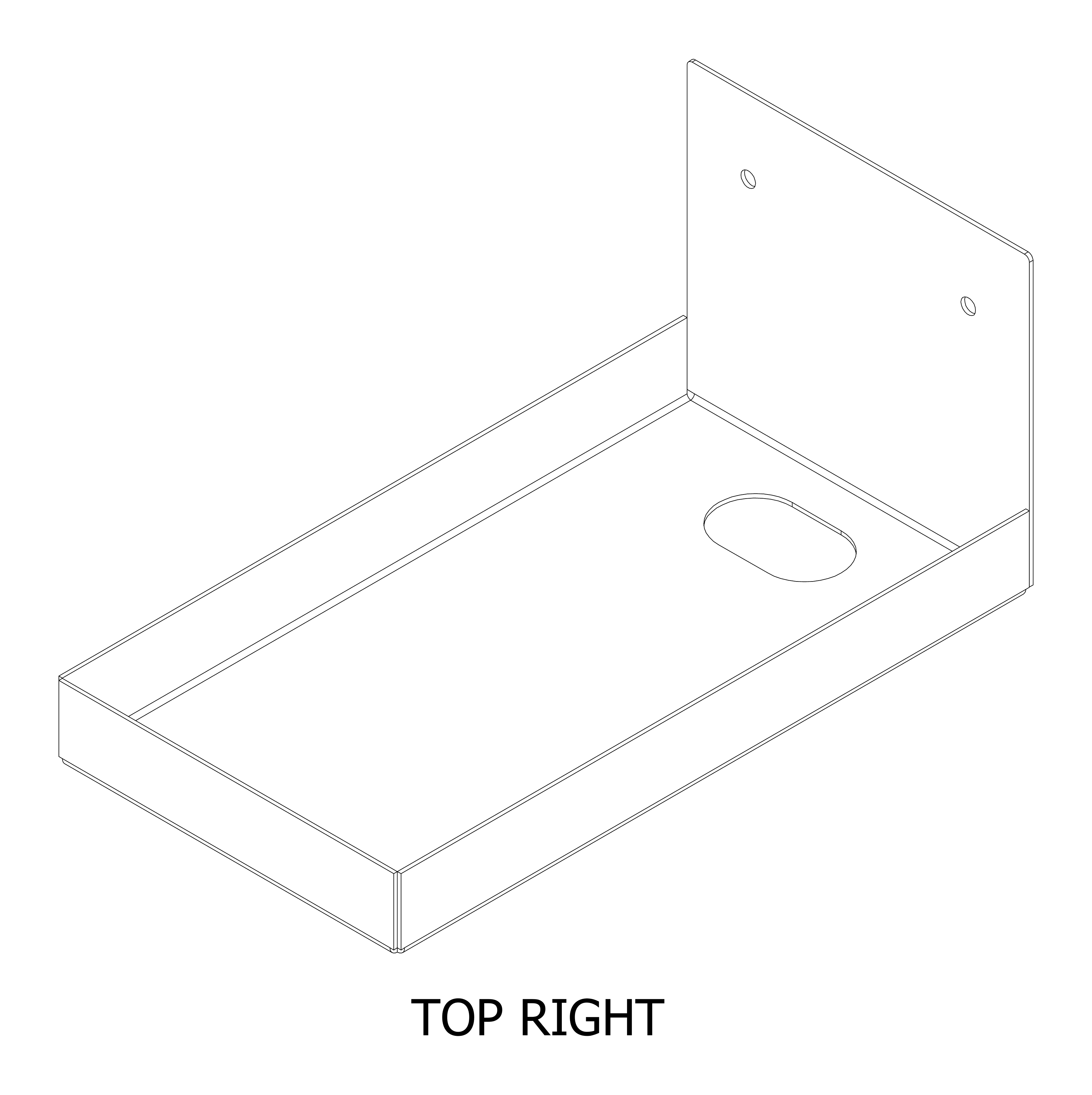

Product images and front, top, right and isometric drawings are available in the specification sheets. Check the printer footprint, cable connections and operating clearances against the drawings when selecting a tray.
Features & benefits
Grade 304 Stainless Steel
Fully-welded stainless steel construction for a dedicated label printer support tray.
Two Material Thicknesses
Choose 2mm or 1.5mm material thickness with the same 260mm x 140mm x 120mm overall dimensions.
30mm Deep Tray

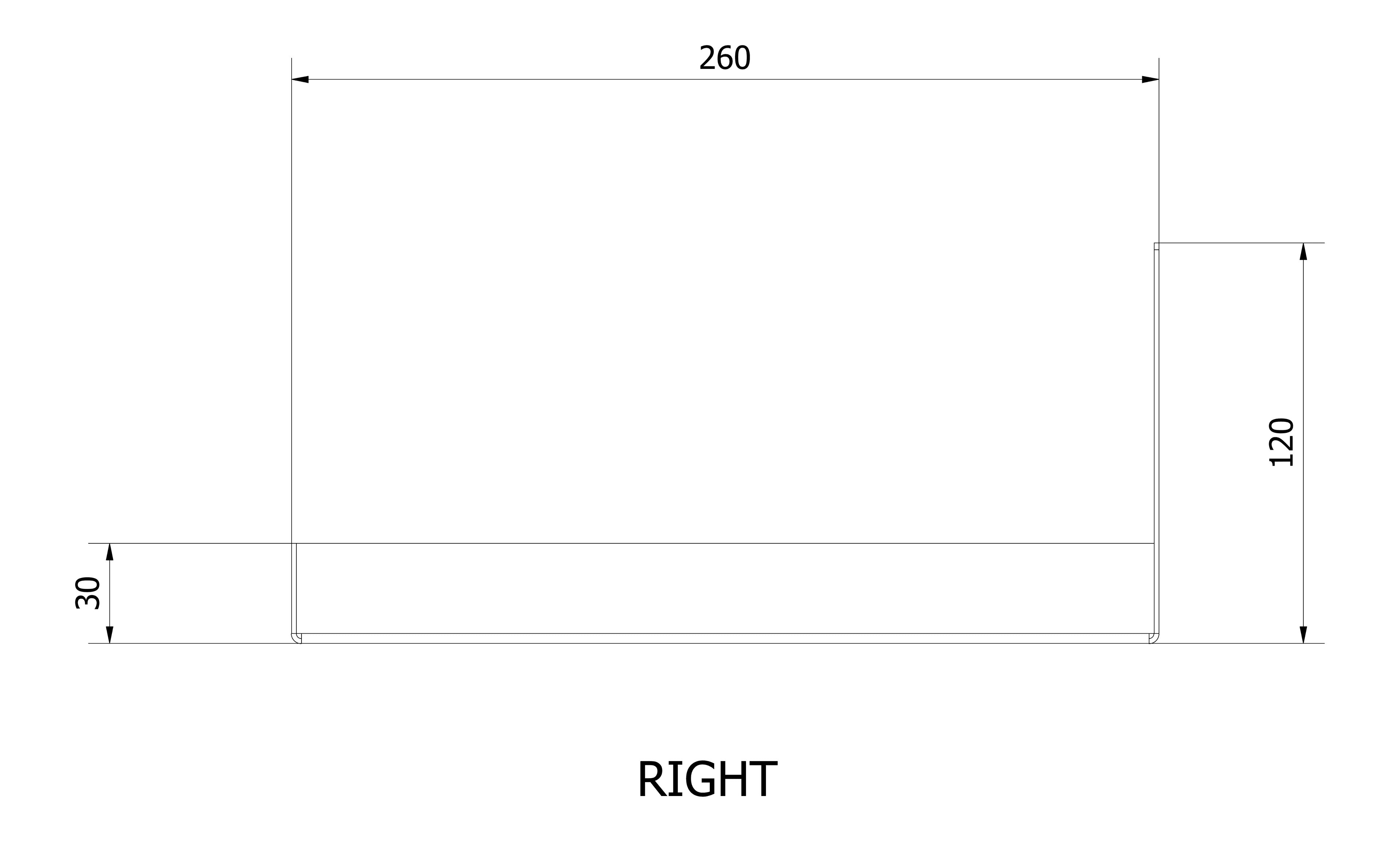

Raised tray edges provide a 30mm deep tray below the 120mm-high rear mounting plate.
Rear Mounting Holes

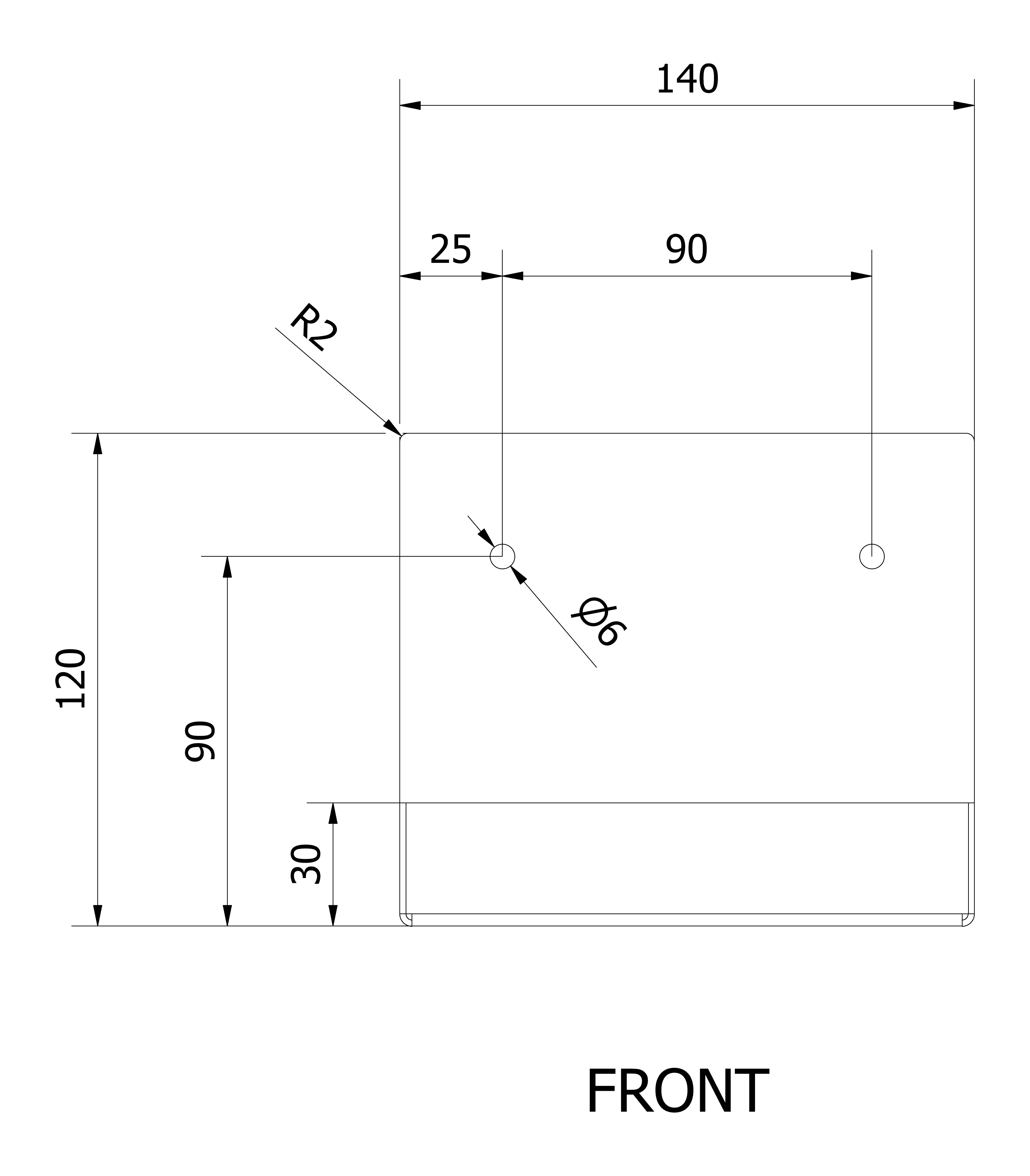

Two Ø6mm holes on 90mm centres. Hole centres are 25mm from the side edges and 90mm above the base.
Obround Cable Cutout
A 50mm x 30mm cutout with R15 ends routes cables through the tray base. Its centreline is 32mm from the inside face of the rear plate.
Radiused Rear Plate Corners
R2 upper rear-plate corners are shown on the general arrangement drawings supplied with the specification sheets.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Technical media
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 120 mm
- Length
- Fixed
- 260 mm
- Width
- Fixed
- 140 mm
- Material Thickness
- Configurable
- 1.5 mm
- 2 mm
- Bracket Mounting Hole Pitch
- Fixed
- 90 mm
- Construction
- Fixed
- Fully-Welded
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Hole Diameter
- Fixed
- 6 mm
| Specification | Value | Configuration |
|---|---|---|
| Material Thickness |
| Configurable |
| Bracket Mounting Hole Pitch |
| Fixed |
| Construction |
| Fixed |
| Material |
| Fixed |
| Mounting Hole Diameter |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A46450(115-0260x0140x0120) | Label Printer Tray Stainless Steel Grade 304 1.5mm Thickness 260mm (L) x 140mm (W) x 120mm (H) with Fully-Welded Construction, 30mm Deep Tray, 2 x Ø6mm Rear Mounting Holes and 50mm x 30mm Cable Cutout Label Printer Tray Stainless Steel Grade 304 1.5mm | 90 mm | Fully-Welded | 120 mm | 260 mm | Stainless Steel Grade 304 | 1.5 mm | 6 mm | 140 mm | View specifications
| |
| A46450(120-0260x0140x0120) | Label Printer Tray Stainless Steel Grade 304 2mm Thickness 260mm (L) x 140mm (W) x 120mm (H) with Fully-Welded Construction, 30mm Deep Tray, 2 x Ø6mm Rear Mounting Holes and 50mm x 30mm Cable Cutout Label Printer Tray Stainless Steel Grade 304 2mm | 90 mm | Fully-Welded | 120 mm | 260 mm | Stainless Steel Grade 304 | 2 mm | 6 mm | 140 mm | View specifications
|
