B66730 Apron Wash Booth
Image indicative of the range. Configurations may differ.
1 / 4 product images
Apron wash booth for washing work aprons within a dedicated cleaning station in food processing and production facilities.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 1 options selected
Select Height to complete your configuration.
Height
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
Apron wash booth for washing work aprons within a dedicated cleaning station in food processing and production facilities.

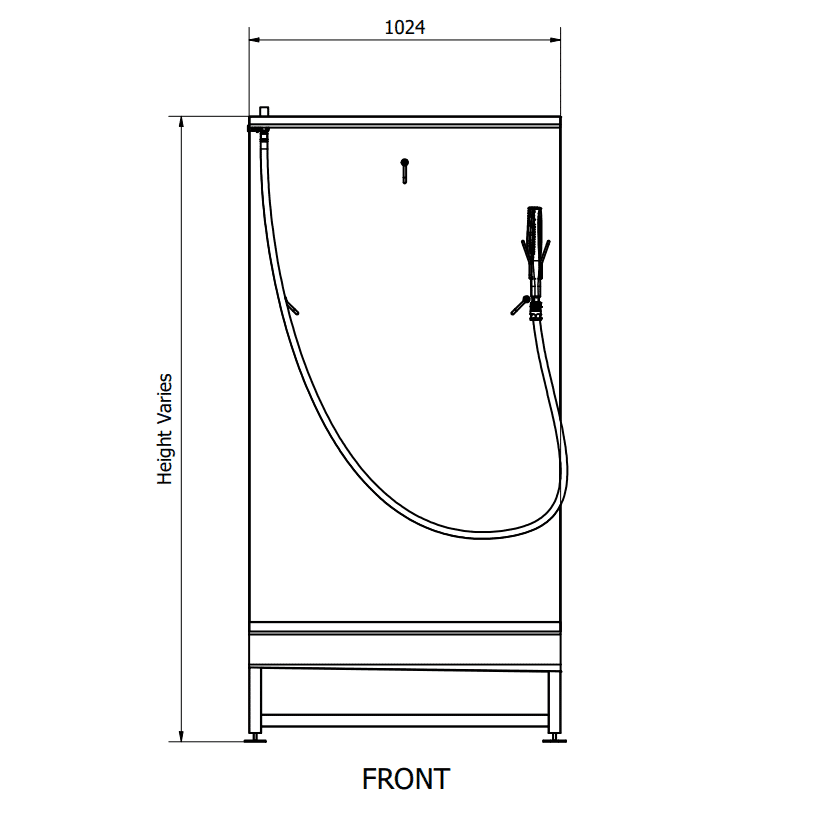

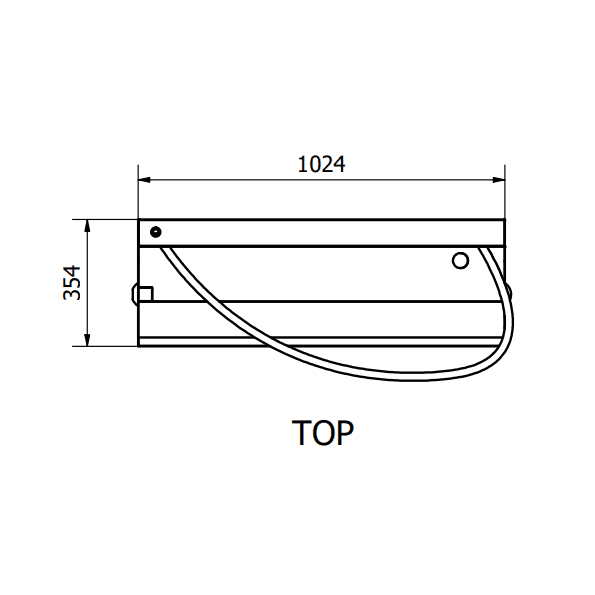

It is available in two standard height options: 2055 mm or 1700 mm, and measures 1024 mm long x 354 mm wide.

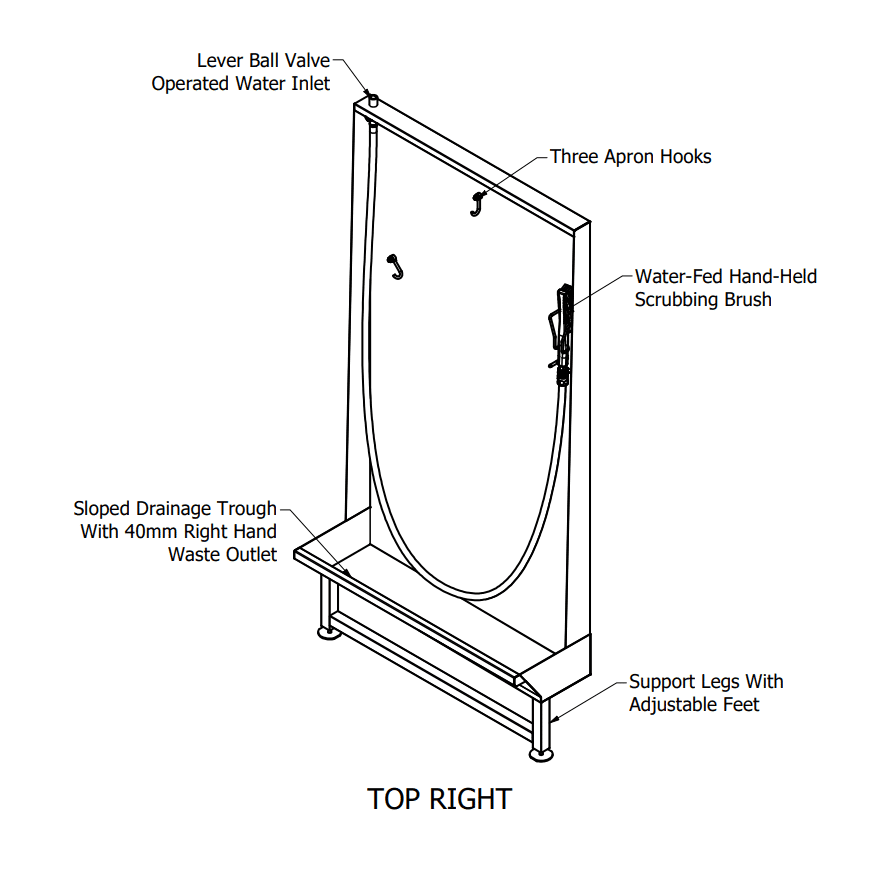

The flat rear panel is fitted with three heavy-duty apron hooks compatible with all standard apron sizes, allowing for hands-free suspension during cleaning. Below, a forward-sloped trough—enclosed on both sides—funnels wastewater directly to a 40 mm right-hand outlet, ensuring effective drainage and minimizing splashback or mess.
Cleaning is assisted by a hand-held scrubbing brush that emits an aerated water spray. The brush is connected via a heavy-duty hose to a ½” ball valve inlet for quick water control. The unit is mounted securely to the wall using pre-punched fixing holes and supported by a 40 × 40 mm stainless steel tubular leg frame with adjustable food-grade feet for levelling on uneven floors.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B66730.
PDFProduct warranty
12-month warranty and claims information for B66730.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Height
- Configurable
- 1700 mm
- 2055 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
Available models & compare variants
Compare 2 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||
|---|---|---|---|---|
| B66730(112-1025-2055R) | B66730(112-1025-2055R) Apron Washing Station Single 1024mm L x 2055mm H Height: 2055. Apron Wash Booth | 2055 mm | View specifications
| |
| B66730(112-1700x1025R) | Apron Wash Booth Single 1024mm (l) X 354mm (w) X 1700mm (h) Stainless Steel Grade 304 Apron Wash Booth Single | 1700 mm | View specifications
|
