H50452 Stainless Steel Dog Grooming Tub
Image indicative of the range. Configurations may differ.
1 / 1 product images

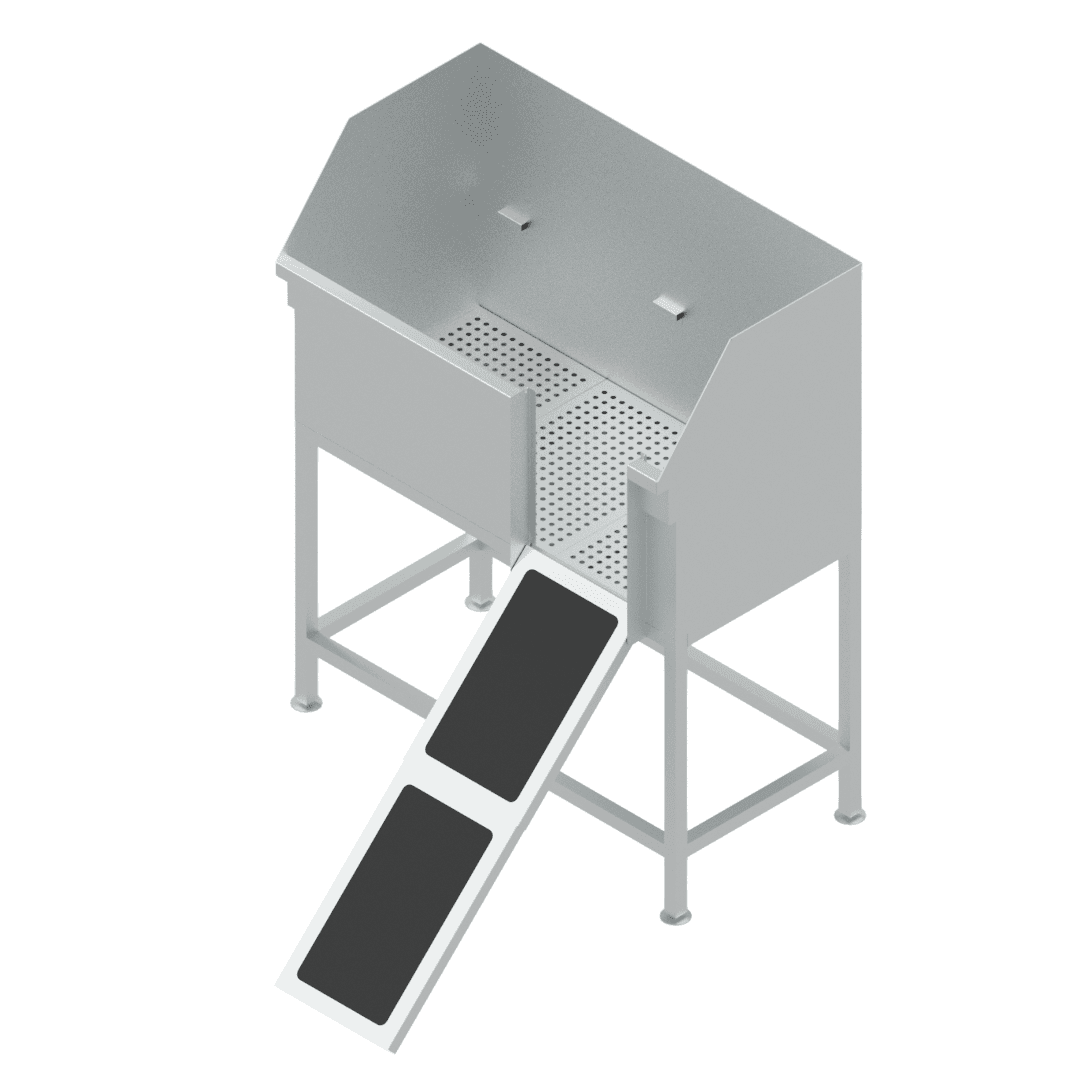

1300 x 700mm Grade 304 stainless steel dog grooming tub with left- or right-hand anti-slip access, three perforated inserts at two levels, basket-strainer waste and three-sided splashbacks.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
R28,374.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
1 of 1 option selected
Door Orientation: Right-Hand
H50452(112-1300x0700R) is ready to quote.
Door Orientation
Selected model
H50452(112-1300x0700R)
Model details
Overview
Dog Grooming Tub, Stainless Steel Grade 304, 1.2mm Thickness, 1300mm (L) x 700mm (W), with Right-Hand Foldable Slide-Out Anti-Slip Access Door, Same-Side Ø90mm Waste Outlet and Supplied Basket-Strainer Waste, Minimum 1:100 Fall to Drain, Three Perforated False-Bottom Inserts at Two Adjustable Levels, 40 x 40mm Grade 304 Stainless Steel Tubular Frame and Stainless Steel Adjustable Feet. Lower Insert Height: 850mm; Trough Bottom at Highest Point: 800mm; Trough Depth at Shallow End: 500mm; Front Rim Height: 1300mm; Left, Right and Rear Splashbacks: 300mm with Safety-Hemmed Top Edge; Overall Height: 1600mm. Hose and Trigger Spray Excluded; Available as Optional Accessories.
Loading model details…
Shortlist this product, add project notes and compare your options.
Product overview
The H50452 dog grooming tub is made from 1.2mm Grade 304 stainless steel and measures 1300mm long x 700mm wide. Choose a right- or left-hand opening door. The foldable slide-out access door has an anti-slip surface.
Three perforated false-bottom inserts are supplied, with two adjustable levels for different-height dogs. The lower insert is 850mm above the floor. The trough bottom is 800mm above the floor at its highest point and falls towards the waste at a minimum gradient of 1:100. Measured from its shallow end, the trough is 500mm deep to the front working rim. The rim is therefore 1300mm above the floor.
A 90mm pre-punched waste outlet with a supplied basket-strainer waste is positioned on the same side as the door for access and maintenance. 300mm splashbacks above the rim run along the left, right and rear and have a safety hem on the top edge. Overall height is 1600mm.
The frame uses 40 x 40mm Grade 304 stainless steel tubing and stainless steel adjustable feet. The hose and trigger spray are excluded and are available as optional accessories.
Features & benefits
Grade 304 Stainless Steel
1.2mm Grade 304 stainless steel tub with a 40 x 40mm Grade 304 stainless steel tubular frame and stainless steel adjustable feet.
Left- or Right-Hand Access
Choose a left- or right-hand opening door. The foldable access door slides out and has an anti-slip surface.
Three Adjustable Perforated Inserts
Three perforated false-bottom inserts can be positioned at two levels for different-height dogs. The lower insert level is 850mm above the floor.
Door-Side Drainage
A 90mm pre-punched waste outlet and supplied basket-strainer waste are positioned on the same side as the access door for access and maintenance.
Fall to Drain
The trough bottom has a minimum 1:100 fall towards the drain. Its highest point is 800mm above the floor.
Three-Sided Splashbacks
300mm splashbacks above the trough rim run along the left, right and rear, with a safety hem on the top edge.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 1600 mm
- Length
- Fixed
- 1300 mm
- Width
- Fixed
- 700 mm
- Door Orientation
- Configurable
- Right-Hand
- Left-Hand
- Access Door Surface
- Fixed
- Anti-Slip
- Access Door Type
- Fixed
- Foldable Slide-Out Door
- Bowl Depth
- Fixed
- 500 mm
- False Bottom Insert Quantity
- Fixed
- 3
- False Bottom Insert Type
- Fixed
- Perforated
- Feet
- Fixed
- Stainless Steel Adjustable Feet
- Framework Material
- Fixed
- Stainless Steel Grade 304
- Framework Tube Size
- Fixed
- 40 x 40 mm
- Front Rim Height
- Fixed
- 1300 mm
- Insert Adjustment Levels
- Fixed
- 2
- Lower Insert Height
- Fixed
- 850 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Minimum Drainage Fall
- Fixed
- 1:100
- Optional Accessories
- Fixed
- Hose and Trigger Spray; Excluded from Tub Price
- Splashback Configuration
- Fixed
- Rear and Both Sides
- Splashback Height
- Fixed
- 300 mm
- Splashback Top Edge
- Fixed
- Safety Hem
- Trough Bottom Height at Highest Point
- Fixed
- 800 mm
- Trough Depth Measurement
- Fixed
- From the Highest, Shallow End to the Front Rim
- Waste Assembly
- Fixed
- Basket-Strainer Waste Supplied
- Waste Outlet Diameter
- Fixed
- 90 mm
- Waste Outlet Position
- Fixed
- Same Side as Access Door
| Specification | Value | Configuration |
|---|---|---|
| Door Orientation |
| Configurable |
| Access Door Surface |
| Fixed |
| Access Door Type |
| Fixed |
| Bowl Depth |
| Fixed |
| False Bottom Insert Quantity |
| Fixed |
| False Bottom Insert Type |
| Fixed |
| Feet |
| Fixed |
| Framework Material |
| Fixed |
| Framework Tube Size |
| Fixed |
| Front Rim Height |
| Fixed |
| Insert Adjustment Levels |
| Fixed |
| Lower Insert Height |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Minimum Drainage Fall |
| Fixed |
| Optional Accessories |
| Fixed |
| Splashback Configuration |
| Fixed |
| Splashback Height |
| Fixed |
| Splashback Top Edge |
| Fixed |
| Trough Bottom Height at Highest Point |
| Fixed |
| Trough Depth Measurement |
| Fixed |
| Waste Assembly |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Waste Outlet Position |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H50452(112-1300x0700L) | Dog Grooming Tub, Stainless Steel Grade 304, 1.2mm Thickness, 1300mm (L) x 700mm (W), with Left-Hand Foldable Slide-Out Anti-Slip Access Door, Same-Side Ø90mm Waste Outlet and Supplied Basket-Strainer Waste, Minimum 1:100 Fall to Drain, Three Perforated False-Bottom Inserts at Two Adjustable Levels, 40 x 40mm Grade 304 Stainless Steel Tubular Frame and Stainless Steel Adjustable Feet. Lower Insert Height: 850mm; Trough Bottom at Highest Point: 800mm; Trough Depth at Shallow End: 500mm; Front Rim Height: 1300mm; Left, Right and Rear Splashbacks: 300mm with Safety-Hemmed Top Edge; Overall Height: 1600mm. Hose and Trigger Spray Excluded; Available as Optional Accessories. Tub Dog Grooming 1300mm (L) x 700mm (W) Left-Hand | Anti-Slip | Foldable Slide-Out Door | 500 mm | Left-Hand | 3 | Perforated | Stainless Steel Adjustable Feet | Stainless Steel Grade 304 | 40 x 40 mm | 1300 mm | 1600 mm | 2 | 1300 mm | 850 mm | Stainless Steel Grade 304 | 1.2 mm | 1:100 | Hose and Trigger Spray; Excluded from Tub Price | Rear and Both Sides | 300 mm | Safety Hem | 800 mm | From the Highest, Shallow End to the Front Rim | Basket-Strainer Waste Supplied | 90 mm | Same Side as Access Door | 700 mm | View specifications
| |
| H50452(112-1300x0700R) | Dog Grooming Tub, Stainless Steel Grade 304, 1.2mm Thickness, 1300mm (L) x 700mm (W), with Right-Hand Foldable Slide-Out Anti-Slip Access Door, Same-Side Ø90mm Waste Outlet and Supplied Basket-Strainer Waste, Minimum 1:100 Fall to Drain, Three Perforated False-Bottom Inserts at Two Adjustable Levels, 40 x 40mm Grade 304 Stainless Steel Tubular Frame and Stainless Steel Adjustable Feet. Lower Insert Height: 850mm; Trough Bottom at Highest Point: 800mm; Trough Depth at Shallow End: 500mm; Front Rim Height: 1300mm; Left, Right and Rear Splashbacks: 300mm with Safety-Hemmed Top Edge; Overall Height: 1600mm. Hose and Trigger Spray Excluded; Available as Optional Accessories. Tub Dog Grooming 1300mm (L) x 700mm (W) Right-Hand | Anti-Slip | Foldable Slide-Out Door | 500 mm | Right-Hand | 3 | Perforated | Stainless Steel Adjustable Feet | Stainless Steel Grade 304 | 40 x 40 mm | 1300 mm | 1600 mm | 2 | 1300 mm | 850 mm | Stainless Steel Grade 304 | 1.2 mm | 1:100 | Hose and Trigger Spray; Excluded from Tub Price | Rear and Both Sides | 300 mm | Safety Hem | 800 mm | From the Highest, Shallow End to the Front Rim | Basket-Strainer Waste Supplied | 90 mm | Same Side as Access Door | 700 mm | View specifications
|
