H72430 Stainless Steel Mortuary Table and Sink
Image indicative of the range. Configurations may differ.
1 / 4 product images
Stainless steel mortuary table and sink for body preparation and wash-up areas, measuring 2567 mm (L) × 766 mm (W) × 900 mm (H). The nominal 1875 × 626 mm recessed slab and 500 × 500 × 250 mm sink bowl have separate Ø40 mm waste outlets. A stainless steel tubular frame, 65 mm apron and adjustable stainless steel feet support the unit. Choose Grade 304 or Grade 316 stainless steel in 1.2 mm or 1.5 mm thickness.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 2 options selected
Select Material, Material Thickness to complete your configuration.
Material
Material Thickness
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield H72430 combines a recessed mortuary preparation slab and an integrated sink bowl in one freestanding stainless steel unit for body preparation and wash-up areas. It is available in Grade 304 or Grade 316 stainless steel, with a choice of 1.2 mm or 1.5 mm material thickness.
Overall dimensions are 2567 mm long × 766 mm wide × 900 mm high. The nominal recessed slab dimensions are 1875 mm long × 626 mm wide, with its own Ø40 mm waste outlet. The integrated sink bowl measures 500 mm long × 500 mm wide × 250 mm deep and has a separate Ø40 mm waste outlet.
A 65 mm stainless steel apron runs around the work surface. The stainless steel tubular framework supports the table, and adjustable stainless steel feet allow the unit to be levelled during installation. Welded seams are ground smooth and polished to a satin finish.
The combined layout provides adjacent preparation and washing areas for hospital mortuaries and pathology and mortuary service facilities.
Features & benefits
Combined Preparation Slab and Sink
A nominal 1875 × 626 mm recessed preparation slab and integrated sink bowl share one freestanding stainless steel frame.
Separate Waste Outlets
The recessed slab and sink bowl each have a separate Ø40 mm waste outlet.
500 × 500 × 250 mm Sink Bowl
An integrated bowl provides a washing area alongside the recessed slab.
Stainless Steel Tubular Framework
The supporting framework and 65 mm apron form the table structure.
Adjustable Stainless Steel Feet
Adjustable feet allow the unit to be levelled during installation.
Four Material Configurations
Choose Grade 304 or Grade 316 stainless steel, each available in 1.2 mm or 1.5 mm thickness.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H72430.
PDFProduct warranty
12-month warranty and claims information for H72430.

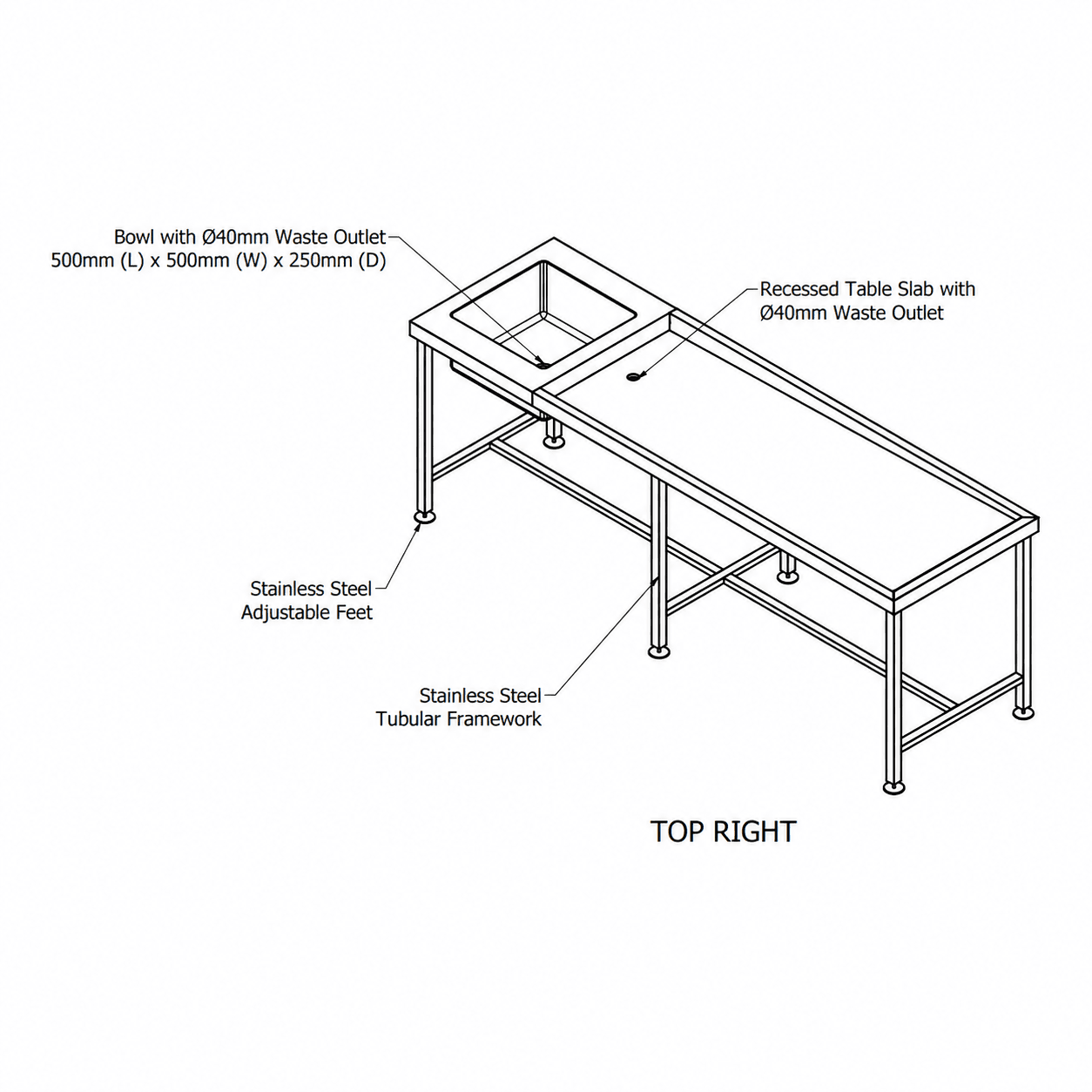

PDFIsometric view — bowl depth 250 mm
Image · Technical media

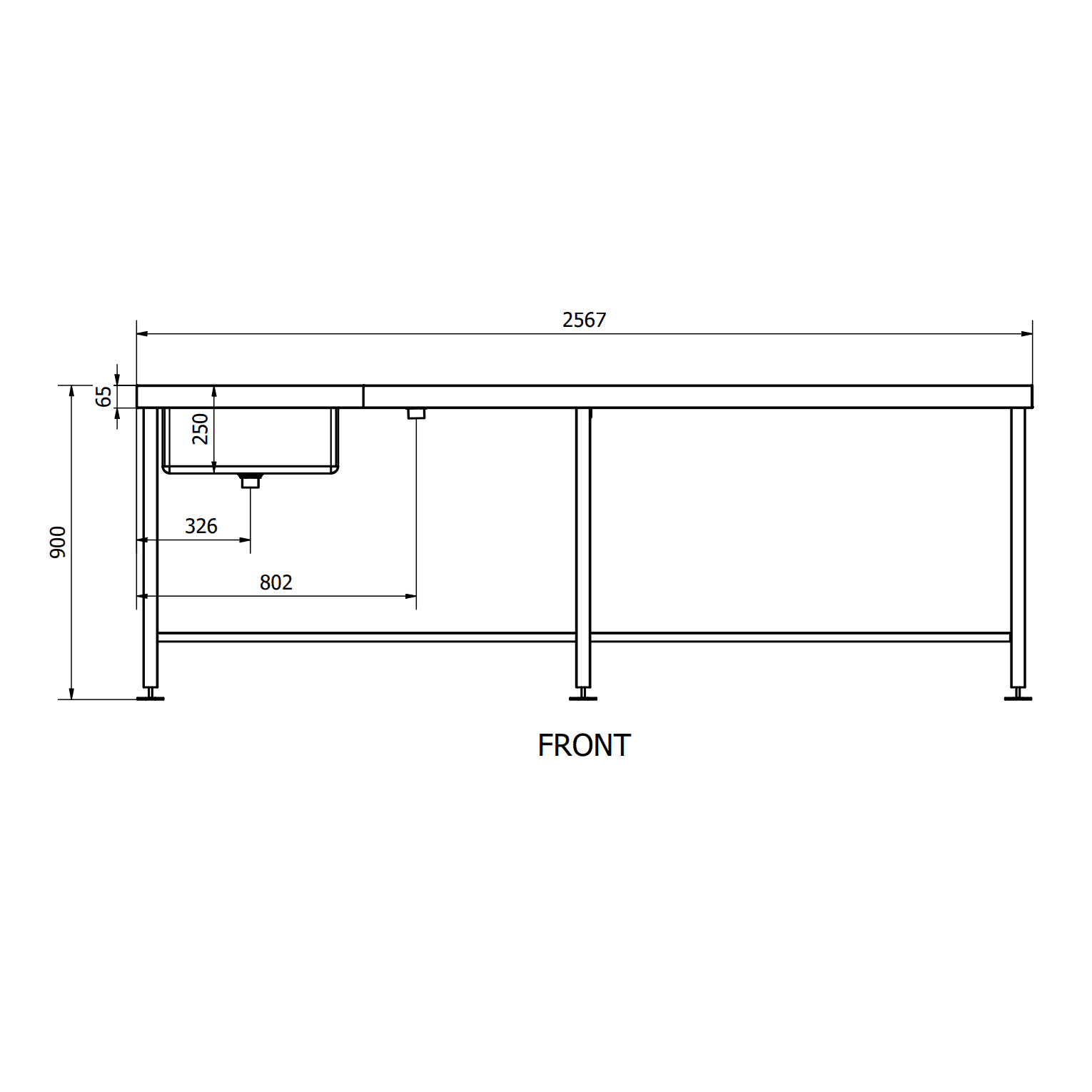

Front view — overall length, height and bowl depth
Image · Technical media

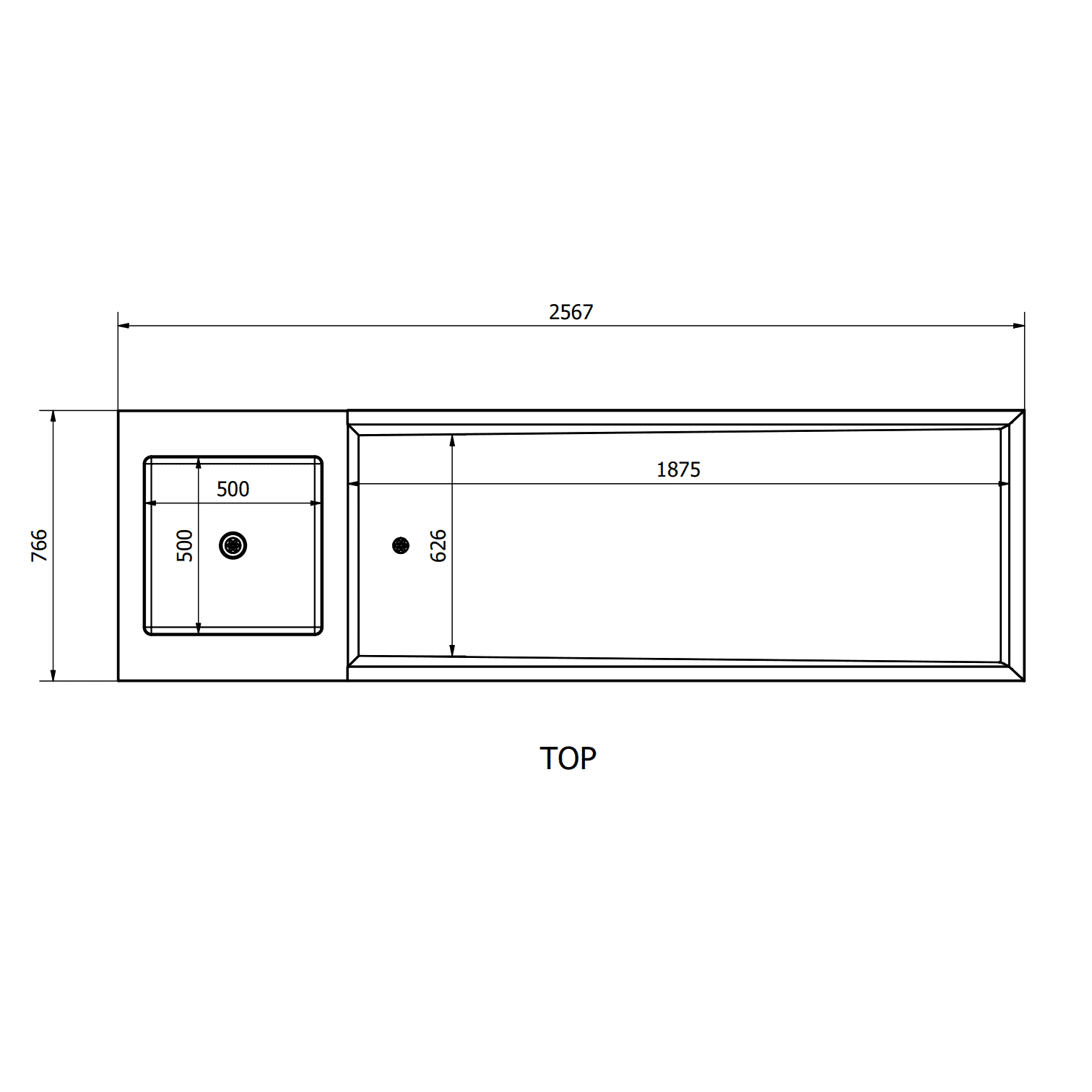

Top view — table and sink layout
Image · Technical media
Need another product document?
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 900 mm
- Length
- Fixed
- 2567 mm
- Width
- Fixed
- 766 mm
- Material
- Configurable
- Stainless Steel Grade 304
- Stainless Steel Grade 316
- Material Thickness
- Configurable
- 1.2 mm
- 1.5 mm
- Adjustable Feet
- Fixed
- Yes
- Apron Height
- Fixed
- 65 mm
- Bowl Depth
- Fixed
- 250 mm
- Bowl Length
- Fixed
- 500 mm
- Bowl Width
- Fixed
- 500 mm
- Drainage
- Fixed
- Separate Slab and Bowl Waste Outlets
- Feet Material
- Fixed
- Stainless Steel
- Framework Material
- Fixed
- Stainless Steel
- Mounting Type
- Fixed
- Free Standing
- Number of Bowls
- Fixed
- 1
- Recessed Slab Length
- Fixed
- 1875 mm
- Recessed Slab Width
- Fixed
- 626 mm
- Waste Outlet Diameter
- Fixed
- 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Material |
| Configurable |
| Material Thickness |
| Configurable |
| Adjustable Feet |
| Fixed |
| Apron Height |
| Fixed |
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Width |
| Fixed |
| Drainage |
| Fixed |
| Feet Material |
| Fixed |
| Framework Material |
| Fixed |
| Mounting Type |
| Fixed |
| Number of Bowls |
| Fixed |
| Recessed Slab Length |
| Fixed |
| Recessed Slab Width |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare 4 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H72430(112) | Mortuary Table and Sink Stainless Steel Grade 304 1.2mm Thickness 2567mm (L) × 766mm (W) × 900mm (H) with Nominal 1875mm (L) × 626mm (W) Recessed Slab, 500mm (L) × 500mm (W) × 250mm (D) Bowl, Separate Ø40mm Waste Outlets, 65mm Apron, Stainless Steel Tubular Frame and Adjustable Stainless Steel Feet Mortuary Table and Sink Stainless Steel 304 1.2mm | 900 mm | Yes | 65 mm | 250 mm | 500 mm | 500 mm | Separate Slab and Bowl Waste Outlets | Stainless Steel | Stainless Steel | 2567 mm | Stainless Steel Grade 304 | 1.2 mm | Free Standing | 1 | 1875 mm | 626 mm | 40 mm | 766 mm | View specifications
| |
| H72430(115) | Mortuary Table and Sink Stainless Steel Grade 304 1.5mm Thickness 2567mm (L) × 766mm (W) × 900mm (H) with Nominal 1875mm (L) × 626mm (W) Recessed Slab, 500mm (L) × 500mm (W) × 250mm (D) Bowl, Separate Ø40mm Waste Outlets, 65mm Apron, Stainless Steel Tubular Frame and Adjustable Stainless Steel Feet Mortuary Table and Sink Stainless Steel 304 1.5mm | 900 mm | Yes | 65 mm | 250 mm | 500 mm | 500 mm | Separate Slab and Bowl Waste Outlets | Stainless Steel | Stainless Steel | 2567 mm | Stainless Steel Grade 304 | 1.5 mm | Free Standing | 1 | 1875 mm | 626 mm | 40 mm | 766 mm | View specifications
| |
| H72430(312) | Mortuary Table and Sink Stainless Steel Grade 316 1.2mm Thickness 2567mm (L) × 766mm (W) × 900mm (H) with Nominal 1875mm (L) × 626mm (W) Recessed Slab, 500mm (L) × 500mm (W) × 250mm (D) Bowl, Separate Ø40mm Waste Outlets, 65mm Apron, Stainless Steel Tubular Frame and Adjustable Stainless Steel Feet Mortuary Table and Sink Stainless Steel 316 1.2mm | 900 mm | Yes | 65 mm | 250 mm | 500 mm | 500 mm | Separate Slab and Bowl Waste Outlets | Stainless Steel | Stainless Steel | 2567 mm | Stainless Steel Grade 316 | 1.2 mm | Free Standing | 1 | 1875 mm | 626 mm | 40 mm | 766 mm | View specifications
| |
| H72430(315) | Mortuary Table and Sink Stainless Steel Grade 316 1.5mm Thickness 2567mm (L) × 766mm (W) × 900mm (H) with Nominal 1875mm (L) × 626mm (W) Recessed Slab, 500mm (L) × 500mm (W) × 250mm (D) Bowl, Separate Ø40mm Waste Outlets, 65mm Apron, Stainless Steel Tubular Frame and Adjustable Stainless Steel Feet Mortuary Table and Sink Stainless Steel 316 1.5mm | 900 mm | Yes | 65 mm | 250 mm | 500 mm | 500 mm | Separate Slab and Bowl Waste Outlets | Stainless Steel | Stainless Steel | 2567 mm | Stainless Steel Grade 316 | 1.5 mm | Free Standing | 1 | 1875 mm | 626 mm | 40 mm | 766 mm | View specifications
|
