M30300(120-1800x0900x500) Electric Stainless Steel Pig Scalding Tank
Image indicative of the range. Configurations may differ.
1 / 6 product images

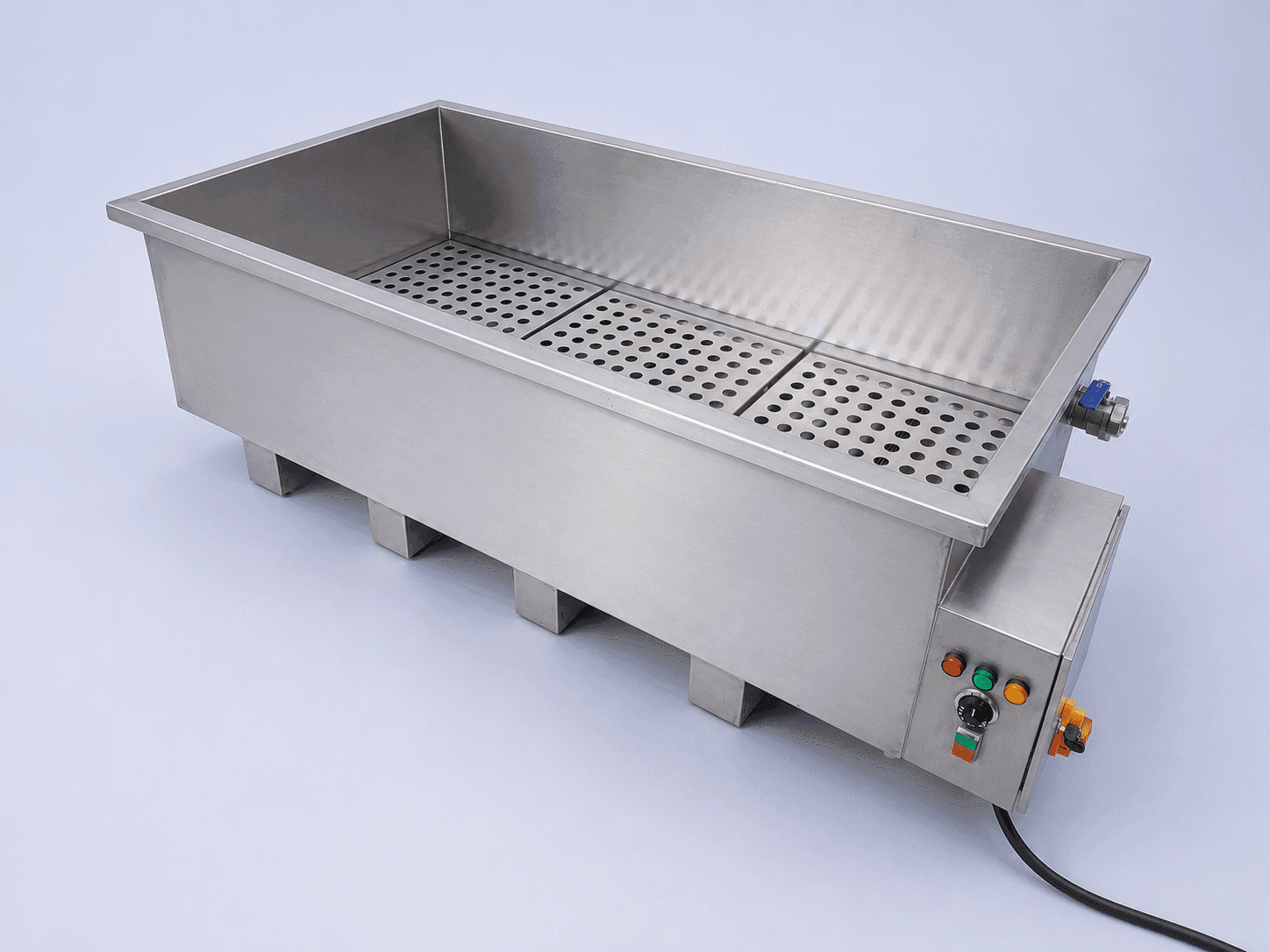

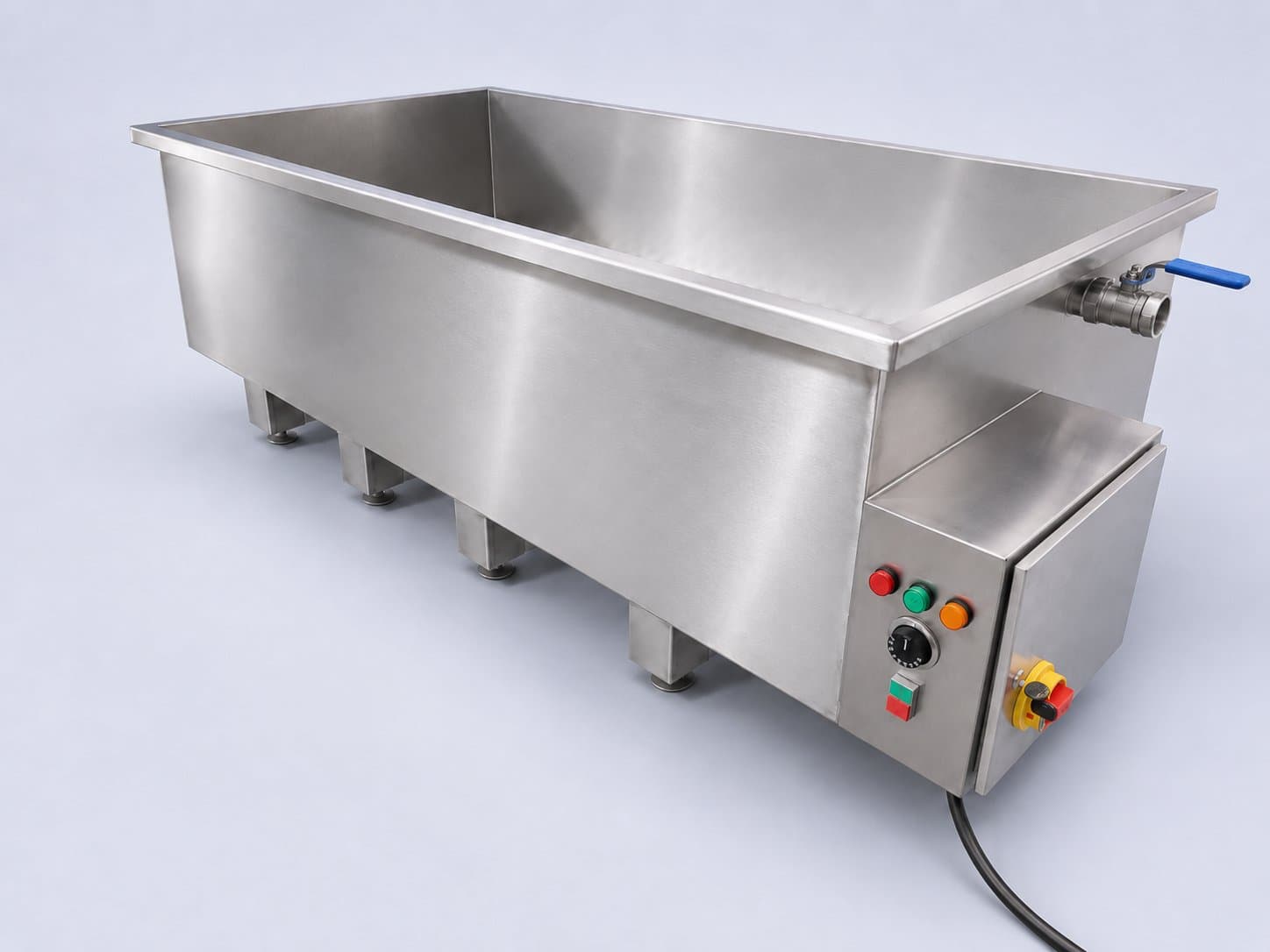

Electric scalding bath for medium pig carcasses, built in 2mm Grade 304 stainless steel with 27kW immersion heating, thermostatic control and removable support grids.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R45,180.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The Basterfield electric pig scalding tank provides a heated water bath for medium pig carcasses before dehairing in pork-processing and abattoir operations. The tank is manufactured from 2mm Grade 304 stainless steel, with radiused internal surfaces that support routine cleaning.
Three immersion elements provide a combined heating rating of 27kW from a 380V three-phase supply. Adjustable thermostatic control lets the operator select the setting for the scalding process; the thermostat has a 30–110°C adjustment range.
Heavy-duty perforated grids support the carcass above the elements. The grids are removable, giving access to the tank base and element area for cleaning. Water inlet and outlet control includes a 1½″ BSP ball valve for filling and draining.
Internal tank dimensions are 1800mm long × 900mm wide × 500mm deep. The unit is supplied as a scalding bath only. Rotating devices, lifting equipment and hoists are excluded unless separately specified in the quotation.
Features & benefits
2mm Grade 304 Stainless Steel
Stainless steel construction and radiused internal surfaces support routine washdown in wet pork-processing areas.
1800 × 900 × 500mm Internal Tank
A scalding bath for medium pig carcasses, with clearly specified internal dimensions for matching the tank to the carcass and handling arrangement.
27kW Electric Immersion Heating
Three immersion elements heat the water within the tank, providing a total rating of 27kW from a 380V three-phase supply.
Adjustable Thermostatic Control
The 30–110°C thermostat adjustment range lets the operator select the water-temperature setting for the scalding procedure.

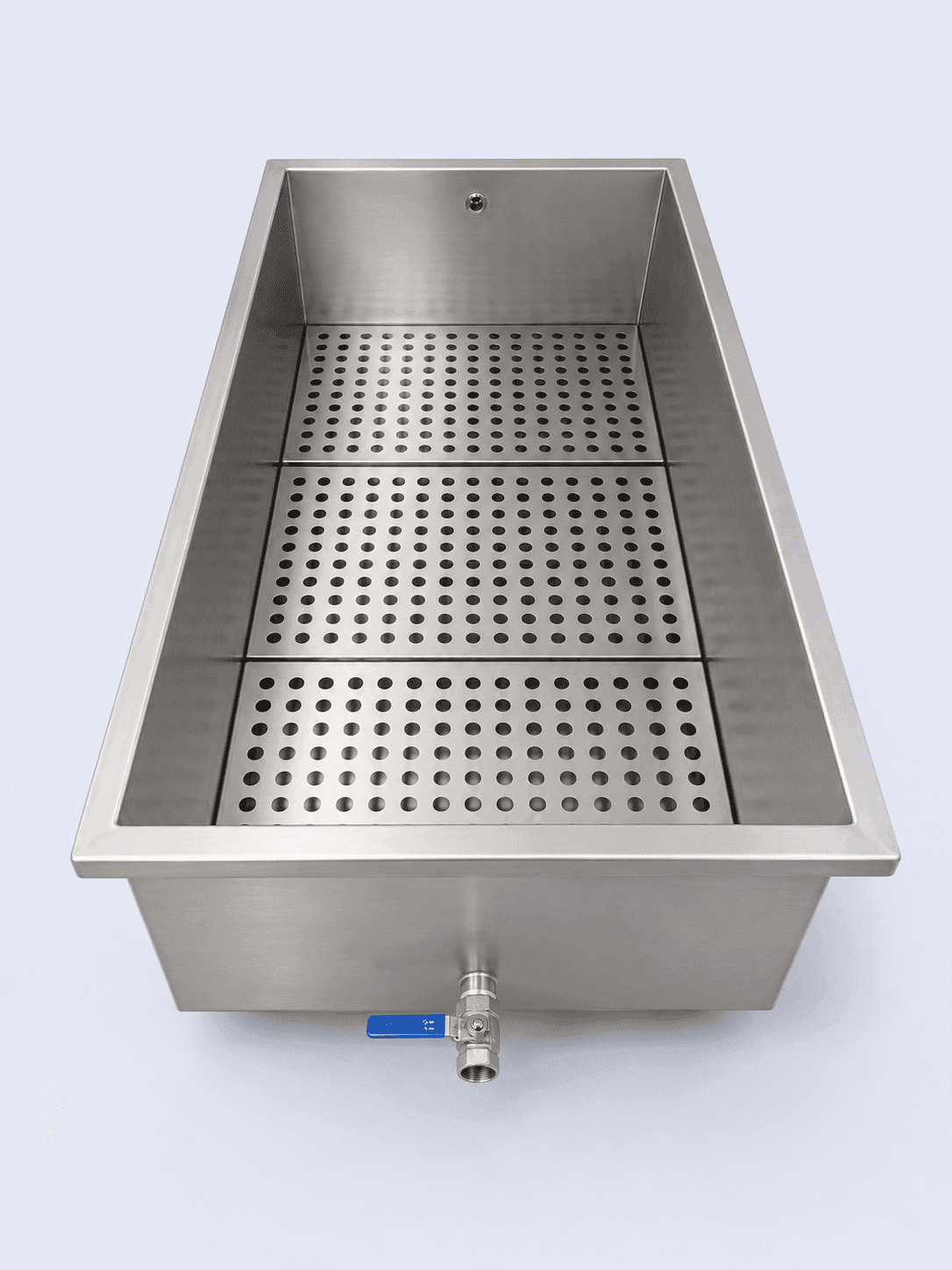

Removable Perforated Support Grids
Heavy-duty grids support the carcass above the elements and lift out to provide cleaning access to the tank base and element area.
Controlled Filling and Draining
Water inlet and outlet control includes a 1½″ BSP ball valve, helping operators manage filling, draining and water changes.
Installation & support
Technical information & documents
Product documents
Installation, specifications and warranty information.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
- Heating Element Quantity
- Fixed
- 3
- Internal Tank Depth
- Fixed
- 500 mm
- Internal Tank Length
- Fixed
- 1800 mm
- Internal Tank Width
- Fixed
- 900 mm
- Line-to-Line Voltage
- Fixed
- 380 VAC
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 2 mm
- Power
- Fixed
- 27 kW
- Supply Configuration
- Fixed
- Three-Phase
- Support Grids
- Fixed
- Removable Heavy-Duty Perforated Grids
- Thermostat Adjustment Range
- Fixed
- 30–110°C
- Water Control Fitting
- Fixed
- 1½″ BSP Ball Valve
