M36656 Heavy-Duty Automatic-Fill Animal Drinking Trough

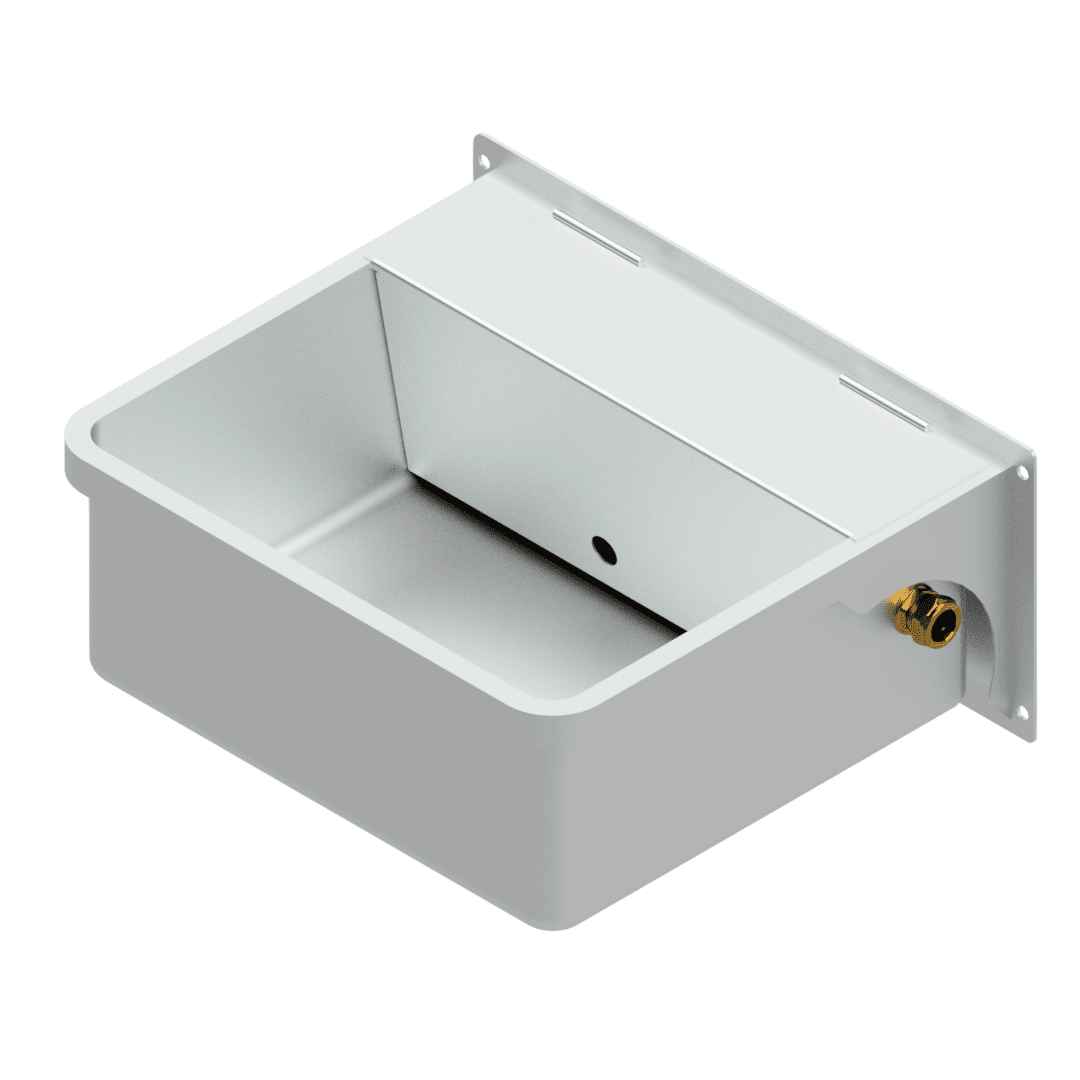

Image indicative of the range. Configurations may differ.
1 / 1 product images
Heavy-duty Grade 304 stainless steel automatic-fill drinking trough for horses and cattle. A ball inlet float controls refilling through a ¾″ BSP inlet beneath a protective hinged access cover. Construction combines a 3 mm wall-mounting plate, 1.2 mm bowl and 1.5 mm surround. Radiused corners support cleaning and animal safety. Supplied with a 1½″ chrome-plated waste fitting and plug.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R3,856.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview
The Basterfield M36656 is a heavy-duty, wall-mounted automatic-fill drinking trough for large animals, including horses and cattle. Its generous bowl provides an open drinking area, while a ball inlet float controls water replenishment through a ¾″ BSP inlet specified for high-flow supply. A hinged access cover protects the float and opens for access.
Grade 304 stainless steel construction combines a heavy-duty 3 mm wall-mounting plate, a 1.2 mm bowl and a 1.5 mm bowl surround. The bowl and surround have radiused corners to aid cleaning and reduce sharp corners around the animal drinking area.
Overall width across the mounting plate is 490 mm. The bowl is 450 mm outside length and 417 mm inside length, with a 400 mm front-to-back width, a 260 mm open drinking access dimension and a 180 mm bowl depth.
The bowl is pre-punched for a 1½″ waste outlet and is supplied fitted with a chrome-plated waste outlet and plug. Removing the plug allows the bowl to be drained for cleaning.
Features & benefits
Automatic refill
Ball-float water-level control replenishes the bowl through a ¾″ BSP inlet.
Heavy-duty wall mounting
A 3 mm stainless steel mounting plate supports wall installation.
Protected float access
The hinged cover protects the inlet float and allows access when opened.
Generous drinking bowl
450 mm outside and 417 mm inside bowl lengths with 260 mm open drinking access.
Radiused corners
Radiused bowl and surround corners aid cleaning and animal protection.
Drain for cleaning
An included chrome-plated 1½″ waste fitting and plug allow controlled emptying of the bowl.
Specified construction thicknesses
3 mm wall-mounting plate, 1.2 mm bowl and 1.5 mm surround in Grade 304 stainless steel.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
- Bowl Depth
- Fixed
- 180 mm
- Bowl Inside Length
- Fixed
- 417 mm
- Bowl Outside Length
- Fixed
- 450 mm
- Bowl Surround Thickness
- Fixed
- 1.5 mm
- Bowl Thickness
- Fixed
- 1.2 mm
- Bowl and Surround Corners
- Fixed
- Radiused
- Float Protection
- Fixed
- Hinged Access Cover
- Front-to-Back Width
- Fixed
- 400 mm
- Included Waste Fitting
- Fixed
- Chrome-Plated Waste Outlet with Plug
- Intended Animals
- Fixed
- Horses and Cattle
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
- Open Drinking Access
- Fixed
- 260 mm
- Overall Width
- Fixed
- 490 mm
- Refill Control
- Fixed
- Automatic Ball Inlet Float
- Wall Mounting Plate Thickness
- Fixed
- 3 mm
- Waste Outlet Size
- Fixed
- 1½″
- Water Inlet
- Fixed
- ¾″ BSP
| Specification | Value | Configuration |
|---|---|---|
| Bowl Depth |
| Fixed |
| Bowl Inside Length |
| Fixed |
| Bowl Outside Length |
| Fixed |
| Bowl Surround Thickness |
| Fixed |
| Bowl Thickness |
| Fixed |
| Bowl and Surround Corners |
| Fixed |
| Float Protection |
| Fixed |
| Front-to-Back Width |
| Fixed |
| Included Waste Fitting |
| Fixed |
| Intended Animals |
| Fixed |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Open Drinking Access |
| Fixed |
| Overall Width |
| Fixed |
| Refill Control |
| Fixed |
| Wall Mounting Plate Thickness |
| Fixed |
| Waste Outlet Size |
| Fixed |
| Water Inlet |
| Fixed |
