Useful information for planning and specifying products in the Sinks & Wash Stations range.
How do I choose between a preparation, pot and utensil sink?
Choose by the washing task. Preparation sinks serve food-preparation areas, pot sinks accommodate cookware, and utensil sinks serve kitchen equipment. Compare bowl dimensions, bowl position and any drainer area with the items being washed and the available space.
Grade 304 stainless steel drop-in sink bowls that fit into a countertop opening from above, with a 20mm mounting flange resting on the countertop. Choose four square bowl sizes, 250mm or 300mm depth and Ø90mm or Ø40mm W40 waste outlet. Standard 1.2mm or 0.9mm thickness; 1.5mm under Advanced Customisation.
Grade 304 stainless steel double bowl utensil sink for washing large utensils, meat trays and processing equipment. Centre-positioned bowls, square tube support bracing and a rear splashback, with standard and heavy duty construction options.
Two Centre-Positioned Bowls · Grade 304 Stainless Steel
2250 mm Double-Bowl Utensil Wash Sink with Integral Splashback
Large format 2250mm double-bowl utensil wash sink in 1.5mm Grade 304 stainless steel, with two 1000 × 990 × 500mm bowls and a choice of integral splashback heights.
Large Format Utensil Washing · Two Deep Centre Bowls
Grade 304 stainless steel scullery wash trough for soaking and rinsing crates, trays and utensils. Available in 1600mm or 1700mm lengths and 650mm, 700mm or 750mm widths, with a 400mm bowl depth, sloping front, cross-braced framework and 150mm rear splashback.
400mm Deep Wash Bowl · 1.2mm Grade 304 Stainless Steel Body

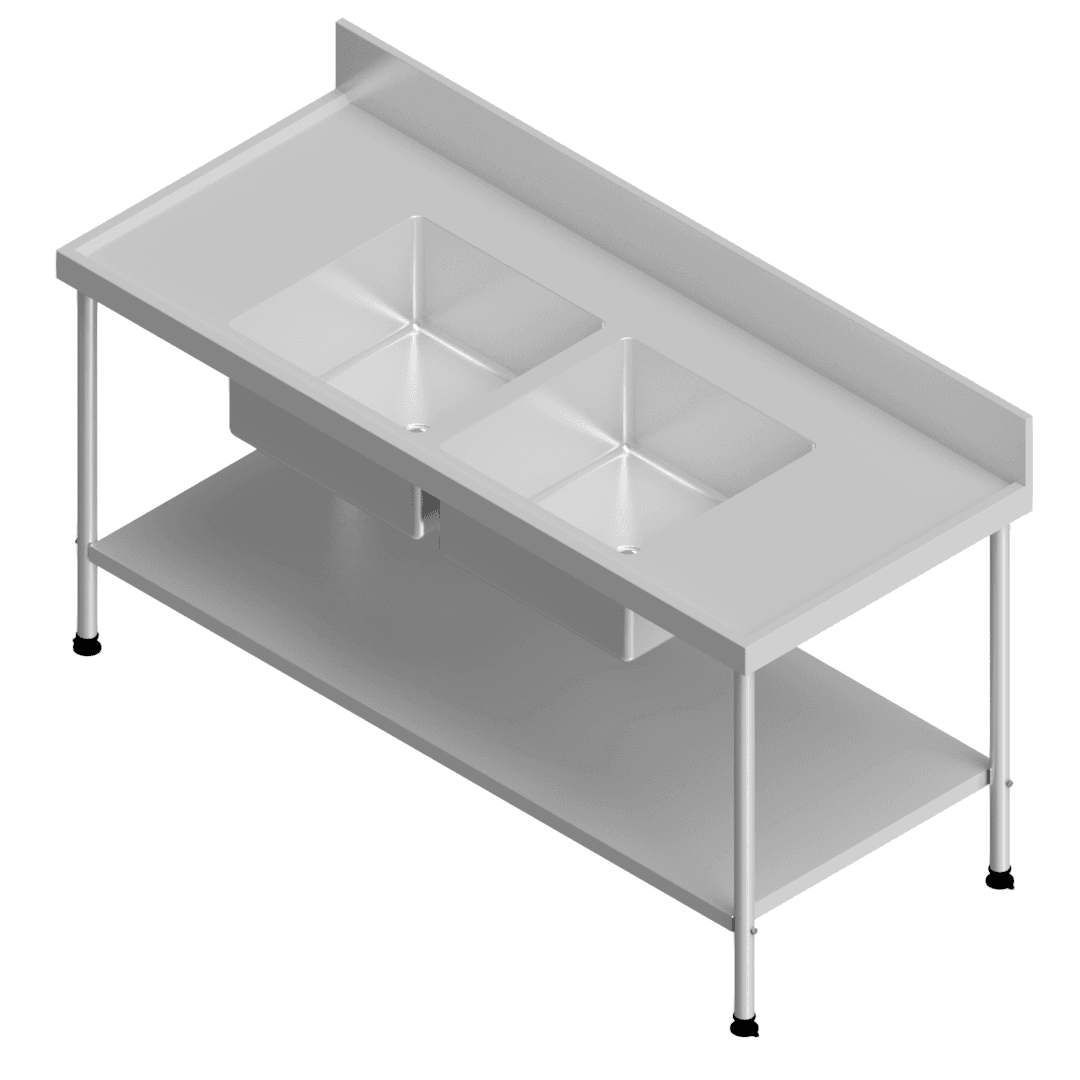

Double-centre-bowl preparation sinks in 1.2 mm Grade 304 stainless steel. Standard width 650 mm; an advanced 1800 x 750 mm configuration includes a solid stainless steel undershelf.
Double Bowl Preparation Sink with Extended Splashback
The Basterfield E22126(DC-E) Double Bowl Preparation Sink with Extended Splashback is a floor-standing stainless steel sink with two 500mm x 500mm x 250mm deep bowls, marine edge top and full stainless steel framework.

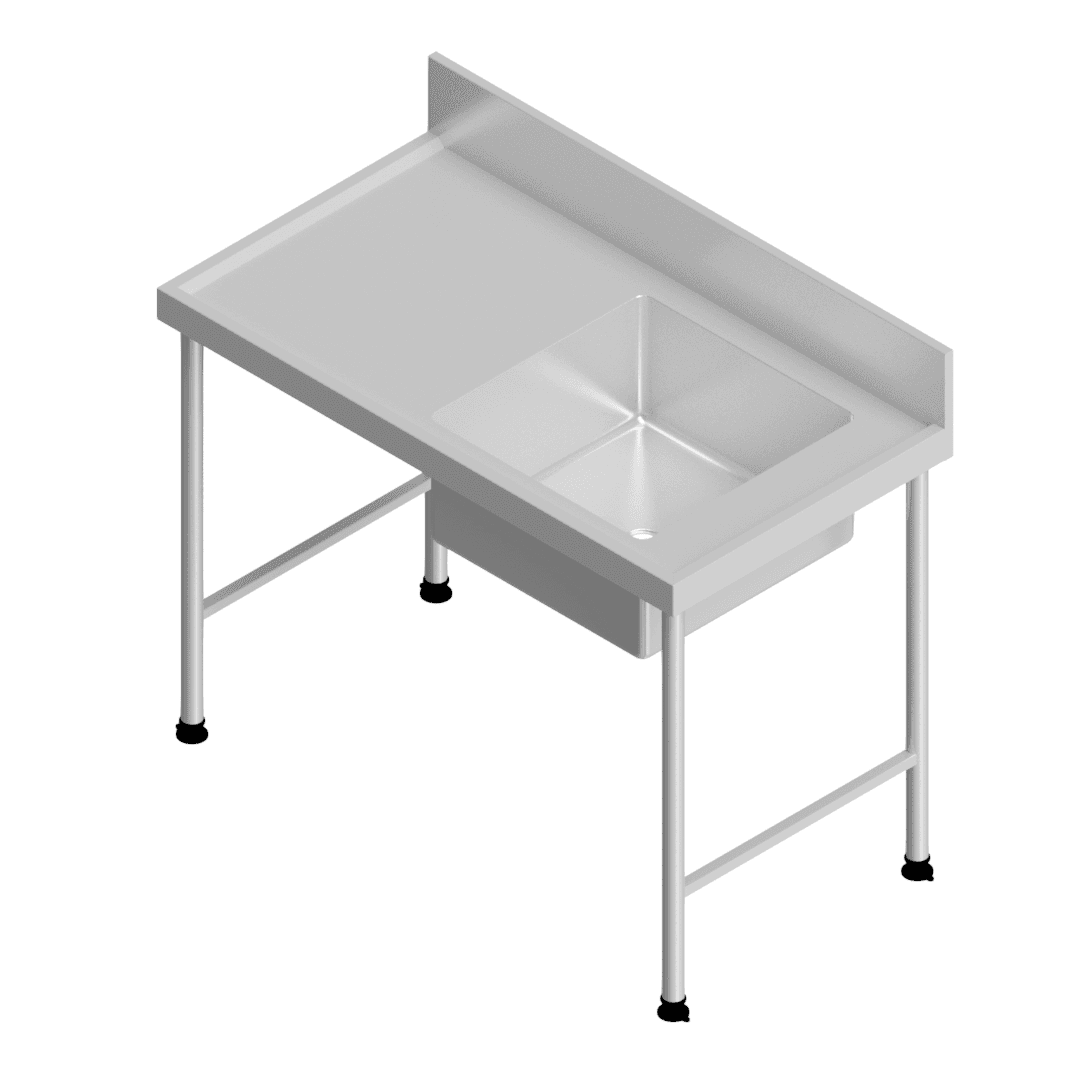

Single right-hand bowl preparation sink in 1.2 mm Grade 304 stainless steel, with a 150 mm integral splashback and stainless steel legs with adjustable feet. Select the required published size and undershelf configuration.
1.2 mm Grade 304 Stainless Steel · Single Right-Hand Bowl
Stainless steel combination sink for washing and preparation in commercial and institutional kitchens. Specify the required bowl layout, dimensions and fittings with your enquiry.
Stainless steel construction · Washing and preparation
Double-centre-bowl pot sink in 1.2 mm Grade 304 stainless steel. Seven lengths from 1500 to 2400 mm, with stainless undershelf and tubular-rack options. Standard width: 650 mm; 700 mm available as an advanced customisation.
E22128(DL) heavy-duty double bowl pot sink with two left-hand bowls and a right-hand drainer. Full Grade 304 or 316 stainless steel construction and sub frame, with no timber or galvanised backing, on stainless steel tubular legs with adjustable feet.
1850 mm mobile Grade 304 stainless steel pot sink with two central 600 × 500 × 300 mm bowls, 1.2 mm construction and castors including two lockable units.
Double-Bowl Food Preparation Sink with Cabinet Base
Food preparation sink with two bowls, a splashback and a cabinet base for commercial kitchen preparation and washing areas.
Length
1200 mm · 1400 mm · 1600 mm+2 options
How do drop-on and undermount sinks differ?
Drop-on bowls fit from above the worktop, with their flange at the opening. Undermount bowls fit beneath the worktop. Choose the mounting arrangement before planning the worktop opening and plumbing.
Are the same materials and fittings included with every sink?
No. Material grade, thickness, splashback, supports, tap provisions and waste connections vary by model. Use the selected configuration and specification sheet to establish which components are included.
