B17657 Accessible Stainless Steel Floor-Mounted Toilet
Image indicative of the range. Configurations may differ.
1 / 2 product images
Grade 304 stainless steel toilet pan for accessible washroom layouts, designed for floor and back-to-wall installation.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
Choose your specifications
Select Trap Type, Flushing Inlet Orientation to complete your configuration.
Trap Type
Flushing Inlet Orientation
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
Grade 304 stainless steel toilet pan for accessible washroom layouts, designed for floor and back-to-wall installation.
Constructed from heavy gauge Grade 304 (18/10) stainless steel, the unit provides outstanding resistance to vandalism and corrosion, ensuring durability in demanding applications such as public ablution blocks, healthcare institutions, and correctional facilities. The satin finish enhances its hygienic properties, making it easy to clean and maintain whilst providing a professional appearance.
The seat height of 410 mm ensures comfort and accessibility for wheelchair users. The compact 360 mm width makes the unit space efficient, whilst still providing adequate strength and stability. Standard access panels are provided on both sides of the pan, simplifying installation and allowing for easy maintenance in service environments.
Designed for versatility, the B17657 can be configured with either top-entry flushing (to suit exposed cisterns and flush valves) or back-entry flushing (for concealed cisterns and in-wall systems). Both P-trap and S-trap outlets are available to suit site-specific sewerage requirements, making the unit compatible with standard PVC or cast-iron drainage systems. Secure internal fixings at both wall and floor points ensure rigid installation and increased resistance against tampering.
This toilet has been designed and manufactured in South Africa to meet international hygiene and accessibility standards.
Installation & support
Technical information & documents
Product documents
Installation, specifications and warranty information.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
- Trap Type
- Configurable
- P-Trap
- S-Trap
- Flushing Inlet Orientation
- Configurable
- Back Entry
- Top Entry
| Specification | Value | Configuration |
|---|---|---|
| Trap Type |
| Configurable |
| Flushing Inlet Orientation |
| Configurable |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||
|---|---|---|---|---|---|

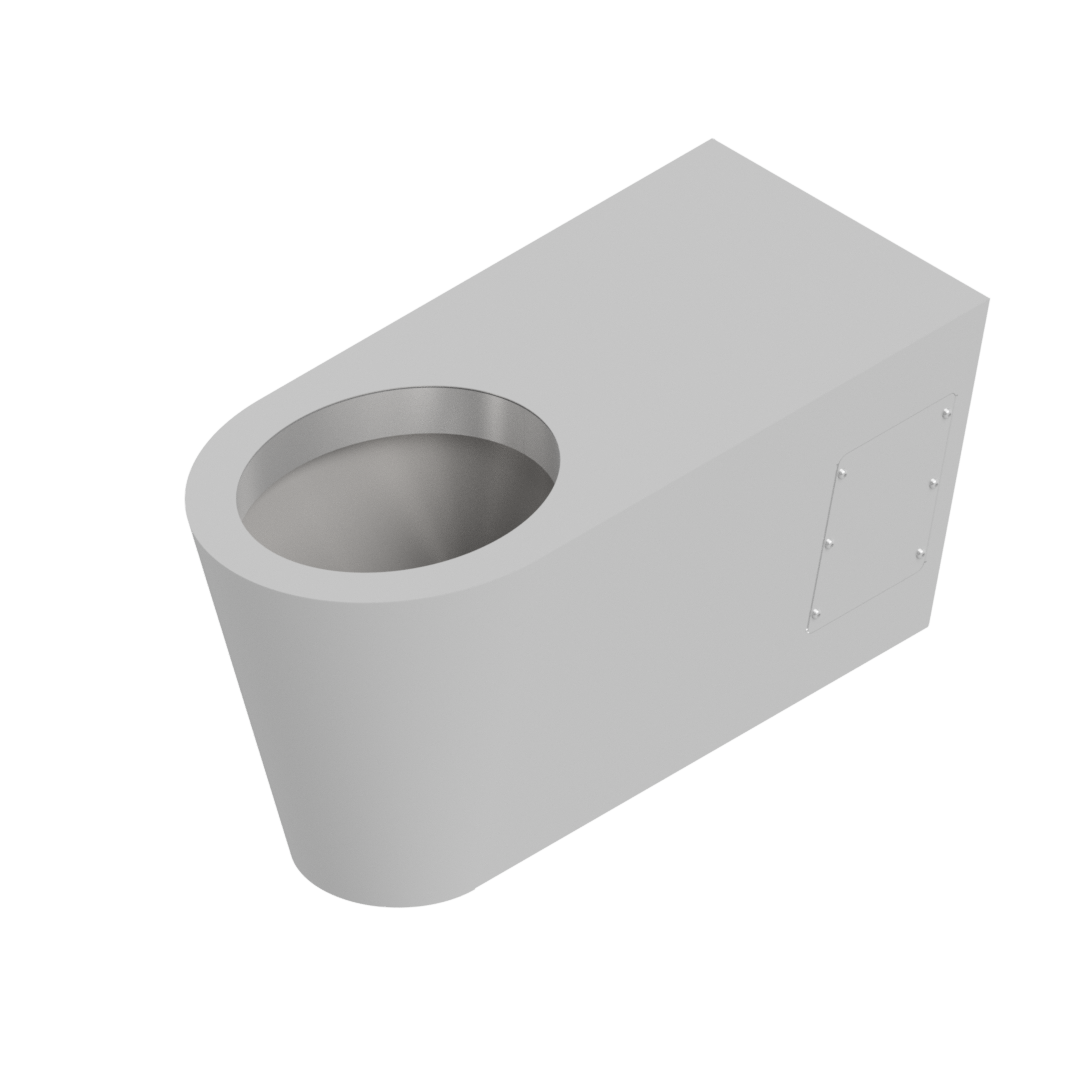

| B17657(PB) | B17657(PB) Grade 304 Stainless Steel Disabled WC Pan with Back-Entry Flush Inlet, P-Trap Outlet and Side Access Panels. Overall Dimensions: 800 mm Projection x 360 mm Wide x 410 mm High. Disabled WC Pan Back-Entry P-Trap | Back Entry | P-Trap | View specifications
| |

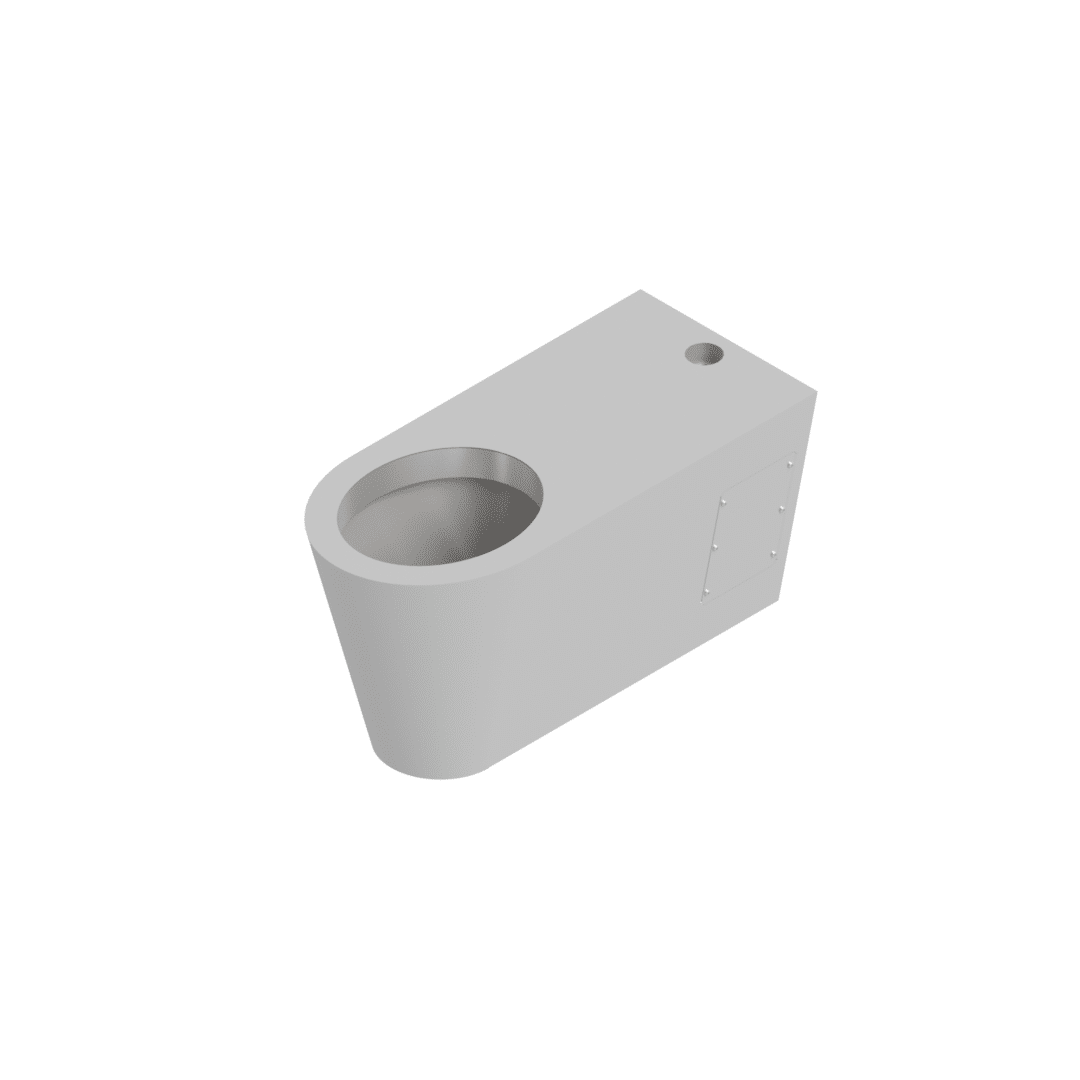

| B17657(PT) | Shrouded Disabled WC Pan Top Entry | Top Entry | P-Trap | View specifications
| |
| B17657(SB) | B17657(SB) Stainless Steel Disabled Toilet S-Trap Back-Entry Trap Type: S-Trap. Flushing Inlet Orientation: Back Entry. Stainless Steel Disabled Toilet | Back Entry | S-Trap | View specifications
| |
| B17657(ST) | B17657(ST) Stainless Steel Disabled Toilet S-Trap Top-Entry Trap Type: S-Trap. Flushing Inlet Orientation: Top Entry. Stainless Steel Disabled Toilet | Top Entry | S-Trap | View specifications
|
Specification support
