B17656(CTP) Close Coupled Shrouded Stainless Steel Toilet – Top-Entry P-Trap
Image indicative of the range. Configurations may differ.
1 / 5 product images
Close-coupled shrouded Grade 304 stainless steel toilet with a top-entry flush arrangement, integral P-trap, stainless steel cistern and internal flushing mechanism.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R8,445.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The B17656(CTP) is a close-coupled, shrouded stainless steel toilet with a top-entry flush arrangement and an integral P-trap waste outlet. It is manufactured from Grade 304 stainless steel with a satin brushed finish and is supplied complete with a close-coupled stainless steel cistern and internal flushing mechanism.
Overall dimensions are 650 mm long × 360 mm wide × 800 mm high, with a seat height of 410 mm. An integral flushing rim provides bowl wash-down, while the front-mounted flush lever operates the flushing mechanism.
Side access panels provide maintenance access to the plumbing and flushing mechanism. The floor-mounted suite is intended for high-traffic commercial, institutional and public sanitary installations, including public ablutions, healthcare facilities, correctional facilities, schools, transport hubs and industrial washrooms.
Designed and manufactured in South Africa.
Features & benefits
Grade 304 stainless steel
The toilet suite is manufactured from Grade 304 stainless steel with a satin brushed finish.
Complete close-coupled cistern
Supplied complete with a close-coupled stainless steel cistern and internal flushing mechanism.
Integral P-trap waste outlet
The shrouded floor-mounted suite incorporates an integral P-trap waste outlet.
Integral flushing rim
An integral flushing rim provides wash-down around the toilet bowl.
Front-mounted flush lever
The flushing mechanism is operated by a front-mounted lever / handle.
Side maintenance access
Side access panels provide access to the plumbing and internal flushing mechanism.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B17656(CTP).
PDFProduct warranty
12-month warranty and claims information for B17656(CTP).

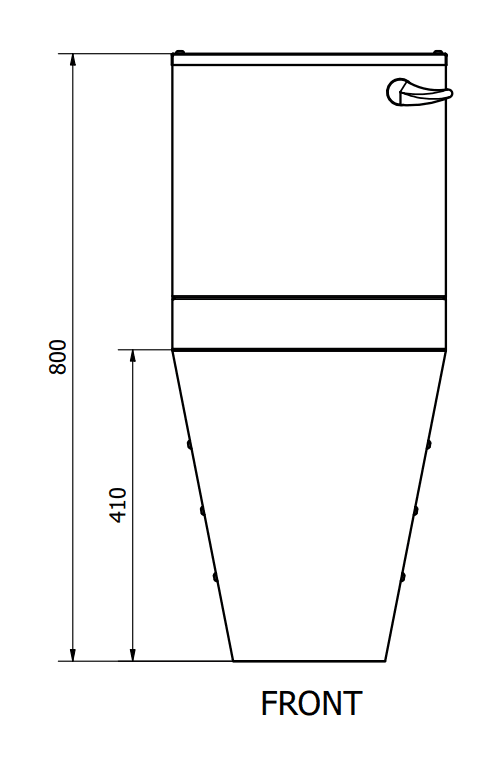

PDFB17656(CTP) front view; dimensions in millimetres.
Image · Technical media

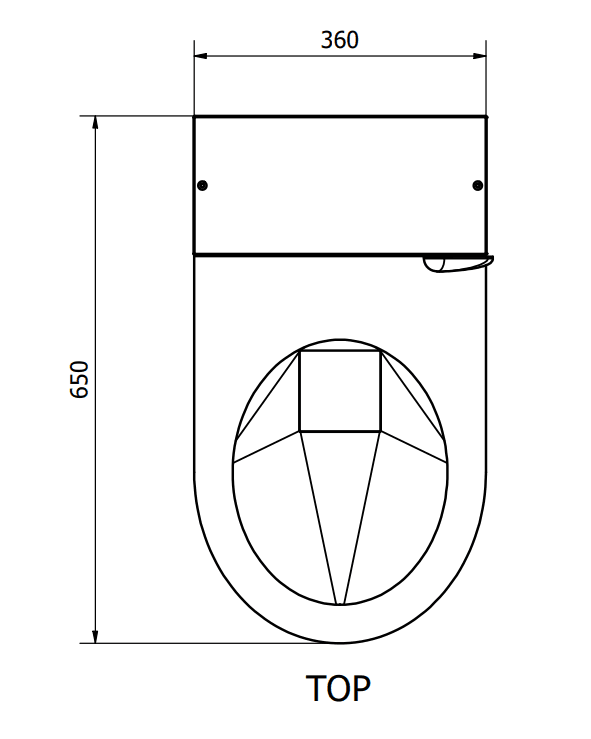

B17656(CTP) top view; dimensions in millimetres.
Image · Technical media

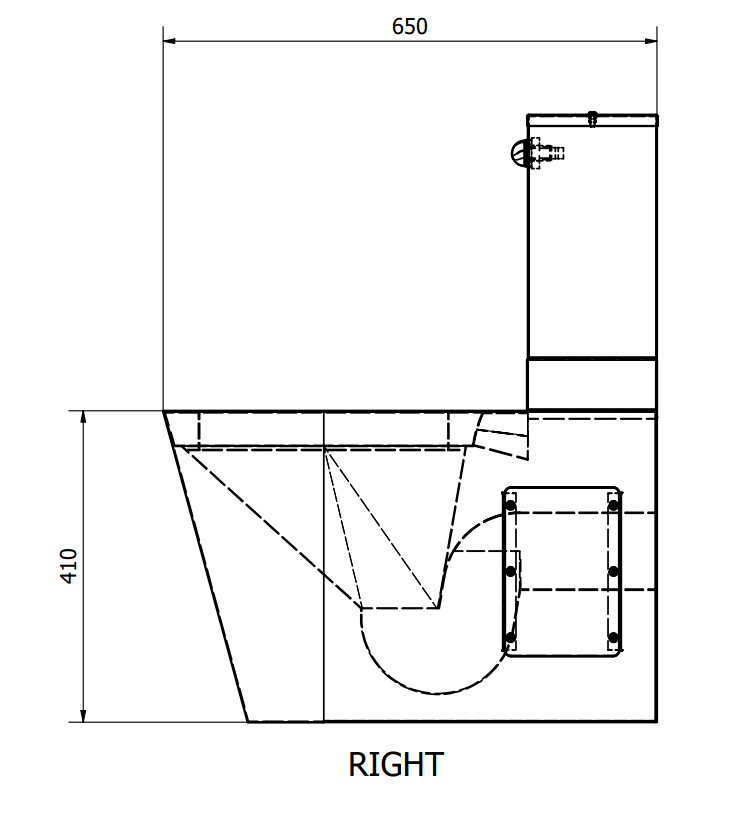

B17656(CTP) right-side view; dimensions in millimetres.
Image · Technical media

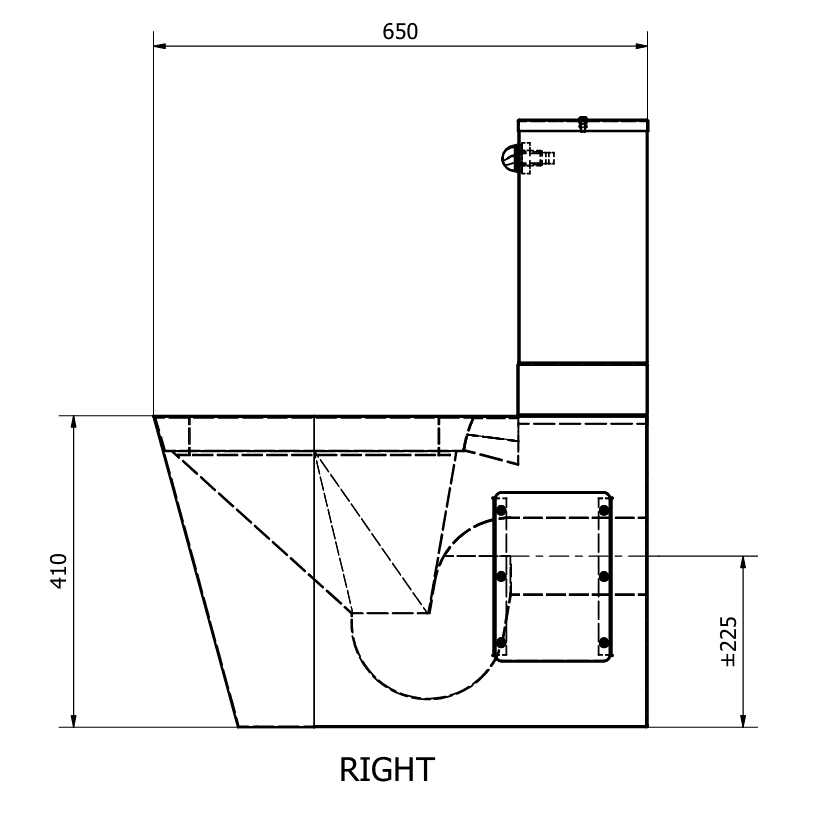

B17656(CTP) dimensioned right-side view including the P-trap outlet height; dimensions in millimetres.
Image · Technical media
