Schools

Rounded, chrome-plated brass shower head for commercial, industrial and institutional showers. Vandal-resistant mounting and 6–8L/min flow support demanding shared use.

UR15TP 15 mm offset flush pipe for the recommended exposed flushing arrangement on the Basterfield B17744(T) top-entry bowl urinal. Use one 04VFP-UR15TP pipe with one 04VF_WAL-103LUR Walcro lever-operated flushing valve per bowl. The offset form provides the connecting pipework for this arrangement; check alignment against the installed bowl and valve positions. The pipe is a separately priced accessory and should be included whenever that valve is selected for the B17744(T) installation.

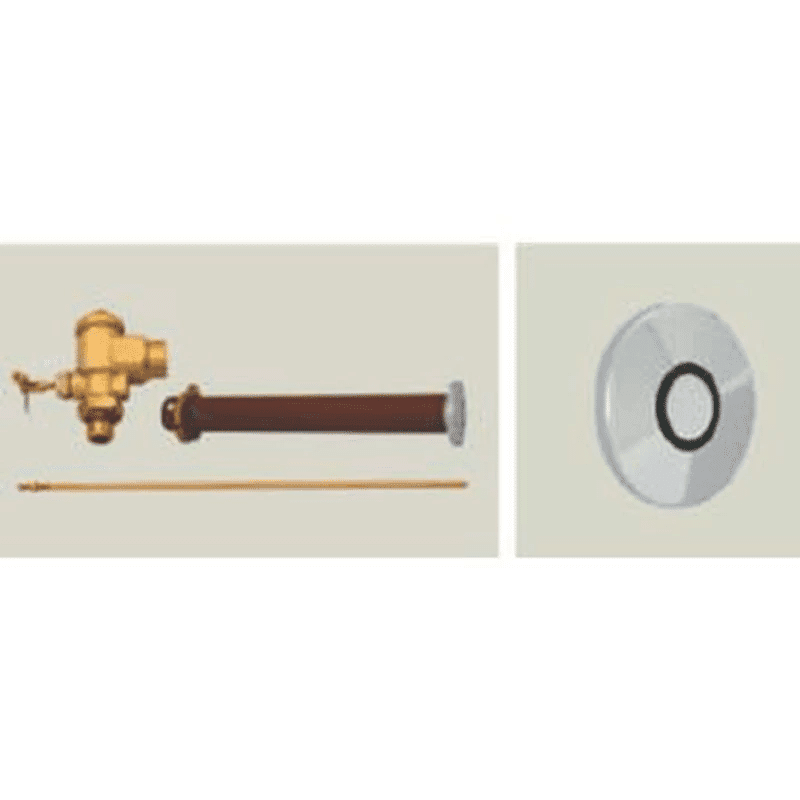

Walcro 103LC concealed back-entry toilet flushing valve with 20 mm BSP inlet, VR push button and sleeve. Includes the WC pan adaptor, push rod, concealed flush pipes and 90-degree bend.

Walcro 103LUR exposed, lever-operated urinal flushing valve for a single bowl, with a 20 mm connection, chrome finish, flow control, strainer and no-hold feature. The stated operating pressure range is 30–600 kPa. Recommended as an optional flushing valve for the Basterfield B17744(T) top-entry bowl urinal, used with one 04VFP-UR15TP 15 mm offset flush pipe per valve. Specify both components together for this installation; the valve, pipe and stainless steel bowl are each priced separately.

Walcro 104HB exposed toilet flushing valve with a 25 mm inlet, extended lever for mobility-impaired users and a back-entry flush-pipe arrangement. The lever can be positioned for left-hand or right-hand operation.

Walcro 104HT exposed toilet flushing valve with a 25 mm inlet, extended lever for mobility-impaired users and a top-entry flush-pipe arrangement. The lever can be positioned for left-hand or right-hand operation.

Exposed, lever-operated toilet flushing valve for top-entry WC pans, with a 25 mm BSP female inlet and chrome finish. An optional alternative to a separate flushing cistern.

Walcro 107CHP built-in boxed toilet flushing valve with a 20 mm inlet, XP push button, stainless steel cover plate and concealed flush pipes. Operating-pressure range: 100 kPa to 600 kPa.

Straight general-purpose grab rail in Grade 304 stainless steel with a 32 mm diameter rail and mounting plates at both ends. Choose a 500 mm or 750 mm rail length for a wall-mounted handhold in washrooms, bathrooms and care facilities. Select the rail position and suitable wall fixings for the installation. The supplied image represents the range; the selected model determines the rail length.

Wall-mounted Grade 304 stainless steel cistern with 9-litre capacity for top-entry WC pans. Supplied with flushing system components, a straight PVC flush pipe and rubber bung. Side water inlet and right-hand flush handle as standard.

Grade 304 stainless steel squat pan designed to be built into the floor, with an integral flushing rim and textured foot positions. The B17635(PB) P-trap model has a rear-entry tapered inlet suitable for bungs and a Ø102 mm waste outlet for Ø110 mm soil sewerage systems. Its top measures 595 × 635 mm, with overall height of 311 mm. For public, educational, correctional and industrial ablutions where a squatting toilet is specified.

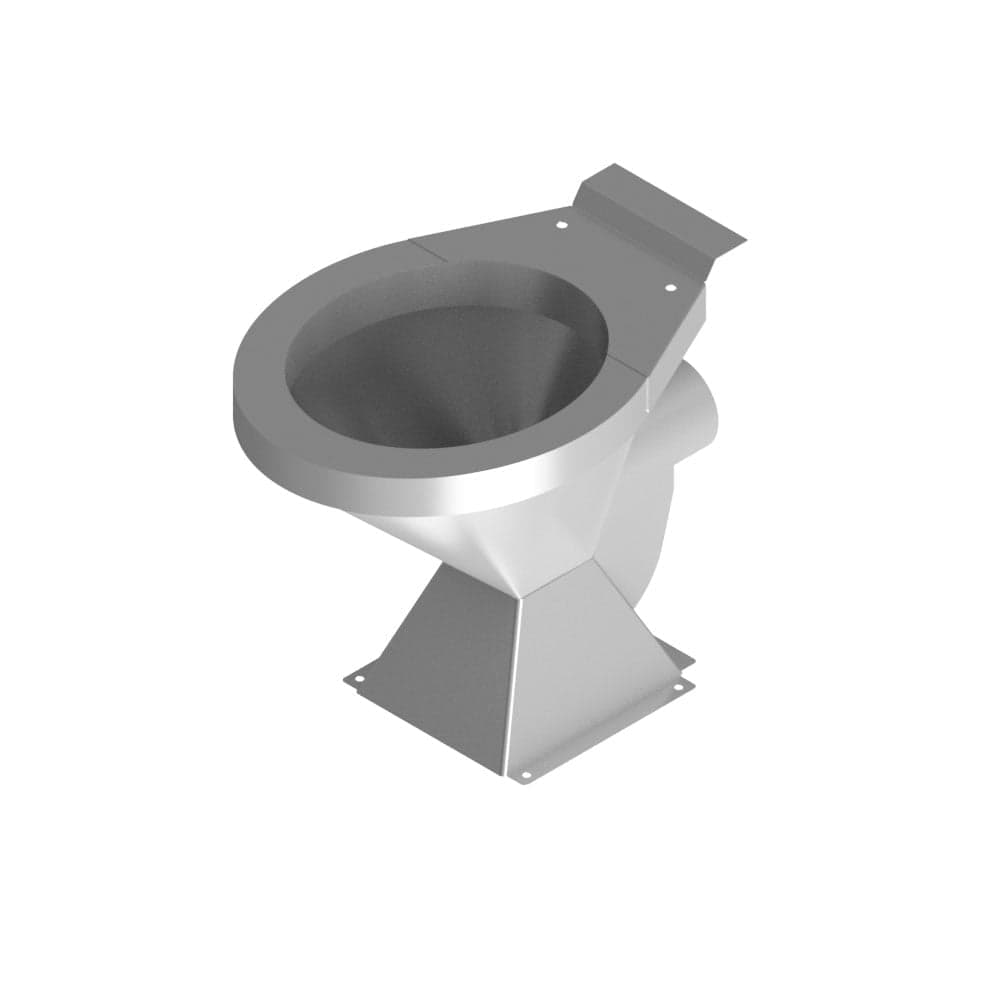

Basterfield floor-mounted WC pans in 1.2 mm Grade 304 stainless steel for schools, public and institutional washrooms. B17642(P) has a horizontal P-trap outlet; B17642(S) has a vertical S-trap outlet. Both feature a brushed satin finish, integral flushing rim, back-entry flush inlet and a 102 mm outside-diameter outlet for 110 mm PVC soil pipe. Floor flanges have 6 mm fixing holes. Seat holes are provided; toilet seats and flushing systems must be specified separately.

Wall-mounted stainless steel WC pan with P-trap and top-entry flush inlet for public, commercial and institutional washrooms. Toilet mounting holes are optional and omitted as standard. Excludes toilet seat and flush valve unless otherwise specified.

Close-coupled shrouded Grade 304 stainless steel toilet with a top-entry flush arrangement, integral P-trap, stainless steel cistern and internal flushing mechanism.

Shrouded wall-mounted Grade 304 stainless steel WC pan with P-trap and back-entry flush inlet for accessible washroom layouts. Toilet mounting holes are omitted as standard. Excludes toilet seat and flush valve unless otherwise specified.

Shrouded wall-mounted Grade 304 stainless steel WC pan with P-trap and top-entry flush inlet for accessible washroom layouts. Toilet mounting holes are omitted as standard. Standard toilet mounting holes are an optional selection. Excludes toilet seat and flush valve unless otherwise specified.

Shrouded wall-mounted Grade 304 stainless steel WC pan with S-trap and back-entry flush inlet for accessible washroom layouts. Toilet mounting holes are omitted as standard. Excludes toilet seat and flush valve unless otherwise specified.

Shrouded wall-mounted Grade 304 stainless steel WC pan with S-trap and top-entry flush inlet for accessible washroom layouts. Toilet mounting holes are omitted as standard. Excludes toilet seat and flush valve unless otherwise specified.

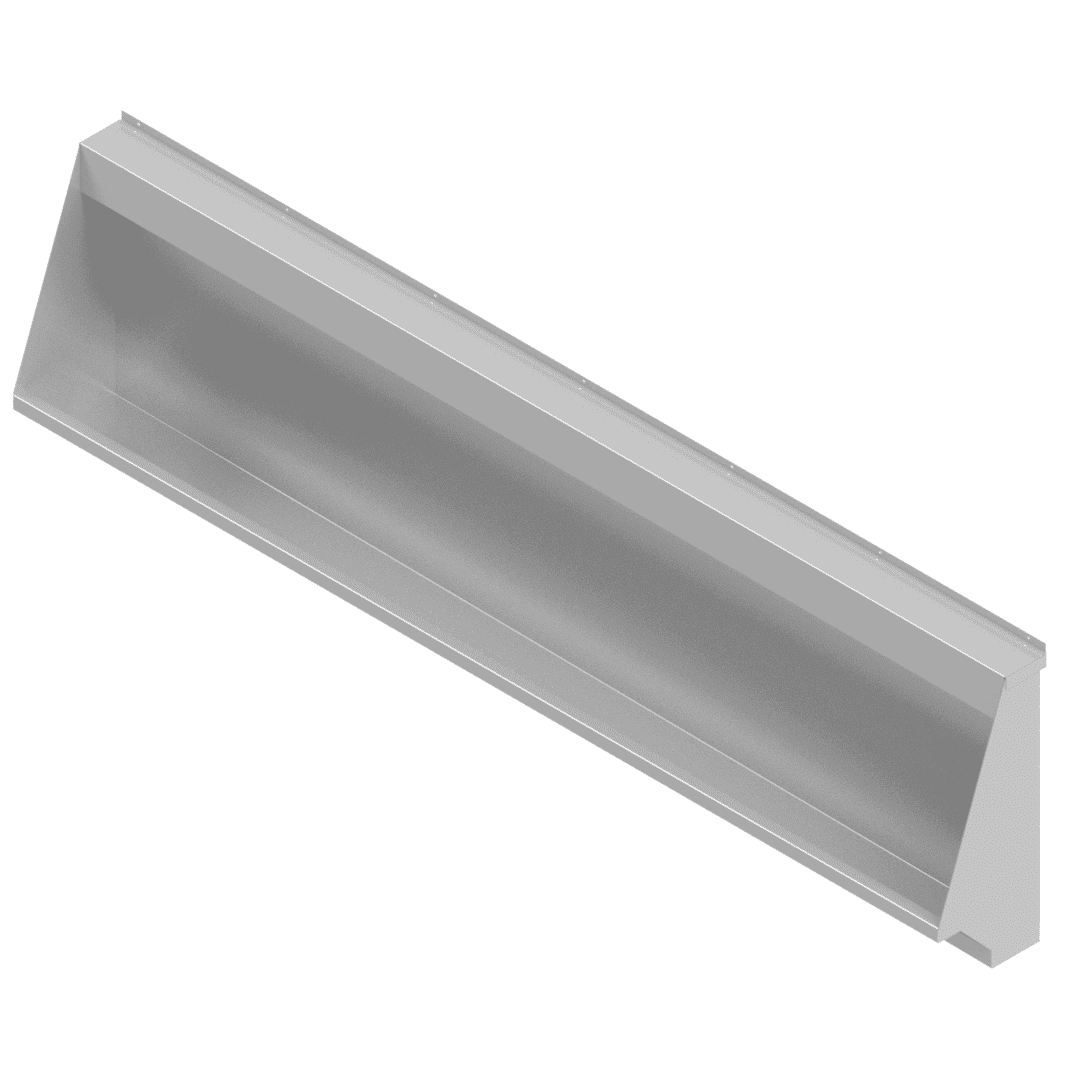

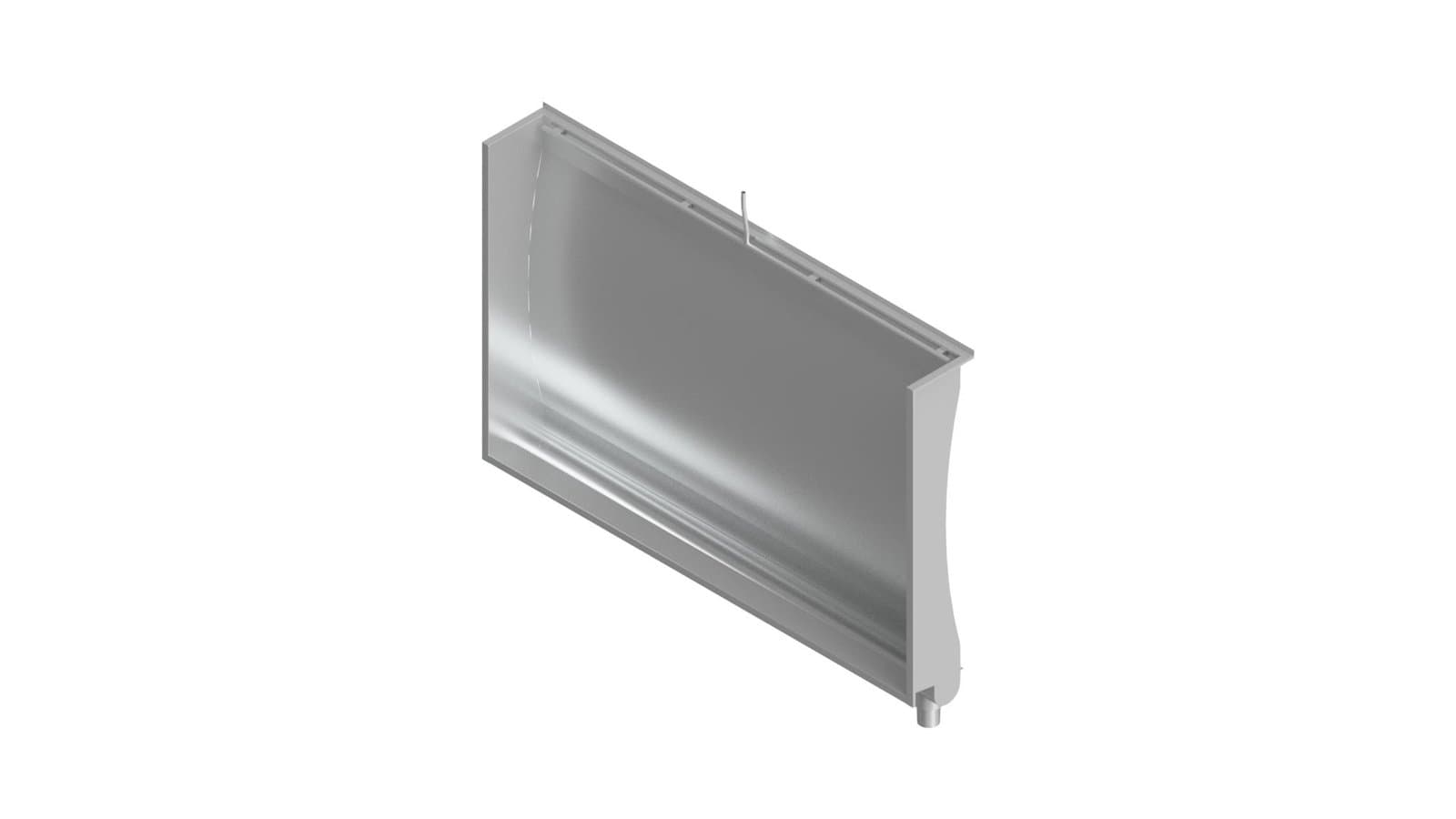

Grade 304 stainless steel curved-back trough urinal for flush-valve operation, with a concealed sparge pipe and selectable length and waste outlet position. B17720 is the alternative with built-in mechanical auto-flush.

Built-in Grade 304 stainless steel flat back urinal with a covered concealed sparge pipe, radiused drainage trough and left- or right-hand waste outlet.

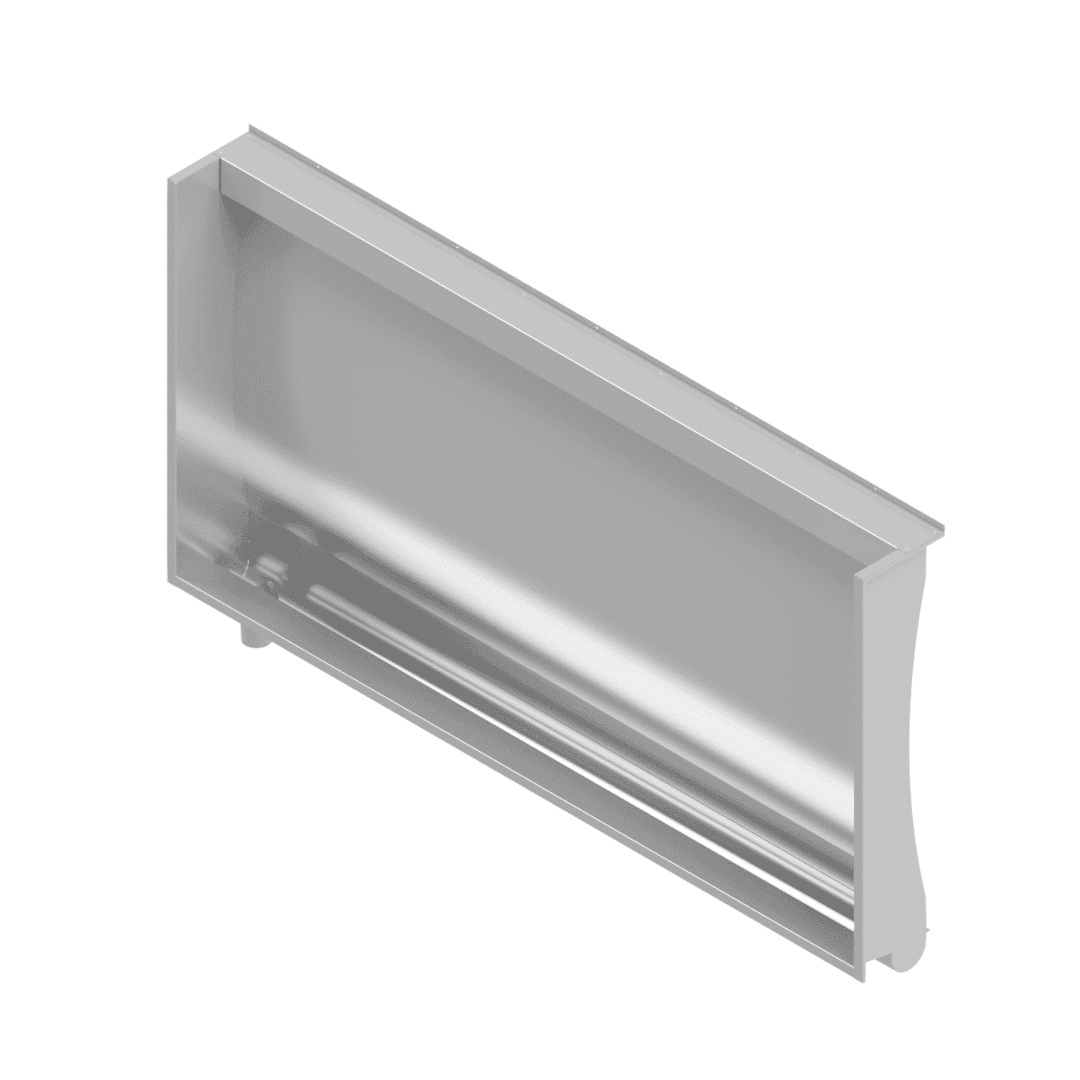

Grade 304 stainless steel curved-back urinal with mechanical auto-flush. A tipping tray fills through a drip cock, then periodically tips over to flush. No infrared sensor or electronic flush control.

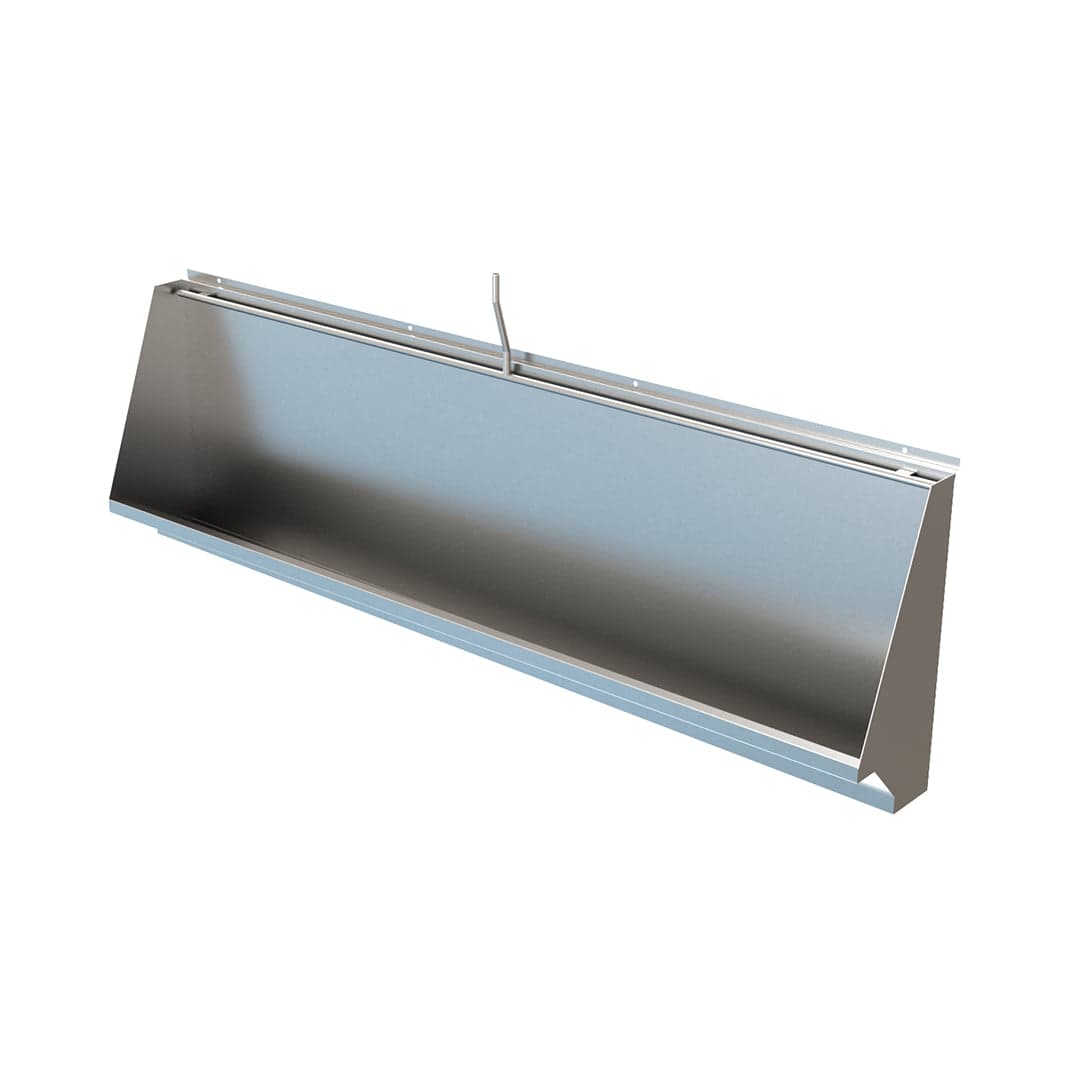

Wall-hung Grade 304 stainless steel trough urinal for manual flush-valve installations. Choose one of nine lengths and a left- or right-hand 40 mm waste outlet. Optional 400 or 600 mm support brackets and the Walcro 550URV flush valve are priced separately.

Optional stainless steel support bracket for B17730 wall-hung trough urinals. Choose a 400 mm finished height for junior primary learners or a 600 mm finished height for senior primary, high school learners and adults.

Grade 304 stainless steel automatic-flush trough urinal with a tipping tray, wall mounting and a choice of lengths and waste outlet positions.
