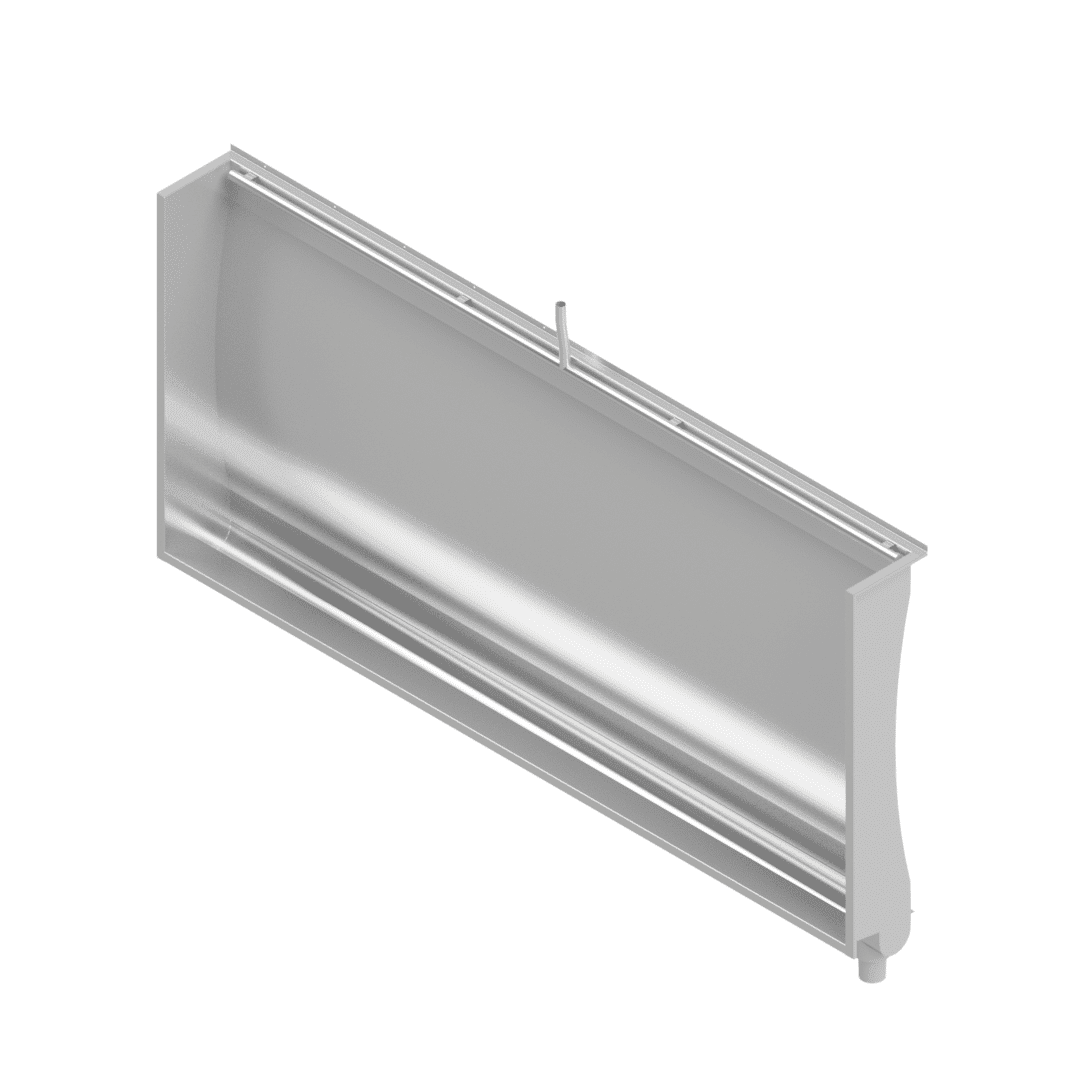

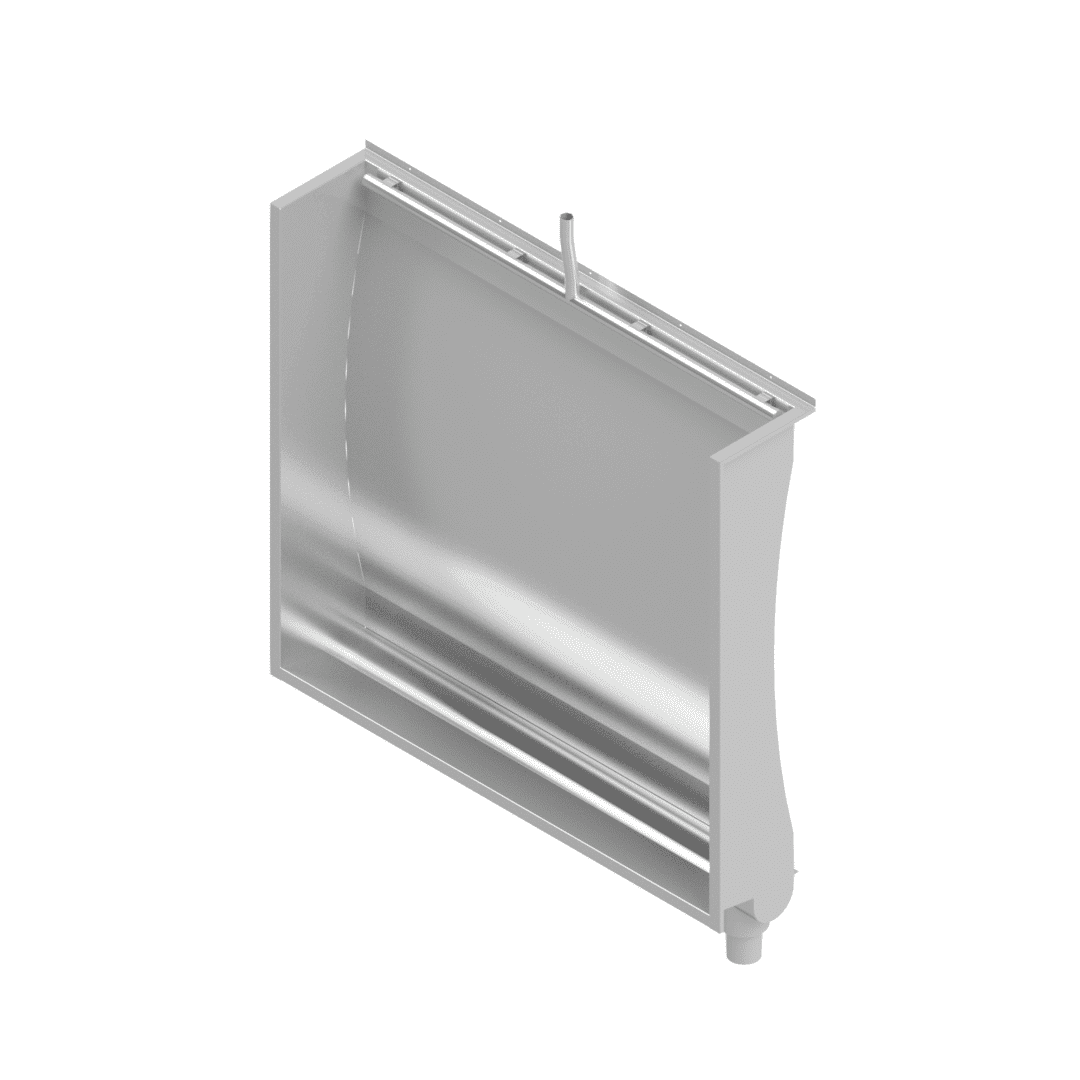

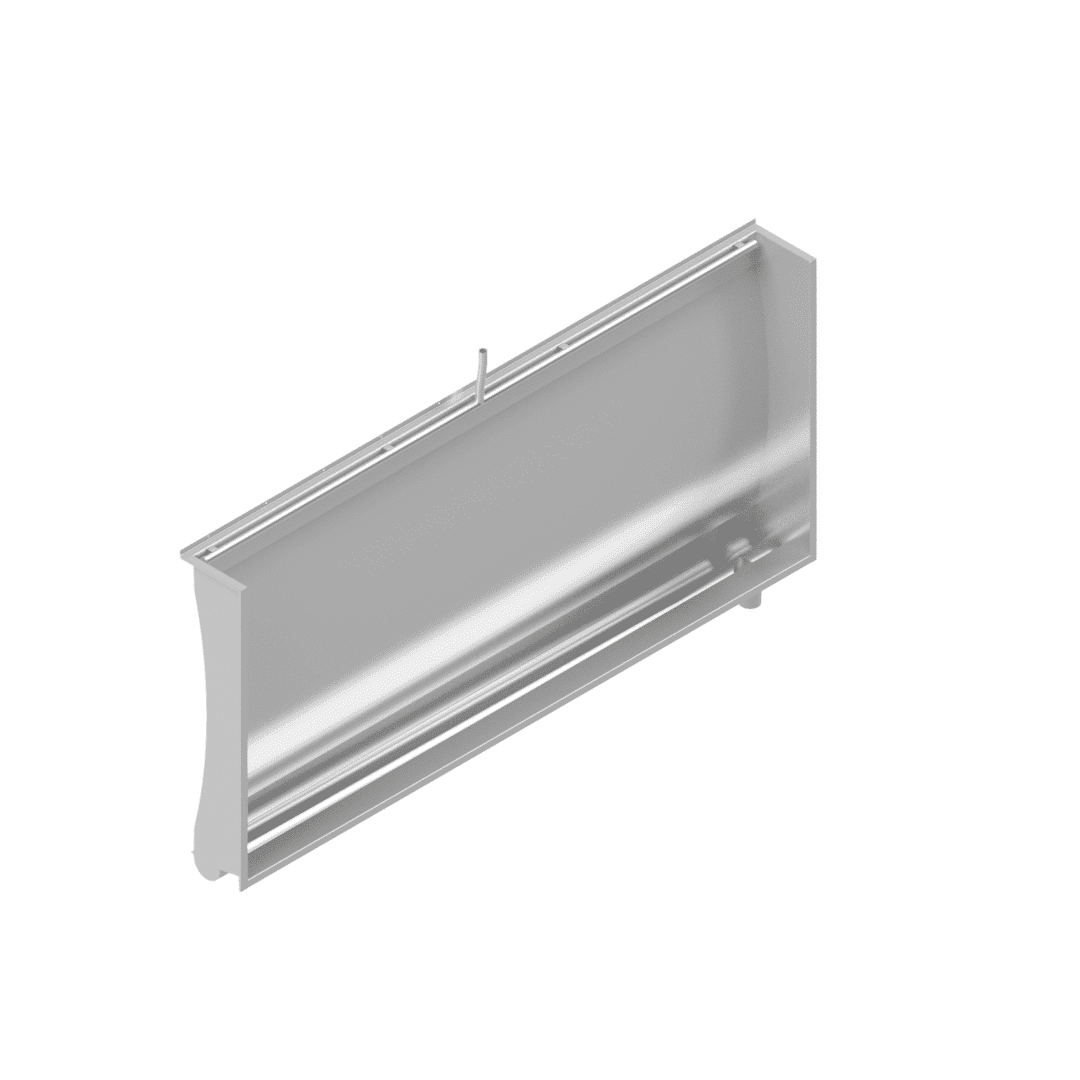

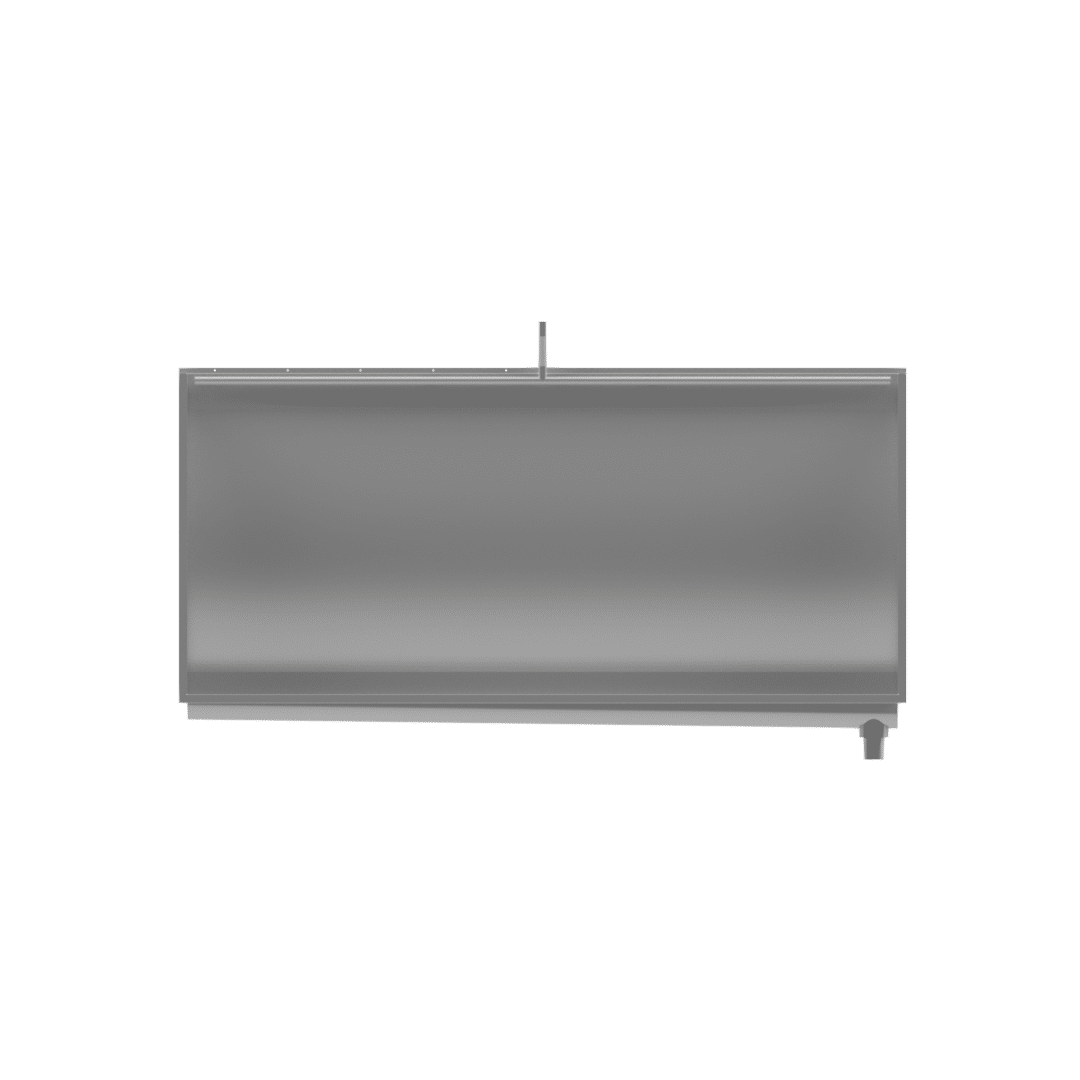

B17710 Stainless Steel Curved Back Urinal
Image indicative of the range. Configurations may differ.
1 / 5 product images
Grade 304 stainless steel curved-back trough urinal for flush-valve operation, with a concealed sparge pipe and selectable length and waste outlet position. B17720 is the alternative with built-in mechanical auto-flush.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 2 options selected
Select Length, Waste Outlet Orientation to complete your configuration.
Length
Waste Outlet Orientation
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B17710 is the flush-valve version of the stainless steel curved-back trough urinal. Water is supplied through a flush valve to the concealed sparge pipe, which distributes flushing water across the urinal. The chosen flush valve and control arrangement determine how a flush is initiated.
B17710 does not incorporate the drip-fed tipping tray fitted to B17720. For built-in mechanical automatic flushing, choose B17720: its tipping tray slowly fills through a drip cock, periodically tips over to release the collected water and flush the urinal, then returns to fill again. B17720 uses this mechanical filling cycle rather than infrared detection or electronic control.
B17710 has welded Grade 304 stainless steel construction, a satin finish, a curved back, a sloped drip ledge and a sound-deadened back panel. A concealed sparge pipe is supplied from the top inlet. Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to suit the plumbing layout. Confirm the flush valve, inlet connection and end details when specifying the installation.
Features & benefits
Flush-valve operation
The urinal is arranged for flushing through a specified flush valve and control. B17720 is the separate model with an integral mechanical tipping tray.
Concealed sparge pipe
The concealed sparge pipe distributes flushing water across the urinal from the top water inlet.
Grade 304 stainless steel
Welded Grade 304 stainless steel construction with a satin finish and sound-deadened back panel.
Length and waste outlet choices
Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to match the installation layout.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B17710.
PDFProduct warranty
12-month warranty and claims information for B17710.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 915 mm
- 1065 mm
- 1220 mm
- 1370 mm
- 1525 mm
- 1675 mm
- 1830 mm
- 2135 mm
- 2440 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Centre
| Specification | Value | Configuration |
|---|---|---|
| Waste Outlet Orientation |
| Configurable |
Available models & compare variants
Compare 27 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||
|---|---|---|---|---|---|
| B17710(0915C) | Floor Mounted Curved Back Urinal Flush Valve Type to B17710{PSS} 915mm Length Centre Outlet FM Curved Back Urinal 915mm Length Centre Outlet | 915 mm | Centre | View specifications
| |
| B17710(0915L) | Floor Mounted Curved Back Urinal Flush Valve Type to B17710{PSS} 915mm Length Left Hand Outlet FM Curved Back Urinal 915mm Length Left Hand Out | 915 mm | Left Hand | View specifications
| |
| B17710(0915R) | Floor Mounted Curved Back Urinal Type Fv to B17710(pss) 915mm Right Hand Outlet Floor Mounted Curved Back Urinal 915mm Length Rh | 915 mm | Right Hand | View specifications
| |
| B17710(1065C) | B17710(1065C) Curved Back Trough Urinal 1065mm Length Centre Waste Outlet Length: 1065. Waste Outlet Orientation: Centre. Curved Back Trough Urinal | 1065 mm | Centre | View specifications
| |
| B17710(1065L) | B17710(1065L)Curved Back Trough Urinal 1065mm Length Left-Hand Waste Outlet Length: 1065. Waste Outlet Orientation: Left Hand. Curved Back Trough Urinal | 1065 mm | Left Hand | View specifications
| |
| B17710(1065R) | Floor Mounted Curved Back Urinal Type FV to B17710(PSS) 1065MM Right Hand Outlet Floor Mounted Curved Back Urinal 1065 RH | 1065 mm | Right Hand | View specifications
| |
| B17710(1220C) | Floor Mounted Curved Back Urinal Flush Valve Type to B17710{PSS} 1220mm Length Centre Outlet Floor Mounted Curved Back Urinal 1220 Center | 1220 mm | Centre | View specifications
| |
| B17710(1220L) | Floor Mounted Curved Back Urinal Type FV to B17710(PSS) 1220MM Left Hand Outlet Floor Mounted Curved Back Urinal 1220 LH | 1220 mm | Left Hand | View specifications
| |
| B17710(1220R) | Floor Mounted Curved Back Urinal Type Fv to B17710(pss) 1220mm Right Hand Outlet Floor Mounted Curved Back Urinal 1220 Rh | 1220 mm | Right Hand | View specifications
| |
| B17710(1370C) | B17710(1370C) Curved Back Trough Urinal 1370mm Length Centre Waste Outlet Length: 1370. Waste Outlet Orientation: Centre. Curved Back Trough Urinal | 1370 mm | Centre | View specifications
|
