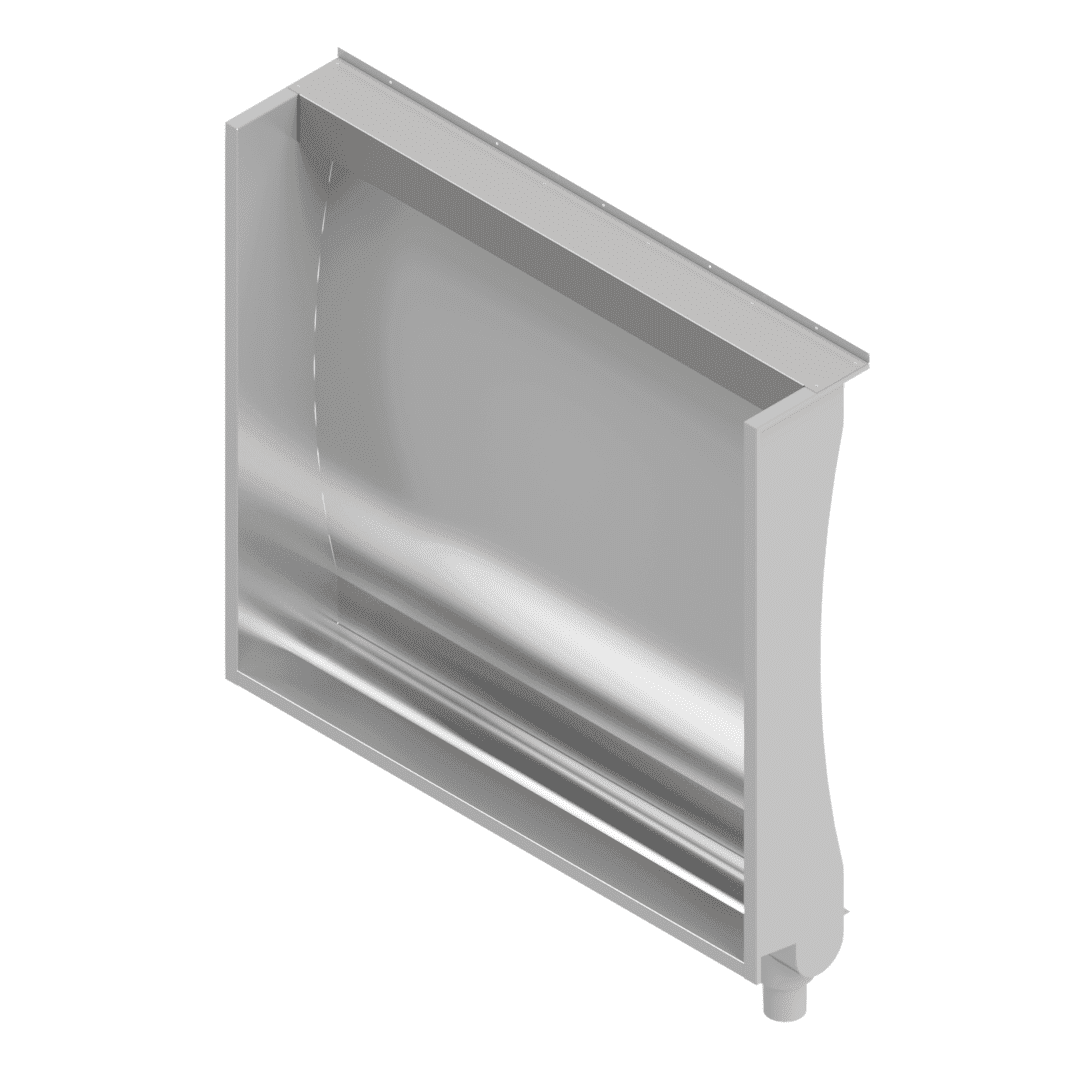

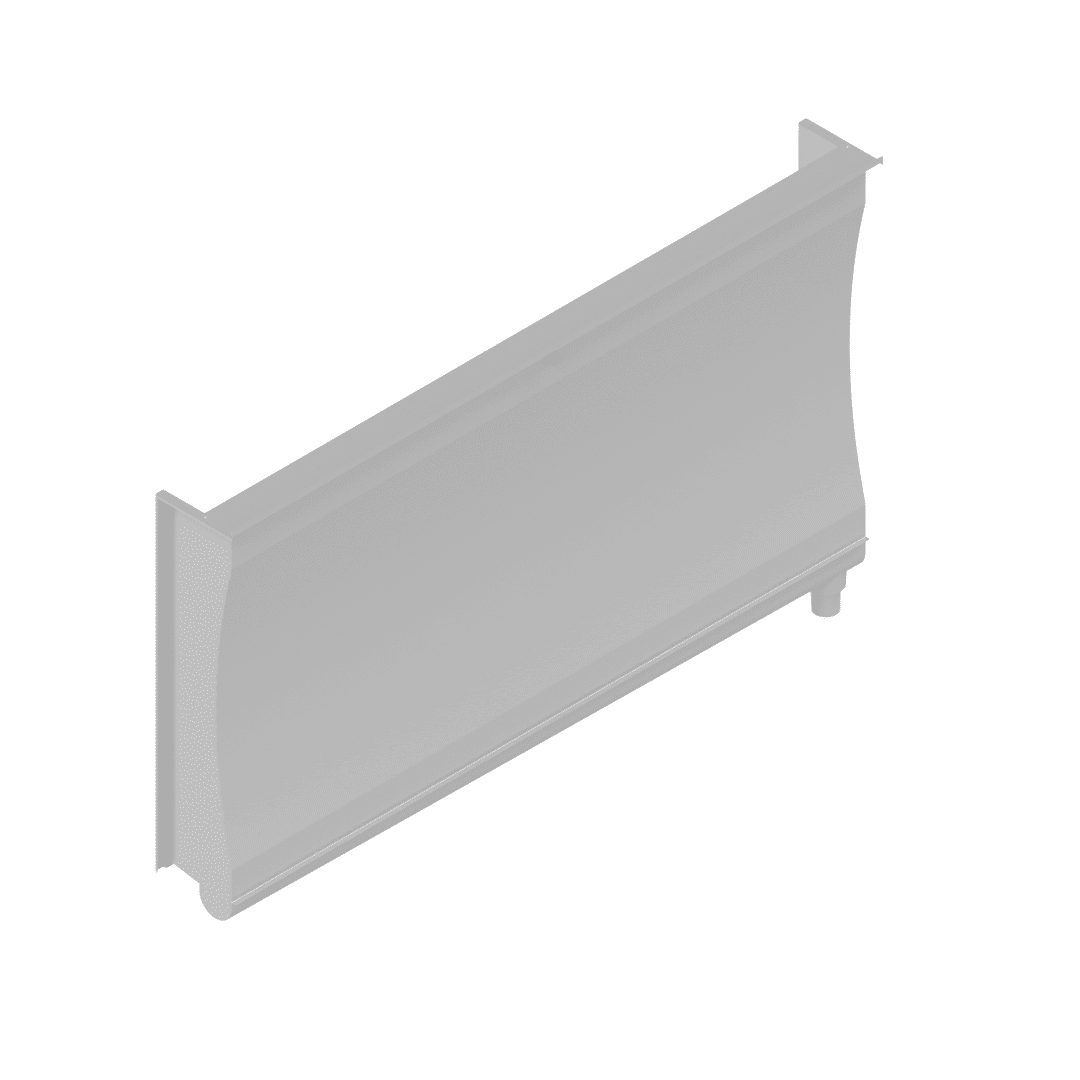

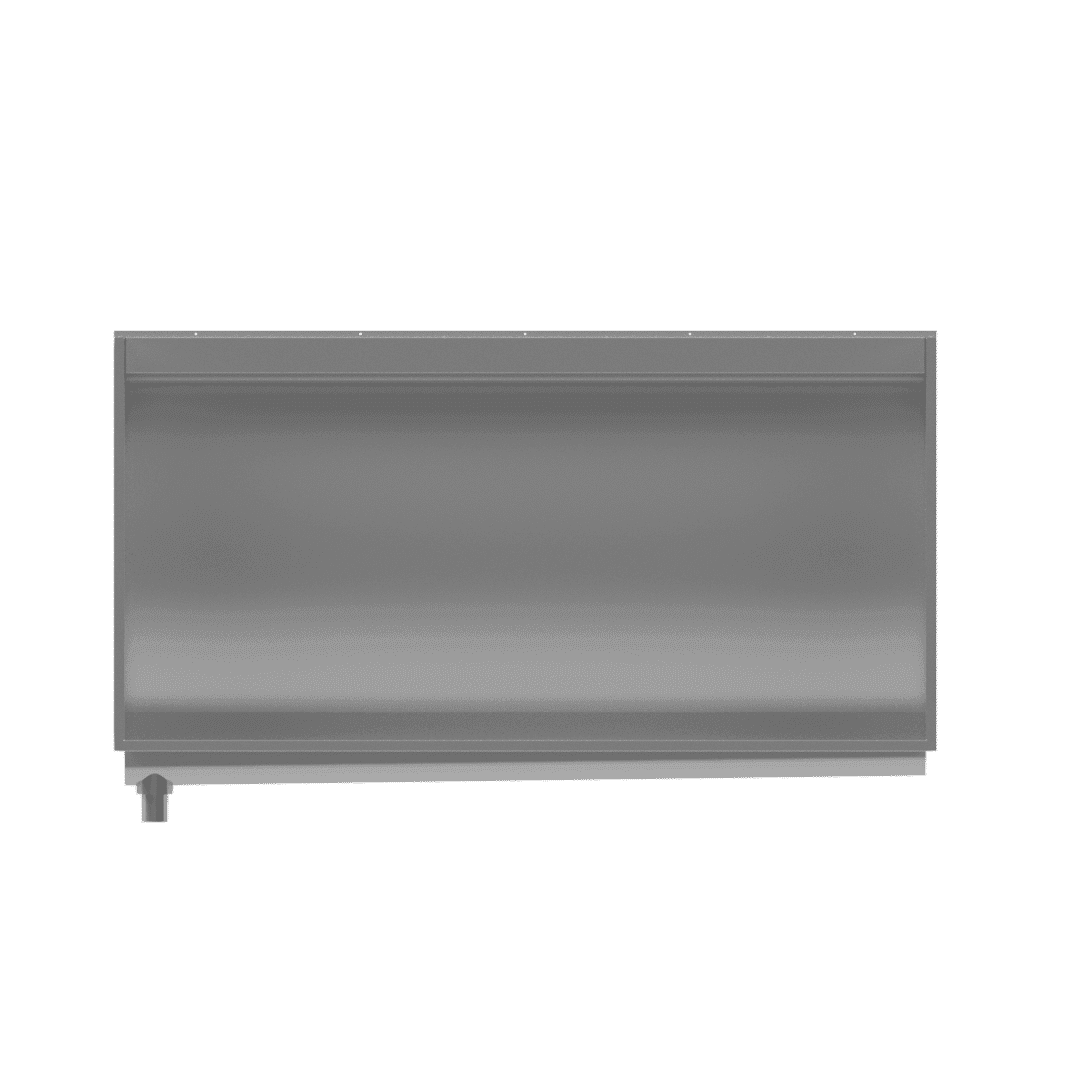

B17720 Curved-Back Trough Urinal with Automatic Flush Tank
Image indicative of the range. Configurations may differ.
1 / 4 product images
Grade 304 stainless steel curved-back urinal with mechanical auto-flush. A tipping tray fills through a drip cock, then periodically tips over to flush. No infrared sensor or electronic flush control.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R6,647.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 2 options selected
Select Length, Waste Outlet Orientation to complete your configuration.
Length
Waste Outlet Orientation
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B17720 is a stainless steel curved-back trough urinal with an integral mechanical automatic-flush tipping tray. Its automatic operation comes from water filling and tipping the tray, not from an infrared sensor or an electronic control system.
Water slowly enters the tipping tray through a drip cock. As the tray fills, it reaches its tipping point and tips over, releasing the collected water to flush the urinal. The tray then returns to its filling position and the cycle repeats while water continues to enter through the drip cock.
The time between flushes depends on how quickly the tray fills through the drip cock. Flushing is periodic and is not triggered by a person approaching or leaving the urinal. The mechanical flushing mechanism requires no electrical supply, batteries, infrared detector or electronic timer.
The urinal is manufactured from Grade 304 stainless steel with a dull polished finish and a sound-deadened rear panel. Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to suit the installation. Choose B17710 where a flush-valve urinal is required instead of the built-in mechanical tipping-tray system.
Features & benefits
Mechanical tipping-tray auto-flush
The integral tray fills with water, tips over to release a flush, then returns to its filling position for the next cycle.
Drip-cock water feed
Water enters the tipping tray through a drip cock. The filling rate determines how long it takes to reach the next tipping cycle.
Flushing without electronic controls
The mechanical cycle uses no infrared sensor, electronic timer, batteries or electrical supply. It flushes as the tray fills, independently of detecting a user.
Grade 304 stainless steel
Grade 304 stainless steel construction with a dull polished finish and sound-deadened rear panel.
Length and waste outlet choices
Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to suit the site plumbing layout.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B17720.
PDFProduct warranty
24-month warranty and claims information for B17720.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 915 mm
- 1065 mm
- 1220 mm
- 1370 mm
- 1525 mm
- 1675 mm
- 1830 mm
- 2135 mm
- 2440 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Centre
| Specification | Value | Configuration |
|---|---|---|
| Waste Outlet Orientation |
| Configurable |
Available models & compare variants
Compare 27 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||
|---|---|---|---|---|---|
| B17720(0915C) | Floor Mounted Curved Back Urinal Aft 915MM C | 915 mm | Centre | View specifications
| |
| B17720(0915L) | Floor Mount Curved Back Urinal Auto Flush 915l | 915 mm | Left Hand | View specifications
| |
| B17720(0915R) | Floor Mounted Curved Back Urinalwith Automatic Fluh Tank 915mm Right Hand Outlet Floor Mounted Curved Back Urinal 915 RH | 915 mm | Right Hand | View specifications
| |
| B17720(1065C) | Floor Mounted Curved Back Urinal 1065 CN | 1065 mm | Centre | View specifications
| |
| B17720(1065L) | B17720(1065L) Curved Back Trough Urinal with Automatic Flushing Tank 1065mm Length Left-Hand Waste Outlet Length: 1065. Waste Outlet Orientation: Left Hand. Curved Back Trough Urinal with Automatic Flushing | 1065 mm | Left Hand | View specifications
| |
| B17720(1065R) | Floor Mounted Curved Back Urinal with Automatic Flush Tank 1065MM Right Hand Outlet Floor Mounted Curved Back Urinal 1065 RH | 1065 mm | Right Hand | View specifications
| |
| B17720(1220C) | Floor Mounted Curved Back Urinal 1220 C | 1220 mm | Centre | View specifications
| |
| B17720(1220L) | Floor Mounted Curved Back Urinal Type Aft to B17720(PSS) 7220MM Left Hand Outlet Floor Mounted Curved Back Urinal 1220 LH | 1220 mm | Left Hand | View specifications
| |
| B17720(1220R) | Floor Mounted Curved Back Urinal Type Aft to B17720(pss) 1220mm Right Hand Outlet Floor Mounted Curved Back Urinal 1220 RH | 1220 mm | Right Hand | View specifications
| |
| B17720(1370C) | B17720(1370C) Curved Back Trough Urinal with Automatic Flushing Tank 1370mm Length Centre Waste Outlet Length: 1370. Waste Outlet Orientation: Centre. Curved Back Trough Urinal with Automatic Flushing | 1370 mm | Centre | View specifications
|
