B17730 Wall-Hung Stainless Steel Trough Urinal
1 / 3 product images
Wall-hung Grade 304 stainless steel trough urinal for manual flush-valve installations. Choose one of nine lengths and a left- or right-hand 40 mm waste outlet. Optional 400 or 600 mm support brackets and the Walcro 550URV flush valve are priced separately.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R4,418.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 2 options selected
Select Length, Waste Outlet Orientation to complete your configuration.
Length
Waste Outlet Orientation
Complete the options above to review your configuration and request a quote.
Product overview
The Basterfield B17730 is a wall-hung trough urinal for public and commercial washrooms. It is manufactured from Grade 304 stainless steel with a dull polished finish, an exposed stainless steel sparge pipe, a sloped drip ledge and a sound-deadened back panel.
Choose a 915, 1065, 1220, 1370, 1525, 1675, 1830, 2135 or 2440 mm length. Every length is available with a left- or right-hand 40 mm waste outlet. Match the selected outlet orientation to the site plumbing layout.

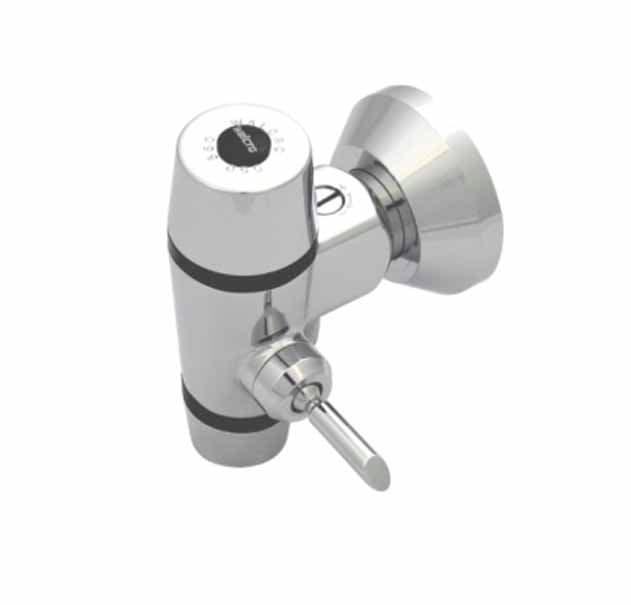

The urinal is supplied as a manual flush-valve type. The Walcro 550URV 20 mm manual urinal flush valve is an optional, separately priced item; select one valve per urinal when this flushing arrangement is required. Confirm the water supply and connection layout before installation.
Stainless steel support brackets are also optional and priced separately. The 400 mm finished-height bracket is suitable for junior primary school learners. The 600 mm finished-height bracket is suitable for senior primary school, high school and adult users. Select one bracket per urinal when bracket support is required.
Features & benefits
Wall-hung installation
Wall-mounted trough design keeps the floor area below the urinal clear.
Grade 304 stainless steel
Grade 304 stainless steel construction with a dull polished finish for washroom use.
Exposed sparge pipe
An exposed stainless steel sparge pipe distributes flushing water along the trough.
Nine selectable lengths
Choose 915, 1065, 1220, 1370, 1525, 1675, 1830, 2135 or 2440 mm.
Left- or right-hand waste outlet
Select the 40 mm waste outlet orientation to suit the plumbing layout.
Optional supports and flush valve
Choose a 400 or 600 mm finished-height support bracket and a Walcro 550URV manual flush valve separately.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 915 mm
- 1065 mm
- 1220 mm
- 1370 mm
- 1525 mm
- 1675 mm
- 1830 mm
- 2135 mm
- 2440 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
- Waste Outlet Diameter
- Fixed
- 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Waste Outlet Orientation |
| Configurable |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare 18 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price | Spec sheet | Actions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| B17730(0915L) | Wall-hung Grade 304 stainless steel trough urinal, 0915 mm length, left hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 0915 mm, Left Outlet | 915 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Left Hand | R4,418.00 (excl. VAT) | ||
| B17730(0915R) | Wall-hung Grade 304 stainless steel trough urinal, 0915 mm length, right hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 0915 mm, Right Outlet | 915 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Right Hand | R4,418.00 (excl. VAT) | ||
| B17730(1065L) | Wall-hung Grade 304 stainless steel trough urinal, 1065 mm length, left hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1065 mm, Left Outlet | 1065 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Left Hand | R4,649.00 (excl. VAT) | ||
| B17730(1065R) | Wall-hung Grade 304 stainless steel trough urinal, 1065 mm length, right hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1065 mm, Right Outlet | 1065 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Right Hand | R4,649.00 (excl. VAT) | ||
| B17730(1220L) | Wall-hung Grade 304 stainless steel trough urinal, 1220 mm length, left hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1220 mm, Left Outlet | 1220 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Left Hand | R5,247.00 (excl. VAT) | ||
| B17730(1220R) | Wall-hung Grade 304 stainless steel trough urinal, 1220 mm length, right hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1220 mm, Right Outlet | 1220 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Right Hand | R5,247.00 (excl. VAT) | ||
| B17730(1370L) | Wall-hung Grade 304 stainless steel trough urinal, 1370 mm length, left hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1370 mm, Left Outlet | 1370 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Left Hand | R5,762.00 (excl. VAT) | ||
| B17730(1370R) | Wall-hung Grade 304 stainless steel trough urinal, 1370 mm length, right hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1370 mm, Right Outlet | 1370 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Right Hand | R5,762.00 (excl. VAT) | ||
| B17730(1525L) | Wall-hung Grade 304 stainless steel trough urinal, 1525 mm length, left hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1525 mm, Left Outlet | 1525 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Left Hand | R6,330.00 (excl. VAT) | ||
| B17730(1525R) | Wall-hung Grade 304 stainless steel trough urinal, 1525 mm length, right hand 40 mm waste outlet. Manual flush valve and support bracket are optional and sold separately. Wall-Hung Urinal, 1525 mm, Right Outlet | 1525 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | Right Hand | R6,330.00 (excl. VAT) |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B17730.
PDFProduct warranty
12-month warranty and claims information for B17730.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
