B17740 Wall-Mounted Automatic Flush Trough Urinal
Image indicative of the range. Configurations may differ.
1 / 5 product images
Grade 304 stainless steel automatic-flush trough urinal with a tipping tray, wall mounting and a choice of lengths and waste outlet positions.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 2 options selected
Choose your specifications
Select Length, Waste Outlet Orientation to complete your configuration.
Length
Waste Outlet Orientation
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B17740 wall-mounted trough urinal uses an automatic tipping-tray flushing system. An adjustable drip cock fills the tray; when full, the tray tips and releases water across the urinal.

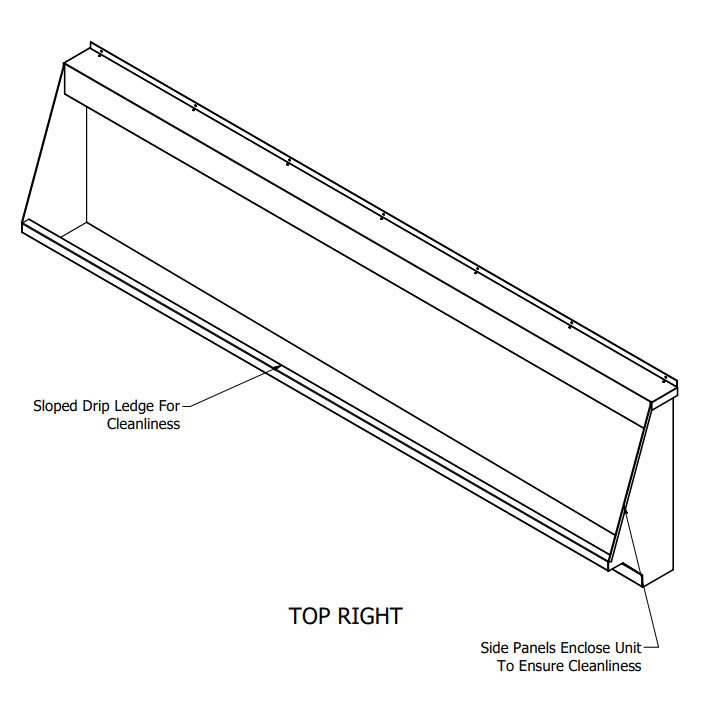

The unit is manufactured from 1.2 mm Grade 304 stainless steel with a dull polished finish. End panels, a sloped drip ledge, extended trough projection and a sound-deadened back panel form part of the construction.

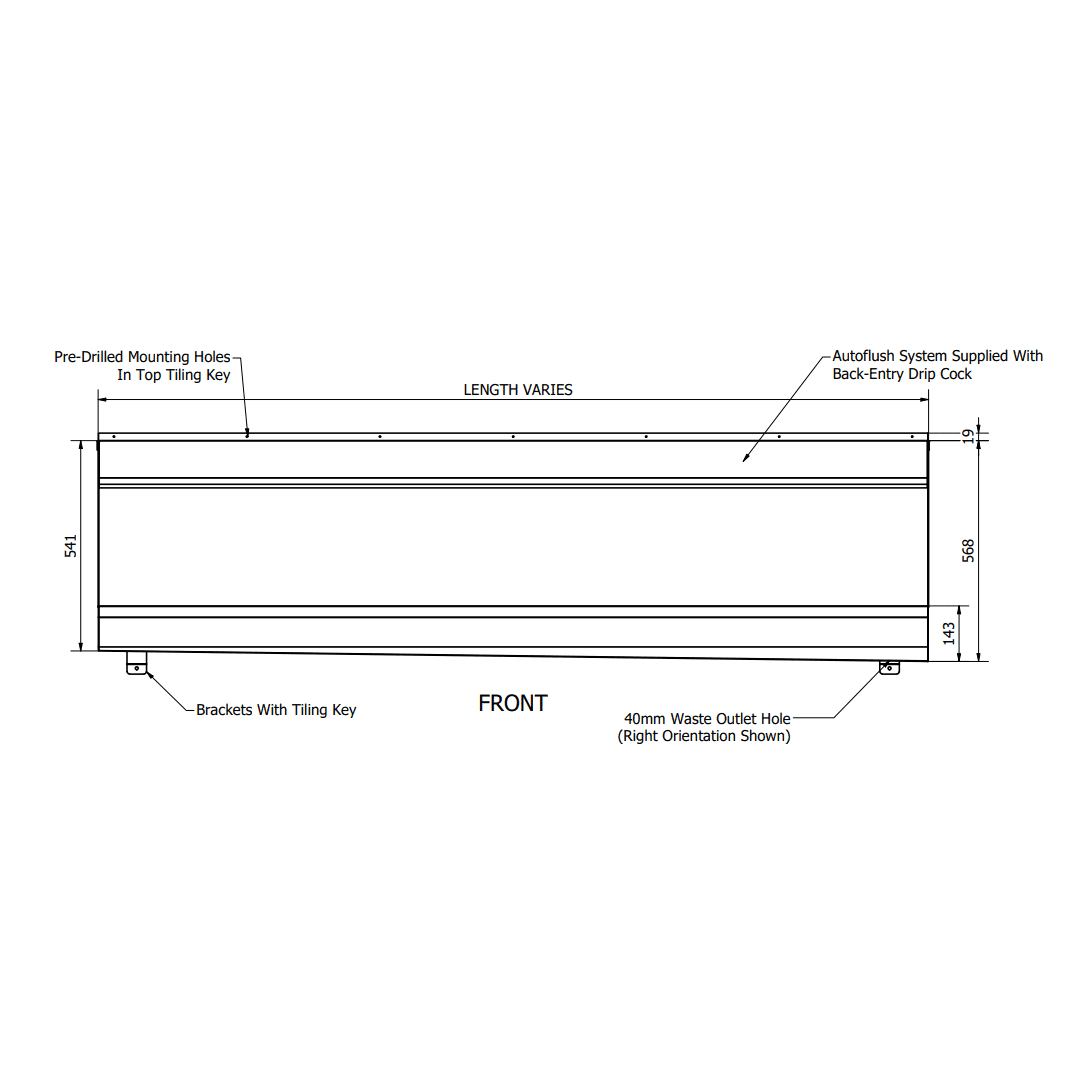

Select the required length and left- or right-hand position for the 40 mm waste outlet. The unit is wall mounted using its fixing provisions.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 915 mm
- 1065 mm
- 1370 mm
- 1525 mm
- 1675 mm
- 1830 mm
- 2135 mm
- 2440 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
| Specification | Value | Configuration |
|---|---|---|
| Waste Outlet Orientation |
| Configurable |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||
|---|---|---|---|---|---|
| B17740(0915L) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 915mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Left-Hand Waste Outlet, Basterfield Model B17740(0915L) Urinal Trough 915mm Length Left-Hand Auto Flush | 915 mm | Left Hand | View specifications
| |
| B17740(0915R) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 915mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Right-Hand Waste Outlet Urinal Trough 915mm Length Right-Hand Auto Flush | 915 mm | Right Hand | View specifications
| |
| B17740(1065L) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1065mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Left-Hand Waste Outlet, Model B17740(1065L) Urinal Trough 1065mm Length Left-Hand Auto Flush | 1065 mm | Left Hand | View specifications
| |
| B17740(1065R) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1065mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Right-Hand Waste Outlet Urinal Trough 1065mm Length Right-Hand Auto Flush | 1065 mm | Right Hand | View specifications
| |
| B17740(1370L) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1370mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Left-Hand Waste Outlet Urinal Trough 1370mm Length Left-Hand Auto Flush | 1370 mm | Left Hand | View specifications
| |
| B17740(1370R) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1370mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, 12mm Adjustable Drip Cock, Dull Polished Finish, Ø40mm Right-Hand Waste Outlet Urinal Trough 1370mm Length Right-Hand Auto Flush | 1370 mm | Right Hand | View specifications
| |
| B17740(1525L) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1525mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Left-Hand Waste Outlet Urinal Trough 1525mm Length Left-Hand Auto Flush | 1525 mm | Left Hand | View specifications
| |
| B17740(1525R) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1525mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Right-Hand Waste Outlet Urinal Trough 1525mm Length Right-Hand Auto Flush | 1525 mm | Right Hand | View specifications
| |
| B17740(1675L) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1675mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Left-Hand Waste Outlet Urinal Trough 1675mm Length Left-Hand Auto Flush | 1675 mm | Left Hand | View specifications
| |
| B17740(1675R) | Trough Urinal, Grade 304 Stainless Steel, 1.2mm Material Thickness, 1675mm Length, with Wall Mounting, Automatic Tipping-Tray Flushing, Adjustable Drip Cock, Dull Polished Finish, Ø40mm Right-Hand Waste Outlet Urinal Trough 1675mm Length Right-Hand Auto Flush | 1675 mm | Right Hand | View specifications
|
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct FAQ
