B17642 Stainless Steel Pedestal Toilets
Image indicative of the range. Configurations may differ.
1 / 5 product images
Basterfield floor-mounted WC pans in 1.2 mm Grade 304 stainless steel for schools, public and institutional washrooms. B17642(P) has a horizontal P-trap outlet; B17642(S) has a vertical S-trap outlet. Both feature a brushed satin finish, integral flushing rim, back-entry flush inlet and a 102 mm outside-diameter outlet for 110 mm PVC soil pipe. Floor flanges have 6 mm fixing holes. Seat holes are provided; toilet seats and flushing systems must be specified separately.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R3,485.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 1 options selected
Select Trap Type to complete your configuration.
Trap Type
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B17642 range provides floor-mounted stainless steel pedestal WC pans for public and institutional washrooms, including schools, hospitality venues and correctional facilities. Both models are manufactured from 1.2 mm Grade 304 stainless steel with a brushed satin finish and smooth, radiused edges for routine cleaning.
Choose the model to match the waste-pipe arrangement: B17642(P) has a P-trap with a horizontal outlet, while B17642(S) has an S-trap with a vertical outlet. Each outlet has an outside diameter of 102 mm for connection to 110 mm PVC soil pipe.

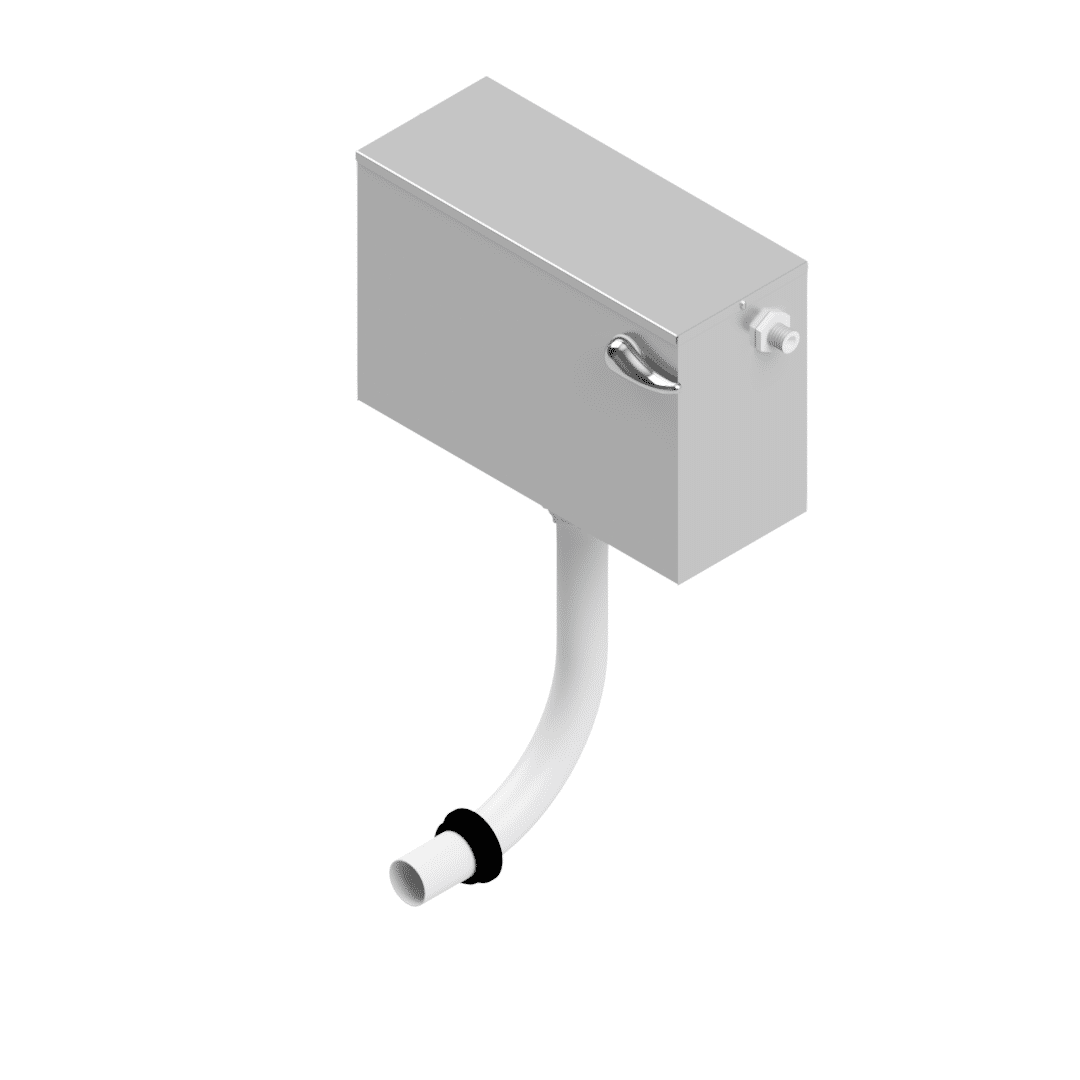

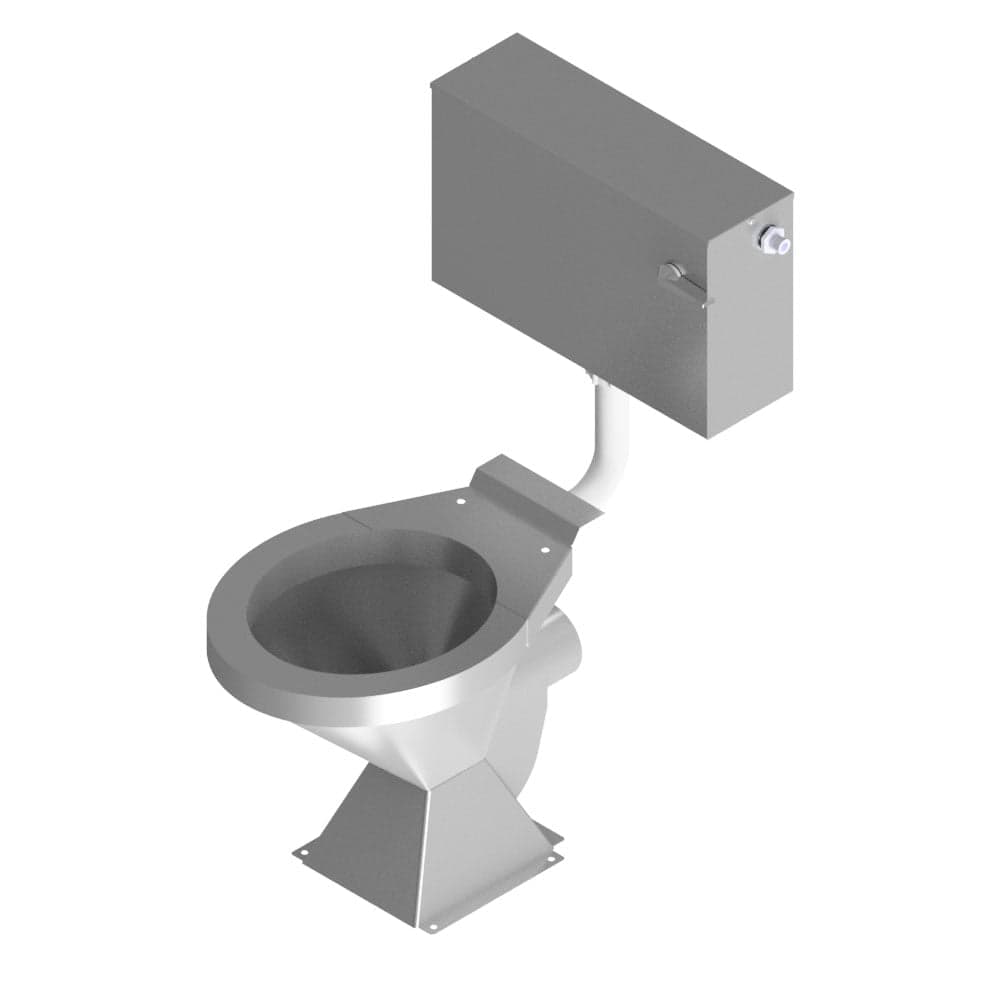

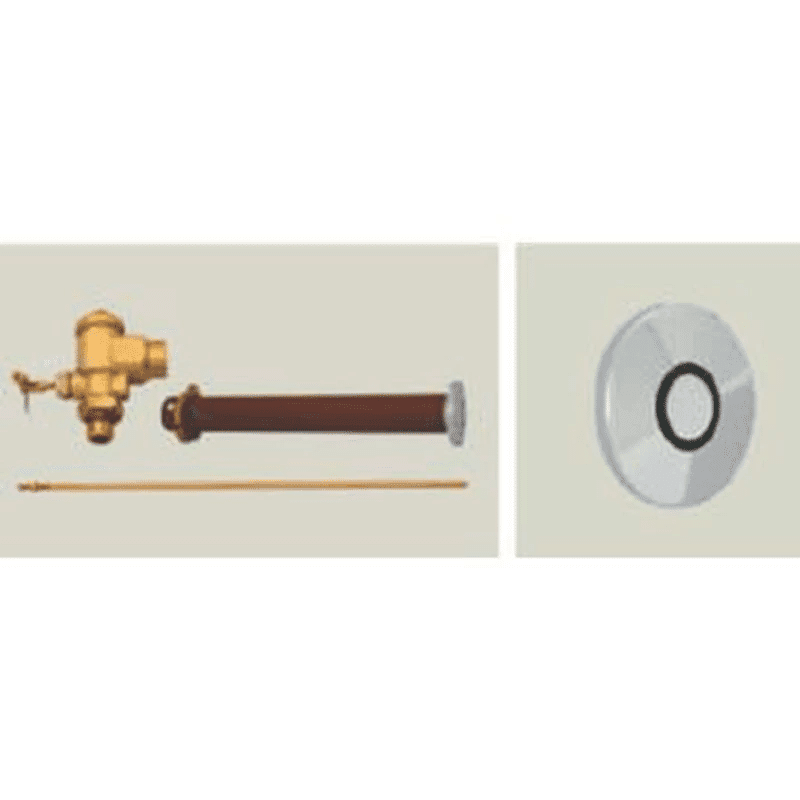

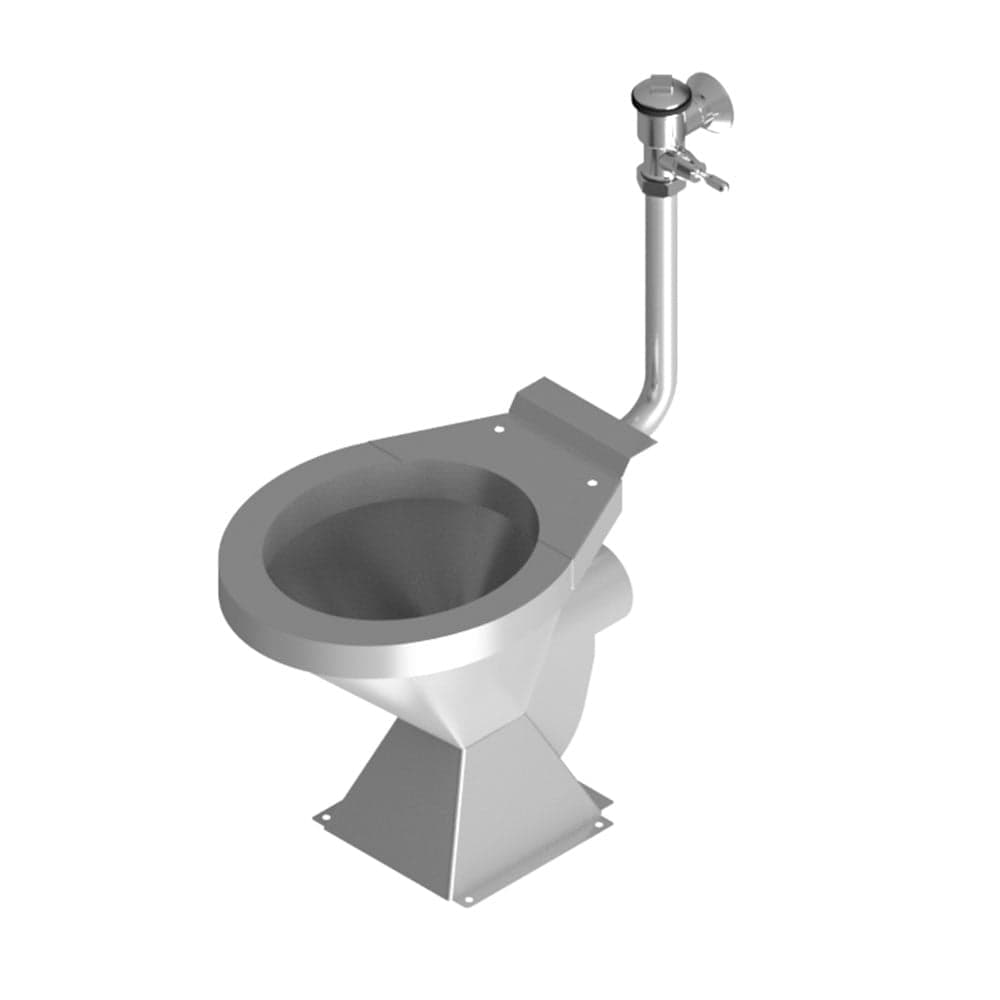

The pan is fixed to the floor through pre-drilled 6 mm holes in its base flanges. An integral flushing rim is supplied with a rear-entry flush-pipe inlet. The inlet accommodates a rubber sealing bung. Choose one separately priced flushing system: B17110(L380-CPB) 9 L stainless steel cistern with PVC flush pipe and rubber bung; 04VF_WAL-106B Walcro 106B exposed lever-operated back-entry valve; or 04VF_WAL-103LC Walcro 103LC concealed back-entry valve with VR push button and concealed pipes.
Seat-mounting holes are provided for a standard toilet seat. The toilet seat and flushing system are available on request and must be specified separately when ordering. These pans are manufactured in South Africa.
Features & benefits
1.2 mm Grade 304 stainless steel
Both models use 1.2 mm Grade 304 stainless steel for public and institutional washroom installations.
P-trap and S-trap models
B17642(P) provides a horizontal outlet; B17642(S) provides a vertical outlet to suit the waste-pipe layout.
102 mm waste outlet
The 102 mm outside-diameter outlet is suitable for connection to 110 mm PVC soil pipe.
Integral rim with back-entry flushing
An integral flushing rim and rear-entry flush-pipe inlet allow the selected pan to be paired with a suitable cistern or flush valve.
Floor-fixing flanges
Pre-drilled 6 mm holes in the base flanges provide the floor-mounting points.
Brushed satin finish
The brushed satin surface and radiused edges support routine cleaning.
Standard seat-mounting holes
Seat holes are provided. Specify the toilet seat and flushing system separately when ordering.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B17642.
PDFProduct warranty
12-month warranty and claims information for B17642.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
- Trap Type
- Configurable
- P-Trap
- S-Trap
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
| Specification | Value | Configuration |
|---|---|---|
| Trap Type |
| Configurable |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
Available models & compare variants
Compare 2 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||
|---|---|---|---|---|---|---|
| B17642(P) | Floor-Mounted WC Pan in 1.2 mm Grade 304 Stainless Steel, P-Trap with Horizontal Outlet, Brushed Satin Finish, 102 mm OD Waste Outlet and Back-Entry Flush Inlet. Toilet Seat and Flushing System Specified Separately. WC Pan S/Steel 304 to B17642(P) | Stainless Steel Grade 304 | 1.2 mm | P-Trap | View specifications
| |
| B17642(S) | Floor-Mounted WC Pan in 1.2 mm Grade 304 Stainless Steel, S-Trap with Vertical Outlet, Brushed Satin Finish, 102 mm OD Waste Outlet and Back-Entry Flush Inlet. Toilet Seat and Flushing System Specified Separately. Floor Mounted WC Pan S/Steel 304 S-Trap | Stainless Steel Grade 304 | 1.2 mm | S-Trap | View specifications
|
