B17110(L380-DPB) 9 L Stainless Steel Cistern for Top-Entry WC Pans
1 / 1 product images
Wall-mounted Grade 304 stainless steel cistern with 9-litre capacity for top-entry WC pans. Supplied with flushing system components, a straight PVC flush pipe and rubber bung. Side water inlet and right-hand flush handle as standard.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R1,890.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
What it is and why it works
Product overview
Product description

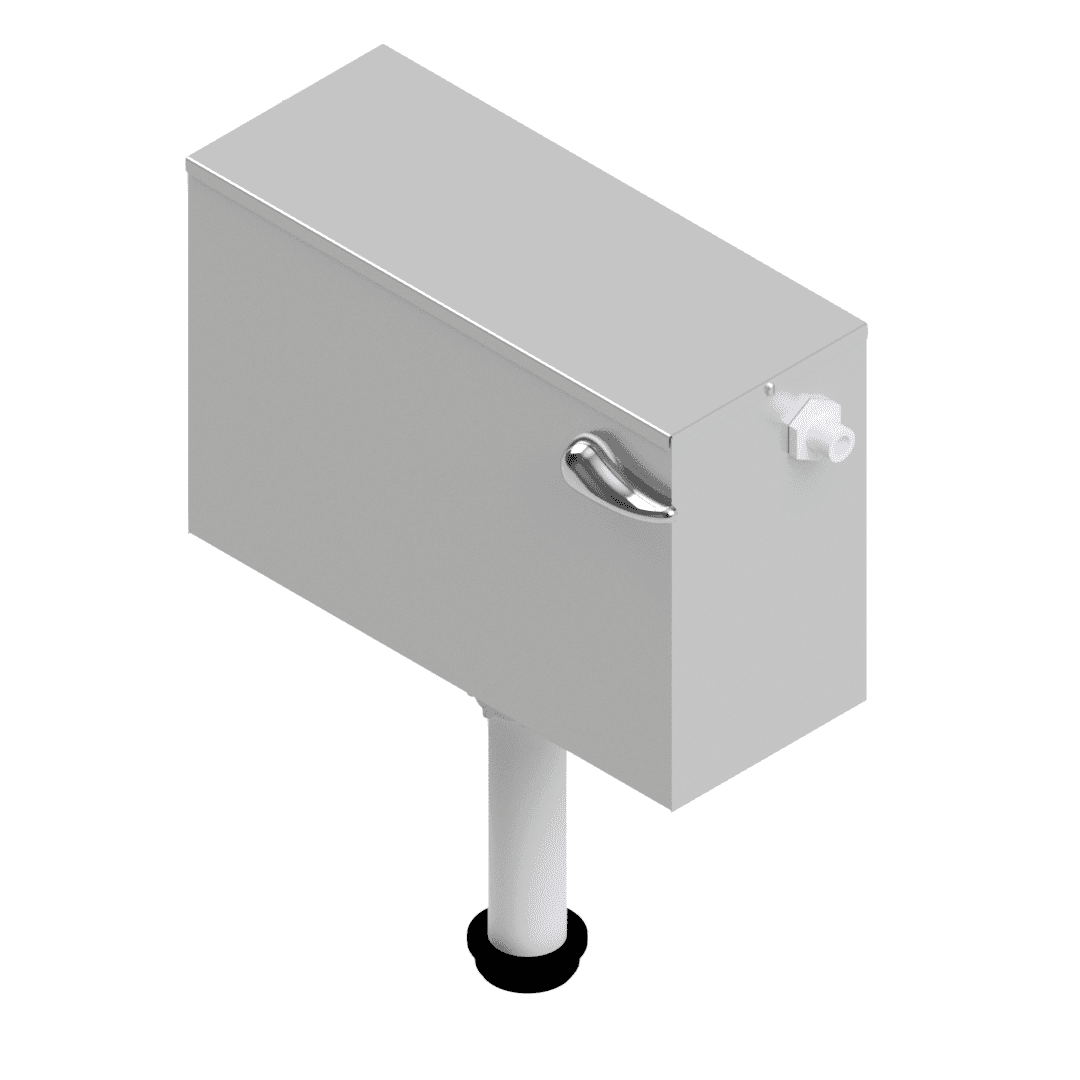

The Basterfield B17110(L380-DPB) is a low-level, wall-mounted stainless steel cistern for WC pans with a top-entry flush inlet. It has a 9-litre capacity and measures 408 mm (L) x 156 mm (W) x 258 mm (H). The enclosure and lid are manufactured from Grade 304 stainless steel with a satin brushed finish.
The cistern includes the flushing system components, inlet control valve and float control mechanism, together with a straight PVC flush pipe and rubber bung. The stainless steel lid is secured with fixing screws. These components are included in the cistern price; the WC pan is a separate item.
Top-entry describes the connection to the WC pan. The cistern water supply uses a side inlet. A right-hand flush handle is standard; a left-hand handle is available on request and must be specified when ordering.
Use this cistern for exposed flushing installations in public restrooms and institutional, commercial or industrial ablution facilities, including schools, healthcare premises, factories and correctional facilities. Mount the cistern on a suitable wall and coordinate its height, the flush pipe alignment and the water supply with the selected pan and site layout.
The cistern can be ordered on its own or selected as an optional accessory for compatible top-entry WC pans, including the applicable B17654, B17655, B17657 and B17659 models. Back-entry pans and toilets with an integral close-coupled cistern use different flushing arrangements.
Designed and manufactured in South Africa. Clean the satin stainless steel surfaces using products and methods suitable for Grade 304 stainless steel, and retain access for servicing the flushing components.
Features & benefits
9-litre capacity
Low-level flushing cistern with a 9-litre capacity for compatible top-entry WC pans.
Grade 304 stainless steel
Stainless steel enclosure and lid with a satin brushed finish.
Flushing components included
Supplied with the flushing system components, including the inlet control valve and float control mechanism.
PVC flush pipe and rubber bung included
A straight PVC flush pipe and rubber bung are included with the cistern.
Compact wall-mounted enclosure
Overall dimensions are 408 mm (L) x 156 mm (W) x 258 mm (H).
Screw-fixed stainless steel lid
The lid is secured with fixing screws for controlled access to the internal components.
Side inlet and standard right-hand handle
Side water inlet with a right-hand flush handle as standard. Specify a left-hand handle when ordering if required.
Product data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 258 mm
- Length
- Fixed
- 408 mm
- Width
- Fixed
- 156 mm
- Capacity
- Fixed
- 9 L
- Finish
- Fixed
- Satin Brushed Finish
- Inlet Valve Orientation
- Fixed
- Side
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
| Specification | Value | Configuration |
|---|---|---|
| Capacity |
| Fixed |
| Finish |
| Fixed |
| Inlet Valve Orientation |
| Fixed |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B17110(L380-DPB).
PDFProduct warranty
12-month warranty and claims information for B17110(L380-DPB).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product FAQ
