H50146 Mobile Stainless Steel Autopsy Table for Large Animals

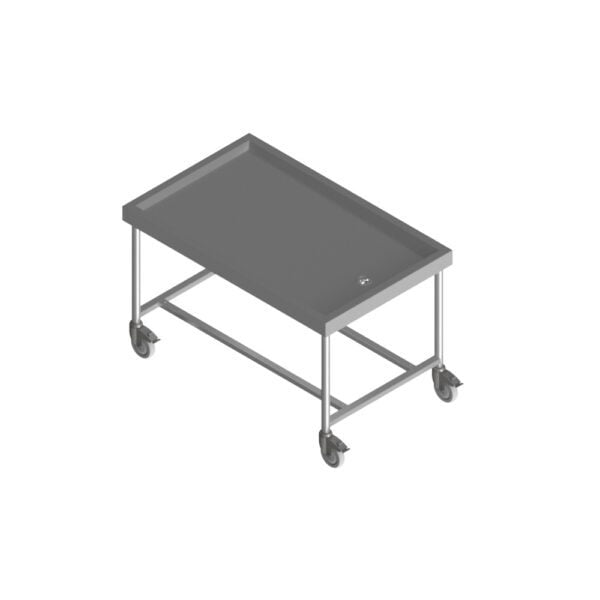

Image indicative of the range. Configurations may differ.
1 / 3 product images
Mobile Grade 304 stainless steel autopsy table for horses, cattle and other large animals. 2000 × 1000 × 705 mm, with 1.2 mm or 1.5 mm top, recessed drainage surface and four Ø200 mm castors, two lockable.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
R20,634.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
1 of 1 option selected
Top Thickness: 1.2 mm
H50146(112-2000x1000) is ready to quote.
Top Thickness
Selected model
H50146(112-2000x1000)
Model details
Overview
Basterfield H50146 Mobile Autopsy Table for Large Animals, Grade 304 Stainless Steel, 1.2mm Top Thickness, 2000mm (L) × 1000mm (W) × 705mm (H) Including Castors, with Cross Bracing, 30–50mm Recessed Top Sloped Along the Length to a 1 1/2-inch Drainage Outlet, Four Ø200mm Castors, Two Lockable
Loading model details…
Shortlist this product, add project notes and compare your options.
Product overview
The H50146 mobile autopsy table provides a stainless steel work surface for post-mortem examinations of horses, cattle and other large animals. It is suited to veterinary necropsy facilities, animal pathology laboratories and veterinary teaching environments.
Both standard versions measure 2000 mm long by 1000 mm wide, with an overall height of 705 mm including the 200 mm diameter castors. Choose a 1.2 mm or 1.5 mm thick top. The top and complete framework are manufactured from Grade 304 stainless steel, with cross bracing supporting the frame.
The recessed top varies from 30 mm to 50 mm deep to help contain liquids within the work area. A continuous fall along the length directs liquid towards the 1 1/2-inch drainage outlet, providing a defined drainage point during examinations and cleaning.
Four castors allow the table to be repositioned within the work area. Two of the four castors are lockable for positioning the table during use. The stainless steel top and framework provide accessible surfaces for routine cleaning between examinations.
Features & benefits
Large-Animal Autopsy Work Surface
A 2000 × 1000 mm work surface for post-mortem examinations of horses, cattle and other large animals.
Choice of Two Top Thicknesses
Select a 1.2 mm or 1.5 mm Grade 304 stainless steel top in the same standard table size.
Grade 304 Stainless Steel Construction
The top and complete framework are Grade 304 stainless steel, providing surfaces for routine cleaning between examinations.
Recessed Top for Liquid Containment
A 30–50 mm deep recess helps keep liquids within the work area during examinations and cleaning.
Lengthwise Drainage Fall
The top slopes along its length towards a 1 1/2-inch outlet to guide liquids to a defined drainage point.
Cross-Braced Framework
Cross bracing supports the full stainless steel frame beneath the work surface.
Mobile Base with Two Lockable Castors
Four Ø200 mm castors allow repositioning; two are lockable. Overall table height is 705 mm including the castors.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
24-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 705 mm
- Length
- Fixed
- 2000 mm
- Width
- Fixed
- 1000 mm
- Top Thickness
- Configurable
- 1.2 mm
- 1.5 mm
- Castor Diameter (mm)
- Fixed
- 200 mm
- Drainage
- Fixed
- Lengthwise Fall to a 1 1/2-inch Drainage Outlet
- Framework Material
- Fixed
- Stainless Steel Grade 304
- Material
- Fixed
- Stainless Steel Grade 304
- Number of Castors
- Fixed
- 4
- Number of Lockable Castors
- Fixed
- 2
- Recessed Slab Depth
- Fixed
- 30–50 mm
| Specification | Value | Configuration |
|---|---|---|
| Top Thickness |
| Configurable |
| Castor Diameter (mm) |
| Fixed |
| Drainage |
| Fixed |
| Framework Material |
| Fixed |
| Material |
| Fixed |
| Number of Castors |
| Fixed |
| Number of Lockable Castors |
| Fixed |
| Recessed Slab Depth |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H50146(112-2000x1000) | Basterfield H50146 Mobile Autopsy Table for Large Animals, Grade 304 Stainless Steel, 1.2mm Top Thickness, 2000mm (L) × 1000mm (W) × 705mm (H) Including Castors, with Cross Bracing, 30–50mm Recessed Top Sloped Along the Length to a 1 1/2-inch Drainage Outlet, Four Ø200mm Castors, Two Lockable Autopsy Table for Large Animals, Mobile | 200 mm | Lengthwise Fall to a 1 1/2-inch Drainage Outlet | Stainless Steel Grade 304 | 705 mm | 2000 mm | Stainless Steel Grade 304 | 1.2 mm | 4 | 2 | 30–50 mm | 1000 mm | View specifications
| |
| H50146(115-2000x1000) | Mobile Autopsy Table for Large Animals by Basterfield, Grade 304 Stainless Steel, 1.5mm Top Thickness, 2000mm (L) × 1000mm (W) × 705mm (H) Including Castors, with Cross Bracing, 30–50mm Recessed Top Sloped Along the Length to a 1 1/2-inch Drainage Outlet, Four Ø200mm Castors, Two Lockable Autopsy Table Mobile Large Animal 1.5mm Thickness | 200 mm | Lengthwise Fall to a 1 1/2-inch Drainage Outlet | Stainless Steel Grade 304 | 705 mm | 2000 mm | Stainless Steel Grade 304 | 1.5 mm | 4 | 2 | 30–50 mm | 1000 mm | View specifications
|
