B22328(G1) Medical Wash Hand Basin
Image indicative of the range. Configurations may differ.
1 / 7 product images
Wall-mounted Grade 304 medical wash hand basin with a 150 mm splashback and pre-punched medical-mixer tap holes. Available with front support legs.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R2,799.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 1 options selected
Select Front Support Legs to complete your configuration.
Front Support Legs
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B22328(G1) medical wash hand basin provides a wall-mounted handwashing point for hospitals, clinics, dental surgeries, veterinary practices and laboratory areas. It is manufactured from 1.2 mm Grade 304 stainless steel.

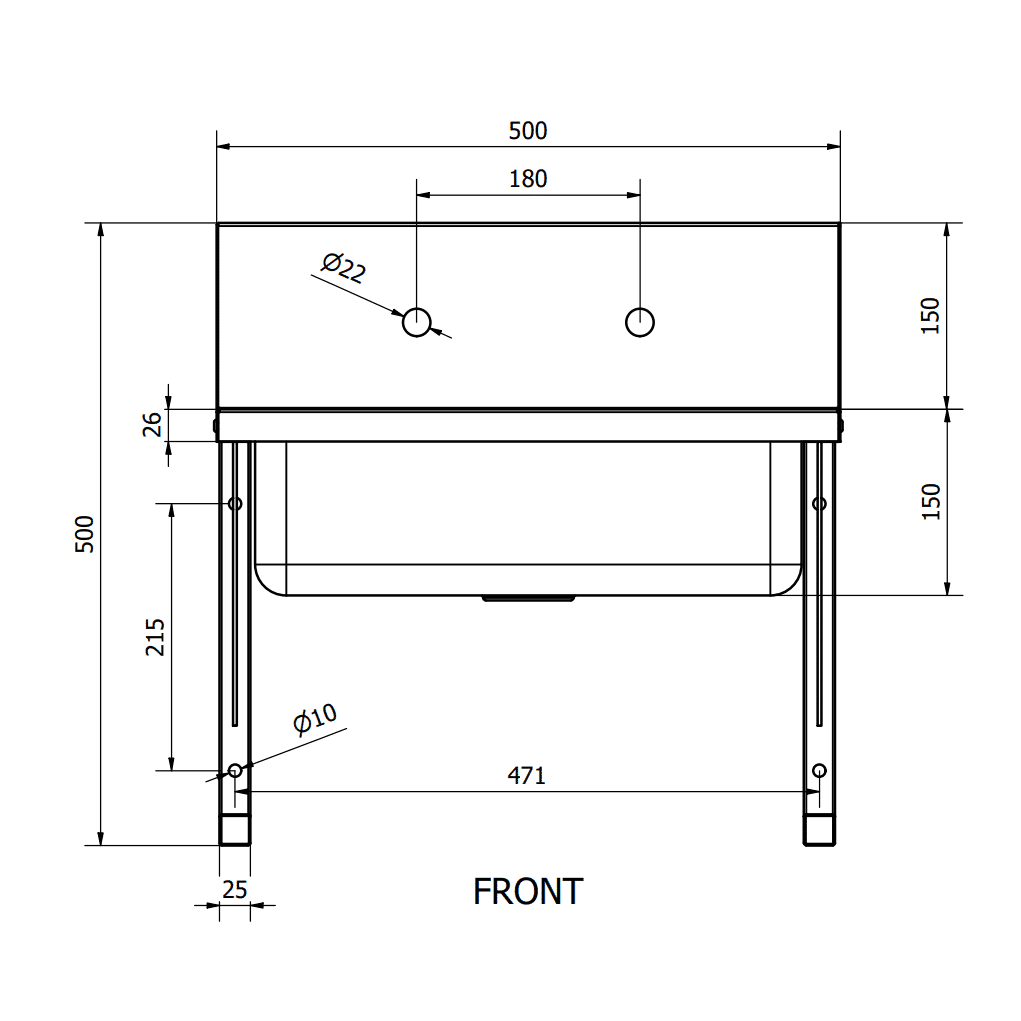

A 150 mm rear splashback protects the wall behind the basin. Two pre-punched Ø22 mm tap holes at 180 mm centres accommodate a medical mixer. The Borras medical mixer with wall and deck mounting kit is available as an optional accessory and is supplied separately from the basin.

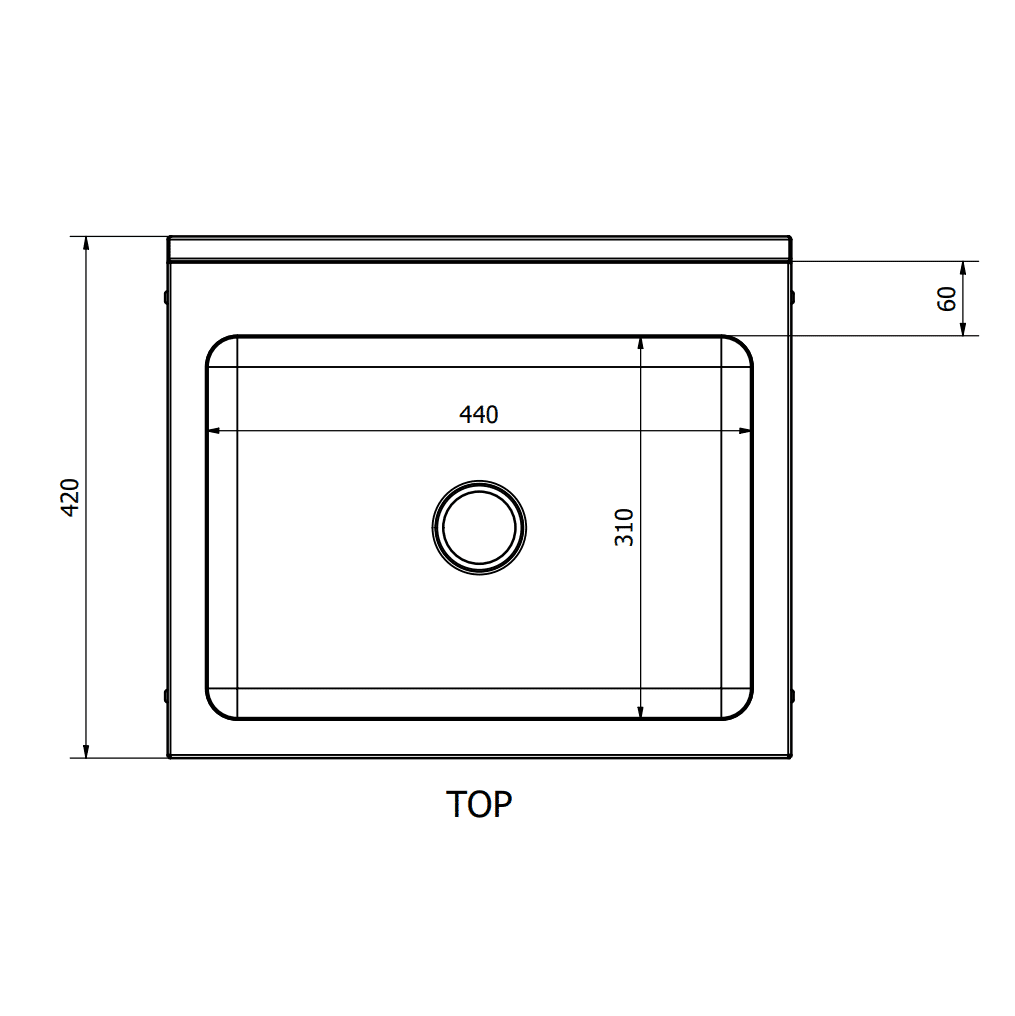

Both configurations include stainless steel gallows brackets. Choose the standard bracket-mounted basin or the configuration with additional stainless steel front support legs and adjustable feet. Both use the same 500 mm x 420 mm basin and 440 mm x 310 mm x 150 mm deep bowl.

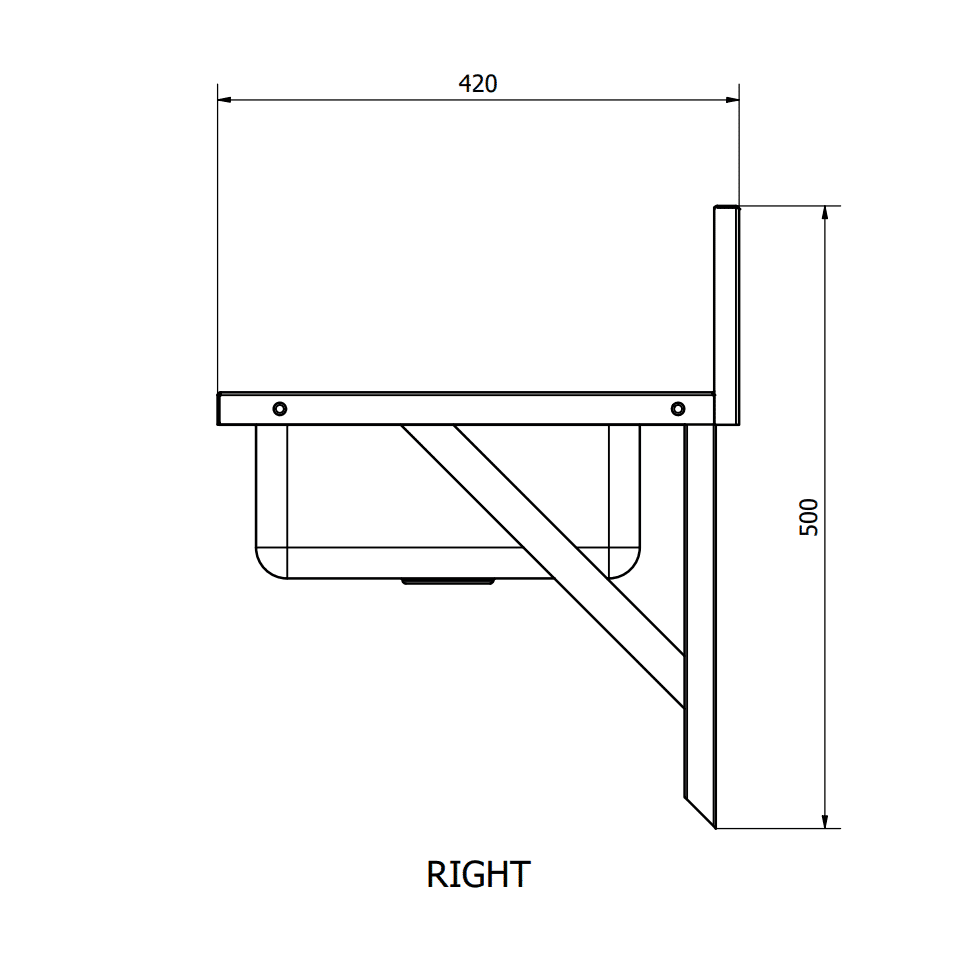

The basin has a 26 mm turndown edge and a 40 mm waste outlet. The wall-mount assembly measures 500 mm from the top of the splashback to the bottom of the brackets. Set the installed basin height and specify the waste fitting, trap and plumbing connections for the installation.
Features & benefits
Grade 304 Stainless Steel
Manufactured from 1.2 mm Grade 304 stainless steel.
Single Handwashing Bowl
440 mm x 310 mm x 150 mm deep bowl in a 500 mm x 420 mm basin.
150 mm Rear Splashback
Extended rear splashback helps protect the wall behind the handwashing point.
Pre-Punched Medical Mixer Tap Holes
Two Ø22 mm holes at 180 mm centres in the splashback. The medical mixer is selected separately.
Stainless Steel Gallows Brackets
Wall-mounting brackets use 25 x 25 mm square tube, with Ø10 mm mounting holes at a 215 mm vertical pitch.
Front Support Leg Configuration

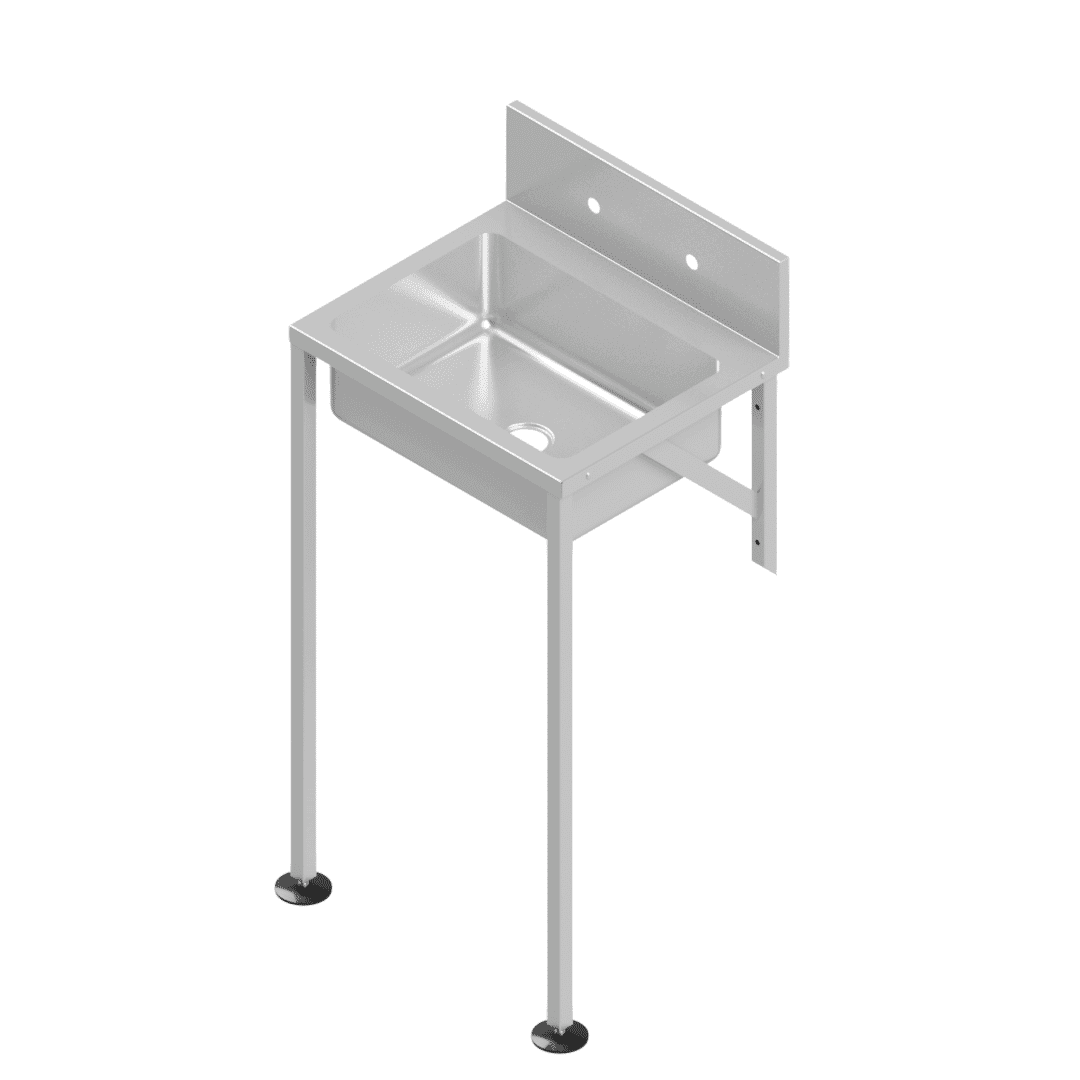

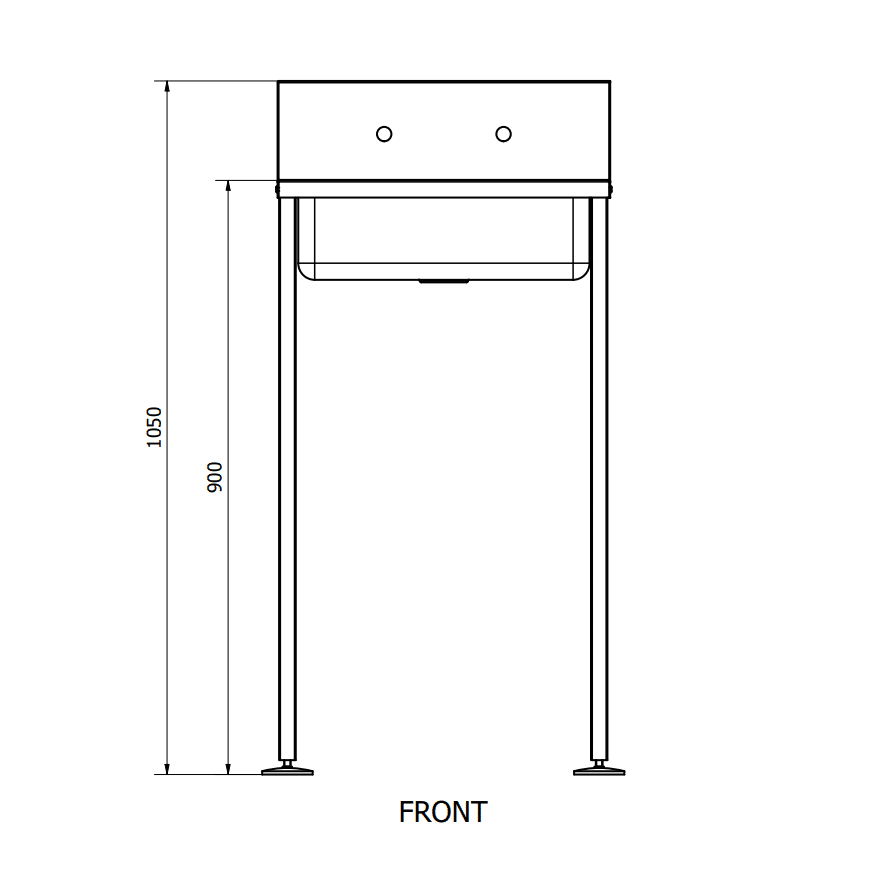

Choose the SL configuration for additional stainless steel front support legs with adjustable feet.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B22328(G1).
PDFProduct warranty
24-month warranty and claims information for B22328(G1).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 500 mm
- Width
- Fixed
- 420 mm
- Front Support Legs
- Configurable
- No
- Yes
- Splashback Height
- Fixed
- 150 mm
- Basin and Bracket Height
- Fixed
- 500 mm
- Bowl Depth
- Fixed
- 150 mm
- Bowl Length
- Fixed
- 440 mm
- Bowl Width
- Fixed
- 310 mm
- Bracket Mounting Hole Pitch
- Fixed
- 215 mm
- Bracket Tube Section
- Fixed
- 25 × 25mm square stainless steel tube
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Mounting Hole Diameter
- Fixed
- 10 mm
- Mounting Type
- Fixed
- Stainless Steel Gallows Brackets
- Number of Bowls
- Fixed
- 1
- Tap Hole Provision
- Fixed
- Two Ø22mm holes at 180mm centres in the splashback
- Tapware Supply
- Fixed
- Borras medical mixer optional; not included
- Turndown Edge
- Fixed
- 26 mm
- Waste Outlet Diameter
- Fixed
- 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Front Support Legs |
| Configurable |
| Splashback Height |
| Fixed |
| Basin and Bracket Height |
| Fixed |
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Width |
| Fixed |
| Bracket Mounting Hole Pitch |
| Fixed |
| Bracket Tube Section |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Mounting Hole Diameter |
| Fixed |
| Mounting Type |
| Fixed |
| Number of Bowls |
| Fixed |
| Tap Hole Provision |
| Fixed |
| Tapware Supply |
| Fixed |
| Turndown Edge |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare 2 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B22328(G1-SL) | Medical Wash Hand Basin Stainless Steel Grade 304, 1.2mm Thick, 500mm (L) × 420mm (W) with 440mm (L) × 310mm (W) × 150mm (D) Bowl, 150mm Rear Splashback, Two Ø22mm Tap Holes at 180mm Centres, 40mm Waste Outlet and Stainless Steel Gallows Brackets with Front Support Legs and Adjustable Feet. Basin and Bracket Height: 500mm Medical Wash Hand Basin with Front Support Legs | 150 mm | 500 mm | 150 mm | 440 mm | 310 mm | 215 mm | 25 × 25mm square stainless steel tube | Yes | 500 mm | Stainless Steel Grade 304 | 1.2 mm | 10 mm | Stainless Steel Gallows Brackets | 1 | Two Ø22mm holes at 180mm centres in the splashback | Borras medical mixer optional; not included | 26 mm | 40 mm | 420 mm | View specifications
| |
| B22328(G1) | Medical Wash Hand Basin in Stainless Steel Grade 304, 1.2mm thick, 500mm (L) x 420mm (W), with 440mm (L) x 310mm (W) x 150mm (D) bowl, 150mm rear splashback, two Ø22mm tap holes at 180mm centres, 40mm waste outlet and stainless steel gallows brackets without front support legs. Basin and bracket assembly height: 500mm; installed height set during installation Medical Wash Hand Basin with Gallows Brackets | 150 mm | 500 mm | 150 mm | 440 mm | 310 mm | 215 mm | 25 × 25mm square stainless steel tube | No | 500 mm | Stainless Steel Grade 304 | 1.2 mm | 10 mm | Stainless Steel Gallows Brackets | 1 | Two Ø22mm holes at 180mm centres in the splashback | Borras medical mixer optional; not included | 26 mm | 40 mm | 420 mm | View specifications
|
