B36661(S) Wash Hand Basin with Radiused Corners
Image indicative of the range. Configurations may differ.
1 / 6 product images
Grade 304 wash hand basin for medical and general handwashing, with 25 mm radiused bowl corners, a 50 mm splashback and gallows brackets. Front support legs available.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R2,314.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 1 options selected
Select Front Support Legs to complete your configuration.
Front Support Legs
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B36661(S) wash hand basin is suitable for medical and healthcare handwashing areas. Its 25 mm radiused internal bowl corners form curved junctions that are easier to reach during routine cleaning. It also suits general handwashing in laboratories, food-processing facilities, catering areas and institutional buildings.
Both configurations use 1.2 mm Grade 304 stainless steel and share a 500 mm x 420 mm basin with a 440 mm x 310 mm x 150 mm deep bowl. An integrated 50 mm rear splashback helps protect the wall. The basin has a 26 mm turndown edge and a 40 mm waste outlet hole.

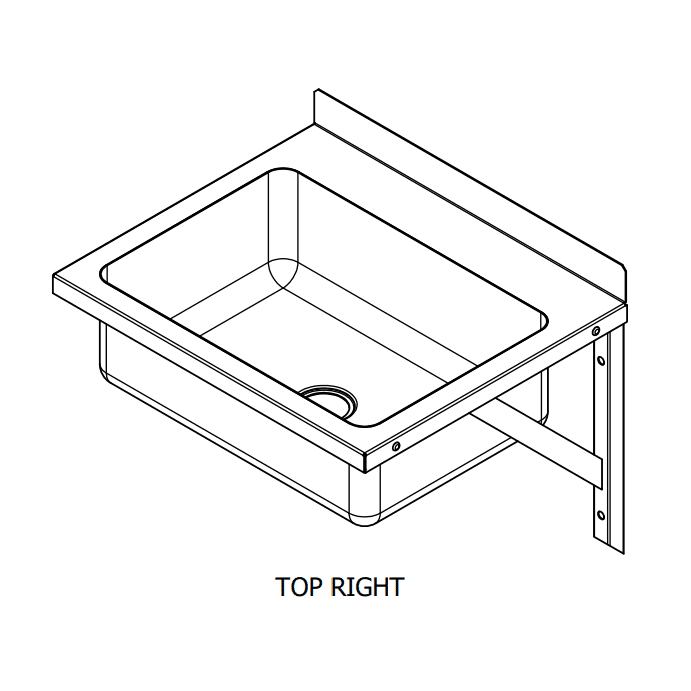

Stainless steel gallows brackets are included. Choose B36661(S-G1) for the bracket-mounted basin or B36661(S-G1-SL) for additional stainless steel front support legs with adjustable feet. The brackets use 25 x 25 mm square tube with mounting holes at a 215 mm vertical pitch.
The wall-mount assembly measures 400 mm from the top of the splashback to the bottom of the brackets. This is separate from the installed height above the floor. Specify the tapware, tap-hole arrangement, waste fitting, trap and plumbing connections for the installation.
Features & benefits
25 mm Radiused Bowl Corners
Curved internal corner junctions are easier to reach during routine cleaning in medical and other handwashing areas.
Grade 304 Stainless Steel
Both configurations are manufactured from 1.2 mm Grade 304 stainless steel.
Single Handwashing Bowl
440 mm x 310 mm x 150 mm deep bowl in a 500 mm x 420 mm basin.
50 mm Integrated Splashback
Rear splashback helps protect the wall. The basin also has a 26 mm turndown edge.
Stainless Steel Gallows Brackets
Included wall-mounting brackets use 25 x 25 mm square tube with mounting holes at a 215 mm vertical pitch.
Front Support Leg Configuration

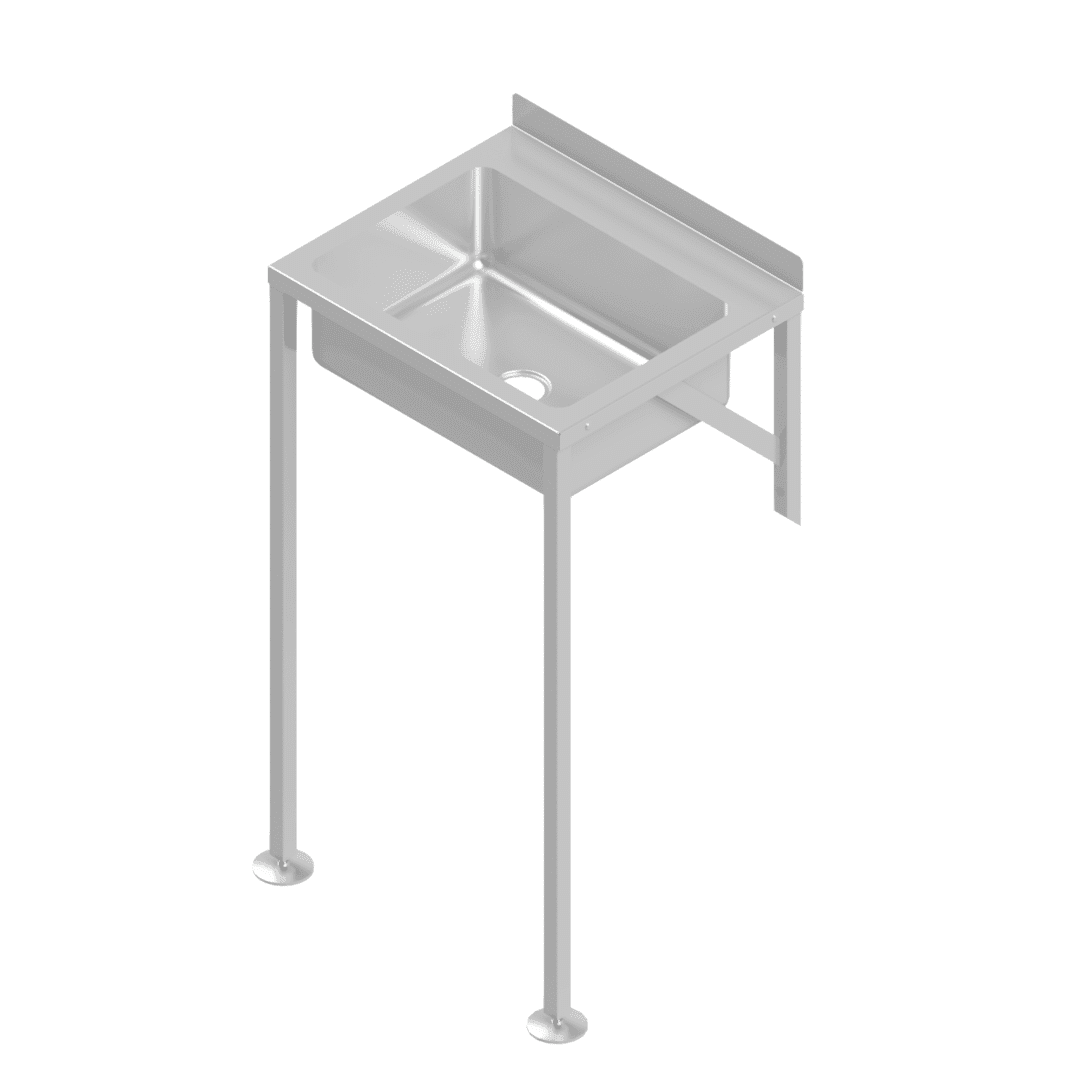

Choose S-G1-SL for additional stainless steel front support legs with adjustable feet. S-G1 is supplied without front support legs.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B36661(S).
PDFProduct warranty
12-month warranty and claims information for B36661(S).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 500 mm
- Width
- Fixed
- 420 mm
- Front Support Legs
- Configurable
- No
- Yes
- Splashback Height
- Fixed
- 50 mm
- Basin and Bracket Height
- Fixed
- 400 mm
- Bowl Corner Radius
- Fixed
- 25 mm
- Bowl Depth
- Fixed
- 150 mm
- Bowl Length
- Fixed
- 440 mm
- Bowl Width
- Fixed
- 310 mm
- Bracket Mounting Hole Pitch
- Fixed
- 215 mm
- Bracket Tube Section
- Fixed
- 25 × 25mm square stainless steel tube
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Mounting Type
- Fixed
- Stainless Steel Gallows Brackets
- Number of Bowls
- Fixed
- 1
- Tap Hole Provision
- Fixed
- Tap-hole arrangement to be specified
- Tapware Supply
- Fixed
- Tapware to be specified separately
- Turndown Edge
- Fixed
- 26 mm
- Waste Outlet Diameter
- Fixed
- 40 mm
- Waste Outlet Hole
- Fixed
- Ø40mm outlet hole
| Specification | Value | Configuration |
|---|---|---|
| Front Support Legs |
| Configurable |
| Splashback Height |
| Fixed |
| Basin and Bracket Height |
| Fixed |
| Bowl Corner Radius |
| Fixed |
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Width |
| Fixed |
| Bracket Mounting Hole Pitch |
| Fixed |
| Bracket Tube Section |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Mounting Type |
| Fixed |
| Number of Bowls |
| Fixed |
| Tap Hole Provision |
| Fixed |
| Tapware Supply |
| Fixed |
| Turndown Edge |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Waste Outlet Hole |
| Fixed |
Available models & compare variants
Compare 2 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B36661(S-G1-SL) | Wash Hand Basin, Grade 304 Stainless Steel, 1.2mm Thick, 500mm (L) × 420mm (W), with 440mm (L) × 310mm (W) × 150mm (D) Bowl, 25mm Radiused Bowl Corners, 50mm Rear Splashback, 26mm Turndown Edge, Ø40mm Waste Outlet Hole, and 25mm × 25mm Square Tubular Stainless Steel Gallows Brackets with 215mm Vertical Mounting-Hole Pitch, with Front Support Legs and Adjustable Feet. Basin and Bracket Assembly Height Is 400mm; Installed Height Is Set to Suit the Installation. Tapware, Tap-Hole Arrangement, Waste Fitting, Trap and Pipework to Be Specified Wash Hand Basin with Front Support Legs | 50 mm | 400 mm | 25 mm | 150 mm | 440 mm | 310 mm | 215 mm | 25 × 25mm square stainless steel tube | Yes | 500 mm | Stainless Steel Grade 304 | 1.2 mm | Stainless Steel Gallows Brackets | 1 | Tap-hole arrangement to be specified | Tapware to be specified separately | 26 mm | 40 mm | Ø40mm outlet hole | 420 mm | View specifications
| |
| B36661(S-G1) | Wash Hand Basin, Grade 304 stainless steel, 1.2mm thick, 500mm (L) x 420mm (W), with 440mm (L) x 310mm (W) x 150mm (D) bowl, 25mm radiused bowl corners, 50mm rear splashback, 26mm turndown edge, Ø40mm waste outlet hole, and 25mm x 25mm square tubular stainless steel gallows brackets with 215mm vertical mounting-hole pitch, without front support legs. Basin and bracket assembly height is 400mm; installed height is set to suit the installation. Tapware, tap-hole arrangement, waste fitting, trap and pipework to be specified Wash Hand Basin with Radiused Corners | 50 mm | 400 mm | 25 mm | 150 mm | 440 mm | 310 mm | 215 mm | 25 × 25mm square stainless steel tube | No | 500 mm | Stainless Steel Grade 304 | 1.2 mm | Stainless Steel Gallows Brackets | 1 | Tap-hole arrangement to be specified | Tapware to be specified separately | 26 mm | 40 mm | Ø40mm outlet hole | 420 mm | View specifications
|
