H22681(SC) Single Bowl Medical Sink
Image indicative of the range. Configurations may differ.
1 / 2 product images
Wall-mounted single-bowl Grade 304 stainless steel medical sink with marine edge, 150 mm splashback and gallows brackets. Waste fittings and medical mixer available separately.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The H22681(SC) is a wall-mounted single-bowl medical sink for hospitals, clinics, healthcare utility rooms and laboratory washing areas. It is manufactured from Grade 304 stainless steel with a brushed finish.
The sink has one centre-oriented bowl. A marine edge helps contain water on the sink top, and a 150 mm rear splashback protects the wall behind the sink. A dedicated landing provides space for tapware. Gallows brackets are included for wall mounting.
Each bowl has a pre-punched hole for a 1½-inch BSP waste fitting. Dura 817 waste fittings and the Borras medical mixer with wall and deck mounting kit are available as optional accessories and are supplied separately from the sink.
Overall dimensions and material thickness are specified by the selected item configuration.
Features & benefits
Grade 304 Stainless Steel
Grade 304 stainless steel construction with a brushed finish. Material thickness is specified by the selected configuration.
Centre-Oriented Bowls
One centre-oriented bowl. Bowl dimensions are listed with each configuration.
Marine Edge and Splashback
Marine edge to help contain water, with a 150 mm rear splashback.
Wall Mounting Brackets Included
Supplied with gallows brackets for wall-mounted installation.
Dedicated Tapware Landing
Landing provides space for separately selected tapware.
Pre-Punched Waste Holes
Each bowl has a pre-punched hole for a 1½-inch BSP waste fitting. Waste fittings are selected separately.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
24-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models

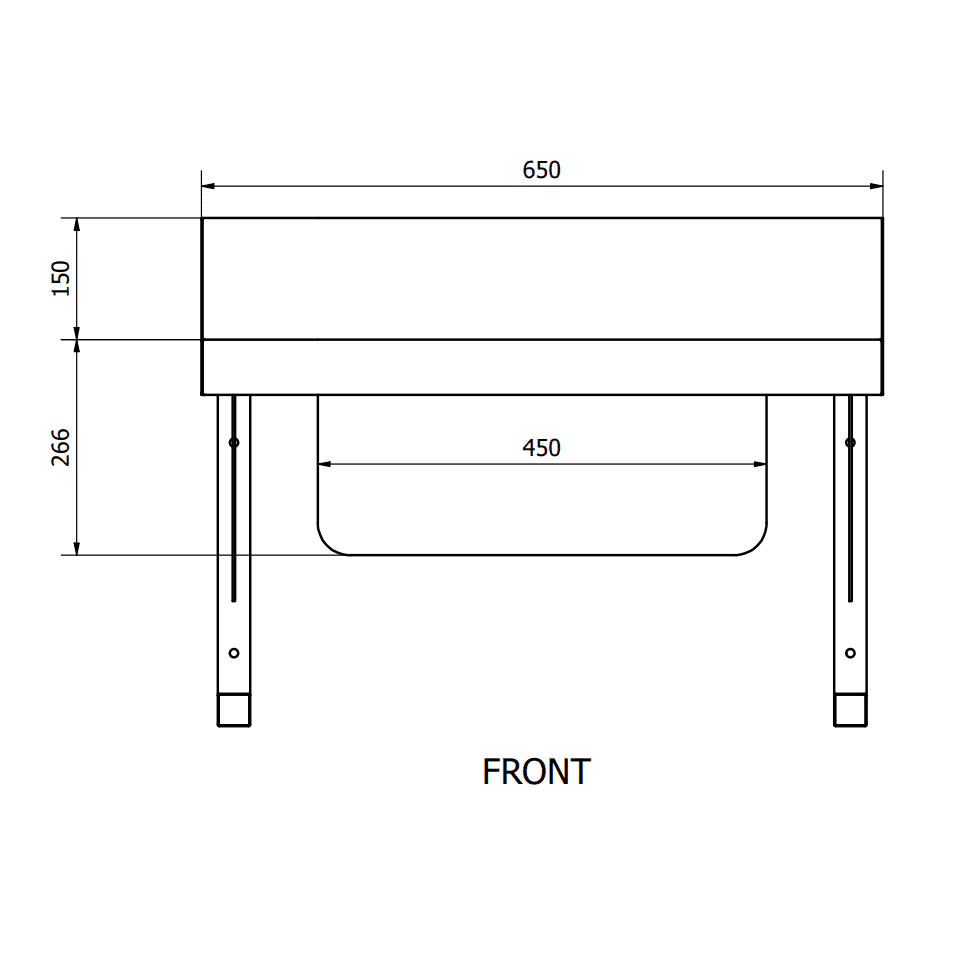

Specifications
Overall size envelope
- Length
- Fixed
- 650 mm
- Width
- Fixed
- 650 mm
- Bowl Depth
- Fixed
- 250 mm
- Bowl Length
- Fixed
- 450 mm
- Bowl Orientation
- Fixed
- Centre
- Bowl Width
- Fixed
- 400 mm
- Drainage
- Fixed
- Dura waste outlet optional; not included
- Finish
- Fixed
- Brushed Stainless Steel
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Mounting Type
- Fixed
- Wall Mounted
- Number of Bowls
- Fixed
- 1
- Splashback Height
- Fixed
- 150 mm
- Tapware Supply
- Fixed
- Borras medical mixer optional; not included
- Waste Connection
- Fixed
- Pre-punched hole for 1½-inch BSP waste fitting
| Specification | Value | Configuration |
|---|---|---|
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Orientation |
| Fixed |
| Bowl Width |
| Fixed |
| Drainage |
| Fixed |
| Finish |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Mounting Type |
| Fixed |
| Number of Bowls |
| Fixed |
| Splashback Height |
| Fixed |
| Tapware Supply |
| Fixed |
| Waste Connection |
| Fixed |
