H22681(DC) Double Bowl Medical Sink
Image indicative of the range. Configurations may differ.
1 / 2 product images
Wall-mounted double-bowl medical basin for clinical handwashing areas requiring two adjacent basins.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
Wall-mounted double-bowl medical basin for clinical handwashing areas requiring two adjacent basins.
Manufactured from Grade 304 stainless steel with a robust 1.2 mm thick construction, this double-bowl basin delivers exceptional durability, superior corrosion resistance, and uncompromising hygiene standards essential for healthcare settings.
This purpose-built medical basin features two generously proportioned centre-oriented bowls, each measuring 450 mm (L) x 400 mm (W) x 250 mm (D), providing ample capacity for thorough handwashing procedures and instrument cleaning tasks.
Engineered for secure wall-mounted installation, the basin comes complete with heavy-duty gallows brackets that ensure stability and optimal space efficiency in clinical environments. The unit features a standard 40 mm waste outlet for efficient drainage, preventing water accumulation and maintaining hygienic conditions.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H22681(DC).
PDFProduct warranty
24-month warranty and claims information for H22681(DC).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications

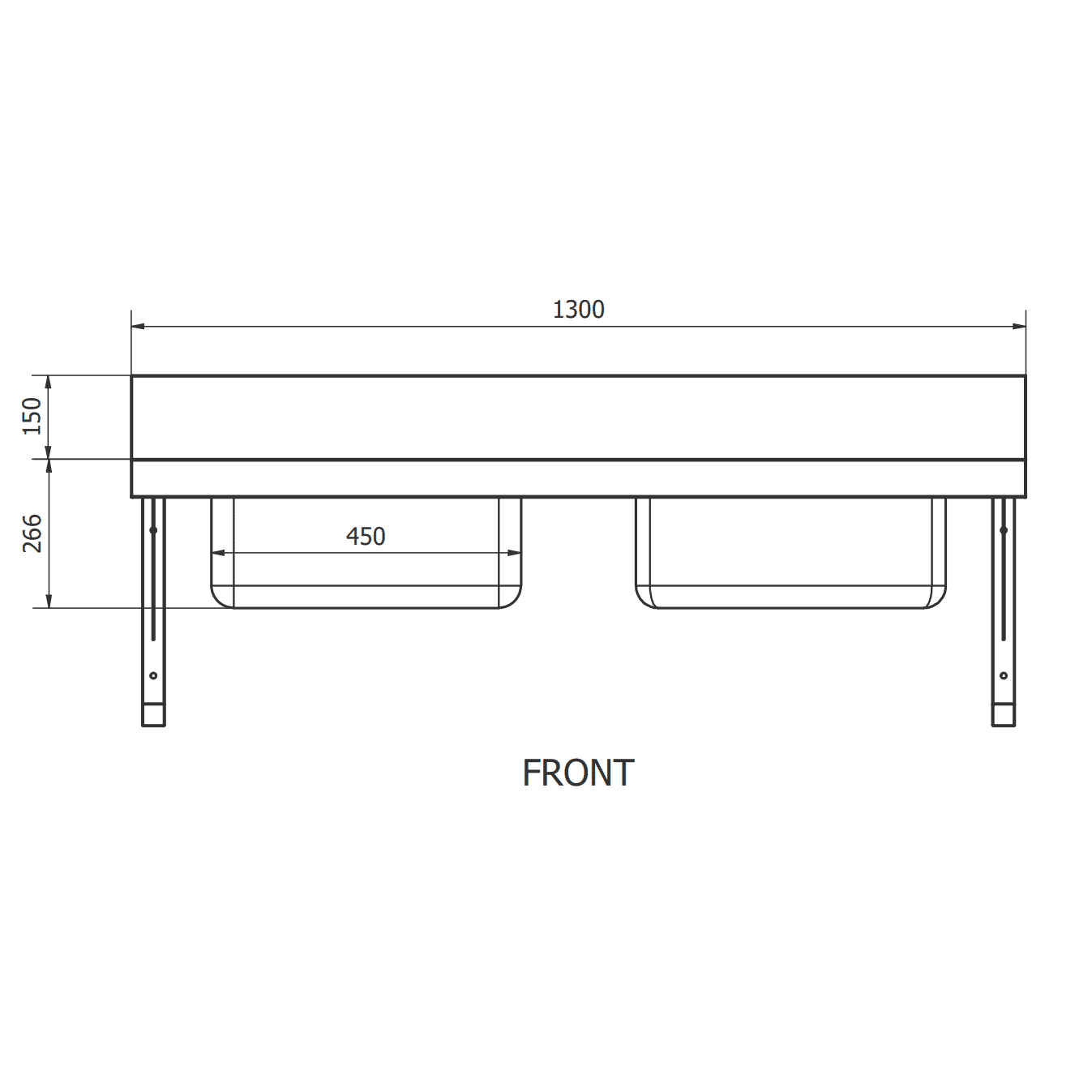

Overall size envelope
- Length
- Fixed
- 1300 mm
- Width
- Fixed
- 650 mm
- Bowl Depth
- Fixed
- 250 mm
- Bowl Length
- Fixed
- 450 mm
- Bowl Orientation
- Fixed
- Centre
- Bowl Width
- Fixed
- 400 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Number of Bowls
- Fixed
- 2
| Specification | Value | Configuration |
|---|---|---|
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Orientation |
| Fixed |
| Bowl Width |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Number of Bowls |
| Fixed |
Specification support
