H22681(TC) Triple Bowl Medical Sink
Image indicative of the range. Configurations may differ.
1 / 2 product images
Wall-mounted triple-bowl Grade 304 stainless steel medical sink with marine edge, 150 mm splashback and gallows brackets. Waste fittings and medical mixer available separately.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
Price on request
1 of 1 option selected
Material Thickness: 1.2 mm
H22681(TC-112-1950x650) is ready to quote.
Material Thickness
Selected model
H22681(TC-112-1950x650)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview

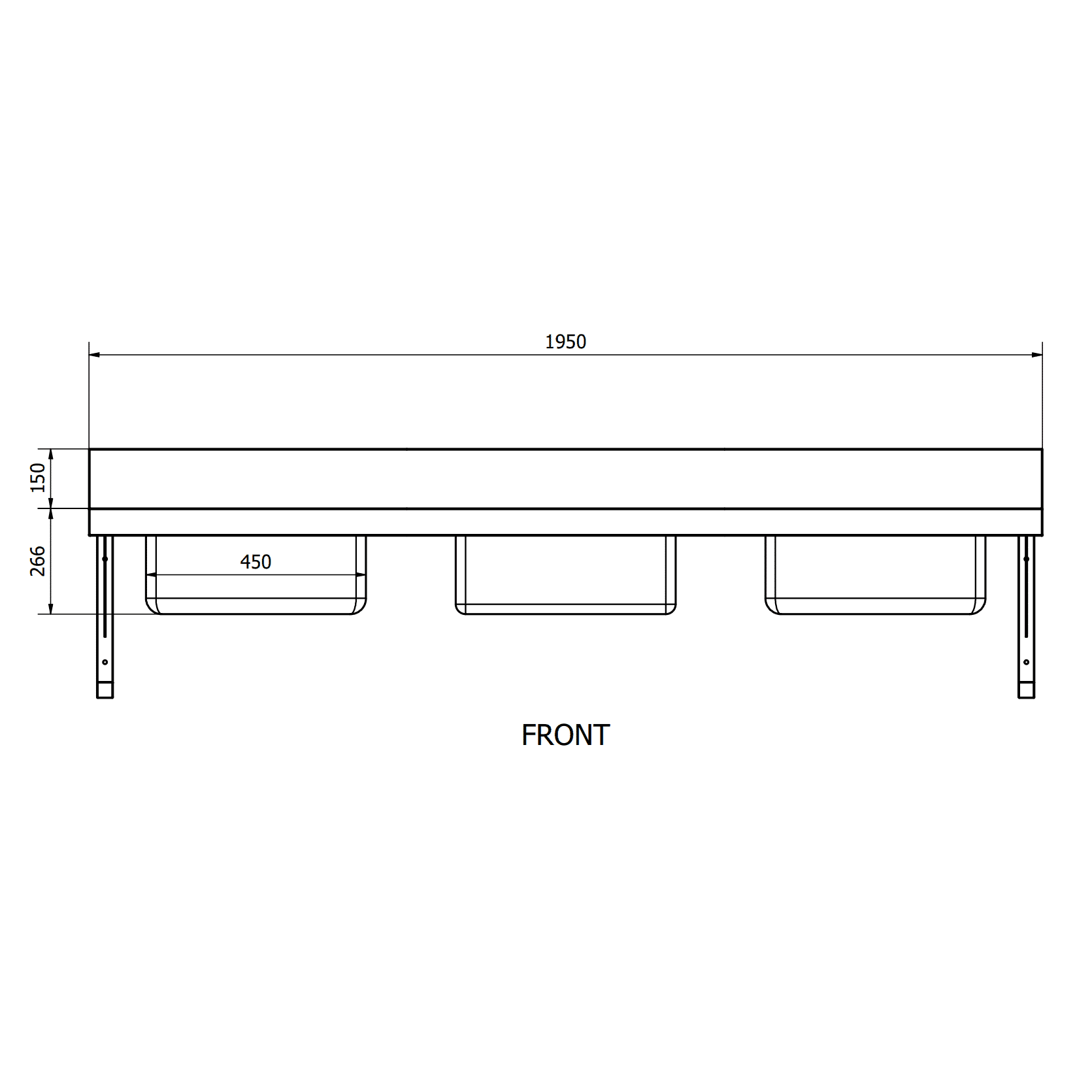

Medical Sink, Stainless Steel Grade 304, 1.2mm Thick, 1950mm (L) × 650mm (W), with Three Centre-Oriented Bowls, Each 450mm (L) × 400mm (W) × 250mm (D), Marine Edge, 150mm Rear Splashback, Tapware Landing, Gallows Brackets and Pre-Punched Waste Holes
Loading model details…
Shortlist this product, add project notes and compare your options.
Product overview
The H22681(TC) is a wall-mounted triple-bowl medical sink for hospitals, clinics, healthcare utility rooms and laboratory washing areas. It is manufactured from Grade 304 stainless steel.
The sink has three centre-oriented bowls. A marine edge helps contain water on the sink top, and a 150 mm rear splashback protects the wall behind the sink. A dedicated landing provides space for tapware. Gallows brackets are included for wall mounting.
Each bowl has a pre-punched waste hole. Dura 817 waste fittings and the Borras medical mixer with wall and deck mounting kit are available as optional accessories and are supplied separately from the sink.
Overall dimensions and material thickness are specified by the selected item configuration.
Features & benefits
Grade 304 Stainless Steel
Grade 304 stainless steel construction. Material thickness is specified by the selected configuration.
Centre-Oriented Bowls
Three centre-oriented bowls. Bowl dimensions are listed with each configuration.
Marine Edge and Splashback
Marine edge to help contain water, with a 150 mm rear splashback.
Wall Mounting Brackets Included
Supplied with gallows brackets for wall-mounted installation.
Dedicated Tapware Landing
Landing provides space for separately selected tapware.
Pre-Punched Waste Holes
Each bowl has a pre-punched waste hole. Waste fittings are selected separately.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
24-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 1950 mm
- Width
- Fixed
- 650 mm
- Material Thickness
- Configurable
- 1.2 mm
- 1.5 mm
- Bowl Depth
- Fixed
- 250 mm
- Bowl Length
- Fixed
- 450 mm
- Bowl Orientation
- Fixed
- Centre
- Bowl Width
- Fixed
- 400 mm
- Drainage
- Fixed
- Dura waste outlet optional; not included
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
- Number of Bowls
- Fixed
- 3
- Splashback Height
- Fixed
- 150 mm
- Tapware Supply
- Fixed
- Borras medical mixer optional; not included
- Waste Connection
- Fixed
- Pre-punched waste hole; fitting optional
| Specification | Value | Configuration |
|---|---|---|
| Material Thickness |
| Configurable |
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Orientation |
| Fixed |
| Bowl Width |
| Fixed |
| Drainage |
| Fixed |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Number of Bowls |
| Fixed |
| Splashback Height |
| Fixed |
| Tapware Supply |
| Fixed |
| Waste Connection |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H22681(TC-112-1950x650) | Medical Sink, Stainless Steel Grade 304, 1.2mm Thick, 1950mm (L) × 650mm (W), with Three Centre-Oriented Bowls, Each 450mm (L) × 400mm (W) × 250mm (D), Marine Edge, 150mm Rear Splashback, Tapware Landing, Gallows Brackets and Pre-Punched Waste Holes Medical Sink Triple Bowl Centre-Oriented | 250 mm | 450 mm | Centre | 400 mm | Dura waste outlet optional; not included | 1950 mm | Stainless Steel Grade 304 | 1.2 mm | Wall Mounted | 3 | 150 mm | Borras medical mixer optional; not included | Pre-punched waste hole; fitting optional | 650 mm | View specifications
| |
| H22681(TC-115-1950x650) | Medical Sink, Grade 304 Stainless Steel, 1.5mm Thick, 1950mm (L) × 650mm (W) with Three Centre-Oriented Bowls, Each 450mm (L) × 400mm (W) × 250mm (D), Marine Edge, 150mm Rear Splashback, Tapware Landing, Included Gallows Brackets and Pre-Punched Waste Holes Medical Sink Triple Bowl Centre-Oriented | 250 mm | 450 mm | Centre | 400 mm | Dura waste outlet optional; not included | 1950 mm | Stainless Steel Grade 304 | 1.5 mm | Wall Mounted | 3 | 150 mm | Borras medical mixer optional; not included | Pre-punched waste hole; fitting optional | 650 mm | View specifications
|
