H22681(TC) Triple Bowl Medical Sink
Image indicative of the range. Configurations may differ.
1 / 3 product images

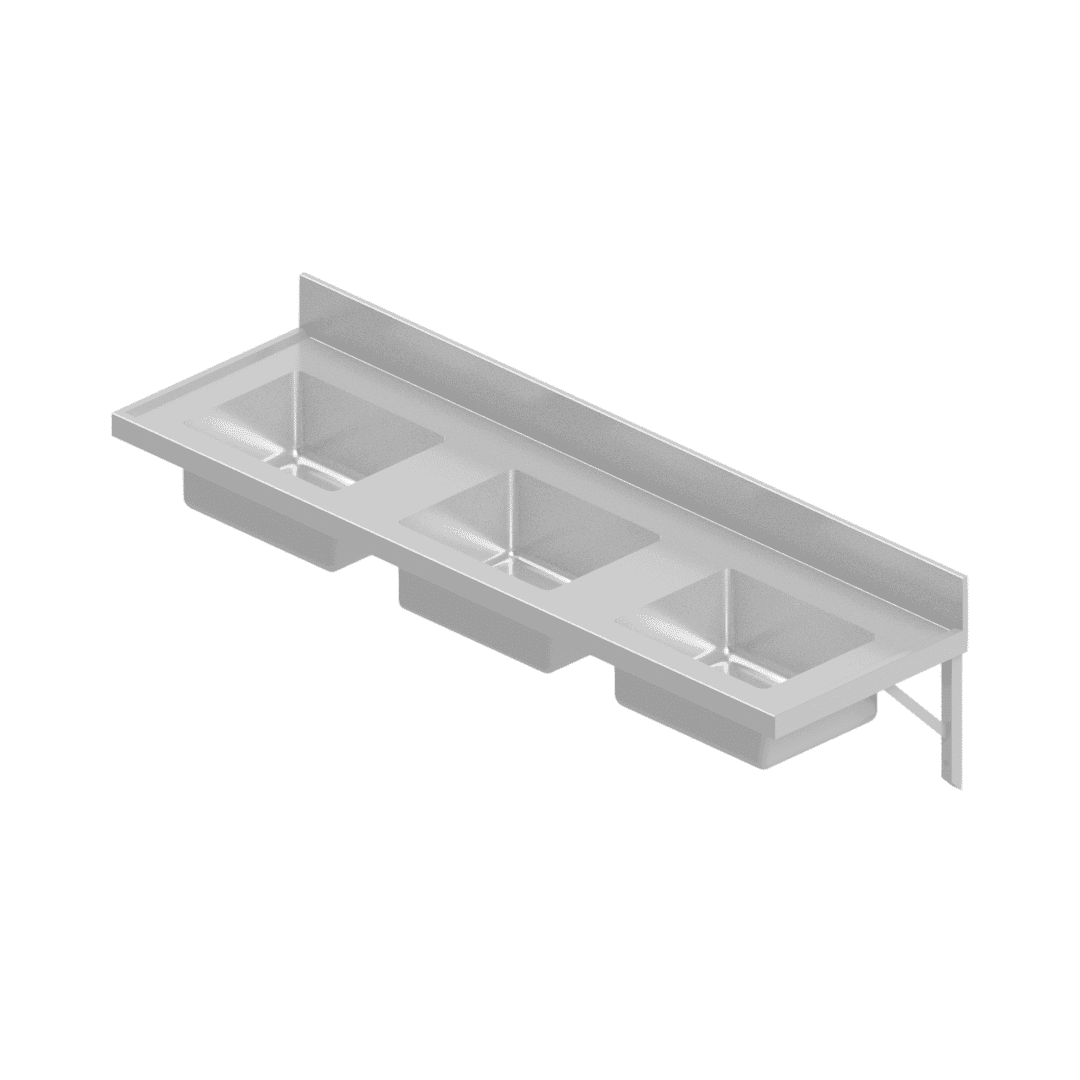

Wall-mounted triple-bowl Grade 304 stainless steel medical sink with marine edge, 150 mm splashback and gallows brackets. Waste fittings and medical mixer available separately.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
1 of 1 options selected
H22681(TC-112-1950x650) is ready to quote.
Material Thickness
Selected model
H22681(TC-112-1950x650)
Your configuration
Price on request
- Length
- 1950 mm
- Width
- 650 mm
- Material Thickness
- 1.2 mm
- Splashback Height
- 150 mm
- Bowl Depth
- 250 mm
- Bowl Length
- 450 mm
- Bowl Orientation
- Centre
- Bowl Width
- 400 mm
- Drainage
- Dura waste outlet optional; not included
- Material
- Stainless Steel Grade 304
- Mounting Type
- Wall Mounted
- Number of Bowls
- 3
- Tapware Supply
- Borras medical mixer optional; not included
- Waste Connection
- Pre-punched waste hole; fitting optional
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
The H22681(TC-112-1950x650) is a wall-mounted triple-bowl medical sink for hospitals, clinics, healthcare utility rooms and laboratory washing areas. It is manufactured from Grade 304 stainless steel.
The sink has three centre-oriented bowls. A marine edge helps contain water on the sink top, and a 150 mm rear splashback protects the wall behind the sink. A dedicated landing provides space for tapware. Gallows brackets are included for wall mounting.

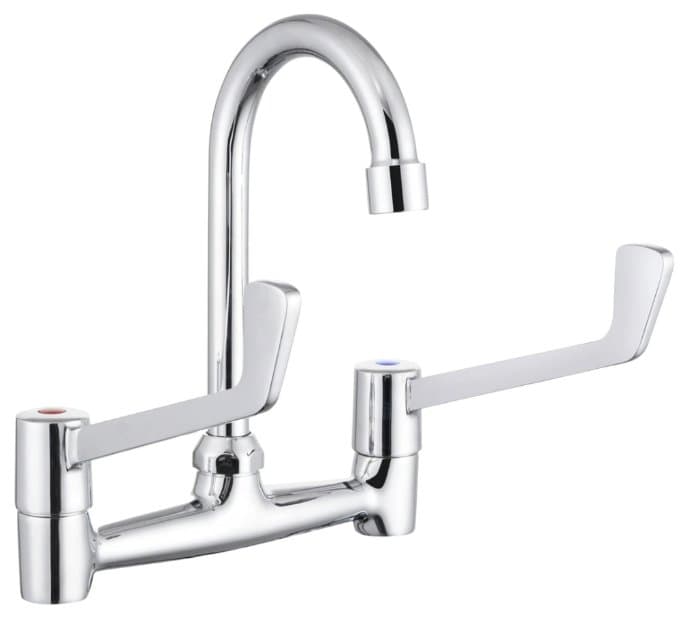

Each bowl has a pre-punched waste hole. Dura 817 waste fittings and the Borras medical mixer with wall and deck mounting kit are available as optional accessories and are supplied separately from the sink.
Overall dimensions are 1950 mm (L) x 650 mm (W), with 1.2 mm material thickness. Each bowl measures 450 mm (L) x 400 mm (W) x 250 mm (D).
Specifications
Basterfield H22681(TC-112-1950x650) triple-bowl medical sink in Grade 304 stainless steel, with three centre-oriented bowls, marine edge, 150 mm rear splashback, tapware landing and included gallows brackets for wall mounting. Each bowl to have a pre-punched waste hole. Overall dimensions 1950 mm (L) x 650 mm (W), material thickness 1.2 mm, and each bowl 450 mm (L) x 400 mm (W) x 250 mm (D). Waste fittings and medical mixer excluded from the standard sink.
- Model: H22681(TC-112-1950x650)
- Material: Stainless Steel Grade 304
- Material Thickness: 1.2 mm
- Overall Dimensions: 1950 mm (L) × 650 mm (W)
- Number of Bowls: 3
- Bowl Orientation: Centre
- Bowl Dimensions: 450 mm (L) × 400 mm (W) × 250 mm (D)
- Edge: Marine edge
- Rear Splashback Height: 150 mm
- Tapware Provision: Dedicated landing
- Mounting: Wall mounted with included gallows brackets
- Waste Provision: A pre-punched waste hole
- Waste Fittings: Optional Dura 817; one per bowl; not included
- Tapware Supply: Optional Borras medical mixer with wall and deck mounting kit; not included
Shortlist this product, add project notes and compare your options.
Product overview
The H22681(TC) is a wall-mounted triple-bowl medical sink for hospitals, clinics, healthcare utility rooms and laboratory washing areas. It is manufactured from Grade 304 stainless steel.
The sink has three centre-oriented bowls. A marine edge helps contain water on the sink top, and a 150 mm rear splashback protects the wall behind the sink. A dedicated landing provides space for tapware. Gallows brackets are included for wall mounting.
Each bowl has a pre-punched waste hole. Dura 817 waste fittings and the Borras medical mixer with wall and deck mounting kit are available as optional accessories and are supplied separately from the sink.
Overall dimensions and material thickness are specified by the selected item configuration.
Features & benefits
Grade 304 Stainless Steel
Grade 304 stainless steel construction. Material thickness is specified by the selected configuration.
Centre-Oriented Bowls
Three centre-oriented bowls. Bowl dimensions are listed with each configuration.
Marine Edge and Splashback
Marine edge to help contain water, with a 150 mm rear splashback.
Wall Mounting Brackets Included
Supplied with gallows brackets for wall-mounted installation.
Dedicated Tapware Landing
Landing provides space for separately selected tapware.
Pre-Punched Waste Holes
Each bowl has a pre-punched waste hole. Waste fittings are selected separately.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H22681(TC).
PDFProduct warranty
24-month warranty and claims information for H22681(TC).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 1950 mm
- Width
- Fixed
- 650 mm
- Material Thickness
- Configurable
- 1.2 mm
- 1.5 mm
- Splashback Height
- Fixed
- 150 mm
- Bowl Depth
- Fixed
- 250 mm
- Bowl Length
- Fixed
- 450 mm
- Bowl Orientation
- Fixed
- Centre
- Bowl Width
- Fixed
- 400 mm
- Drainage
- Fixed
- Dura waste outlet optional; not included
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
- Number of Bowls
- Fixed
- 3
- Tapware Supply
- Fixed
- Borras medical mixer optional; not included
- Waste Connection
- Fixed
- Pre-punched waste hole; fitting optional
| Specification | Value | Configuration |
|---|---|---|
| Material Thickness |
| Configurable |
| Splashback Height |
| Fixed |
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Orientation |
| Fixed |
| Bowl Width |
| Fixed |
| Drainage |
| Fixed |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Number of Bowls |
| Fixed |
| Tapware Supply |
| Fixed |
| Waste Connection |
| Fixed |
Available models & compare variants
Compare 2 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H22681(TC-112-1950x650) | Medical Sink, Stainless Steel Grade 304, 1.2mm Thick, 1950mm (L) × 650mm (W), with Three Centre-Oriented Bowls, Each 450mm (L) × 400mm (W) × 250mm (D), Marine Edge, 150mm Rear Splashback, Tapware Landing, Gallows Brackets and Pre-Punched Waste Holes Medical Sink Triple Bowl Centre-Oriented | 150 mm | 250 mm | 450 mm | Centre | 400 mm | Dura waste outlet optional; not included | 1950 mm | Stainless Steel Grade 304 | 1.2 mm | Wall Mounted | 3 | Borras medical mixer optional; not included | Pre-punched waste hole; fitting optional | 650 mm | View specifications
| |
| H22681(TC-115-1950x650) | Medical Sink, Grade 304 Stainless Steel, 1.5mm Thick, 1950mm (L) × 650mm (W) with Three Centre-Oriented Bowls, Each 450mm (L) × 400mm (W) × 250mm (D), Marine Edge, 150mm Rear Splashback, Tapware Landing, Included Gallows Brackets and Pre-Punched Waste Holes Medical Sink Triple Bowl Centre-Oriented | 150 mm | 250 mm | 450 mm | Centre | 400 mm | Dura waste outlet optional; not included | 1950 mm | Stainless Steel Grade 304 | 1.5 mm | Wall Mounted | 3 | Borras medical mixer optional; not included | Pre-punched waste hole; fitting optional | 650 mm | View specifications
|
