B17652 Stainless Steel Prison Toilet with External Mounting Flanges
Image indicative of the range. Configurations may differ.
1 / 3 product images

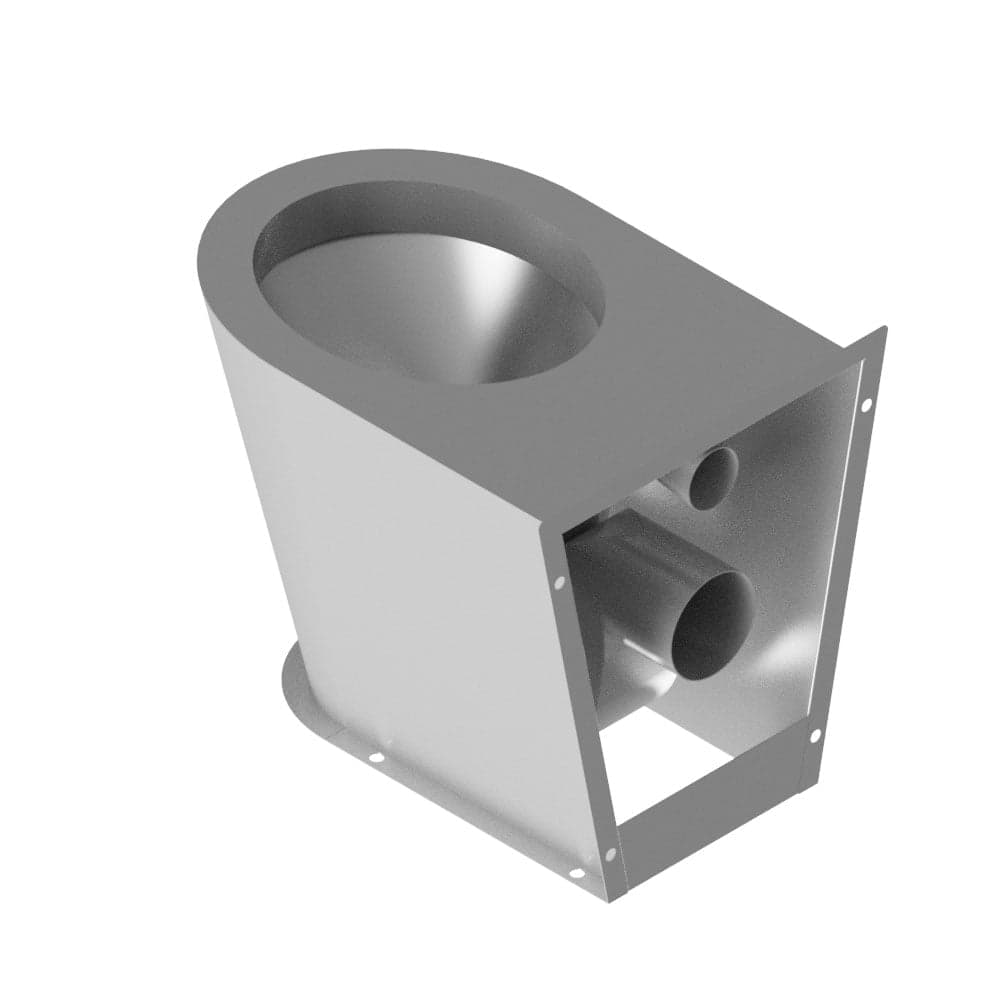

Shrouded Grade 304 stainless steel prison toilet with external mounting flanges, integral P-trap and optional 250 mm pipe extensions.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
Choose your specifications
Select Extended Pipes to complete your configuration.
Extended Pipes
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B17652 is a shrouded Grade 304 stainless steel toilet pan for correctional and other secure washrooms. Its external flanges provide fixing points at the floor and wall. The published configurations offer standard pipes or 250 mm extended pipes.
The pan uses 1.2 mm stainless steel and an integral stainless steel P-trap with a 110 mm waste outlet. Standard overall dimensions are 550 mm projection from the wall, 360 mm width and 433 mm height. An integral flushing rim and rear-entry flush inlet form part of the pan.
A compatible concealed flush valve or concealed cistern is installed behind the wall. The pan is supplied without seat mounting holes as standard. Select the extended-pipe configuration when 250 mm inlet and outlet extensions through the wall are required. For internal mounting flanges, see the separate B17653 range.
Features & benefits
External Floor and Wall Fixing
External mounting flanges provide fixing points at the floor and wall for the shrouded toilet pan.
Integral P-Trap and Flushing Rim
The stainless steel pan incorporates a P-trap, a 110 mm waste outlet and an integral flushing rim.
Standard or Extended Pipes

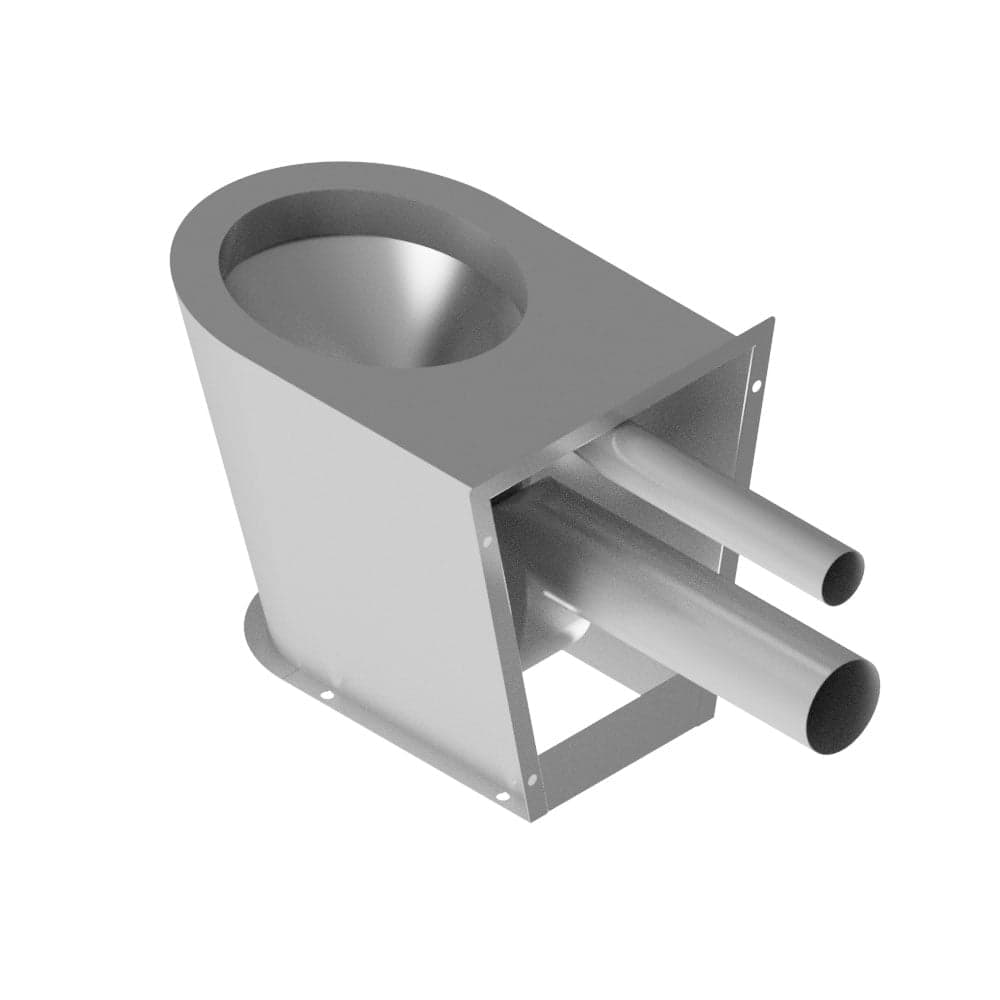

Choose standard pipes or the configuration with 250 mm inlet and outlet extensions through the wall.
Grade 304 Stainless Steel
The pan uses 1.2 mm Grade 304 stainless steel and is supplied without seat mounting holes as standard.
Product data
Specifications & models
Specifications
- Extended Pipes
- Configurable
- Yes
- No
| Specification | Value | Configuration |
|---|---|---|
| Extended Pipes |
| Configurable |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||
|---|---|---|---|---|
| B17652(P) | Shrouded Prison Toilet Pan, Grade 304 Stainless Steel, 1.2mm Material Thickness, (550mm (L) x 360mm (W) x 433mm (H); length measured as projection), with External Floor and Wall Mounting Flanges, Integral P-Trap, 110mm Waste Outlet, Rear-Entry Flush Inlet and Standard Pipes Toilet Prison Shrouded P-Trap External Flanges | No | View specifications
| |
| B17652(PE) | Shrouded Prison Toilet Pan, Grade 304 Stainless Steel, 1.2mm Material Thickness, 550mm (L) Projection × 360mm (W) × 433mm (H), with External Floor and Wall Mounting Flanges, Integral P-Trap, 110mm Waste Outlet and Rear-Entry Flush Inlet, with 250mm Inlet and Outlet Pipe Extensions Toilet Prison External Flanges 250mm Pipe Length | Yes | View specifications
|
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct FAQ
