B17654(PB) Wall-Mounted Stainless Steel Toilet with P-Trap
Image indicative of the range. Configurations may differ.
1 / 9 product images
Wall-mounted Grade 304 stainless steel WC pan with P-trap and back-entry flushing; choose without or with pre-punched toilet seat mounting holes.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
Price on request
Seat Mounting Holes: Not Pre-Punched
B17654(PB) is ready to quote.
Seat Mounting Holes
Shortlist this product, add project notes and compare your options.
Product overview
The B17654(PB) range is a wall-mounted WC pan in 1.2 mm Grade 304 stainless steel for commercial and institutional washrooms. Choose the standard pan without pre-punched seat mounting holes, B17654(PB), or the same pan with pre-punched toilet seat mounting holes, B17654(PB-H).

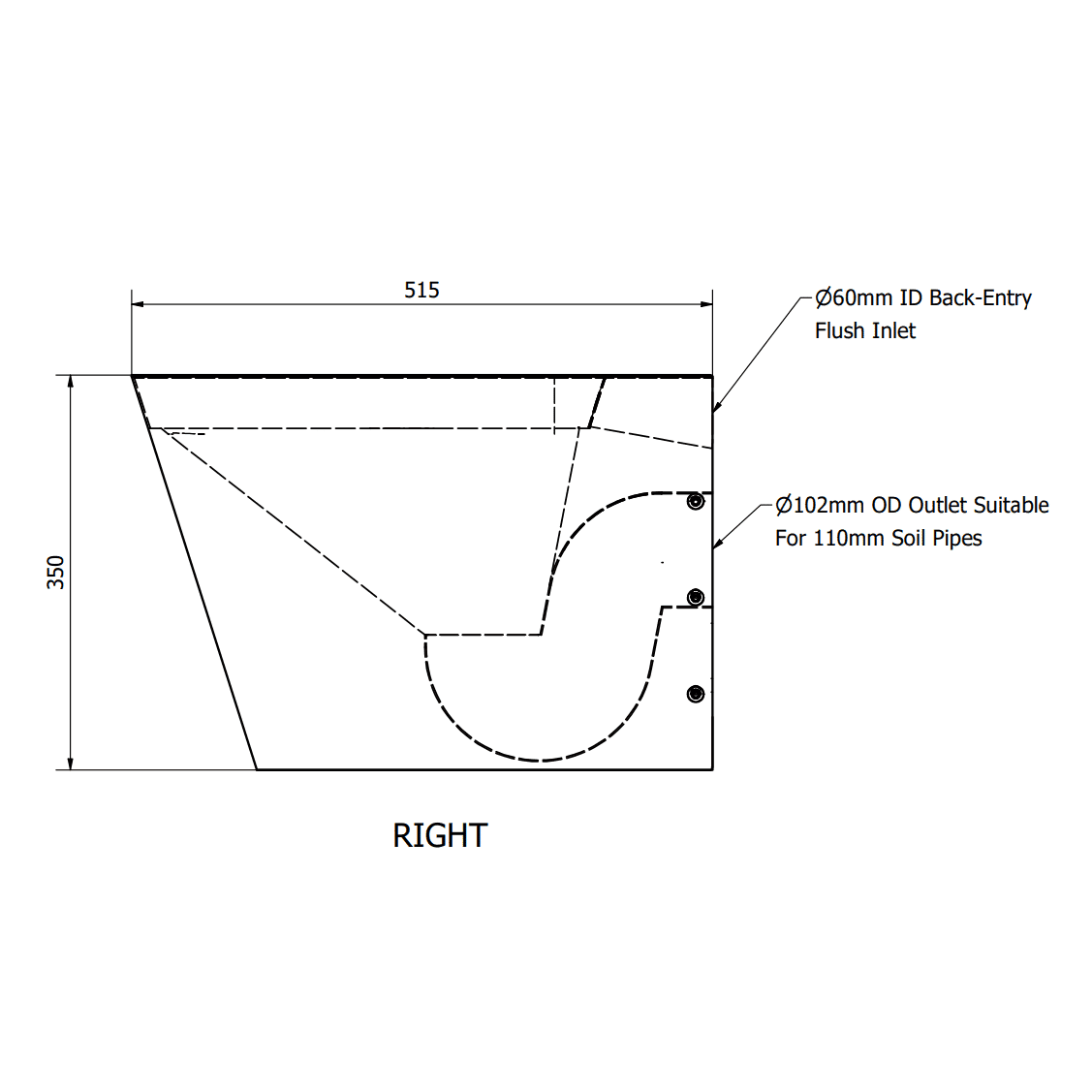

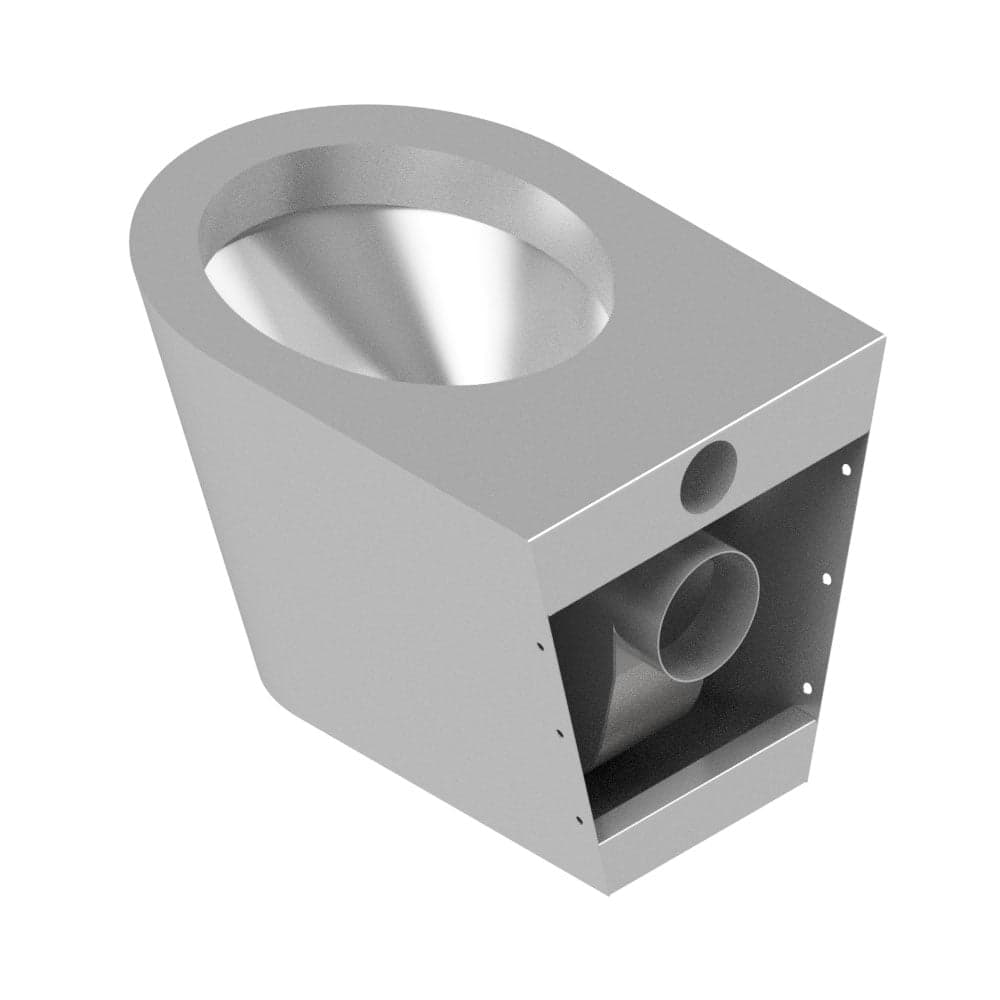

Both configurations have a P-trap and a tapered 62 mm back-entry flush inlet for a compatible concealed flushing arrangement. The waste outlet has a 102 mm outside diameter for connection to a 110 mm PVC soil pipe.

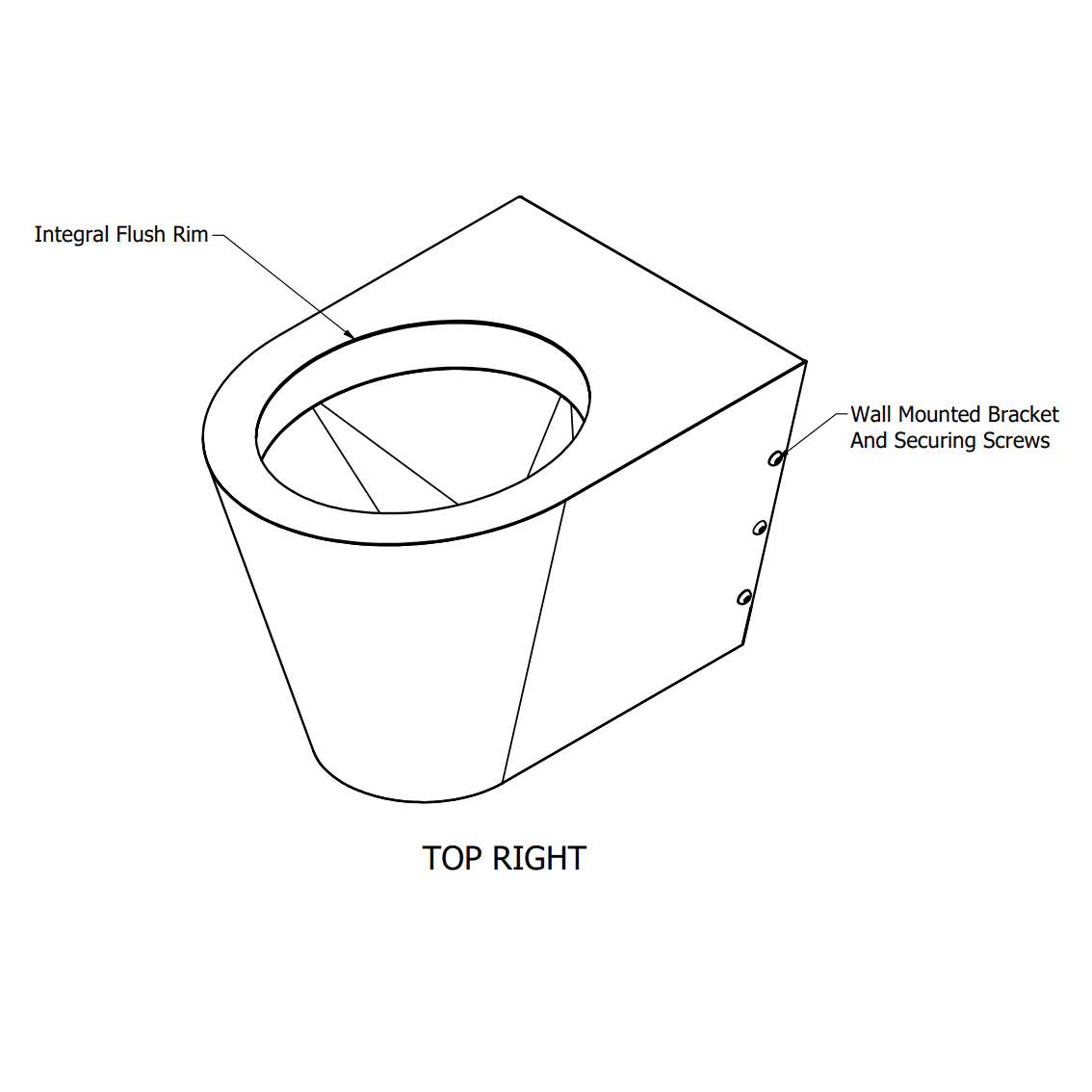

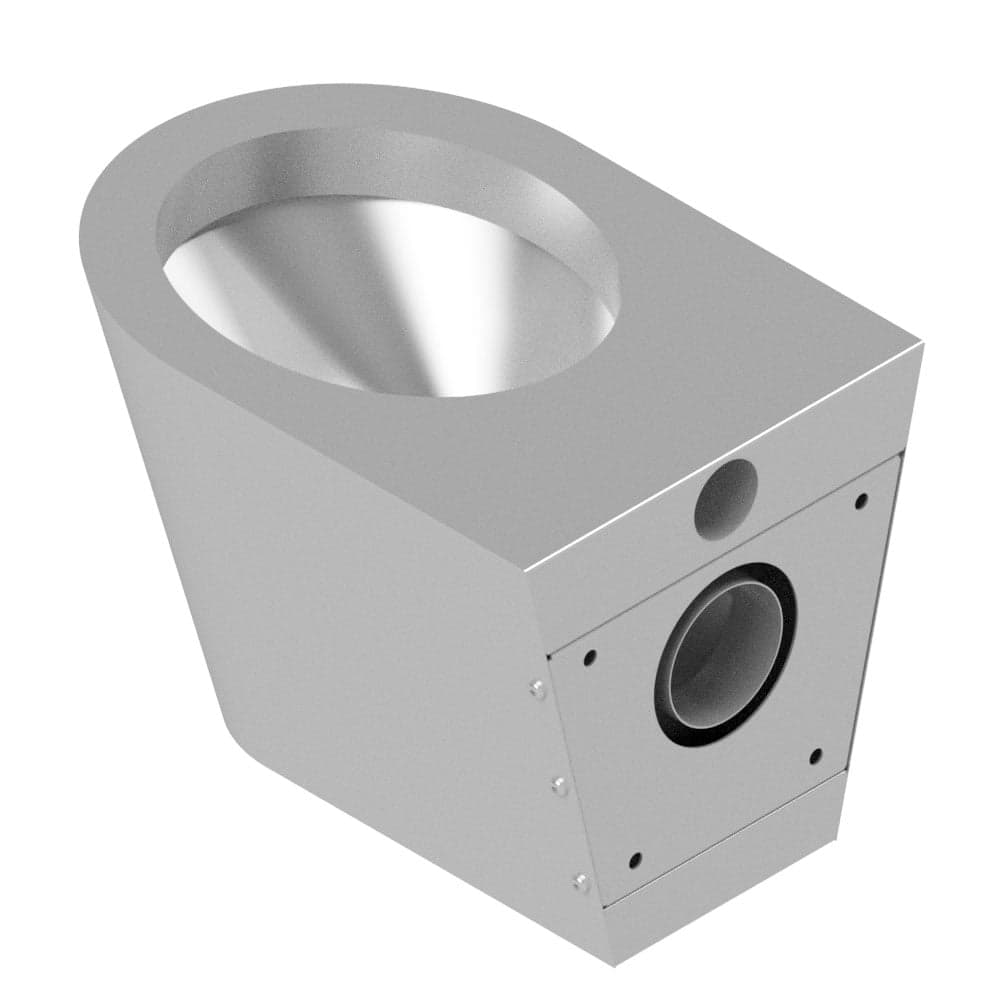

A stainless steel wall-mounting plate has four pre-punched 12 mm fixing holes. The pan slides onto the plate and is secured from the sides. The enclosed form has a brushed satin finish and conceals the plumbing. Select Seat Mounting Holes to identify the required pan, and specify the concealed cistern or flush valve arrangement for the installation.
Features & benefits
Two Seat Mounting Options
Choose B17654(PB) without pre-punched seat mounting holes or B17654(PB-H) with the holes pre-punched.
Wall-Plate Mounting

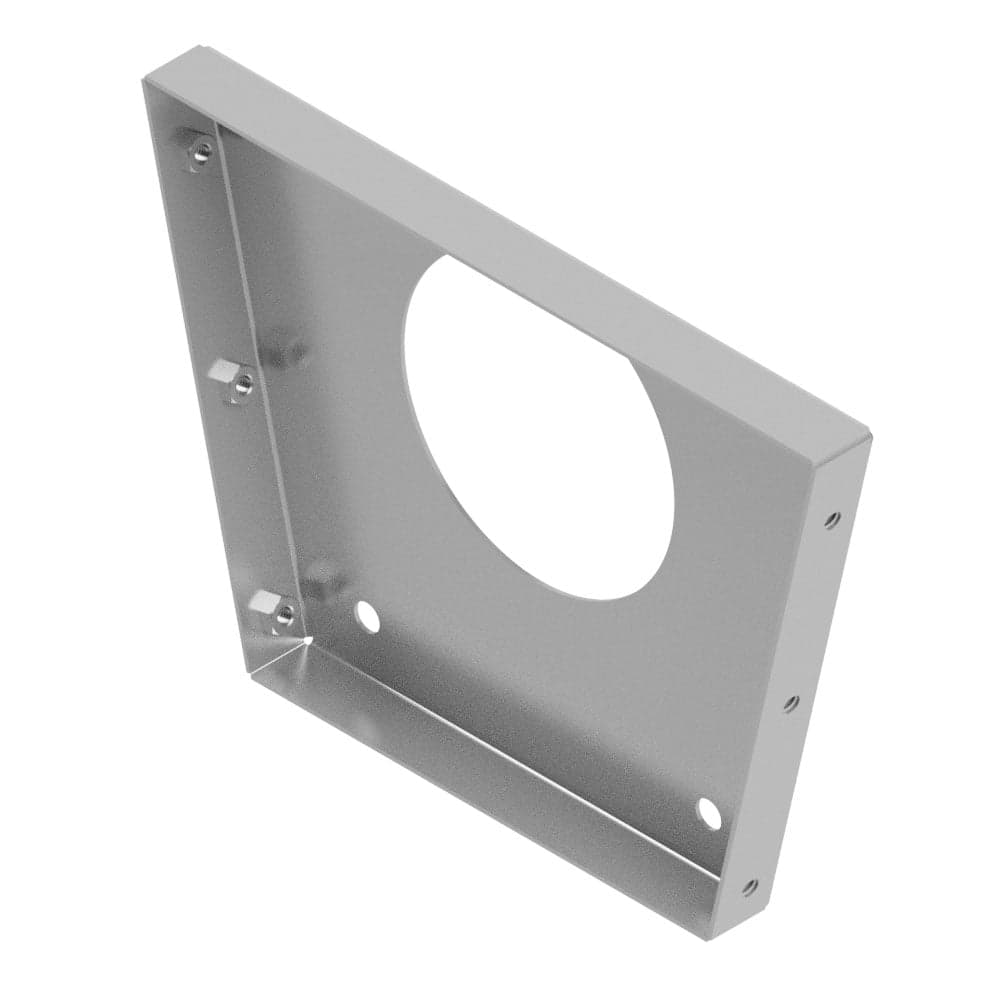

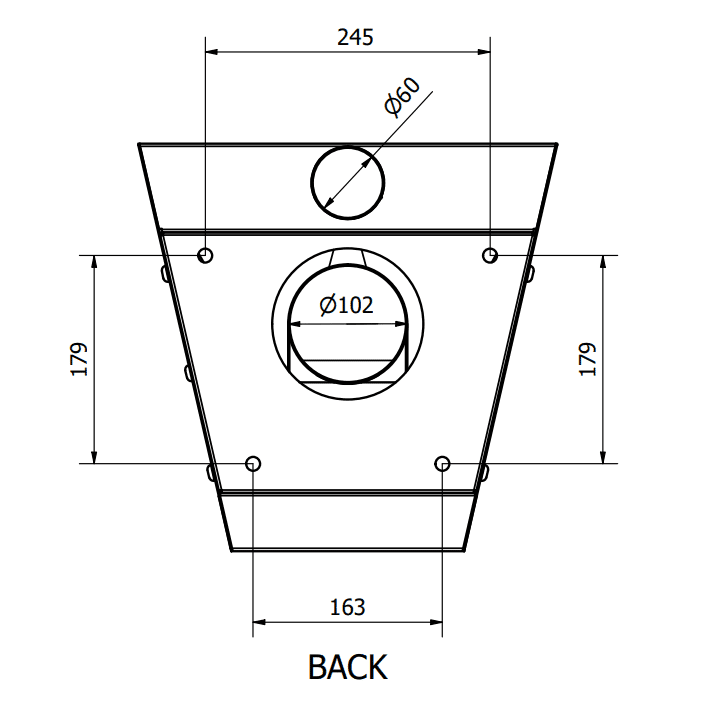

A stainless steel plate has four pre-punched 12 mm fixing holes; the pan slides onto it and secures from the sides.
Defined Flush and Waste Connections
Both options have a tapered 62 mm back-entry flush inlet and a 102 mm OD waste outlet for a 110 mm PVC soil pipe.
Grade 304 Stainless Steel
Both pans use 1.2 mm Grade 304 stainless steel with a brushed satin finish.
Product data
Specifications & models
Specifications
- Seat Mounting Holes
- Configurable
- Not Pre-Punched
- Pre-Punched
| Specification | Value | Configuration |
|---|---|---|
| Seat Mounting Holes |
| Configurable |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||
|---|---|---|---|---|
| B17654(PB-H) | Wall-Mounted WC Pan, Grade 304 Stainless Steel, 1.2mm Material Thickness, Ø62mm Back-Entry Flush Inlet, 102mm OD Waste Outlet for 110mm PVC Soil Pipe, with P-Trap, Wall Plate with Four Ø12mm Fixing Holes, Pre-Punched Toilet Seat Mounting Holes, Basterfield B17654(PB-H) Toilet Wall-Mounted P-Trap with Seat Holes | Pre-Punched | View specifications
| |
| B17654(PB) | Wall-Mounted WC Pan, Grade 304 Stainless Steel, 1.2mm Material Thickness, Ø62mm Tapered Back-Entry Flush Inlet, 102mm OD Waste Outlet for 110mm PVC Soil Pipe, with P-Trap and Wall Plate with Four Ø12mm Fixing Holes, without Pre-Punched Toilet Seat Mounting Holes, Basterfield B17654(PB) Toilet Wall-Mounted P-Trap Back-Entry | Not Pre-Punched | View specifications
|
