B22320(FM) Floor-Mounted Surgeon Scrub-Up Sink

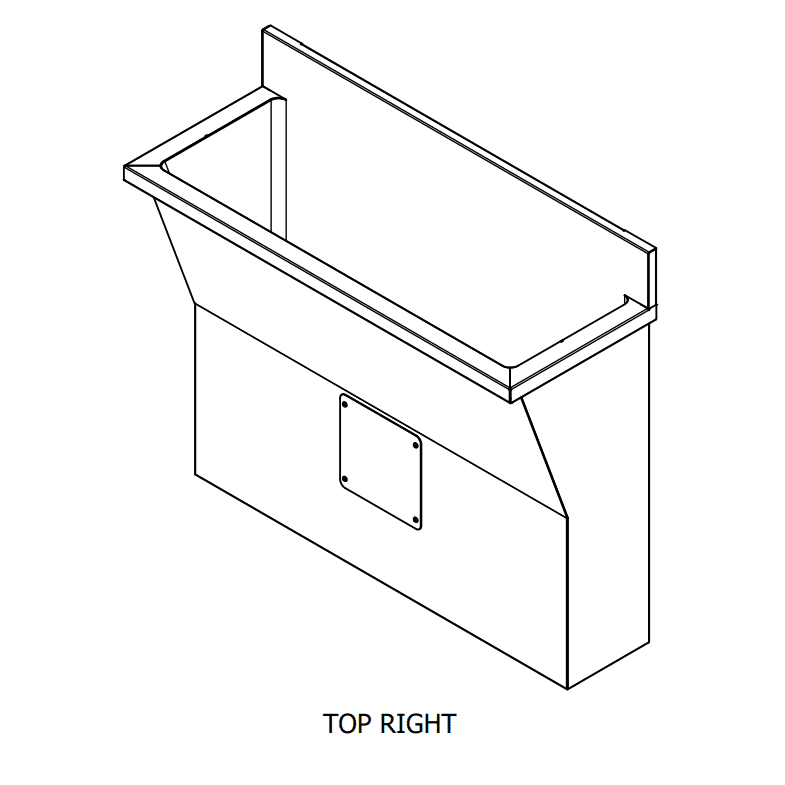

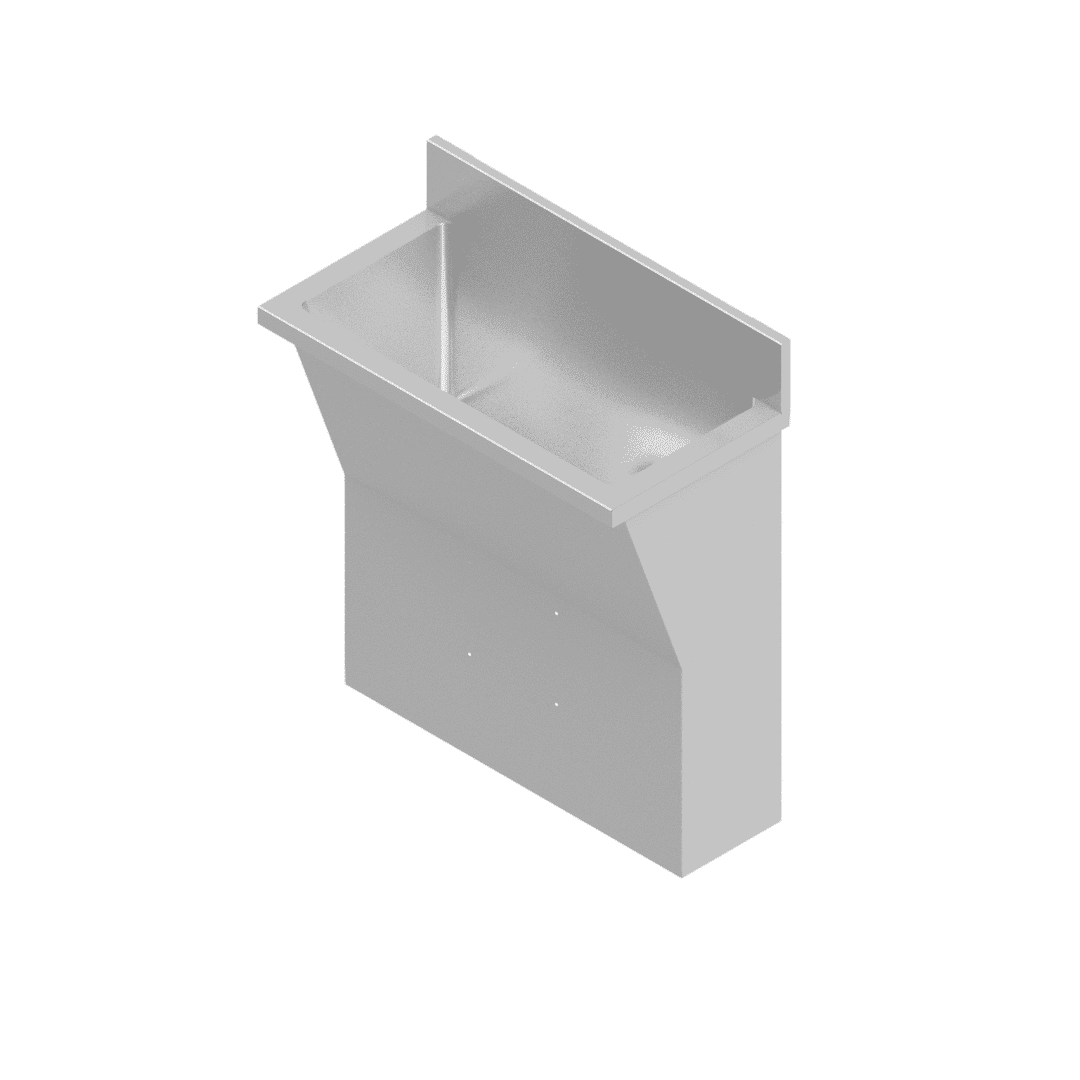

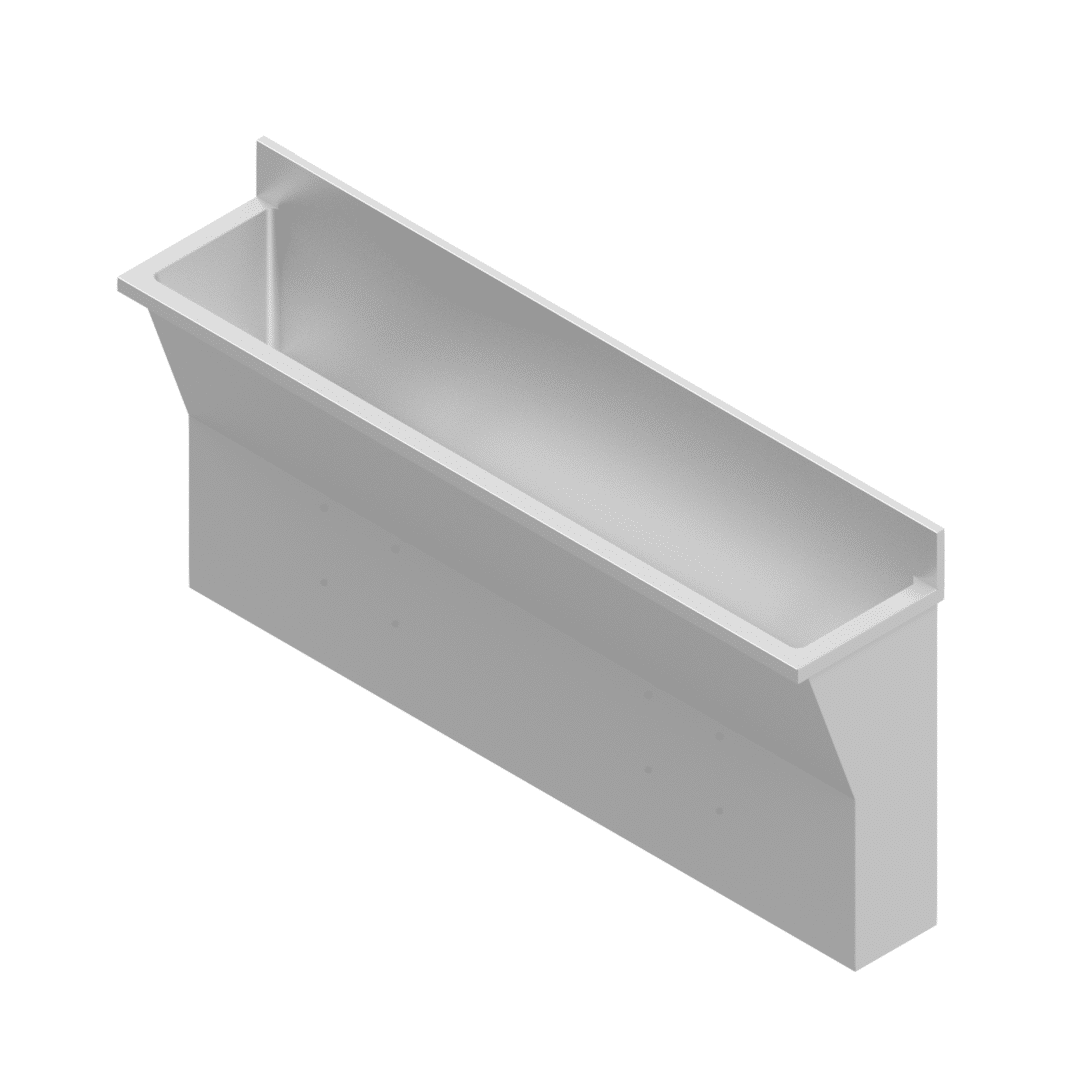

Image indicative of the range. Configurations may differ.
1 / 8 product images
Floor-mounted Grade 304 stainless steel surgeon scrub-up sink with a polished satin finish and double-walled construction. Available in six lengths from 900 to 2400 mm and material thicknesses of 1.2 or 1.5 mm.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R11,655.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 2 options selected
Select Length, Material Thickness to complete your configuration.
Length
Material Thickness
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B22320(FM) is a floor-mounted surgeon scrub-up sink manufactured from Grade 304 stainless steel for clinical handwashing areas in healthcare facilities.
The trough has double-walled, pressed and welded construction, a polished satin finish and a rear splashback for routine cleaning and maintenance.
Floor-mounting brackets support the unit. A 250 x 250 mm access panel provides access to plumbing connections for servicing.
Choose from six standard lengths: 900, 1200, 1500, 1800, 2100 or 2400 mm. Each length is available in 1.2 mm or 1.5 mm material thickness, giving 12 published configurations.
The 900, 1200, 1500 and 1800 mm models have one 40 mm diameter drainage outlet. The 2100 and 2400 mm models have two 40 mm diameter drainage outlets.
The range can be specified with elbow-operated medical mixers or sensor-activated tapware. Confirm the required tapware and plumbing arrangement when requesting a quotation.
Features & benefits
Grade 304 stainless steel
Grade 304 stainless steel with a polished satin finish provides a surface suited to routine cleaning and maintenance.
250 x 250 mm access panel
The access panel provides access to plumbing connections for maintenance and servicing.
Double-walled construction
The pressed and welded, double-walled trough provides rigidity for daily use in clinical handwashing areas.
Floor-mounted support
Floor-mounting brackets support the unit for a stable installation.
Six lengths, two thicknesses
Choose 900, 1200, 1500, 1800, 2100 or 2400 mm length, each available in 1.2 or 1.5 mm material thickness.
Drainage matched to length
Models from 900 to 1800 mm have one 40 mm diameter drainage outlet. The 2100 and 2400 mm models have two 40 mm diameter outlets.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B22320(FM).
PDFProduct warranty
24-month warranty and claims information for B22320(FM).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 900 mm
- 1200 mm
- 1500 mm
- 1800 mm
- 2100 mm
- 2400 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Material Thickness
- Configurable
- 1.2 mm
- 1.5 mm
- Material
- Fixed
- Stainless Steel Grade 304
| Specification | Value | Configuration |
|---|---|---|
| Material Thickness |
| Configurable |
| Material |
| Fixed |
Available models & compare variants
Compare 12 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||
|---|---|---|---|---|---|---|
| B22320(FM-112-0900) | Floor-Mounted Surgeon Scrub-Up Sink, 900 mm Long, 1.2 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 900 mm, 1.2 mm Thick | 900 mm | Stainless Steel Grade 304 | 1.2 mm | View specifications
| |
| B22320(FM-112-1200) | Floor-Mounted Surgeon Scrub-Up Sink, 1200 mm Long, 1.2 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 1200 mm, 1.2 mm Thick | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | View specifications
| |
| B22320(FM-112-1500) | Floor-Mounted Surgeon Scrub-Up Sink, 1500 mm Long, 1.2 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 1500 mm, 1.2 mm Thick | 1500 mm | Stainless Steel Grade 304 | 1.2 mm | View specifications
| |
| B22320(FM-112-1800) | Floor-Mounted Surgeon Scrub-Up Sink, 1800 mm Long, 1.2 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 1800 mm, 1.2 mm Thick | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | View specifications
| |
| B22320(FM-112-2100) | Floor-Mounted Surgeon Scrub-Up Sink, 2100 mm Long, 1.2 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 2100 mm, 1.2 mm Thick | 2100 mm | Stainless Steel Grade 304 | 1.2 mm | View specifications
| |
| B22320(FM-112-2400) | Floor-Mounted Surgeon Scrub-Up Sink, 2400 mm Long, 1.2 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 2400 mm, 1.2 mm Thick | 2400 mm | Stainless Steel Grade 304 | 1.2 mm | View specifications
| |
| B22320(FM-115-0900) | Floor-Mounted Surgeon Scrub-Up Sink, 900 mm Long, 1.5 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 900 mm, 1.5 mm Thick | 900 mm | Stainless Steel Grade 304 | 1.5 mm | View specifications
| |
| B22320(FM-115-1200) | Floor-Mounted Surgeon Scrub-Up Sink, 1200 mm Long, 1.5 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 1200 mm, 1.5 mm Thick | 1200 mm | Stainless Steel Grade 304 | 1.5 mm | View specifications
| |
| B22320(FM-115-1500) | Floor-Mounted Surgeon Scrub-Up Sink, 1500 mm Long, 1.5 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 1500 mm, 1.5 mm Thick | 1500 mm | Stainless Steel Grade 304 | 1.5 mm | View specifications
| |
| B22320(FM-115-1800) | Floor-Mounted Surgeon Scrub-Up Sink, 1800 mm Long, 1.5 mm Thick Grade 304 Stainless Steel. Floor-Mounted Scrub-Up Sink, 1800 mm, 1.5 mm Thick | 1800 mm | Stainless Steel Grade 304 | 1.5 mm | View specifications
|
