B22330(L-1830-HLC_2) Combination Bedpan & Wash-Up Sink with High Level Cistern
1 / 3 product images
Combination bedpan and wash-up sink with a high-level cistern for healthcare sluice rooms and utensil washing areas.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
What it is and why it works
Product overview
Product description
Combination bedpan and wash-up sink with a high-level cistern for healthcare sluice rooms and utensil washing areas.
Fabricated from Grade 304 stainless steel with a hygienic satin polish finish, the unit is corrosion-resistant and easy to clean — suited to environments with strict infection control protocols.

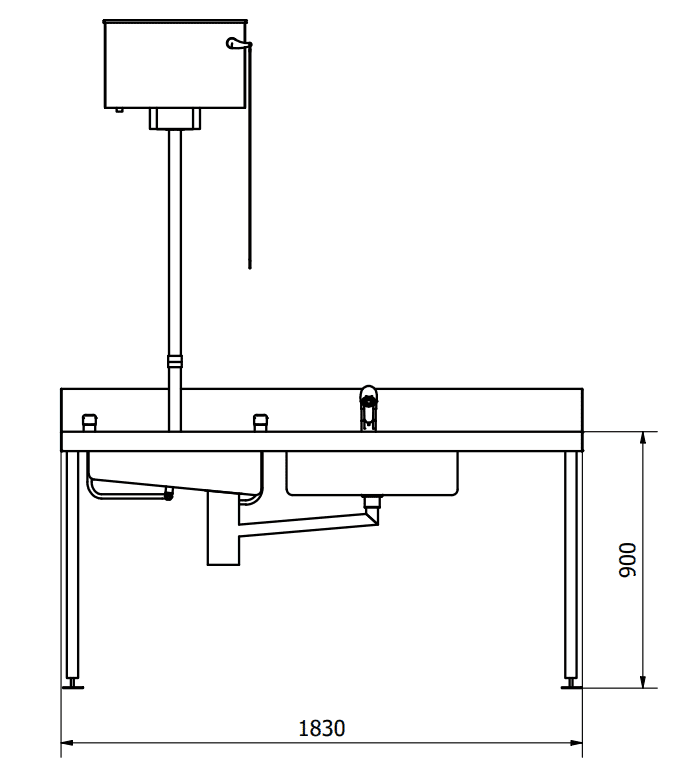

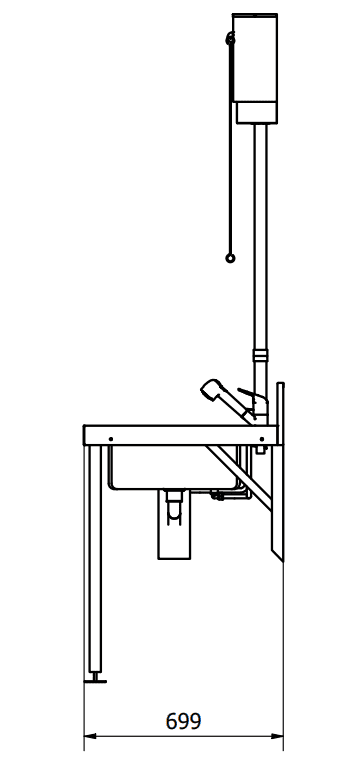

This model includes a left-hand sluice sink fitted with an integral flushing rim, flushed via a high-level cistern. This configuration is especially suited to areas with inconsistent or low municipal water pressure. The sluice bowl is fitted with a 110 mm diameter waste outlet, making it suitable for direct connection to standard sewer systems for efficient disposal of liquid and solid waste.
An adjacent wash-up sink with a 40 mm waste outlet is integrated into the same unit. The outlet includes an internal pipe system that drains into the shared 110 mm sluice outlet, streamlining plumbing and reducing installation complexity. A sloped drip ledge prevents water from splashing beyond the work area, and a rear splashback maintains a clean operating environment.
