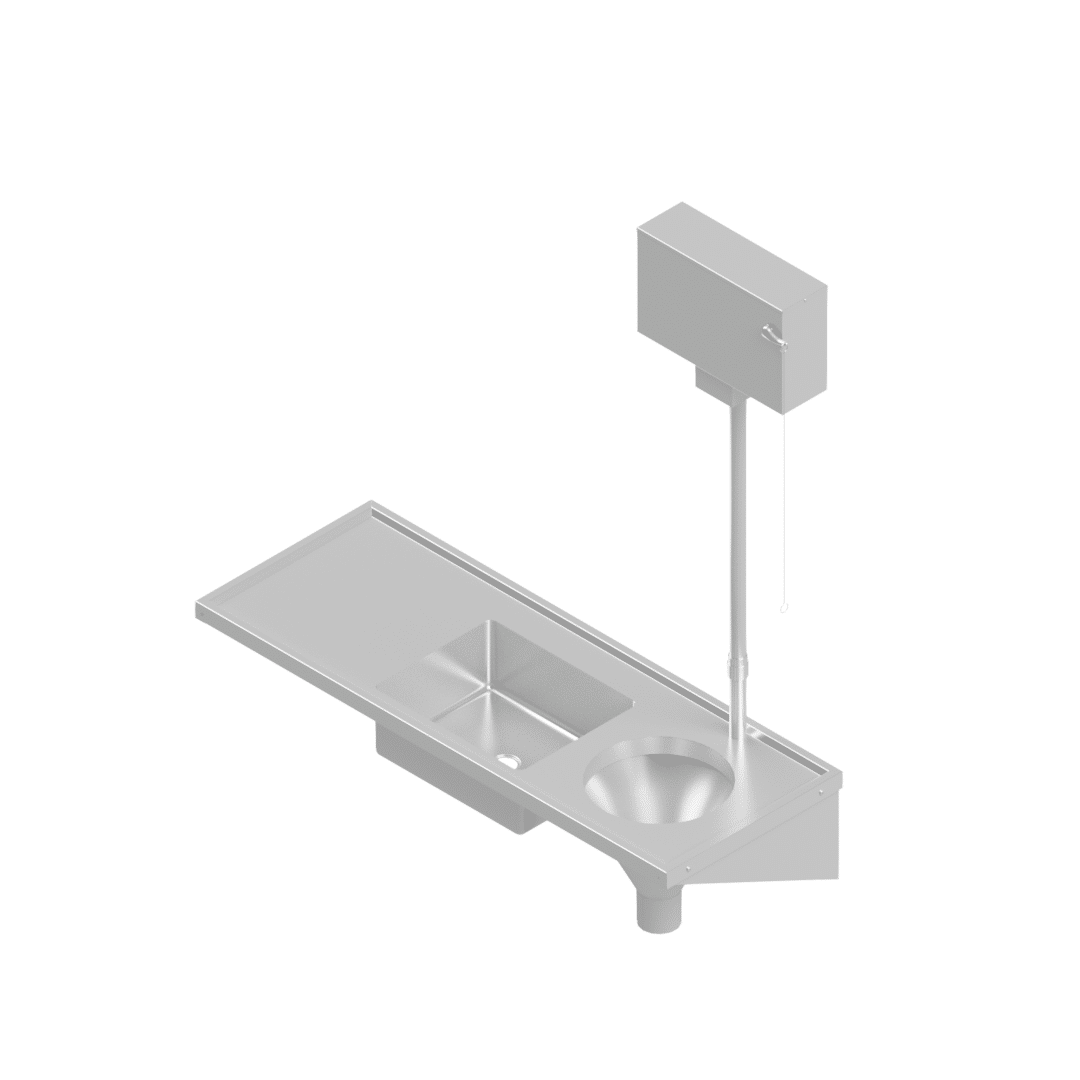

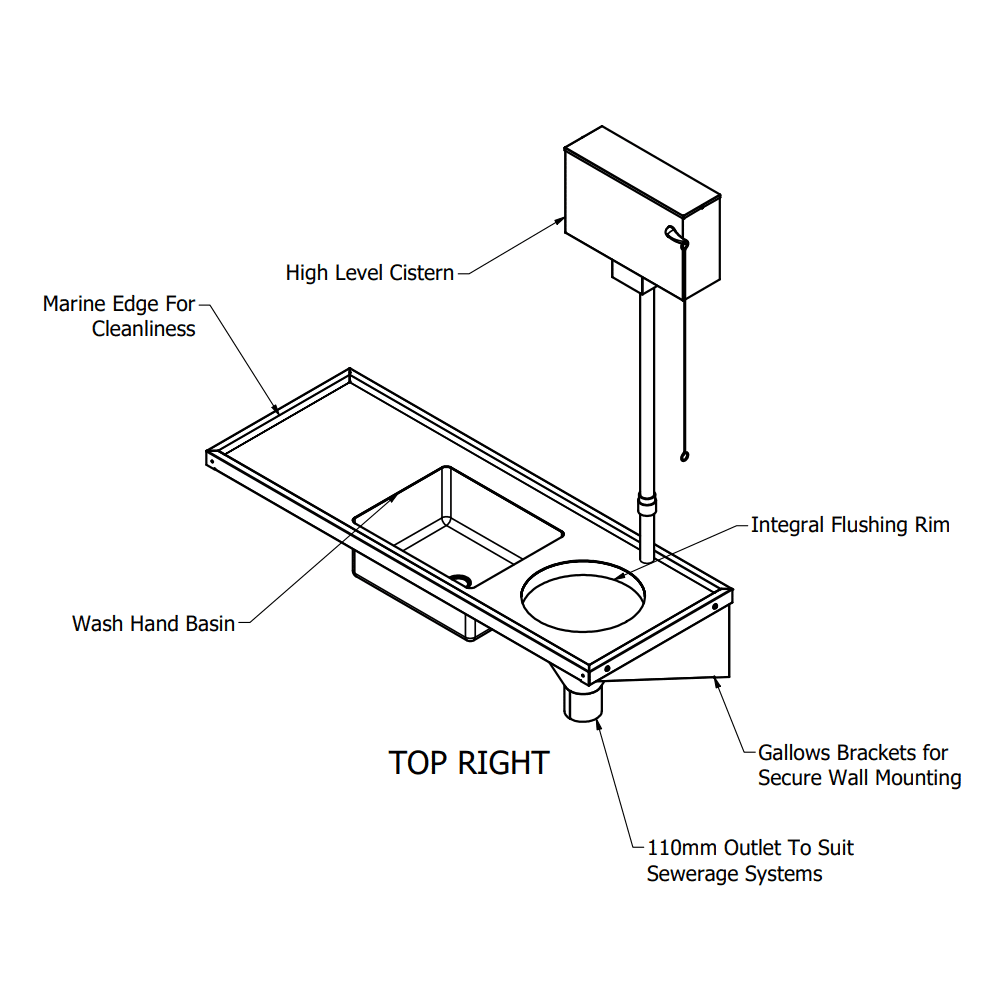

B22335(112-1600-HLC) 1600 mm Slop Hopper and Wash Basin with High-Level Cistern

This stainless steel fixture integrates waste disposal and handwashing in a compact, durable format—suited to high-traffic sanitary areas.

The unit comprises a conical slop hopper with a continuous flushing rim for the efficient and hygienic disposal of liquid and solid waste, and an adjacent hand wash basin with a 40 mm outlet for reliable drainage. The slop hopper and cistern can be configured on either the left or right-hand side, providing flexibility to suit different room layouts and plumbing requirements.

Manufactured from Grade 304 stainless steel, the 1600 mm-wide and 600 mm-deep unit features pressed and welded construction, smooth ground welds, and a satin-polished finish. This ensures corrosion resistance, ease of cleaning, and a long service life in demanding environments.

The unit is supplied with a high-level cistern operated via a pull rod flush mechanism, which delivers a powerful flush directly into the slop hopper. The cistern orientation matches the slop hopper position—left- or right-hand—to allow installation into various installations.

Optional features include a stainless steel bucket grid and front support legs:

• The bucket grid is fixed over the slop hopper on heavy-duty stainless steel hinges. It protects the working surface from damage during bucket emptying and features rubber bumpers to cushion impact. The grid rotates upward 90 degrees when not in use for convenient access.
• Front support legs can be added for structural support, particularly when the unit is installed on drywall or ISO walling. These legs provide stability and help bear the operational load of the unit in lightweight wall structures.
