ProductCombination Sluice Units
B22336(LT-112-1600-HLC) 1600 mm Slop Hopper and Wash Basin with Cistern and Splashback
Image indicative of the range. Configurations may differ.
1 / 5 product images
1600 × 600 mm stainless steel slop hopper and wash basin with a right-hand drainer, high-level cistern and 150 mm rear splashback.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview

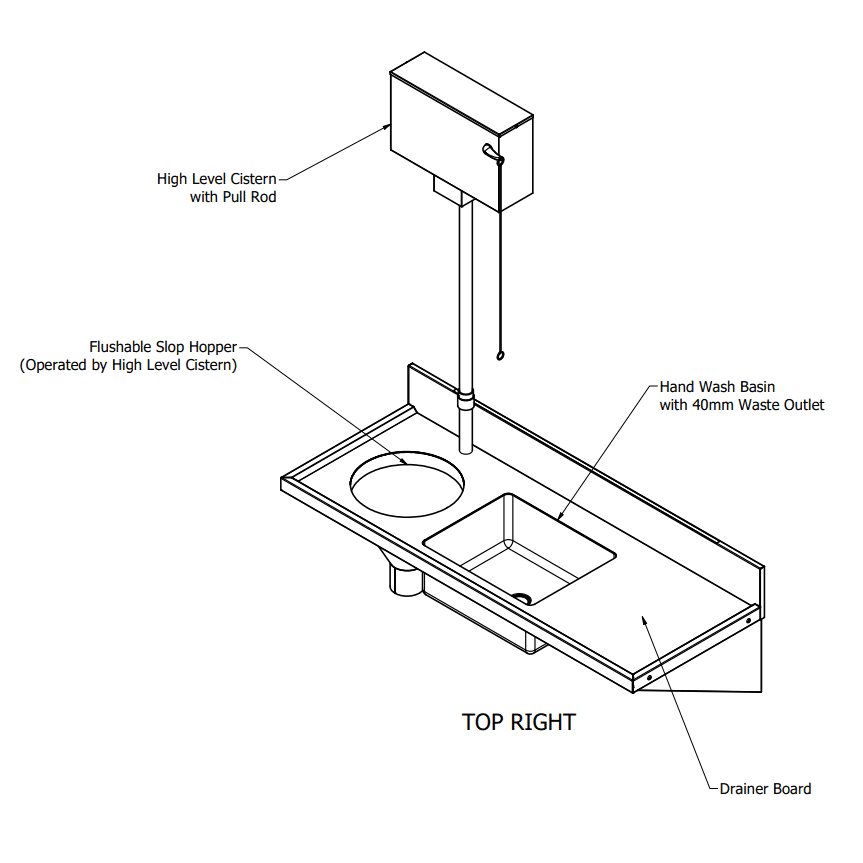

The B22336(LT-112-1600-HLC) combines a left-hand slop hopper, wash hand basin and right-hand drainer in a 1600 mm long × 600 mm wide stainless steel unit for institutional sluice rooms. A high-level cistern with pull-rod flushing and a 150 mm rear splashback are supplied.
The conical hopper has a continuous flushing rim, raised anti-drip rim and 110 mm waste outlet. The adjacent wash basin has a separate 40 mm outlet. The right-hand drainer provides workspace beside the basin.
Pressed and welded stainless steel construction has welds ground smooth and polished to a satin finish for cleaning. Check the left-hand hopper arrangement, drainer position and both drainage connections against the room layout when specifying the unit.
Features & benefits
Hopper, Basin and Drainer Together
The 1600 × 600 mm unit combines a left-hand slop hopper, wash basin and right-hand drainer.
Cistern and Splashback Supplied
A high-level cistern with pull-rod flushing and a 150 mm rear splashback are supplied with this configuration.
Separate Drainage Outlets
The conical hopper has a 110 mm outlet, while the wash basin has a separate 40 mm outlet.
Satin-Finished Welds
Pressed and welded stainless steel construction has welds ground smooth and polished for cleaning.
Product data
Specifications & models
Specifications
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
24-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct FAQ
