B22360(TG-LLC) Stainless Steel Slop Hopper with Low Level Cistern & Bucket Grid

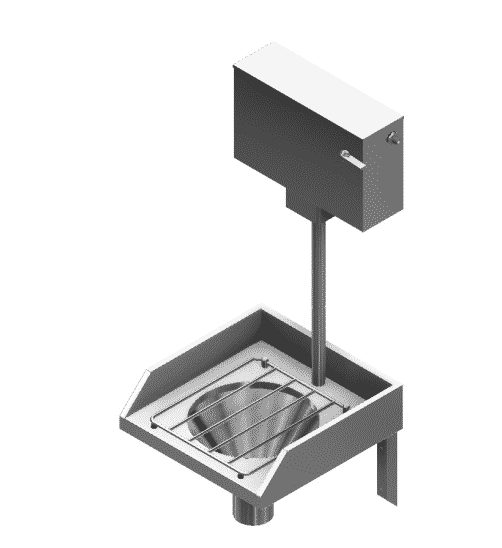

Image indicative of the range. Configurations may differ.
1 / 6 product images
Wall-mounted Grade 304 stainless steel slop hopper with a fold-up bucket grid, 11 L low-level cistern and stainless steel flush pipe.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R12,850.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The B22360(TG-LLC) is a wall-mounted slop hopper for hospital, clinic and institutional sluice rooms. It combines a Grade 304 stainless steel hopper with a fold-up bucket grid and low-level cistern.
The main body is made from 1.2 mm stainless steel; the hopper and cistern use 0.9 mm stainless steel. Pressed and welded construction with a satin finish provides surfaces for routine cleaning.
The 11 L low-level cistern has an adjustable flushing mechanism, a front right-hand lever and bottom-entry water inlet. A stainless steel flush pipe connects the cistern to the hopper’s integral flushing rim.
The hopper has a 110 mm waste outlet. Stainless steel gallows brackets support wall mounting, and the hinged grid lifts to provide access for cleaning.
Compare the stainless steel slop hopper range.
Features & benefits
Grade 304 stainless steel construction
The main body is manufactured from 1.2 mm-thick Grade 304 stainless steel, while the hopper and cistern are manufactured from 0.9 mm-thick Grade 304 stainless steel. The corrosion-resistant, readily cleanable surfaces support routine hygiene management and daily use.
Integral flushing rim with 11-litre low-level cistern
An integral flushing rim is paired with a wall-mounted 11-litre low-level cistern and stainless steel flush pipe, providing a flushing arrangement for rinsing the hopper. The cistern has an adjustable internal flush mechanism, a right-hand front-mounted lever and a bottom-entry water inlet.
Hinged fold-up stainless steel bucket grid
The hinged bucket grid supports receptacles during emptying and folds up to give direct access to the hopper for cleaning.
Ø110 mm waste outlet
The hopper incorporates a Ø110 mm waste outlet for connection to the soil drainage system.
Heavy-duty stainless steel wall brackets
Heavy-duty 40 mm x 40 mm stainless steel square tubular gallows brackets provide wall-mounted support for the hopper.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B22360(TG-LLC).
PDFProduct warranty
12-month warranty and claims information for B22360(TG-LLC).

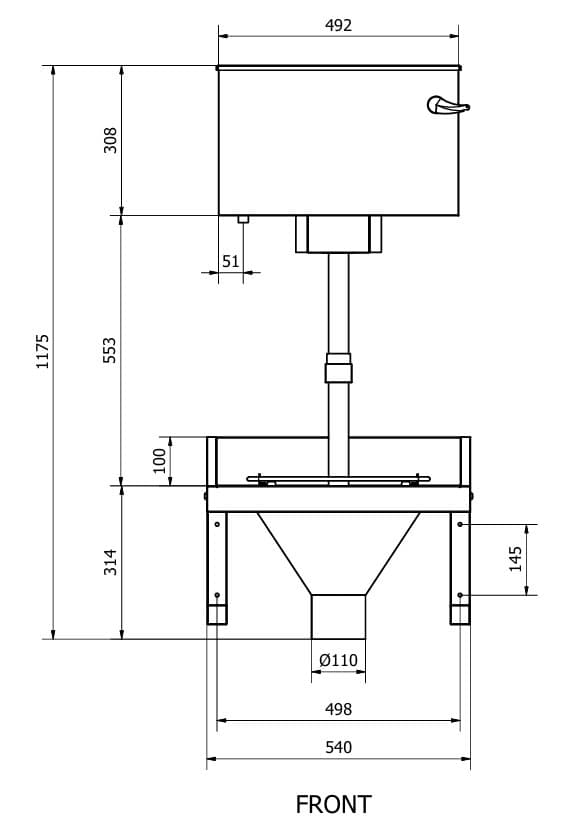

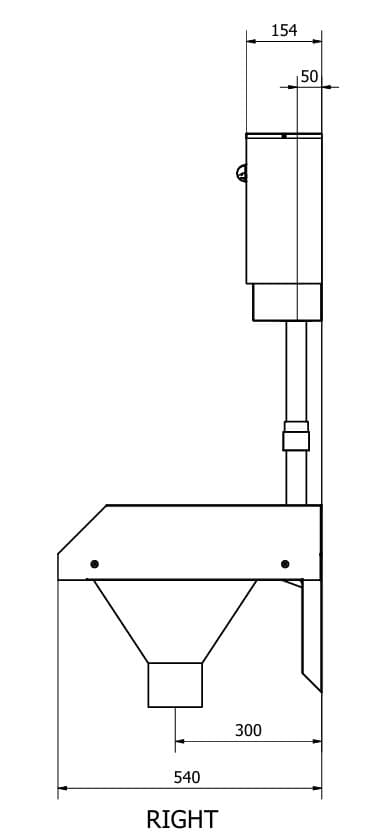

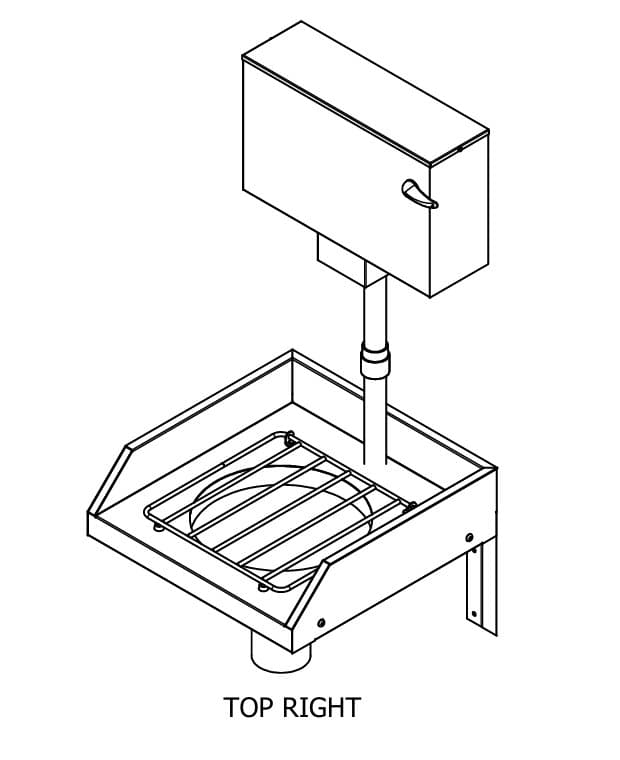

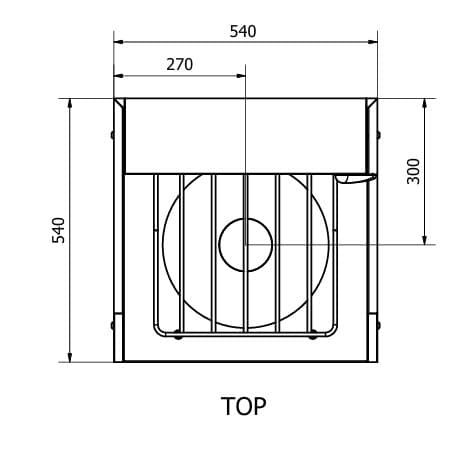

PDFTechnical image: Stainless Steel Slop Hopper with Low Level Cistern & Bucket Grid — B22360(TG-LLC)
Image · Technical media
Technical image: Stainless Steel Slop Hopper with Low Level Cistern & Bucket Grid — B22360(TG-LLC)
Image · Technical media
Technical image: Stainless Steel Slop Hopper with Low Level Cistern & Bucket Grid — B22360(TG-LLC)
Image · Technical media
Technical image: Stainless Steel Slop Hopper with Low Level Cistern & Bucket Grid — B22360(TG-LLC)
Image · Technical media
Need another product document?
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 540 mm
- Width
- Fixed
- 540 mm
- Splashback Height
- Fixed
- 100 mm
- Bucket Grid
- Fixed
- Yes
- Flushing Inlet Orientation
- Fixed
- Top Entry
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
| Specification | Value | Configuration |
|---|---|---|
| Splashback Height |
| Fixed |
| Bucket Grid |
| Fixed |
| Flushing Inlet Orientation |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
