B22366(B3-106) Slop Hopper and Wash Hand Basin with B106 Flush Valve, Hinged Bucket Grid and Wall Mounting Gallows Brackets
Image indicative of the range. Configurations may differ.
1 / 5 product images
Grade 304 stainless steel unit with right-hand slop hopper and left-hand wash hand basin. Includes Walcro B106 flush valve, hinged bucket grid with stops and wall mounting gallows brackets.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R15,705.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The B22366(B3-106) combines a right-hand slop hopper and left-hand wash hand basin in a 960 mm long, fully welded Grade 304 stainless steel unit. It has a satin finish and an integral rear splashback for healthcare and institutional sluice rooms.
The hopper has an integral flushing rim, a 110 mm diameter outlet for a soil pipe, and a hinged bucket grid with stops. The basin has a pre-punched 1½″ waste outlet hole and provision for deck-mounted tapware.
A Walcro B106 flush valve and wall mounting gallows brackets are included. This model uses the B106 valve flushing arrangement. Specify tapware and any installation fittings with the quotation.
Features & benefits
Right-Hand Hopper and Left-Hand Basin
A 960 mm long combination unit with a slop hopper on the right and wash hand basin on the left.
Grade 304 Stainless Steel
Fully welded Grade 304 stainless steel construction with a satin finish and integral rear splashback.
Walcro B106 Flush Valve Included
The supplied Walcro B106 flush valve provides the flushing arrangement for the hopper with its integral flushing rim.
Hinged Bucket Grid with Stops
A hinged bucket grid with stops is fitted over the hopper.
Separate Hopper and Basin Outlets
The hopper has a 110 mm diameter outlet for a soil pipe. The basin has a pre-punched 1½″ waste outlet hole.
Wall Mounting Gallows Brackets Included
Gallows brackets are supplied for wall mounting the combination unit.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
24-month warranty and claims information.
PDF download
Technical media
- View file

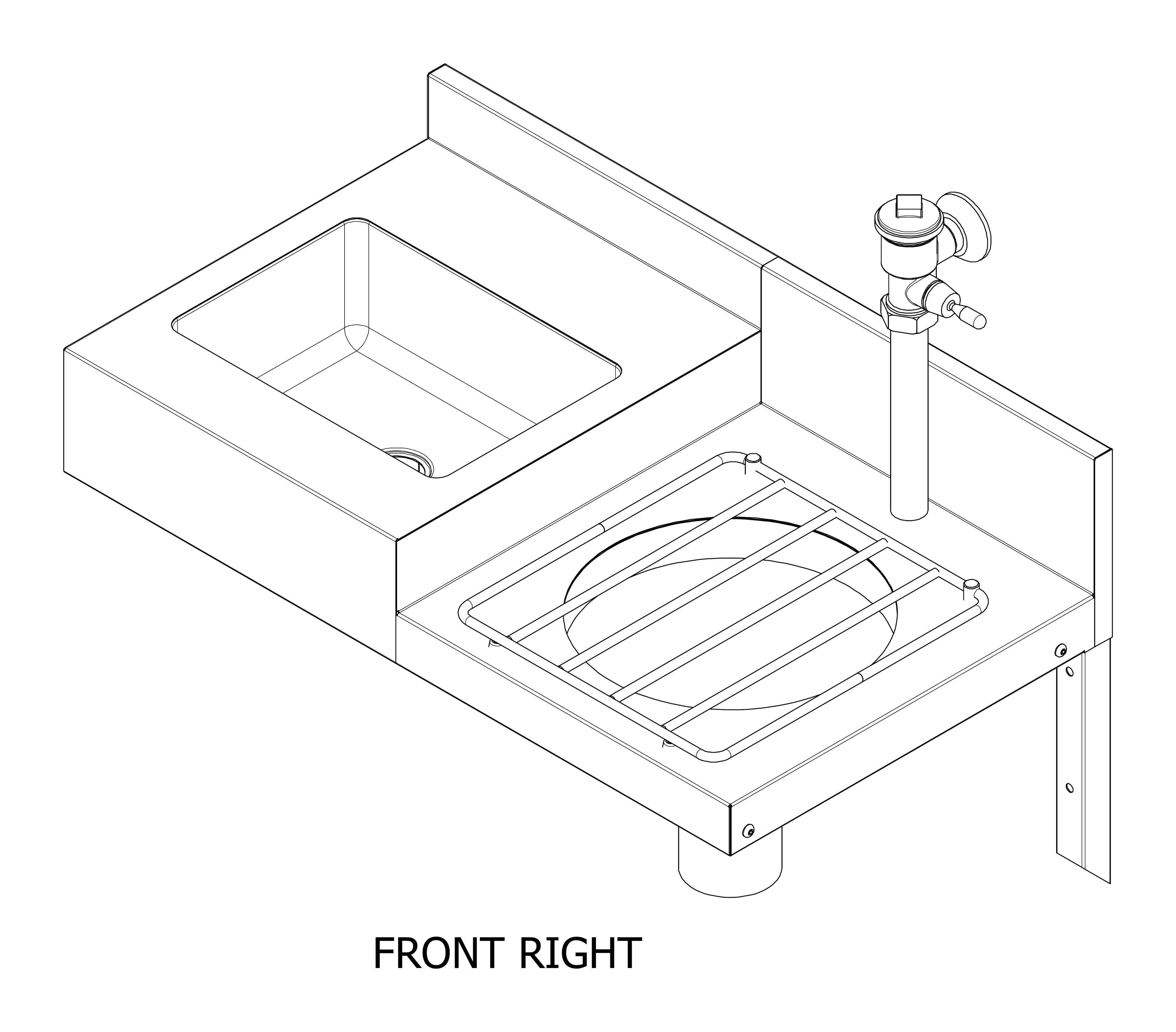

Front-Right Isometric view: B22366(B3-106), with flush valve, hinged bucket grid and wall mounting gallows brackets.
Image · Technical media
- View file

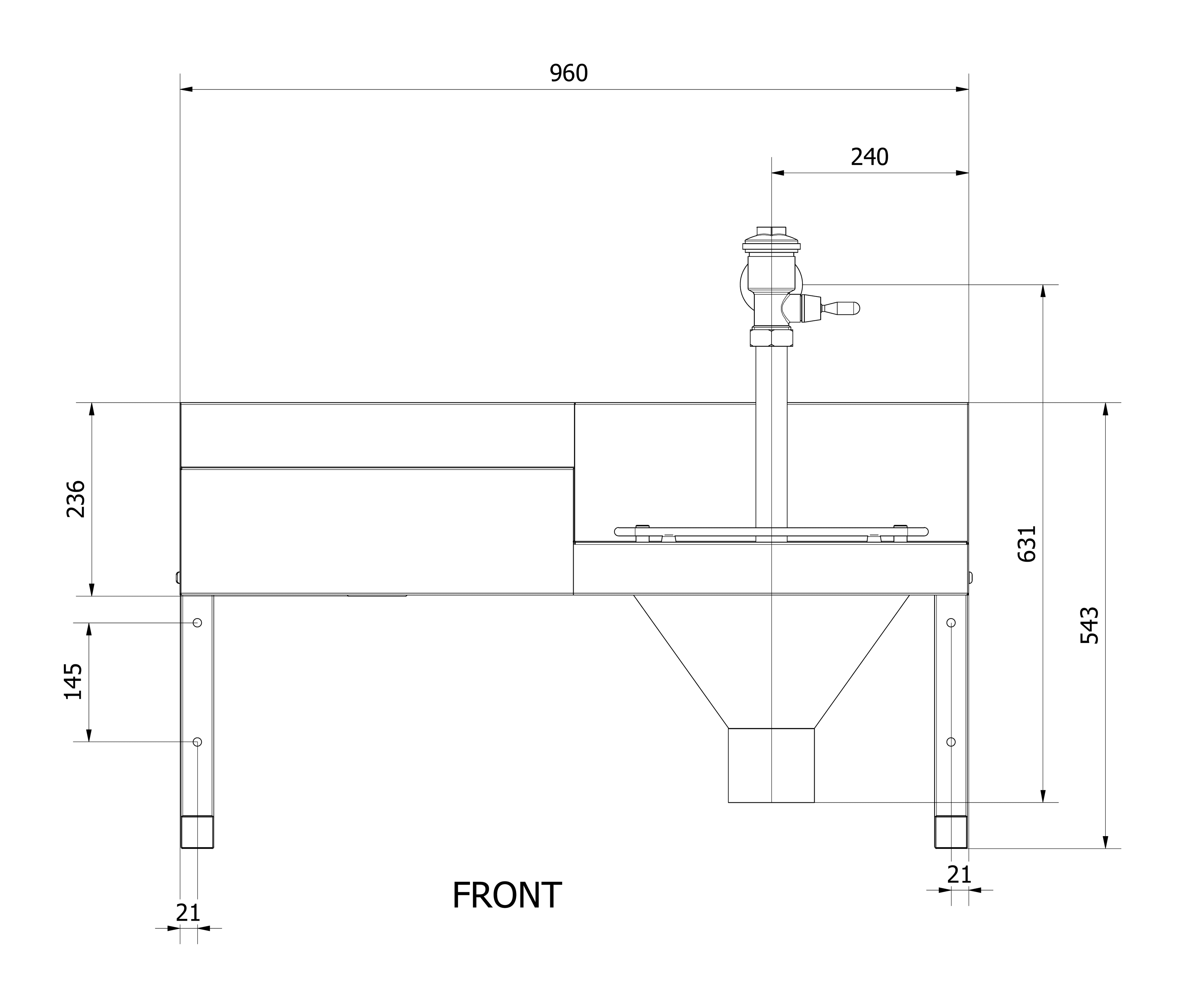

Front view: B22366(B3-106), with flush valve, hinged bucket grid and wall mounting gallows brackets.
Image · Technical media
- View file

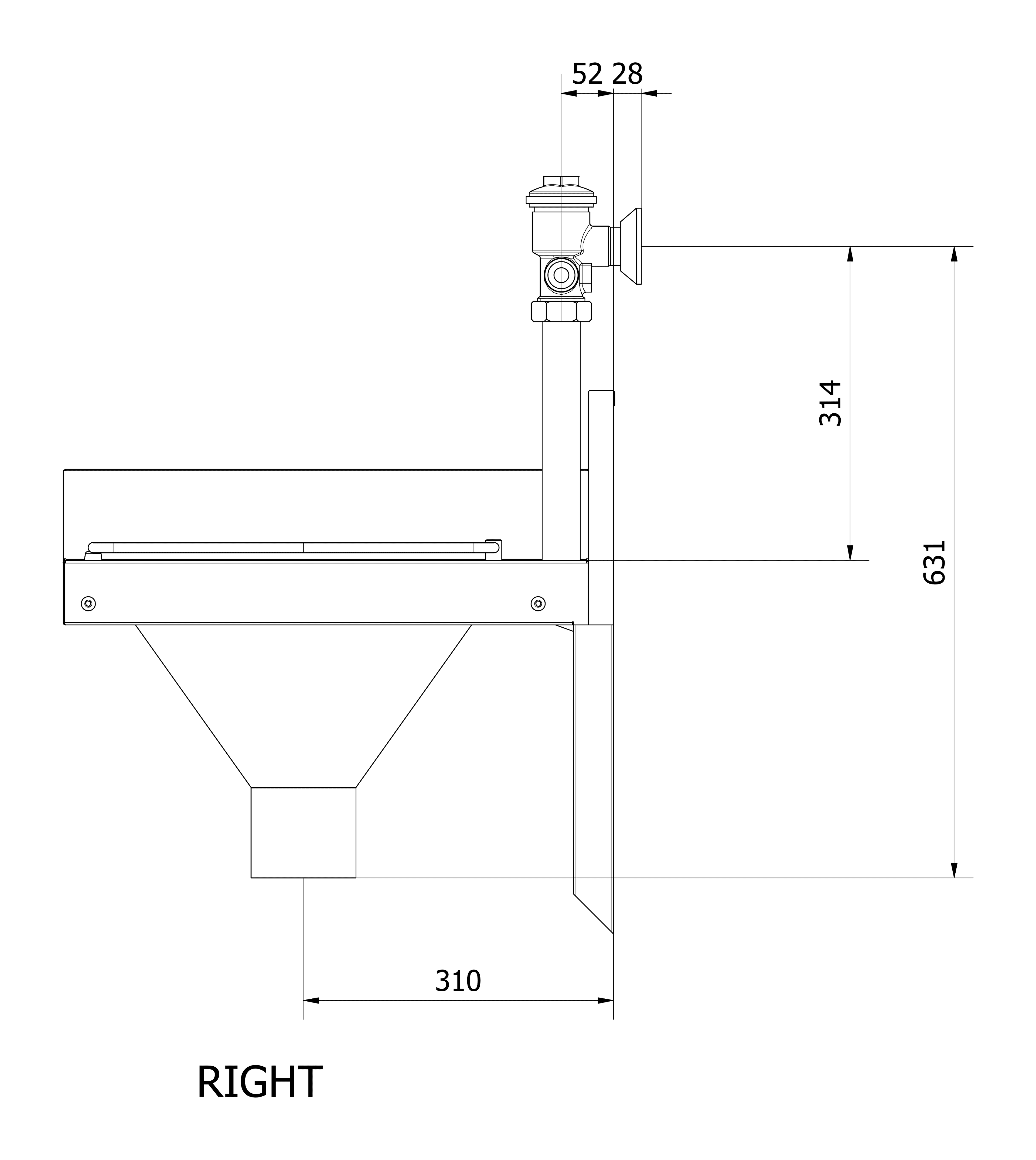

Right view: B22366(B3-106), with flush valve, hinged bucket grid and wall mounting gallows brackets.
Image · Technical media
- View file

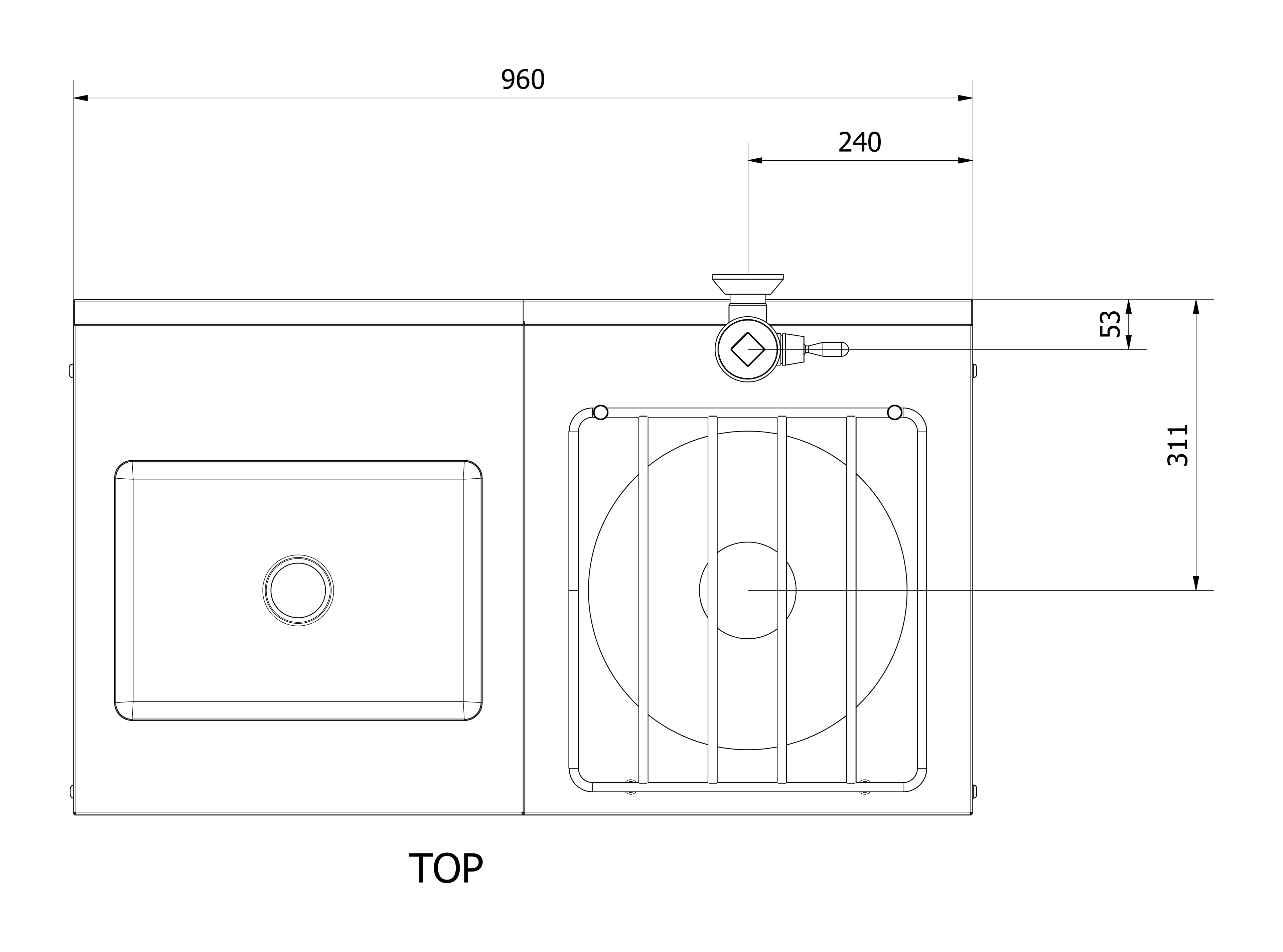

Top view: B22366(B3-106), with flush valve, hinged bucket grid and wall mounting gallows brackets.
Image · Technical media
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 960 mm
- Bucket Grid
- Fixed
- Yes
- Finish
- Fixed
- Satin
- Flushing Operation
- Fixed
- Walcro B106 Flush Valve Included
- Hopper Orientation
- Fixed
- Right
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted with Gallows Brackets
- Support Grids
- Fixed
- Hinged Bucket Grid with Stops
- Wash Hand Basin Orientation
- Fixed
- Left
- Waste Outlet Diameter
- Fixed
- 110 mm
- Waste Outlet Hole
- Fixed
- Pre-Punched 1½″ Basin Waste Outlet Hole
| Specification | Value | Configuration |
|---|---|---|
| Bucket Grid |
| Fixed |
| Finish |
| Fixed |
| Flushing Operation |
| Fixed |
| Hopper Orientation |
| Fixed |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Support Grids |
| Fixed |
| Wash Hand Basin Orientation |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Waste Outlet Hole |
| Fixed |
