ProductWash Hand Basins
B36528 Stainless Steel Secure Wash Basin with Shroud
Image indicative of the range. Configurations may differ.
1 / 4 product images
Wall-mounted Grade 304 stainless steel security wash basin with enclosed plumbing, a removable access panel and integral rear splashback.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview

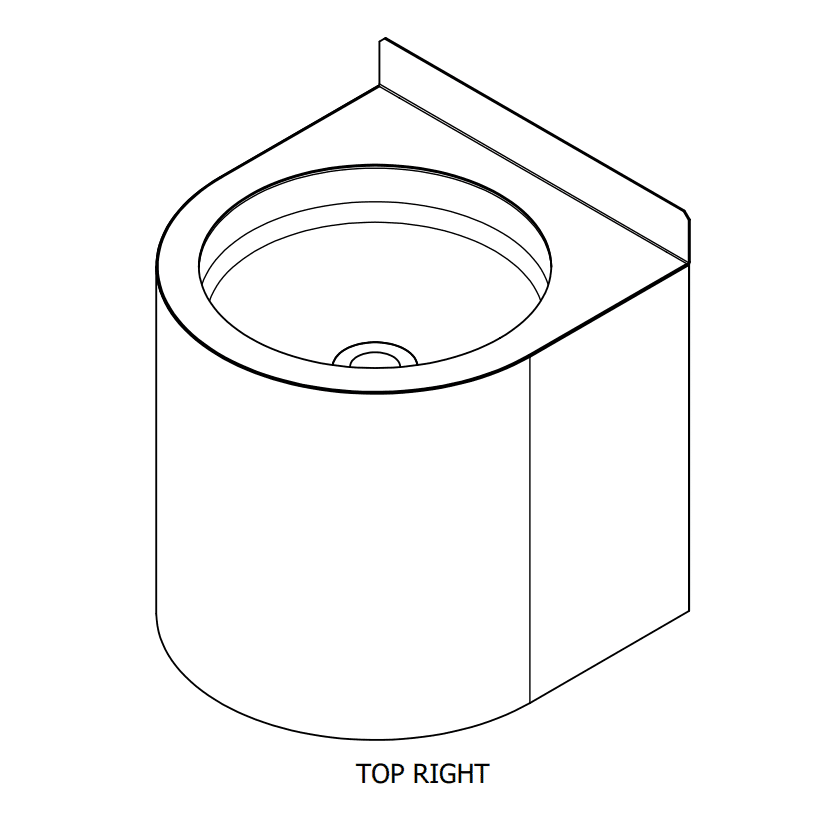

The B36528 security wash basin conceals plumbing within a shrouded body for correctional and other institutional washrooms. It is manufactured from 1.2 mm Grade 304 stainless steel with a satin-brushed finish.

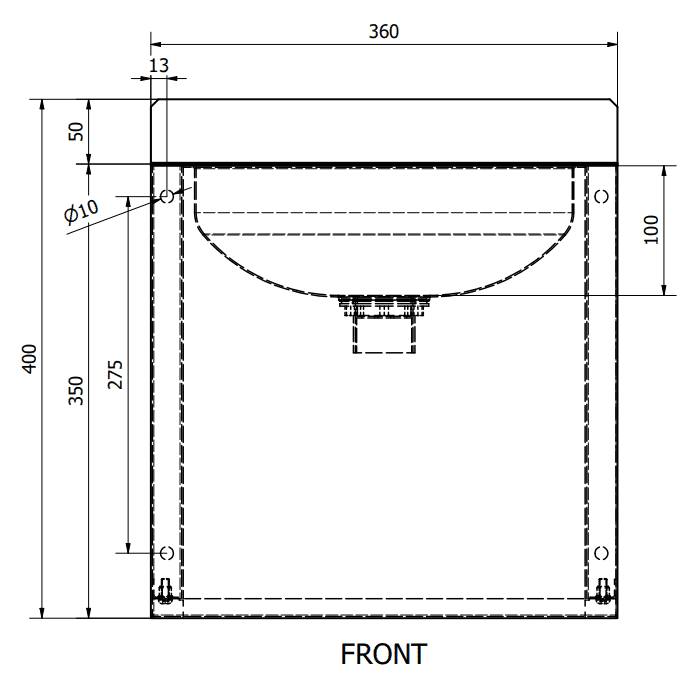

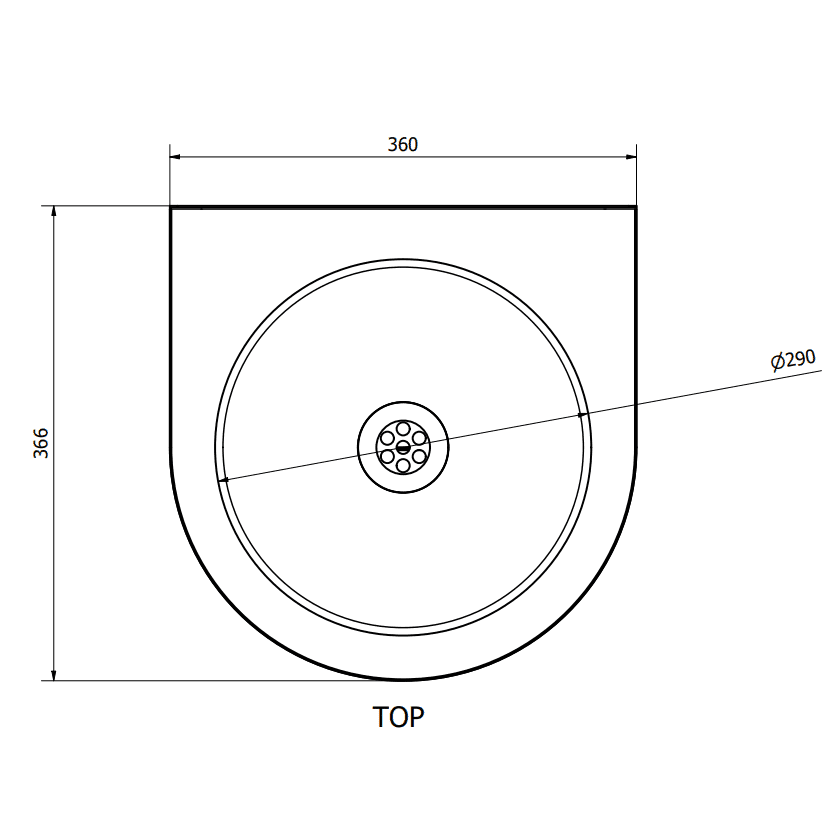

Overall dimensions are 360 × 366 × 400 mm. The round bowl is 290 mm in diameter and 100 mm deep, with radiused corners. A 50 mm integral rear splashback and 40 mm waste outlet hole are provided.
A removable base access panel is secured with tamper-resistant screws for maintenance access. Specify an anti-vandal timed-flow pillar tap or the required tap-hole preparation. The unit is wall mounted.
Product data
Specifications & models
Specifications
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
24-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical files
