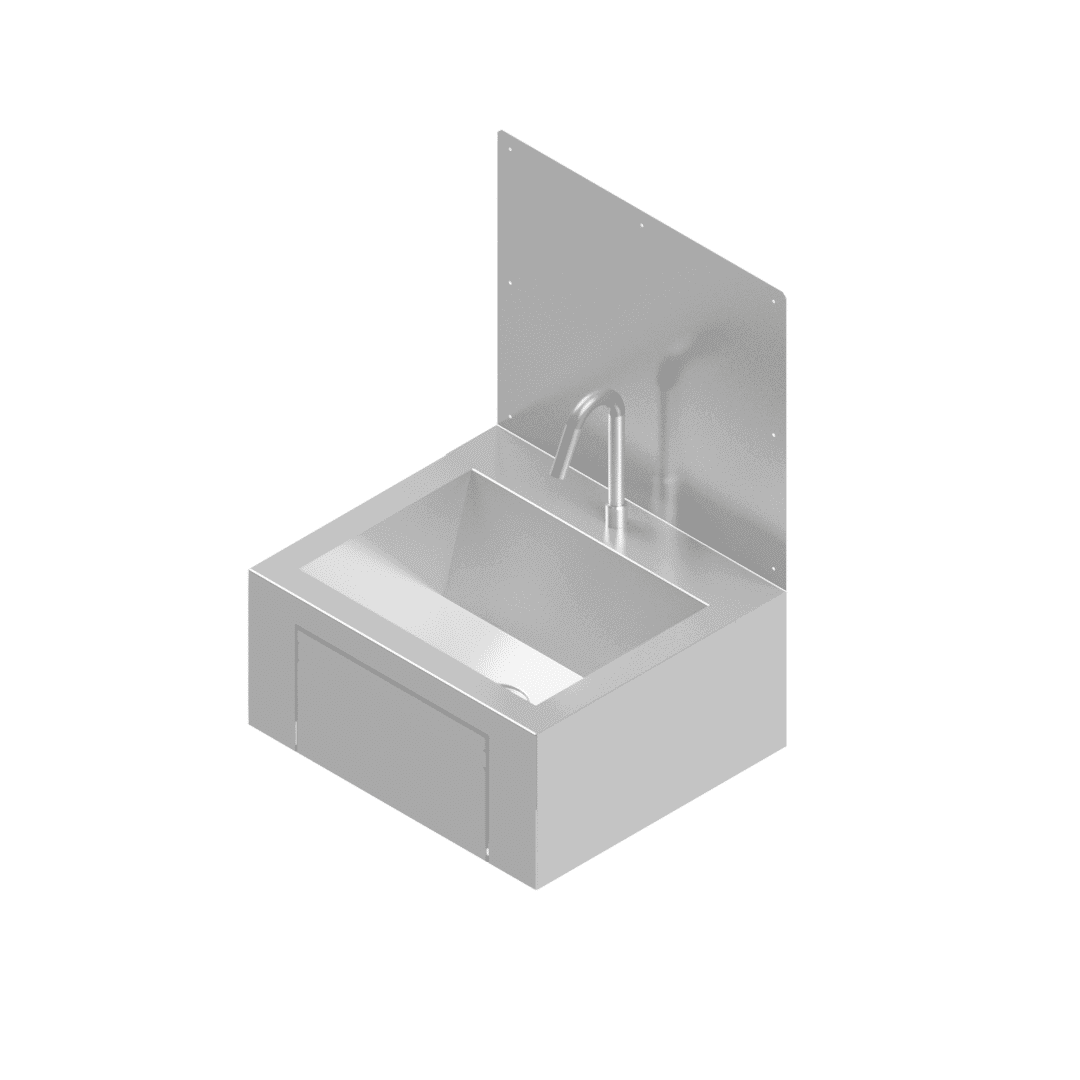

B36657 Knee Activated Wash Hand Basin with Shroud
Image indicative of the range. Configurations may differ.
1 / 3 product images
Knee-activated Grade 304 stainless steel wash hand basin with an enclosed shroud and aerated gooseneck spout. Choose a standard or 400 mm extended splashback. Demand valve operation is standard; metered valve models are available under advanced options. Front support legs are an optional extra and are excluded from the base-model prices.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
R4,788.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
2 of 2 options selected
Extended splashback (400 mm): No · Optional front support legs: No
B36657(D) is ready to quote.
Extended splashback (400 mm)
Optional front support legs
Selected model
B36657(D)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, demand Valve and Standard Splashback. Front Support Legs Are an Optional Extra; Excluded from This Base Model.
Loading model details…
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B36657 provides knee-operated handwashing with a stainless steel shroud around the plumbing. Press the front panel with either knee to operate the valve, leaving both hands free for washing.
The basin is manufactured from Grade 304 stainless steel, with a 500 mm length x 390 mm width, a 40 mm waste outlet and an aerated gooseneck spout. It is wall mounted using a mounting bracket. Confirm the mounting height, wall support and plumbing layout for the installation.
B36657(D) has demand valve operation and a standard splashback. B36657(DE) adds the 400 mm extended splashback. A demand valve delivers water while the knee panel is pressed. Metered models, available under advanced options, deliver water for a preset period after activation.
Front support legs are an optional extra. The leg-equipped configurations use 25 x 25 mm square tubular Grade 304 stainless steel legs with adjustable feet. Select front support legs when requesting a quotation; the listed B36657(D) and B36657(DE) prices exclude them.
Use this basin at staff handwashing points in food processing, commercial kitchens, change rooms and institutional washrooms. Select the valve, splashback and support arrangement to suit the site's handwashing routine and installation layout.
An Advanced Ø22mm thermostatic mixing valve is available as a separately priced optional extra. Choose this optional extra when hot and cold water need to be mixed into a pre-tempered supply. The knee control switches water flow on or off; it does not mix the supplies or adjust the temperature. We recommend one Advanced Ø22mm thermostatic mixing valve per single washing station.
Features & benefits
Knee-operated front panel
Operate the valve with either knee to leave both hands free for washing.
Enclosed stainless steel shroud
The shroud encloses the basin plumbing.
Grade 304 stainless steel
Grade 304 stainless steel basin construction.
Aerated gooseneck spout
A gooseneck outlet provides an aerated water stream.
Choice of splashback
Choose the standard splashback or the 400 mm extended splashback.
Optional front support legs
25 x 25 mm Grade 304 square tubular legs with adjustable feet are available as an optional extra; base prices exclude legs.
Optional Pre-Tempered Water
Choose this optional extra when hot and cold water need to be mixed into a pre-tempered supply. The knee control switches water flow on or off; it does not mix the supplies or adjust the temperature. We recommend one Advanced Ø22mm thermostatic mixing valve per single washing station. Valve supplied separately.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 500 mm
- Width
- Fixed
- 390 mm
- Valve activation
- Configurable
- Demand Valve
- Metered Valve
- Extended splashback (400 mm)
- Configurable
- No
- Yes
- Optional front support legs
- Configurable
- No
- Yes
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
- Waste Outlet Diameter
- Fixed
- 40 mm
- Splashback Height
- Fixed
- 400 mm
| Specification | Value | Configuration |
|---|---|---|
| Valve activation |
| Configurable |
| Extended splashback (400 mm) |
| Configurable |
| Optional front support legs |
| Configurable |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Splashback Height |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B36657(D-SL1) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, demand Valve and Standard Splashback. Includes Optional Front Support Legs with Adjustable Feet. Shrouded Knee Basin, Demand, Standard, Legs | Demand Valve | No | Yes | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | - | View specifications
| |
| B36657(D) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, demand Valve and Standard Splashback. Front Support Legs Are an Optional Extra; Excluded from This Base Model. Shrouded Knee Basin, Demand, Standard | Demand Valve | No | No | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | - | View specifications
| |
| B36657(DE-SL1) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, demand Valve and 400 mm Extended Splashback. Includes Optional Front Support Legs with Adjustable Feet. Shrouded Knee Basin, Demand, Extended, Legs | Demand Valve | Yes | Yes | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | 400 mm | View specifications
| |
| B36657(DE) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, demand Valve and 400 mm Extended Splashback. Front Support Legs Are an Optional Extra; Excluded from This Base Model. Shrouded Knee Basin, Demand, Extended | Demand Valve | Yes | No | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | 400 mm | View specifications
| |
| B36657(M-SL1) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, Metered Valve and Standard Splashback. Includes Optional Front Support Legs with Adjustable Feet. Shrouded Knee Basin, Metered, Standard, Legs | Metered Valve | No | Yes | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | - | View specifications
| |
| B36657(M) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, Metered Valve and Standard Splashback. Front Support Legs Are an Optional Extra; Excluded from This Base Model. Shrouded Knee Basin, Metered, Standard | Metered Valve | No | No | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | - | View specifications
| |
| B36657(ME-SL1) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, Metered Valve and 400 mm Extended Splashback. Includes Optional Front Support Legs with Adjustable Feet. Shrouded Knee Basin, Metered, Extended, Legs | Metered Valve | Yes | Yes | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | 400 mm | View specifications
| |
| B36657(ME) | Knee-Activated Grade 304 Stainless Steel Wash Basin with Shroud, Metered Valve and 400 mm Extended Splashback. Front Support Legs Are an Optional Extra; Excluded from This Base Model. Shrouded Knee Basin, Metered, Extended | Metered Valve | Yes | No | 500 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 390 mm | 400 mm | View specifications
|
