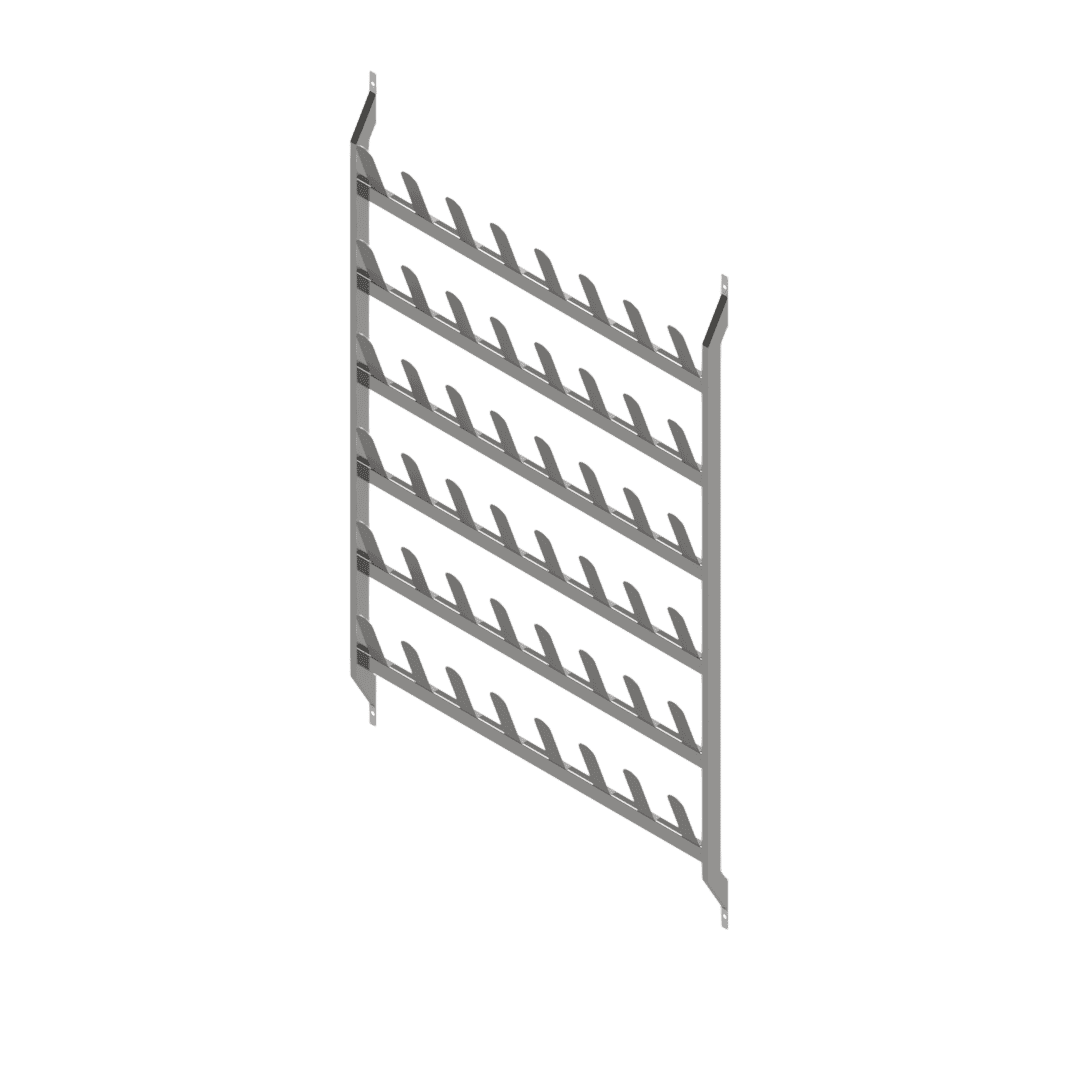

B38134 Wall-Mounted Stainless Steel Shoe Rack

The Basterfield B38134 wall-mounted shoe rack provides an organised storage point for work shoes in changing rooms, locker rooms and footwear storage areas. It is manufactured from Grade 304 stainless steel with integral wall-mounting brackets and safety-ended shoe-support tongues.

Choose storage for 4, 8, 12, 16, 20, 24 or 36 shoe pairs. One pair means two shoes. All models are 93 mm wide. The 4- to 24-pair models are 1050 mm long; the 36-pair model is 1310 mm long. Overall rack height varies with the selected capacity.

B38134(P04): 4 shoe pairs; 1050 mm (L) x 93 mm (W) x 465 mm (H).

B38134(P08): 8 shoe pairs; 1050 mm (L) x 93 mm (W) x 703 mm (H).

B38134(P12): 12 shoe pairs; 1050 mm (L) x 93 mm (W) x 941 mm (H).

B38134(P16): 16 shoe pairs; 1050 mm (L) x 93 mm (W) x 1180 mm (H).

B38134(P20): 20 shoe pairs; 1050 mm (L) x 93 mm (W) x 1418 mm (H).

B38134(P24): 24 shoe pairs; 1050 mm (L) x 93 mm (W) x 1658 mm (H).

B38134(P36): 36 shoe pairs; 1310 mm (L) x 93 mm (W) x 2132 mm (H).

Use the rack in staff changing rooms, locker rooms and PPE storage areas at food-processing premises, laboratories, pharmaceutical facilities, healthcare and veterinary workplaces, commercial laundries and manufacturing sites. It also suits footwear storage in catering and hospitality staff areas where work shoes are changed or stored.

Mount the rack on a suitable load-bearing wall or support structure using fixings selected for the substrate and loaded rack. The listed height describes the rack itself, separate from its mounting position above the floor. Allow space to place and remove shoes, clean around the rack and keep circulation routes clear.

Select the capacity and dimensions for the intended footwear and installation. Clean using products and methods suitable for Grade 304 stainless steel and follow the workplace cleaning procedure. Inspect the shoe supports, brackets and mounting fixings during routine maintenance.
