B57110(0500) Compact Two-Basket Grease Trap — 50 mm Connections
Image indicative of the range. Configurations may differ.
1 / 4 product images
Compact Two-Basket Grease Trap for single bowls and prep sinks. Grade 304 stainless steel, 500 × 300 × 400 mm, with 50 mm connections and three outlet-layout choices.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
1 of 1 options selected
B57110(FF-0500-050-2B) is ready to quote.
Outlet Configuration
Selected model
B57110(FF-0500-050-2B)
Your configuration
Price on request
- Outlet Configuration
- Same Side (Front)
- Height
- 400 mm
- Drop-On Lid
- With Handle
- Inlet Diameter
- 50 mm
- Length
- 500 mm
- Material
- Stainless Steel Grade 304
- Material Thickness
- 0.9 mm
- Primary Basket Perforation Diameter
- 6 mm
- Secondary Basket Perforation Diameter
- 3 mm
- Trap Basket Count
- 2
- Waste Outlet Diameter
- 50 mm
- Width
- 300 mm
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
Compact grease trap suitable for single bowls and prep sinks. Grade 304 stainless steel with 0.9 mm main-body thickness, 500 mm (L) × 300 mm (W) × 400 mm (H). Diameter 50 mm inlet and outlet on the same side (front). Two-basket system: primary basket with diameter 6 mm perforations and secondary basket with diameter 3 mm perforations. Drop-on lid with handle. Images illustrate the layout using the larger model.
Specifications
Basterfield B57110(FF-0500-050-2B). Compact grease trap suitable for single bowls and prep sinks. Grade 304 stainless steel with 0.9 mm main-body thickness, 500 mm (L) × 300 mm (W) × 400 mm (H). Diameter 50 mm inlet and outlet on the same side (front). Two-basket system: primary basket with diameter 6 mm perforations and secondary basket with diameter 3 mm perforations. Drop-on lid with handle. Images illustrate the layout using the larger model.
- Material: Stainless Steel Grade 304
- Material Thickness: 0.9 mm
- Width: 300 mm
- Waste Outlet Diameter: 50 mm
- Height: 400 mm
- Length: 500 mm
- Inlet Diameter: 50 mm
- Trap Basket Count: 2
- Primary Basket Perforation Diameter: 6 mm
- Secondary Basket Perforation Diameter: 3 mm
- Drop-On Lid: With Handle
- Inlet/Outlet Arrangement: Same Side (Front)
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B57110(0500) compact two-basket grease trap is suitable for single bowls and prep sinks. It measures 500 × 300 × 400 mm (L × W × H) and has diameter 50 mm inlet and outlet connections.
Grade 304 stainless steel construction uses a 0.9 mm main-body thickness. The two-basket system has a primary basket with diameter 6 mm perforations and a secondary basket with diameter 3 mm perforations. A drop-on lid with a handle provides access from above.
Choose one of three inlet/outlet layouts: opposite sides; both connections on the same side (front); or front and side at 90° to each other. Each configuration has one inlet and one outlet.
The range also includes a larger 700 × 400 × 400 mm model with 110 mm connections for large format sinks and pot sinks. Confirm the sink discharge flow, grease load, pipe connections and installation space when selecting a model.

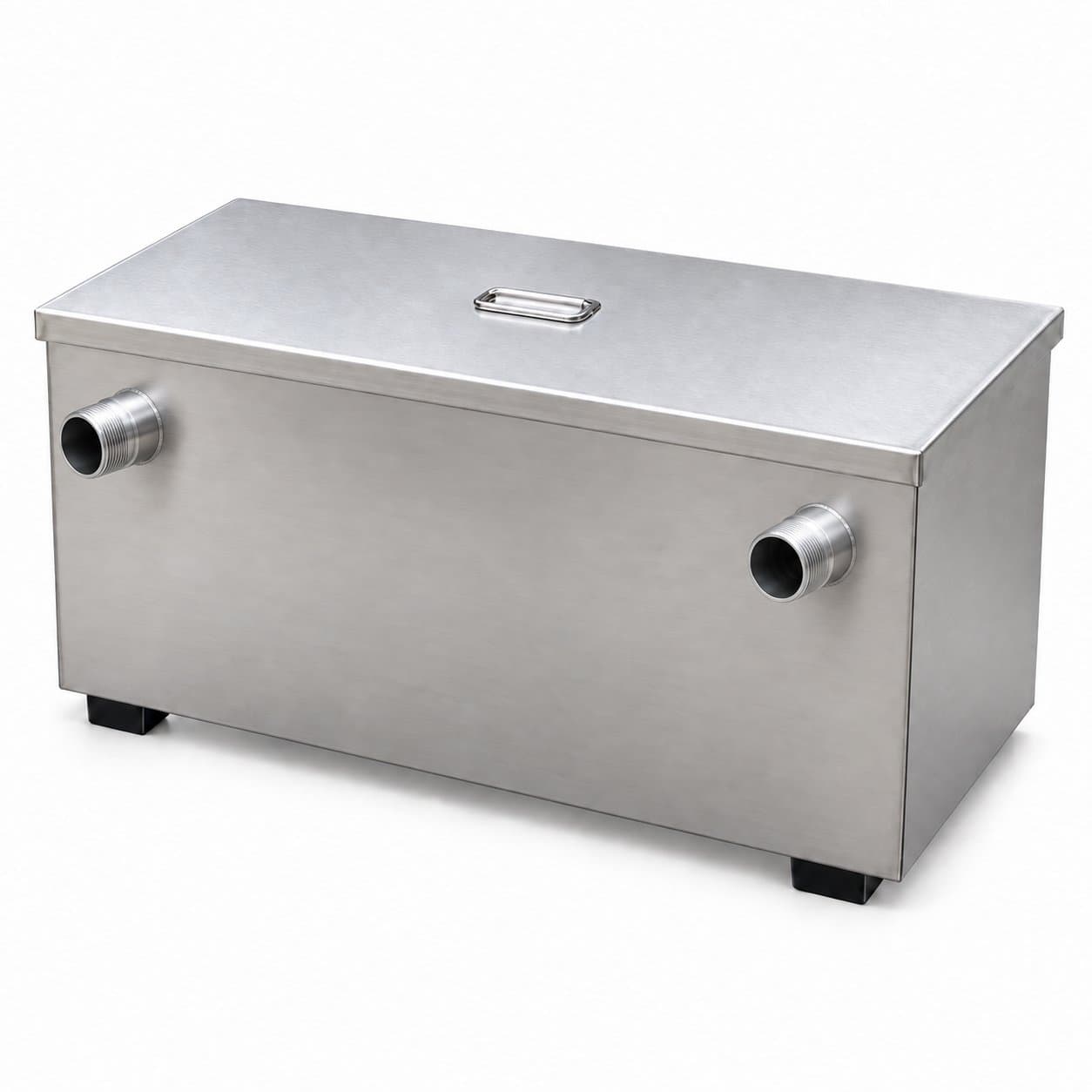

Images illustrate the outlet layouts using the larger model. The compact model dimensions are 500 × 300 × 400 mm with 50 mm connections.
Features & benefits
For Single Bowls and Prep Sinks
500 × 300 × 400 mm body with diameter 50 mm connections, suitable for single bowls and prep sinks.
Three Outlet Layouts
Opposite sides, both connections on the front, or front and side at 90°.
Grade 304 Stainless Steel
Grade 304 stainless steel construction with a 0.9 mm main-body thickness.
Two-Basket System
Primary basket with diameter 6 mm perforations and secondary basket with diameter 3 mm perforations.
Drop-On Lid with Handle
Lift-off lid and removable baskets provide access for cleaning.
Product data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 400 mm
- Length
- Fixed
- 500 mm
- Width
- Fixed
- 300 mm
- Outlet Configuration
- Configurable
- Opposite Sides
- Same Side (Front)
- Front and Side (90°)
- Drop-On Lid
- Fixed
- With Handle
- Inlet Diameter
- Fixed
- 50 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 0.9 mm
- Primary Basket Perforation Diameter
- Fixed
- 6 mm
- Secondary Basket Perforation Diameter
- Fixed
- 3 mm
- Trap Basket Count
- Fixed
- 2
- Waste Outlet Diameter
- Fixed
- 50 mm
| Specification | Value | Configuration |
|---|---|---|
| Outlet Configuration |
| Configurable |
| Drop-On Lid |
| Fixed |
| Inlet Diameter |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Primary Basket Perforation Diameter |
| Fixed |
| Secondary Basket Perforation Diameter |
| Fixed |
| Trap Basket Count |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare 3 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price | Spec sheet | Actions | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B57110(FF-0500-050-2B) | Grease Trap Stainless Steel Grade 304 0.9mm Main-Body Thickness, 500mm (L) X 300mm (W) X 400mm (H) with Ø50mm Inlet and Outlet on the Same Side (Front), Two-Basket System, and Drop-On Lid with Handle Grease Trap 500x300x400, 304 SS, Same-Side | 400 mm | With Handle | 50 mm | Same Side (Front) | 500 mm | Stainless Steel Grade 304 | 0.9 mm | 6 mm | 3 mm | 2 | 50 mm | 300 mm | Quote required | ||
| B57110(FS-0500-050-2B) | Grease Trap Stainless Steel Grade 304 0.9mm Main-Body Thickness, 500mm (L) X 300mm (W) X 400mm (H) with Ø50mm Inlet and Outlet on the Front and Side at 90°, Two-Basket System, and Drop-On Lid with Handle Grease Trap 500x300x400, 304 SS, Front/Side 90° | 400 mm | With Handle | 50 mm | Front and Side (90°) | 500 mm | Stainless Steel Grade 304 | 0.9 mm | 6 mm | 3 mm | 2 | 50 mm | 300 mm | Quote required | ||
| B57110(OS-0500-050-2B) | Grease Trap Stainless Steel Grade 304 0.9mm Main-Body Thickness, 500mm (L) X 300mm (W) X 400mm (H) with Ø50mm Inlet and Outlet on Opposite Sides, Two-Basket System, and Drop-On Lid with Handle Grease Trap 500x300x400, 304 SS, Opposite-Side | 400 mm | With Handle | 50 mm | Opposite Sides | 500 mm | Stainless Steel Grade 304 | 0.9 mm | 6 mm | 3 mm | 2 | 50 mm | 300 mm | Quote required |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B57110(0500).
PDFProduct warranty
12-month warranty and claims information for B57110(0500).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product FAQ
