B60140 Wall-Mounted Stainless Steel Cleaner's Sink with Bucket Grid
Image indicative of the range. Configurations may differ.
1 / 4 product images
Wall-mounted Grade 304 stainless steel cleaner's sink with hinged bucket grid, protective rubber bumpers and 40 mm waste outlet. Choose 480 or 600 mm length, with 500 mm width and 230 mm bowl depth as standard. A 300 mm bowl depth is available under advanced customisation.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 1 options selected
Select Length to complete your configuration.
Length
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview

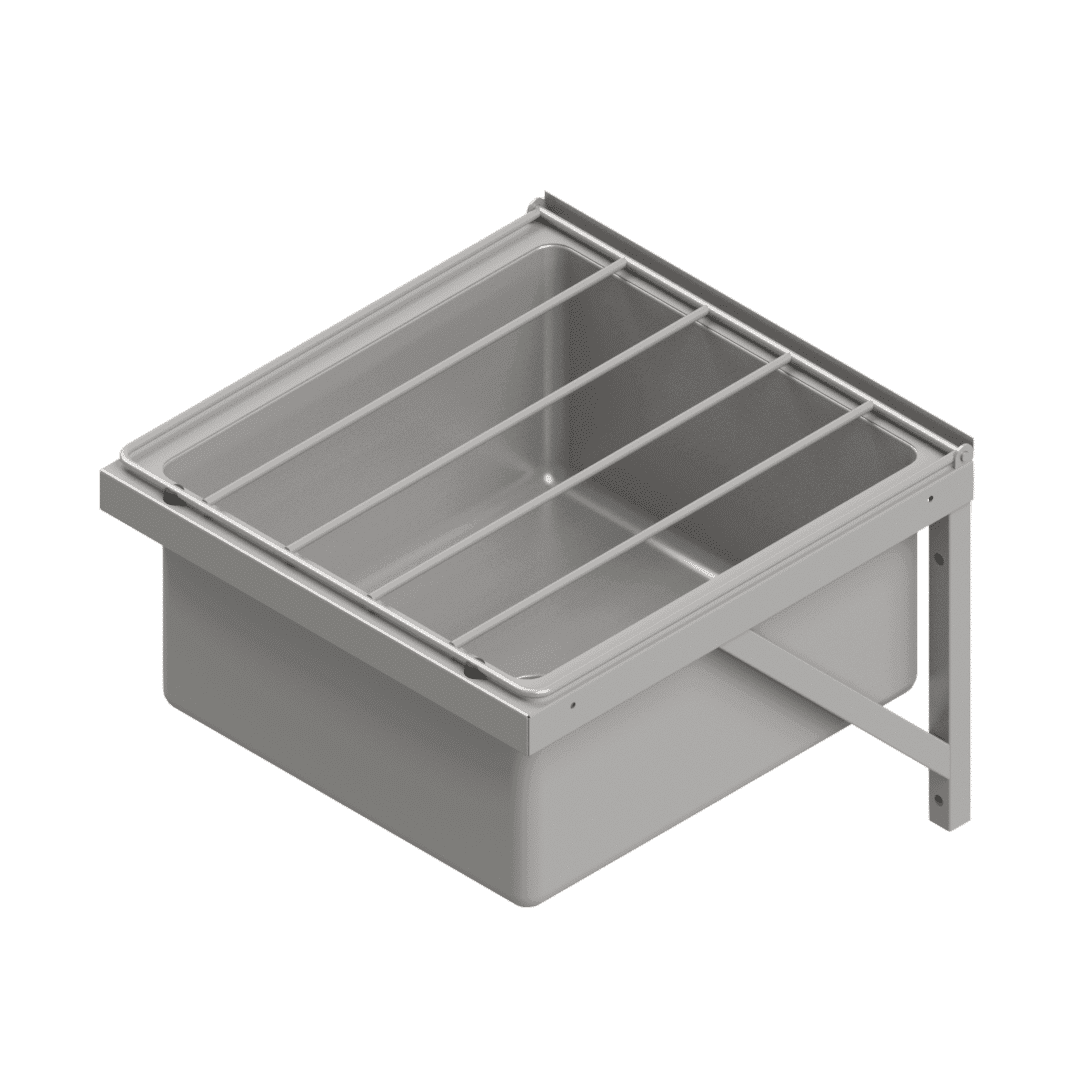

The Basterfield B60140 cleaner's sink provides a dedicated washing point for buckets and cleaning equipment in janitorial and utility rooms. It is manufactured from Grade 304 stainless steel with a deep-drawn bowl and coved corners. A hinged bucket grid supports the bucket above the bowl; protective rubber bumpers are fitted to the sink.

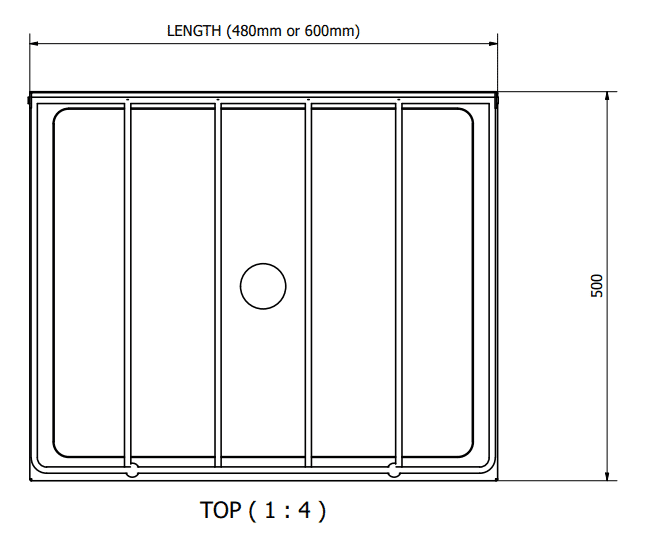

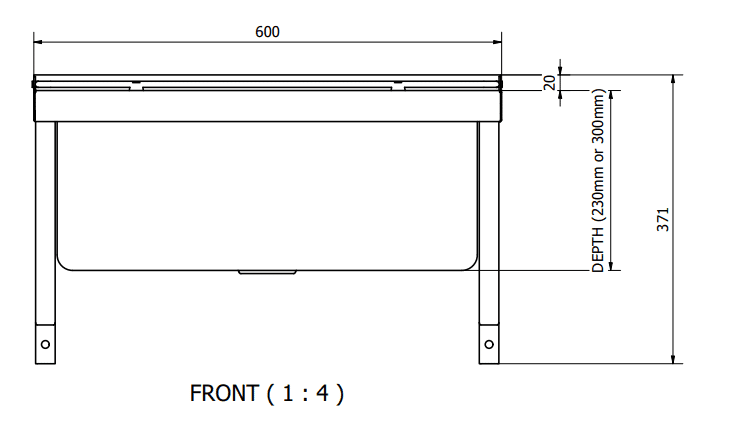

The range is wall mounted on heavy-duty gallows brackets. The top-view drawing specifies 480 or 600 mm length and 500 mm width. 230 mm bowl depth is standard. Enable advanced customisation to choose a 300 mm bowl depth. Bowl depth describes the vertical depth of the bowl. The front-to-back width is 500 mm; set the installation height above the floor separately.
B60140(480) has a 480 mm length and 230 mm bowl depth. B60140(480-300) has a 480 mm length and 300 mm bowl depth. B60140(600) has a 600 mm length and 230 mm bowl depth. B60140(600x300) has a 600 mm length and 300 mm bowl depth. All four configurations include the hinged bucket grid and a 40 mm waste outlet.
Use the sink in housekeeping and janitorial rooms at hotels, catering premises, healthcare facilities, schools and other workplaces. It also suits dedicated cleaning support areas in laundries, food-processing premises, laboratories, factories and public buildings.
Confirm the wall support, mounting position, water supply fittings and waste connection for the installation. Allow access to raise the grid, handle buckets and clean the bowl and surrounding surfaces. Clean using products and methods suitable for Grade 304 stainless steel and the facility cleaning procedure.
Features & benefits
Grade 304 stainless steel
Stainless steel construction with a deep-drawn bowl and coved corners.
Hinged bucket grid included
The hinged grid provides a bucket support above the bowl and lifts for access to the sink.
230 mm standard bowl depth
Choose 480 or 600 mm length x 500 mm width. 230 mm bowl depth is standard. Enable advanced customisation to choose a 300 mm bowl depth.
Wall-mounted gallows brackets
Heavy-duty gallows brackets provide the wall mounting arrangement.
40 mm waste outlet
The bowl has a 40 mm waste outlet for connection to the site drainage.
Protective rubber bumpers
Rubber bumpers are fitted to the cleaner's sink.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B60140.
PDFProduct warranty
24-month warranty and claims information for B60140.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 480 mm
- 600 mm
- Width
- Fixed
- 500 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Bowl Depth
- Configurable
- 230 mm
- 300 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Mounting Type
- Fixed
- Wall Mounted
- Waste Outlet Diameter
- Fixed
- 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Bowl Depth |
| Configurable |
| Material |
| Fixed |
| Mounting Type |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare 4 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| B60140(480-300) | Wall-Mounted Grade 304 Stainless Steel Cleaner's Sink, 480 mm (L) x 500 mm (W), with 300 mm Bowl Depth, Hinged Bucket Grid, Rubber Bumpers and 40 mm Waste Outlet. Cleaner's Sink, 480 x 500 mm, 300 mm Bowl | 300 mm | 480 mm | - | - | - | - | View specifications
| |
| B60140(480) | Wall-Mounted Grade 304 Stainless Steel Cleaner's Sink, 480 mm (L) x 500 mm (W), with 230 mm Bowl Depth, Hinged Bucket Grid, Rubber Bumpers and 40 mm Waste Outlet. Cleaner's Sink, 480 x 500 mm, 230 mm Bowl | 230 mm | 480 mm | - | - | - | - | View specifications
| |
| B60140(600) | Wall-Mounted Grade 304 Stainless Steel Cleaner's Sink, 600 mm (L) x 500 mm (W), with 230 mm Bowl Depth, Hinged Bucket Grid, Rubber Bumpers and 40 mm Waste Outlet. Cleaner's Sink, 600 x 500 mm, 230 mm Bowl | 230 mm | 600 mm | Stainless Steel Grade 304 | Wall Mounted | 40 mm | 500 mm | View specifications
| |
| B60140(600x300) | Wall-Mounted Grade 304 Stainless Steel Cleaner's Sink, 600 mm (L) x 500 mm (W), with 300 mm Bowl Depth, Hinged Bucket Grid, Rubber Bumpers and 40 mm Waste Outlet. Cleaner's Sink, 600 x 500 mm, 300 mm Bowl | 300 mm | 600 mm | - | - | - | - | View specifications
|
