B75130 Shower Trays Stainless Steel
Image indicative of the range. Configurations may differ.
1 / 3 product images
Heavy-duty Grade 304 stainless steel shower trays for recessed or frame-mounted installation. Available in 750, 800 and 900 mm square sizes, each 100 mm high with a 40 mm apron and pre-punched 1 1/2-inch BSPT waste outlet hole.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 1 options selected
Select Length to complete your configuration.
Length
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B75130 is a heavy-duty Grade 304 stainless steel shower tray for high-traffic hospitals, public ablutions, hostels and industrial facilities. Standard square sizes are 750 x 750 mm, 800 x 800 mm and 900 x 900 mm, each 100 mm high.
Turned-down edges on all four sides allow recessed installation or secure frame mounting, while the 40 mm apron provides a clean perimeter finish. Each tray is prepared with a pre-punched 1 1/2-inch BSPT waste outlet hole. The waste fitting is not included unless selected separately.
Custom sizes can be manufactured on request.
Features & benefits
Grade 304 stainless steel
Hygienic, corrosion-resistant stainless steel construction for demanding shower areas.
Heavy-duty institutional design
Designed for high-traffic hospitals, hostels, public ablutions and industrial facilities.
Recessed or frame-mounted
Turned-down edges on all four sides support recessed installation or secure frame mounting.
Prepared waste connection
Supplied with a pre-punched 1 1/2-inch BSPT waste outlet hole; select the compatible waste fitting separately.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B75130.
PDFProduct warranty
12-month warranty and claims information for B75130.

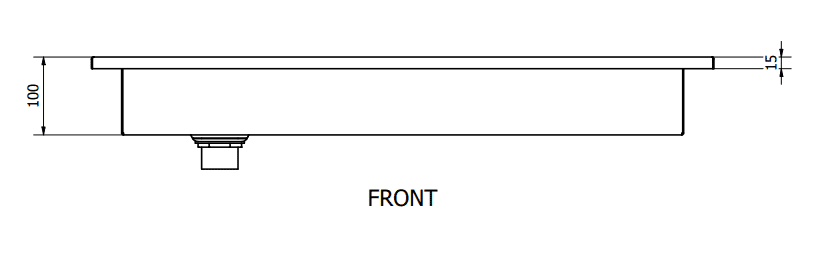

PDFB75130 technical drawing - front elevation
Image · Technical media

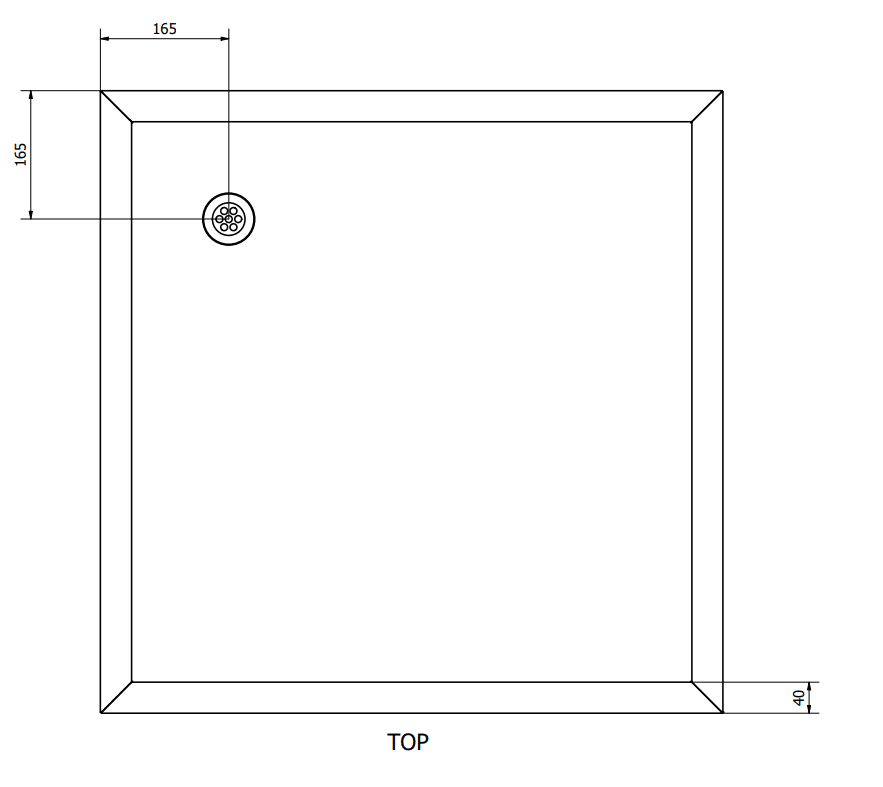

B75130 technical drawing - top view
Image · Technical media
Need another product document?
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 750 mm
- 800 mm
- 900 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 0.9 mm
| Specification | Value | Configuration |
|---|---|---|
| Material |
| Fixed |
| Material Thickness |
| Fixed |
Available models & compare variants
Compare 3 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||
|---|---|---|---|---|---|---|
| B75130(0750) | Shower Tray Stainless Steel Grade 304 750 mm (L) x 750 mm (W) x 100 mm (H) to B75130(750){PSS}, with a Pre-Punched 1 1/2-inch BSPT Waste Outlet Hole. Grade 304 Shower Tray 750 x 750 x 100 mm | 750 mm | Stainless Steel Grade 304 | 0.9 mm | View specifications
| |
| B75130(0800) | Shower Tray Stainless Steel Grade 304 800 mm (L) x 800 mm (W) x 100 mm (H) to B75130(800){PSS}, with a Pre-Punched 1 1/2-inch BSPT Waste Outlet Hole. Grade 304 Shower Tray 800 x 800 x 100 mm | 800 mm | Stainless Steel Grade 304 | 0.9 mm | View specifications
| |
| B75130(0900) | Shower Tray Stainless Steel Grade 304 900 mm (L) x 900 mm (W) x 100 mm (H) to B75130(900){PSS}, with a Pre-Punched 1 1/2-inch BSPT Waste Outlet Hole. Grade 304 Shower Tray 900 x 900 x 100 mm | 900 mm | Stainless Steel Grade 304 | 0.9 mm | View specifications
|
