ProductFish Preparation Stations
F88920(1800R) 1800mm Fish Preparation and Cleaning Station

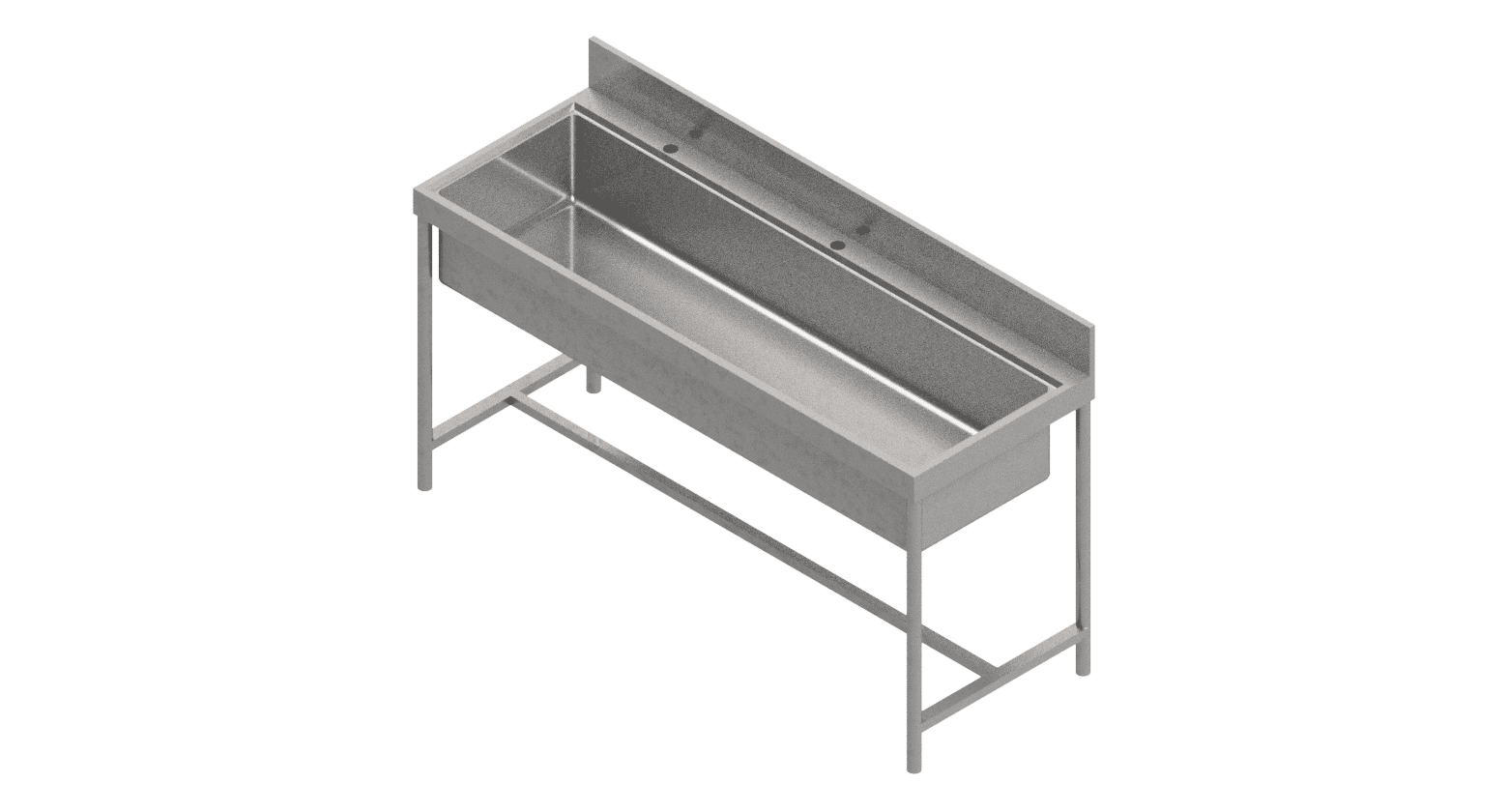

Image indicative of the range. Configurations may differ.
1 / 2 product images
1800mm fish preparation and cleaning station with two 500 × 600mm inset chopping boards, a 300mm deep basin, 150mm rear splashback and right-hand waste outlet. Optional overhead rinse available separately.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview
The F88920(1800R) combines two inset chopping boards and a deep basin in one station for manual fish preparation and cleaning. It provides a defined preparation area alongside basin access for washing and clearing the work area.
The station is 1800mm long and 650mm wide, with a specified height of 900mm and a 150mm rear splashback. Each of the two inset chopping boards measures 500mm × 600mm. The basin is 300mm deep and has a right-hand waste outlet. Allow installation clearance for the station and its rear splashback.
The station is intended for fish and seafood preparation work areas where cutting, preparation and cleaning tasks are carried out at the same workstation. Plan access to the basin and the right-hand drainage connection to suit the workflow.
An overhead pre-rinse spray with mixer taps, item 04TM-PRS0001, is available as an optional extra and is supplied separately. Select one assembly per station when required. Confirm the mounting position, water supplies, clearances and spray reach for the installation.
Pricing is available on request. Include the quantity required, delivery location, drainage requirements and any optional rinse selection in the quotation request.
Features & benefits
Two Inset Chopping Boards
Two chopping boards, each 500mm × 600mm, provide defined surfaces for manual fish preparation.
300mm Deep Basin
The basin brings washing and cleaning access into the preparation station.
150mm Rear Splashback
A splashback along the rear edge helps contain splashes towards the back of the workstation.
1800mm × 650mm Station
The specified station footprint combines the chopping-board area and basin in one unit.
Right-Hand Waste Outlet
The right-hand outlet orientation helps define the drainage layout when planning the installation.
Optional Overhead Pre-Rinse
Add item 04TM-PRS0001 for an overhead pre-rinse spray with mixer taps. One assembly per station is recommended when selected; it is supplied separately.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 1800 mm
- Width
- Fixed
- 650 mm
- Bowl Depth
- Fixed
- 300 mm
- Chopping Board Installation
- Fixed
- Inset
- Chopping Board Length
- Fixed
- 500 mm
- Chopping Board Quantity
- Fixed
- 2
- Chopping Board Width
- Fixed
- 600 mm
- Specified Height
- Fixed
- 900 mm
- Splashback Configuration
- Fixed
- Rear
- Splashback Height
- Fixed
- 150 mm
- Waste Outlet Orientation
- Fixed
- Right Hand
| Specification | Value | Configuration |
|---|---|---|
| Bowl Depth |
| Fixed |
| Chopping Board Installation |
| Fixed |
| Chopping Board Length |
| Fixed |
| Chopping Board Quantity |
| Fixed |
| Chopping Board Width |
| Fixed |
| Specified Height |
| Fixed |
| Splashback Configuration |
| Fixed |
| Splashback Height |
| Fixed |
| Waste Outlet Orientation |
| Fixed |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct FAQ
