A45146(112) Heavy Duty Recessed Sorting Table with End Outlet
Image indicative of the range. Configurations may differ.
1 / 5 product images
Heavy duty Grade 304 stainless steel sorting table with a 1.2mm worktop, 100mm recess and 300mm end outlet. Inset legs create an overhang for a receiving crate. Full stainless steel framework, cross bracing and black plastic adjustable feet.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
Choose your specifications
Select Length, Width to complete your configuration.
Length
Width
Need something else? Custom requirements can be discussed with our team.
Discuss a custom requirementComplete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
A heavy duty manual sorting table with a 1.2mm Grade 304 stainless steel worktop and a 100mm deep recess. The recessed area helps contain food items during sorting, inspection and separation.
A 300mm wide opening at one end lets operators move sorted food items from the recessed surface into a crate or other receiving container below. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening.
The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled.
Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level.
Standard lengths are 1200, 1500, 1800, 2000 and 2400mm, with widths of 600, 650 or 700mm. A 750mm width and other nonstandard sizes are custom and subject to quotation.
Features & benefits
100mm Deep Recess
The deep recessed work area helps contain food items while they are sorted and inspected by hand.
300mm End Outlet
A 300mm wide opening at one end lets operators move sorted food items from the recessed surface into a crate or other receiving container below.
Inset Legs at the Outlet End
The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening.
Heavy Duty Grade 304 Worktop
The worktop is made from 1.2mm Grade 304 stainless steel.
Full Stainless Steel Underframework
The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled.
Black Plastic Adjustable Feet
Adjustable feet allow the sorting table to be levelled.
1000mm Overall Height
Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level.
Installation & support
Technical information & documents
Product documents
Installation, specifications and warranty information.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
24-month warranty and claims information.
PDF
Technical media
- View file

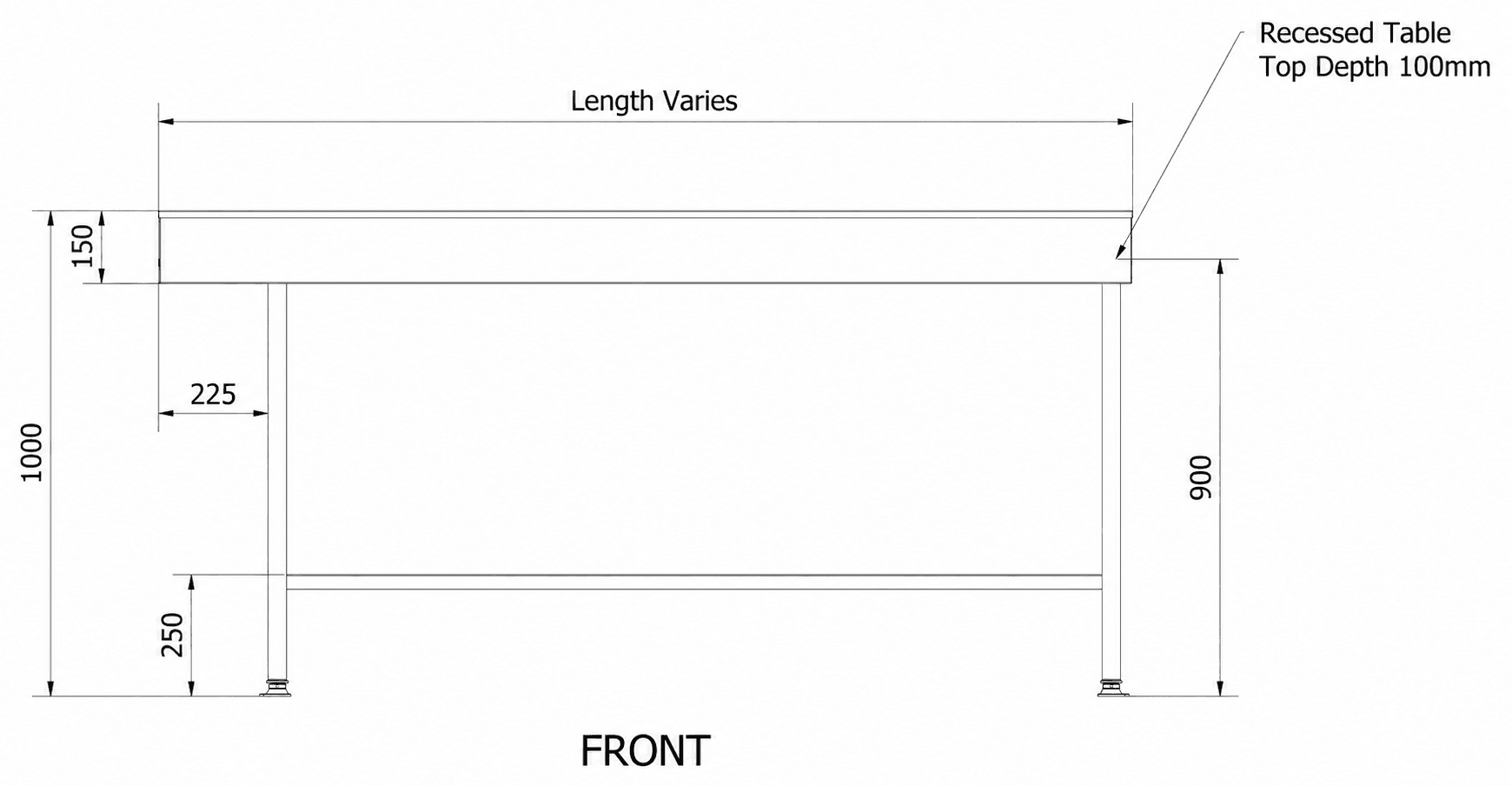

Range front view. Length varies by configuration; overall height is 1000mm, working-surface height is 900mm and recess depth is 100mm. Fixed dimensions are in millimetres.
Image · Technical media
- View file

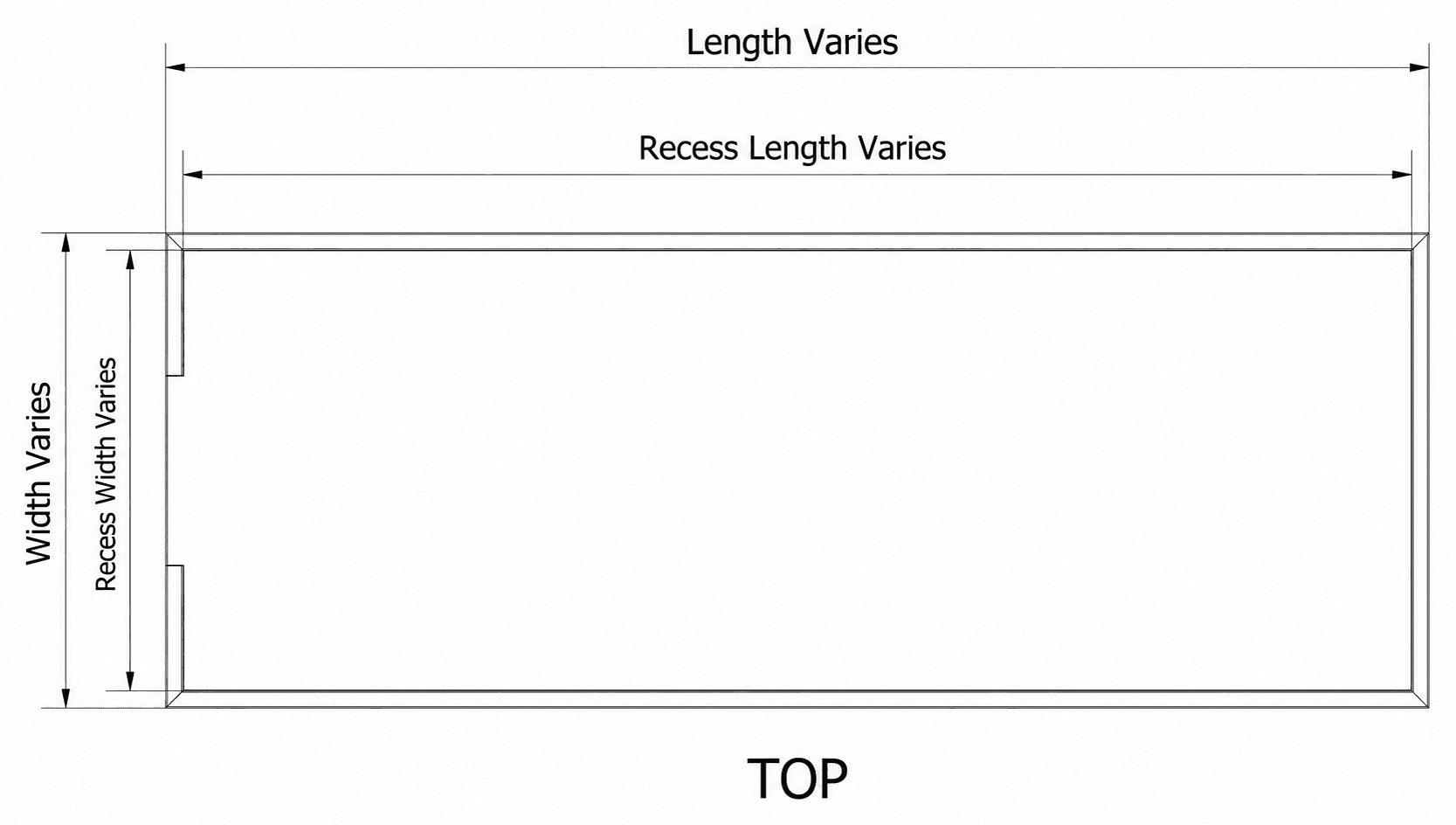

Range top view. Overall length and width, and recessed working-area length and width, vary by configuration.
Image · Technical media
- View file

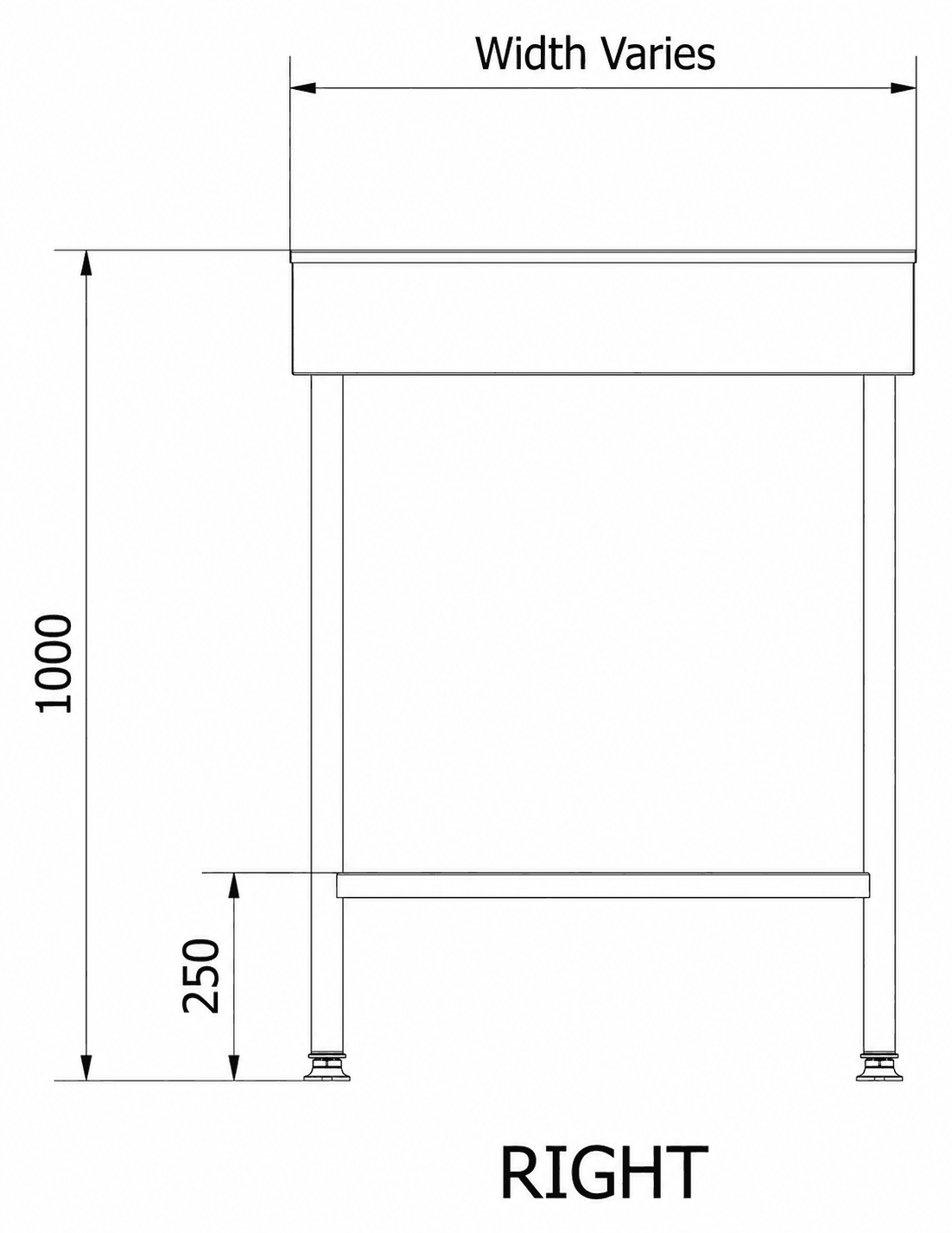

Range right view. Width varies by configuration; overall height is 1000mm. Fixed dimensions are in millimetres.
Image · Technical media
- View file

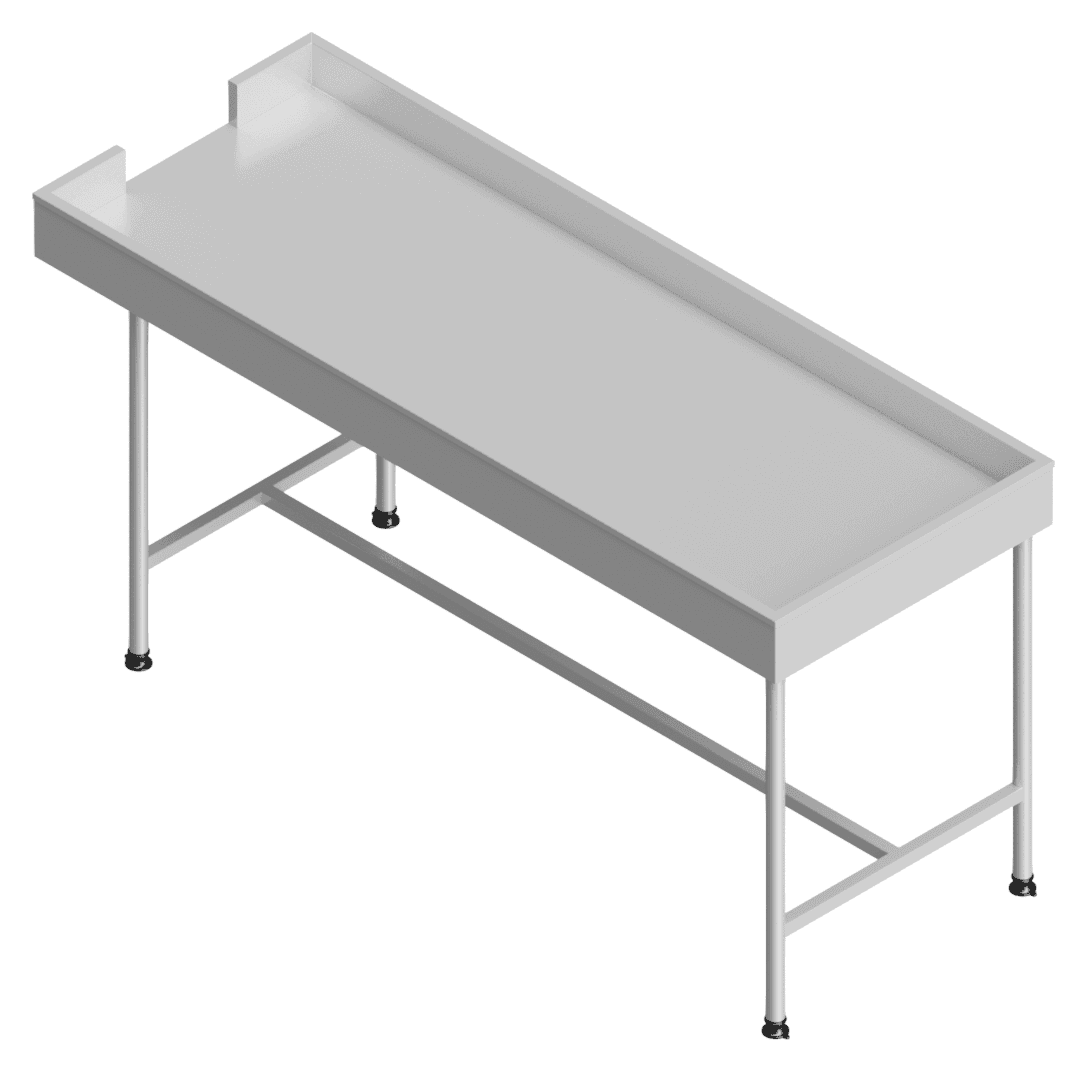

Representative isometric view of the recessed sorting table and stainless steel underframework. Length and width vary by configuration.
Image · Technical media
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 1200 mm
- 1500 mm
- 1800 mm
- 2000 mm
- 2400 mm
- Width
- Configurable
- 600 mm
- 650 mm
- 700 mm
- Height
- Fixed
- 1000 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Adjustable Feet
- Fixed
- Yes
- Cross Bracing
- Fixed
- Yes
- Feet Material
- Fixed
- Black Plastic
- Framework Material
- Fixed
- Stainless Steel
- Leg Diameter
- Fixed
- 38.1 mm
- Leg Profile
- Fixed
- Round Tubular
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Outlet Position
- Fixed
- One End
- Outlet Width
- Fixed
- 300 mm
- Outlet-End Leg Arrangement
- Fixed
- Inset to Provide Overhang
- Product Range
- Fixed
- Heavy Duty
- Recessed Slab Depth
- Fixed
- 100 mm
- Slab Edge
- Fixed
- Deep Recess with End Outlet
- Working Height
- Fixed
- 900 mm
| Specification | Value | Configuration |
|---|---|---|
| Adjustable Feet |
| Fixed |
| Cross Bracing |
| Fixed |
| Feet Material |
| Fixed |
| Framework Material |
| Fixed |
| Leg Diameter |
| Fixed |
| Leg Profile |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Outlet Position |
| Fixed |
| Outlet Width |
| Fixed |
| Outlet-End Leg Arrangement |
| Fixed |
| Product Range |
| Fixed |
| Recessed Slab Depth |
| Fixed |
| Slab Edge |
| Fixed |
| Working Height |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A45146(112-1200x0600) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1200mm (L) x 600mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1200mm (L) x 600mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 600 mm | 900 mm | View specifications
| |
| A45146(112-1200x0650) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1200mm (L) x 650mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1200mm (L) x 650mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 650 mm | 900 mm | View specifications
| |
| A45146(112-1200x0700) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1200mm (L) x 700mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1200mm (L) x 700mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 700 mm | 900 mm | View specifications
| |
| A45146(112-1500x0600) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1500mm (L) x 600mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1500mm (L) x 600mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1500 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 600 mm | 900 mm | View specifications
| |
| A45146(112-1500x0650) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1500mm (L) x 650mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1500mm (L) x 650mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1500 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 650 mm | 900 mm | View specifications
| |
| A45146(112-1500x0700) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1500mm (L) x 700mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1500mm (L) x 700mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1500 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 700 mm | 900 mm | View specifications
| |
| A45146(112-1800x0600) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1800mm (L) x 600mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1800mm (L) x 600mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 600 mm | 900 mm | View specifications
| |
| A45146(112-1800x0650) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1800mm (L) x 650mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1800mm (L) x 650mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 650 mm | 900 mm | View specifications
| |
| A45146(112-1800x0700) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 1800mm (L) x 700mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 1800mm (L) x 700mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 700 mm | 900 mm | View specifications
| |
| A45146(112-2000x0600) | Sorting Table Stainless Steel Grade 304 Heavy Duty 1.2mm Thickness 2000mm (L) x 600mm (W) x 1000mm (H) with 100mm Recess and 300mm (W) Outlet at One End. The legs at the outlet end are set back from the top to create an overhang and provide space to position a receiving container beneath the opening. The full stainless steel underframework includes cross bracing and round tubular legs with a Ø38.1mm outside diameter. Black plastic adjustable feet allow the table to be levelled. Overall height is 1000mm to the top edge. The 100mm recess places the working surface at 900mm above floor level. Sorting Table Recessed 2000mm (L) x 600mm (W) | Yes | Yes | Black Plastic | Stainless Steel | 1000 mm | 38.1 mm | Round Tubular | 2000 mm | Stainless Steel Grade 304 | 1.2 mm | One End | 300 mm | Inset to Provide Overhang | Heavy Duty | 100 mm | Deep Recess with End Outlet | 600 mm | 900 mm | View specifications
|
