H72211 Stainless Steel Body Tray
Image indicative of the range. Configurations may differ.
1 / 4 product images
Standard flat body tray for mortuary and pathology facilities, made from 1.2 mm Grade 304 stainless steel on a Ø25 mm tubular frame. Measures 2160 × 555 × 77 mm overall, including carry handles.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R5,435.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The Basterfield H72211 is a standard stainless steel body tray with a flat surface for mortuary preparation and pathology facilities. It provides the flat-surface alternative to the H72210 recessed body tray while retaining the same specified overall dimensions.

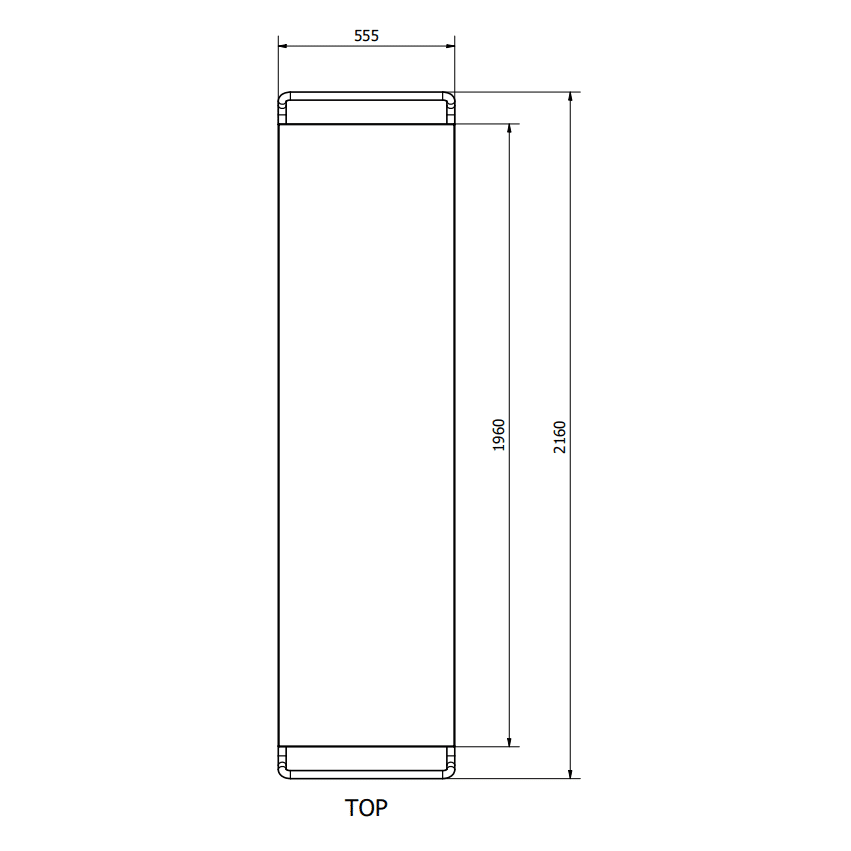

The tray is manufactured from 1.2 mm Grade 304 stainless steel and supported by a Ø25 mm tubular frame with integral carry handles. It measures 2160 mm long × 555 mm wide × 77 mm high overall, with a length of 1960 mm excluding handles. These separate length measurements help distinguish the tray length from the total space occupied by the unit.
For a replacement tray or a new equipment schedule, check the flat profile and the rack or trolley support arrangement alongside the overall dimensions. Include the existing equipment model with your enquiry so that fit can be confirmed. Select H72211 where a standard flat tray surface is required, or compare H72210 for the recessed option.
Features & benefits
Standard flat tray surface
The flat surface makes H72211 the standard alternative to the recessed H72210 tray, with the same specified overall length, width and height.
Grade 304 stainless steel
The tray is manufactured from Grade 304 stainless steel, with the material grade specified for mortuary and pathology equipment schedules.
1.2 mm tray thickness

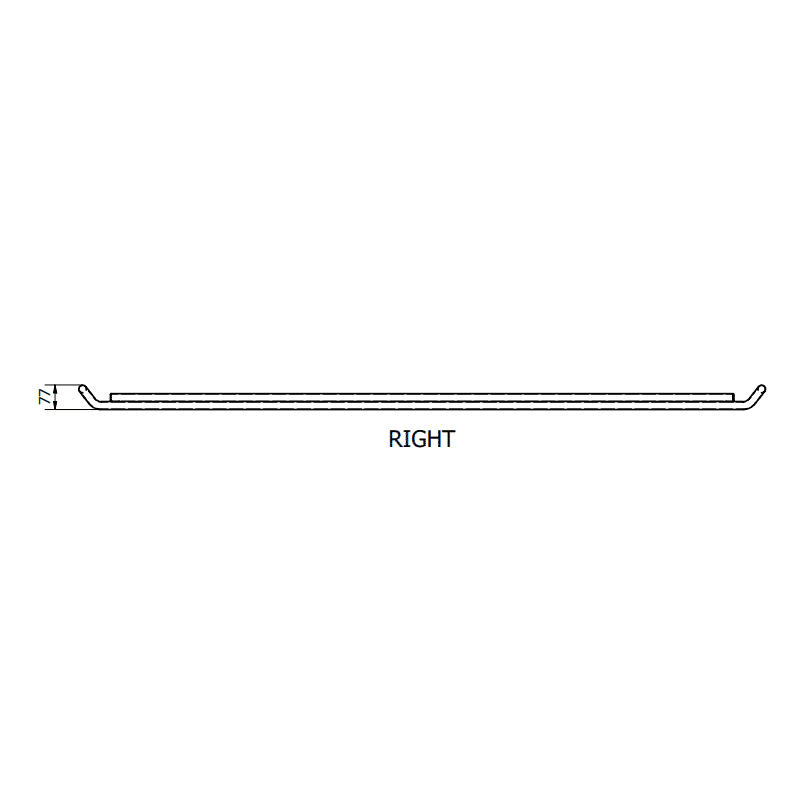

The tray is formed from 1.2 mm stainless steel sheet. This is the tray material thickness, separate from the overall 77 mm height of the unit.
Ø25 mm tubular frame
A tubular frame with a 25 mm diameter supports the tray and forms part of the overall body tray assembly.
Integral carry handles
Carry handles are included in the overall 2160 mm length. The length excluding handles is 1960 mm.
Defined overall dimensions
Overall dimensions of 2160 × 555 × 77 mm provide a clear reference for equipment schedules, space planning and rack or trolley fit checks.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H72211.
PDFProduct warranty
12-month warranty and claims information for H72211.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Specification support
Need a second set of eyes?
Product FAQ
