H72212 Stainless Steel Body Tray With Pressed Drainage
1 / 4 product images

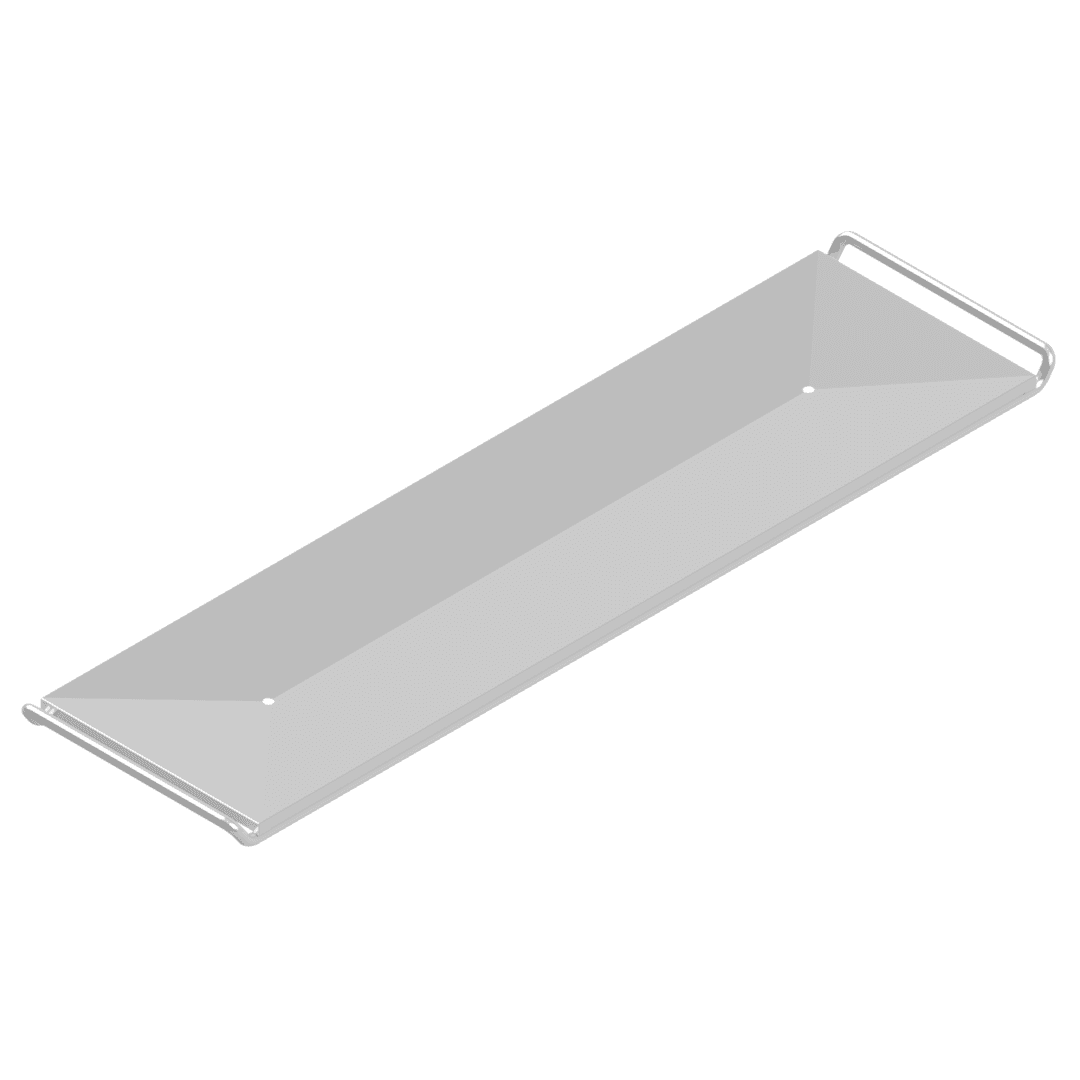

Grade 304 stainless steel body tray with pressed drainage formation and two Ø20 mm drainage holes. Made from 1.2 mm sheet on a Ø25 mm tubular frame; 2080 × 555 × 76 mm overall, including handles.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R5,435.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Product overview
The Basterfield H72212 body tray has a pressed drainage formation and two Ø20 mm drainage holes for mortuary preparation and pathology facilities. The formed tray surface leads towards the two drainage openings shown in the technical drawing.
The tray is manufactured from 1.2 mm Grade 304 stainless steel and supported by a Ø25 mm tubular frame with integral carry handles. Overall dimensions are 2080 mm long × 555 mm wide × 76 mm high. The tray length excluding handles is 1960 mm.
Use the overall dimensions when checking storage space and clearances. For use with an existing rack or trolley, check the support spacing and tray profile against the supplied drawings. H72212 is the pressed-drainage option; H72210 and H72211 are related recessed and standard flat body trays with different overall dimensions.
Features & benefits
Pressed Drainage Formation
The pressed tray surface forms drainage paths towards the two openings shown on the top-view drawing.
Two Ø20 mm Drainage Holes
Two drainage holes, each 20 mm in diameter, are incorporated into the tray.
Grade 304 Stainless Steel
The tray is manufactured from Grade 304 stainless steel sheet with a thickness of 1.2 mm.
Ø25 mm Tubular Frame
The supporting tubular frame has a diameter of 25 mm.
Integral Carry Handles
Handles are incorporated at both ends. Overall length is 2080 mm; length excluding handles is 1960 mm.
2080 × 555 × 76 mm Overall
The overall length, width and height provide the dimensions needed for space planning and equipment fit checks.
Product data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 76 mm
- Length
- Fixed
- 2080 mm
- Width
- Fixed
- 555 mm
- Drainage
- Fixed
- Pressed Drainage Formation
- Drainage Hole Diameter
- Fixed
- 20 mm
- Drainage Hole Quantity
- Fixed
- 2
- Frame Tube Diameter
- Fixed
- 25 mm
- Handle Type
- Fixed
- Integral Carry Handles
- Length Excluding Handles
- Fixed
- 1960 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
| Specification | Value | Configuration |
|---|---|---|
| Drainage |
| Fixed |
| Drainage Hole Diameter |
| Fixed |
| Drainage Hole Quantity |
| Fixed |
| Frame Tube Diameter |
| Fixed |
| Handle Type |
| Fixed |
| Length Excluding Handles |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H72212.
PDFProduct warranty
12-month warranty and claims information for H72212.
PDFH72212 top drawing showing 2080 mm overall length, 1960 mm excluding handles, 555 mm width and two Ø20 mm drainage holes
Image · Technical media
H72212 right-side drawing showing 76 mm overall height
Image · Technical media
H72212 isometric drawing of the pressed drainage body tray and tubular frame
Image · Technical media
Need another product document?
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
